G291-280
$4,184.00 Configured Summary
G291-280

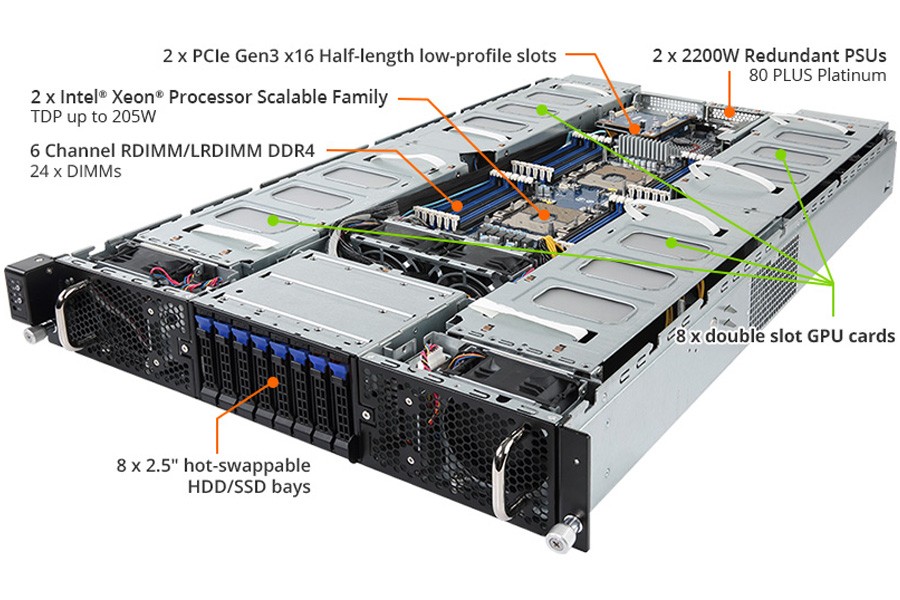

Gigabyte 2U 8Bays 8GPU Dual 2nd Gen Scalable Processor GPU Server

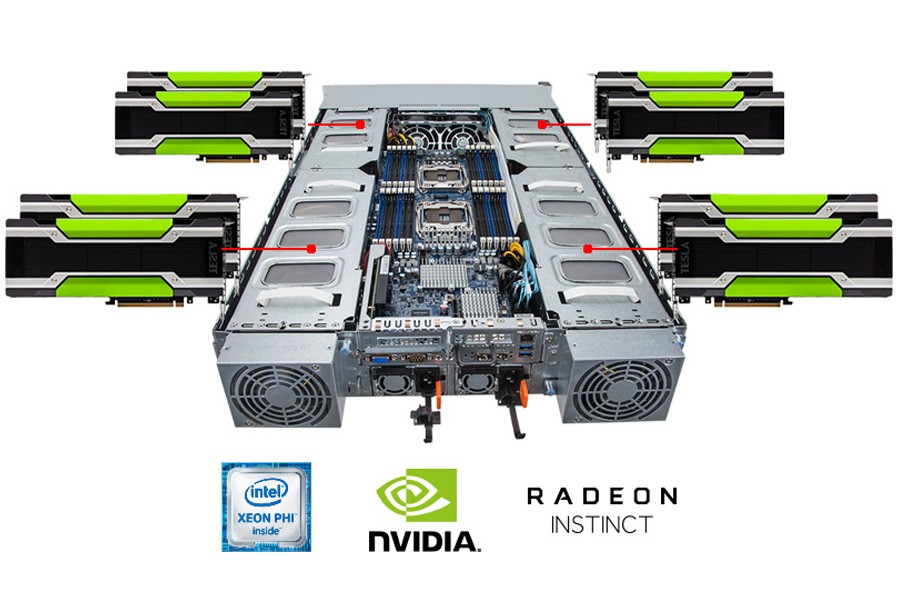

  • Supports up to 8 x double slot GPU cards
  • NVIDIA® validated GPU platform; Supports for NVIDIA® Tesla® GPUs
  • 2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
  • 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
  • Supports Intel® Optane™ DC Persistent Memory
  • 2 x 10Gb/s BASE-T LAN ports
  • 1 x Dedicated management port
  • 8 x 2.5" hot-swappable HDD/SSD bays
  • 8 x PCIe Gen3 expansion slots for GPUs
  • 2 x PCIe x16 Half-length low-profile slots for add-on cards
  • Aspeed® AST2500 remote management controller
  • Dual 2200W 80 PLUS Platinum redundant/hot-swap power supply
  • Optimized performance with Mellanox Infiniband EDR and Ethernet 100G products
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU G291-280
Processor
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Memory
24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz
Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 128GB x6 pcs
DCPMM installation locations:
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)
NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our technical or sales representative
Chassis
2U Rackmount Chassis
Dimensions
448mm(W) x 87.5mm(H) x 800mm(D)
Onboard Devices
LAN:
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1x 10/100/1000 management LAN
Video:
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
8x 2.5" hot-swappable HDD/SSD bays
Expansion Slots
8x PCIe x16 slots (Gen3 x16 bus) for GPUs
2x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots
OCP type add-on card in option
System is validated for population with a uniform GPU model
Support is not provided for mixed GPU populations
For the latest GPU cards QVL, please contact your GIGABYTE representative
Power Supply
2x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
100-127V~/ 14A, 47-63Hz
200-240V~/ 12.6A, 47-63Hz
DC Output:
Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
Input Output
Internal I/O:
1x 18-pin power connector
1x 14-pin power connector
2x 8-pin power connectors
2x 4-pin power connectors
1x USB 3.0 header
1x USB 2.0 header
1x TPM header
1x HDD back plane board header
1x 12-pin front panel header
1x 23-pin front panel header
1x JTAG header
2x SATA SGPIO headers
1x Front VGA header
1x Serial header
1x IPMB connector
1x P12V standby connector
1x PMBus selection jumper
1x Clear CMOS jumper
1x LT debug jumper

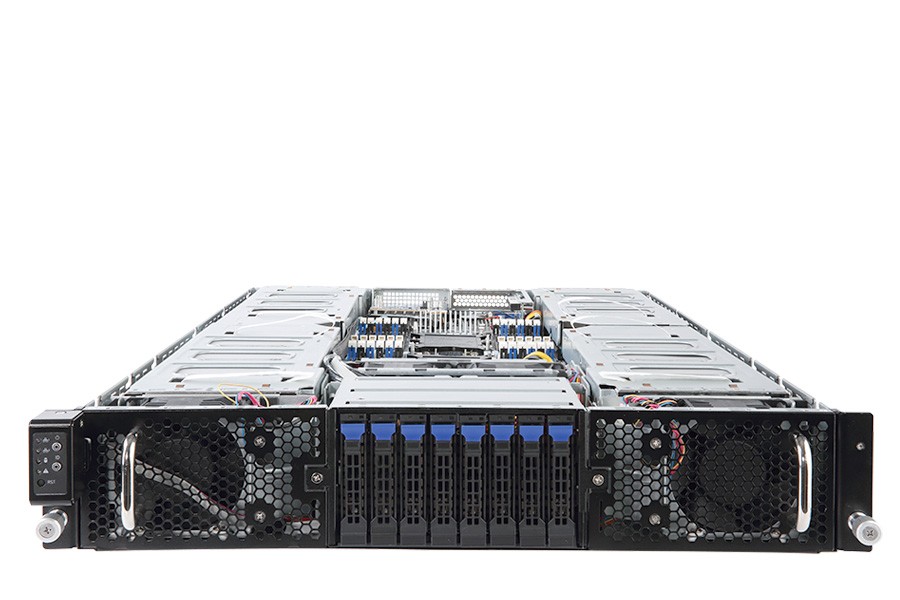

Front I/O:
1x Power button with LED
1x ID button with LED
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
1x Reset button

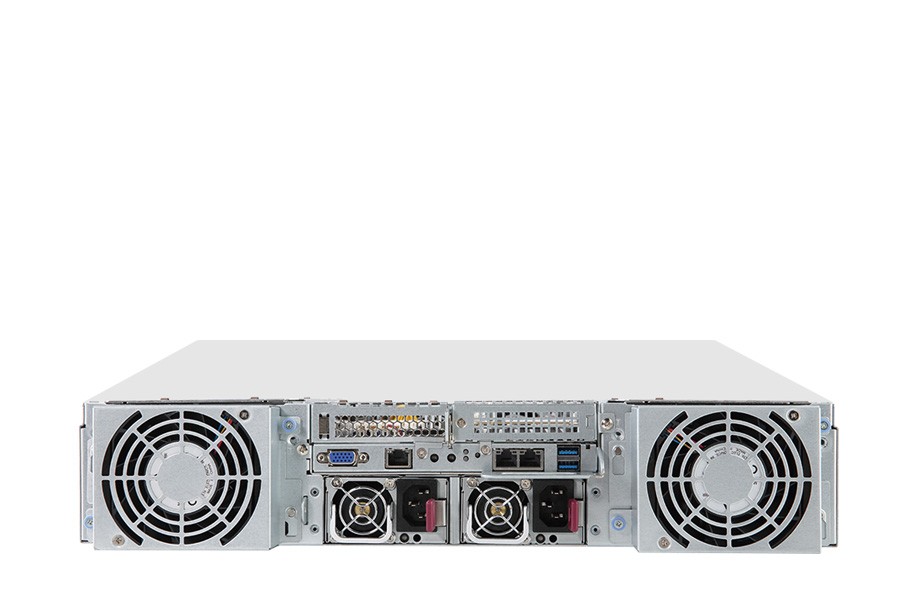

Rear I/O:
2x USB 3.0
1x VGA
2x RJ45
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
Backplane I/O:
8x SAS/SATA ports
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
SAS card is required for SAS devices support
Cooling
8x 80x80x38mm (15000rpm)
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Details
TPM:
1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
System Management:
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
G291-280G291-280G291-280G291-280G291-280G291-280
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $108.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $228.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $294.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $324.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $492.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $540.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $612.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $881.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $888.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,038.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,050.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,086.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,122.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,128.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,182.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,398.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,500.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,542.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,656.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,698.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,740.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $1,842.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $1,872.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $1,920.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $1,980.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,046.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,118.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,238.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,310.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,502.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,508.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,562.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,682.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $2,826.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $2,856.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,862.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,030.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,060.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,198.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,204.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,228.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,246.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,372.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,438.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,516.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,606.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,726.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,762.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $3,858.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,034.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,196.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,604.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $5,862.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $6,354.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,426.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,618.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,058.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,394.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,528.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $10,986.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,424.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $12,894.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $14,346.00
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
8GB DDR4 2933 ECC RDIMM Memory
+ $12.00
16GB DDR4 2666 ECC Registered Memory
+ $92.00
16GB DDR4 2933 ECC RDIMM Memory
+ $116.00
32GB DDR4 2666 ECC Registered Memory
+ $452.00
32GB DDR4 2933 ECC RDIMM Memory
+ $492.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $800.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,052.00
64GB DDR4 2933 ECC LRDIMM Memory
+ $1,180.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
*No Hard Drive
- $59.00
2.5" SATA 6Gb/s 7200RPM 500GB
Added
2.5" SATA 6Gb/s 7200RPM 1TB
+ $156.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $325.00
2.5" SAS 12Gb/s 10000RPM 600GB
+ $183.00
2.5" SAS 12Gb/s 10000RPM 900GB
+ $257.00
2.5" SAS 12Gb/s 10000RPM 1.2TB
+ $287.00
2.5" SAS 12Gb/s 10000RPM 1.8TB
+ $482.00
2.5" SSD SATA 6Gb/s 256GB
+ $35.00
2.5" SSD SATA 6Gb/s 512GB
+ $101.00
2.5" SSD SATA 6Gb/s 1TB
+ $273.00
2.5" SSD SATA 6Gb/s 2TB
+ $505.00
GPU/Coprocessor
*No GPU
Added
GeForce RTX 2080 Ti Turbo 11GB GDDR6 Graphics Card
+ $1,500.00
NVIDIA TESLA M4 with 4GB GPU
+ $1,776.00
NVIDIA TESLA P4 with 8GB GPU
+ $2,088.00
NVIDIA TESLA M10 with 32GB GPU
+ $2,558.00
Nvidia Tesla K40 with 12GB GPU
+ $3,444.00
Nvidia Tesla K80 with 24GB GPU
+ $4,320.00
NVIDIA TESLA M60 with 16GB GPU
+ $4,680.00
Nvidia Tesla P100 with 12GB PCIe GPU
+ $4,860.00
NVIDIA TESLA M40 with 12GB GPU
+ $5,400.00
NVIDIA TESLA P40 with 8GB GPU
+ $6,120.00
Nvidia Tesla P100 with 16GB PCIe GPU
+ $6,120.00
Nvidia Tesla V100 with 16GB PCIe GPU
+ $8,825.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2717
1
3563.0000
