H231-G20
$4,776.00 Configured Summary
H231-G20

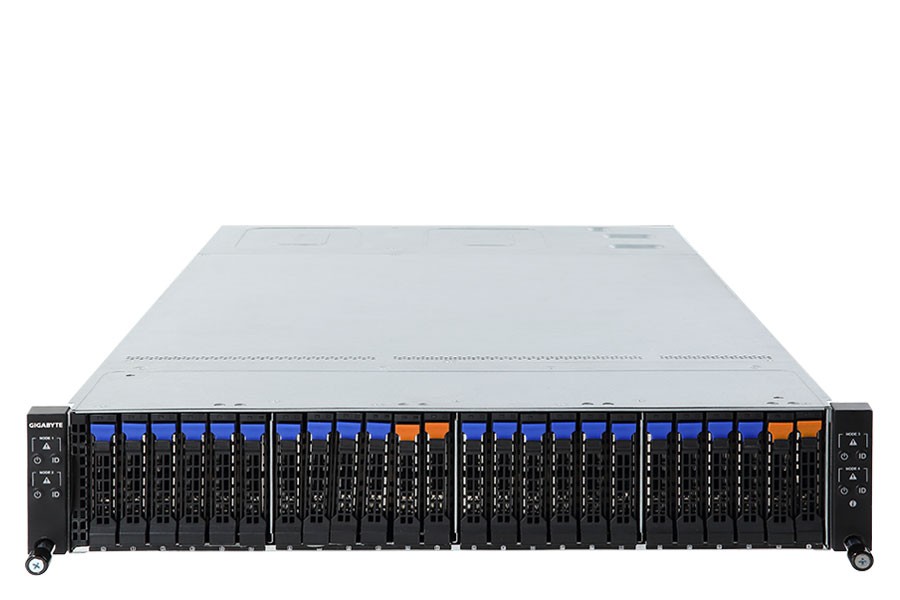

Gigabyte 2U 2Nodes Dual Processor GPU Server

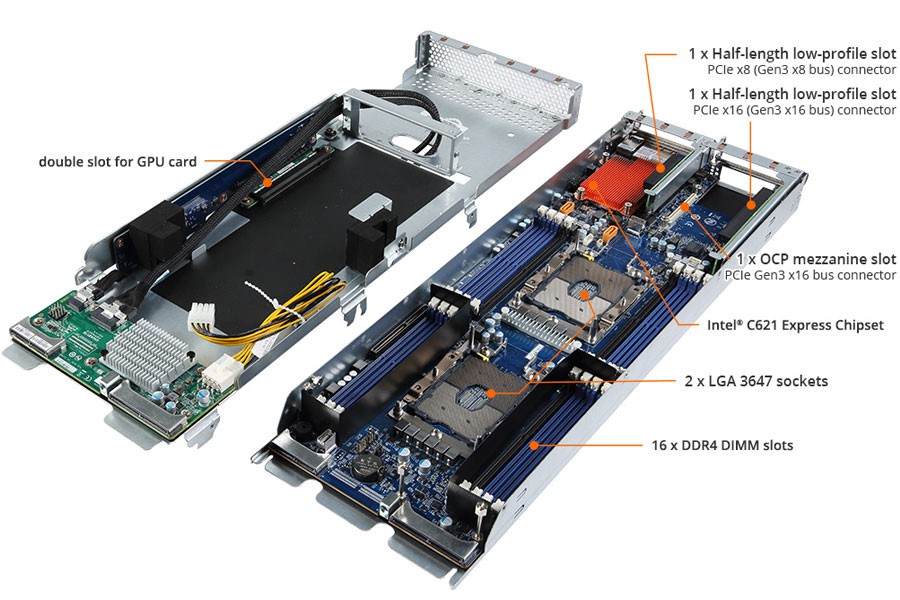

  • Supports up to 2 x double slot GPU cards
  • NVIDIA® validated GPU platform; Supports for NVIDIA® Tesla® GPUs

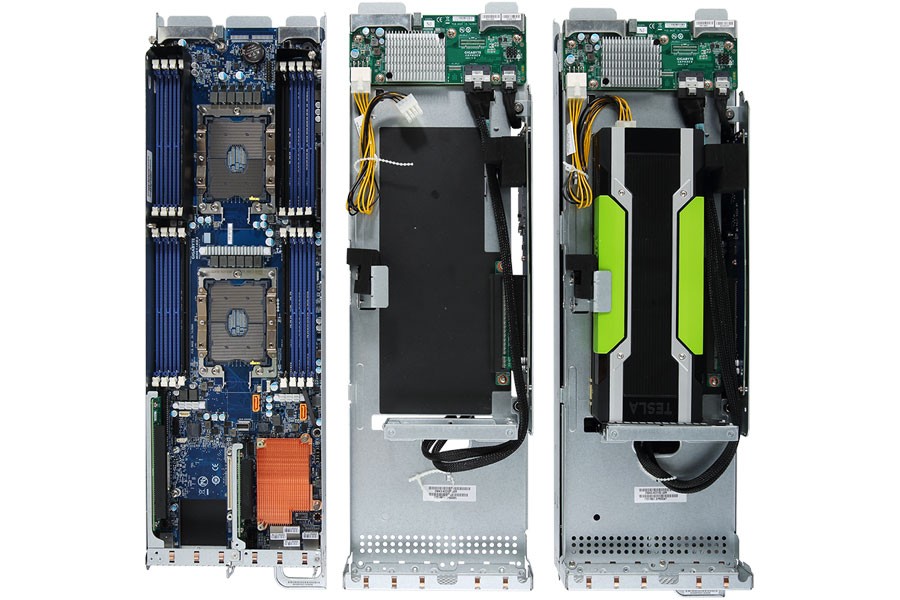

  • 2U - 2 nodes with rear access to the node trays

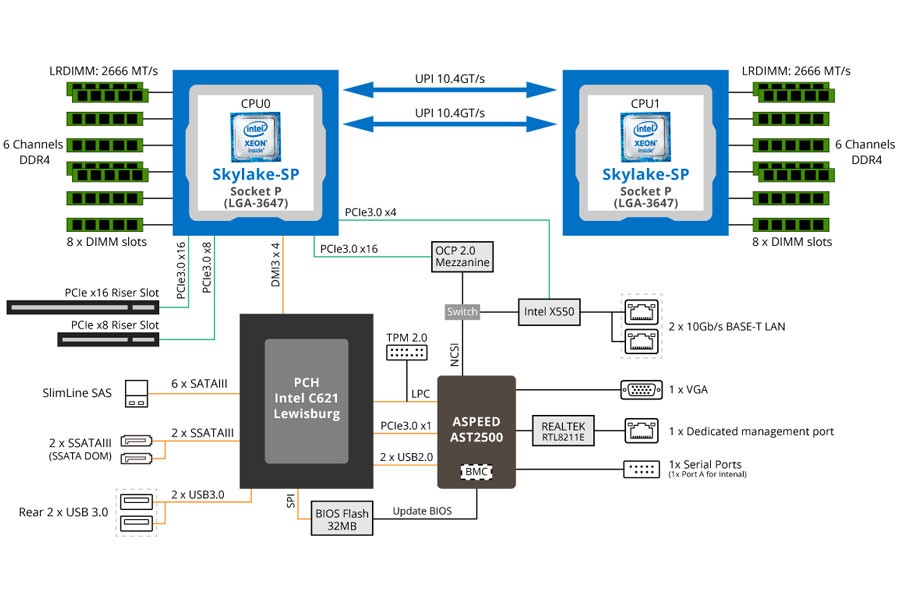

  • Intel® Xeon® Processor Scalable Family
  • 4 x LGA 3647 sockets
  • Intel® C621 Express Chipset
  • 6-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
  • 4 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
  • 2 x Dedicated management ports
  • 1 x CMC global management port

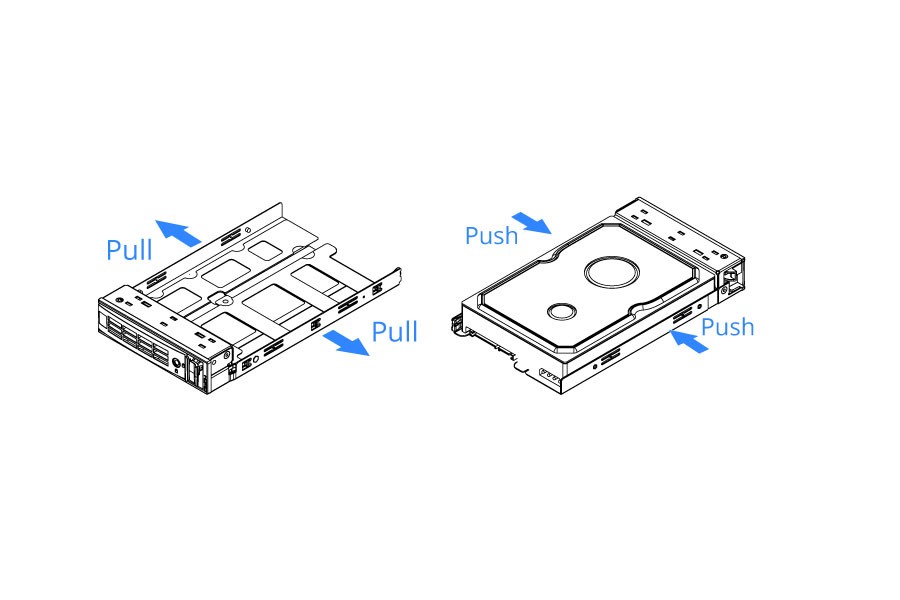

  • 4 x 2.5" U.2, 20 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
  • 4 x Low profile PCIe Gen3 expansion slots
  • 2 x OCP Gen3 x16 mezzanine slots
  • Aspeed® AST2500 remote management controller

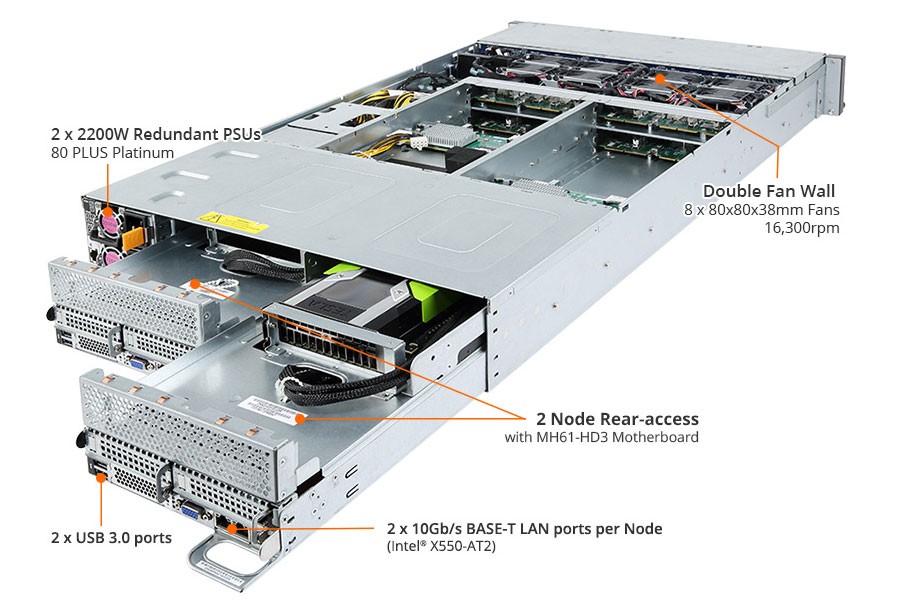

  • 2200W 80 PLUS Platinum redundant PSU

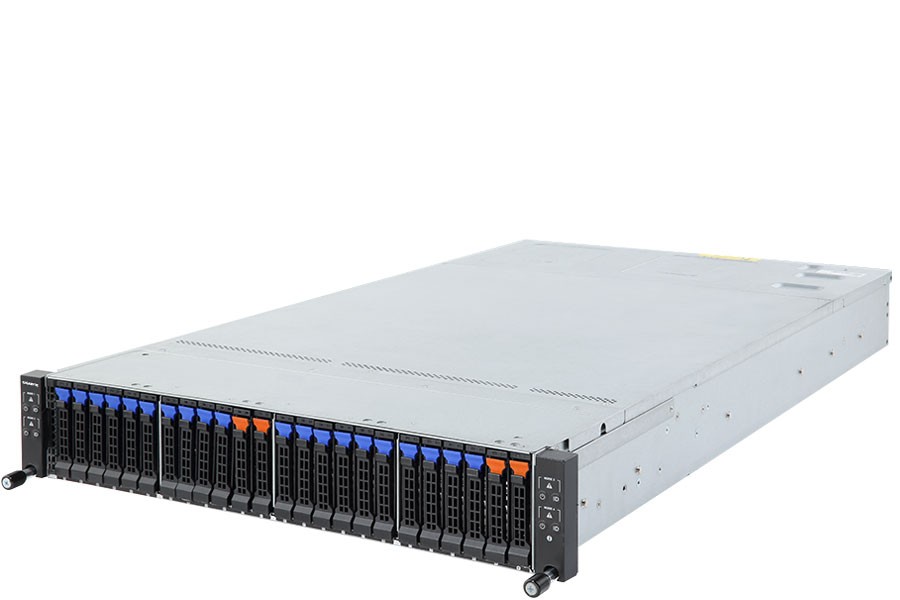

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU H231-G20
Processor
Intel® Xeon® Processor Scalable Family
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
CPU TDP up to 165W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Socket Per Node:
2x LGA 3647
Total:
4 x LGA 3647
Socket P0
Mounting pitch: Narrow ILM
Memory
Per node:
16x DIMM slots
Total:
32x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
1.2V modules: 2666/2400/2133 MHz
Chassis
2U Rackmount Server
Dimensions
440mm x 87mm x 820mm
Onboard Devices
LAN:
Per node:

2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1x Dedicated management port
Total:
4x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
2x Dedicated management ports
1x 10/100/1000 *CMC global management port
CMC: Chassis Management Controller, to monitor all status of computing nodes.

Video:
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
Per node:
10x 2.5" SAS/SATA hot-swappable HDD/SSD bays
2x 2.5" U.2 hot-swappable HDD/SSD bays
Total:
24x 2.5" SAS/SATA hot-swappable HDD/SSD bays
- 20x 2.5" SAS/SATA hot-swappable HDD/SSD bays
- 4x 2.5" U.2 hot-swappable HDD/SSD bays
SAS card is required to enable the drive bays

RAID:
For SATA drives:
Intel® SATA RAID 0/1/5/10
For U.2 drives:
Intel® Virtual RAID On CPU (VROC) RAID 0, 1, 5
Note: VROC module is for Intel®SSD only
Expansion Slots
Per node:
1x PCIe x16 slot (Gen3 x16 bus) for GPU
1x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus)
1x Half-length low-profile slot with PCIe x8 (Gen3 x8 bus)
1x OCP mezzanine slot with PCIe Gen3 x16 bus
Total:
2x PCIe x16 slots (Gen3 x16 bus) for GPUs
2x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus)
2x Half-length low-profile slot with PCIe x8 (Gen3 x8 bus)
2x OCP mezzanine slot with PCIe Gen3 x16 bus
- For the latest GPU QVL, please contact your GIGABYTE representative
Power Supply
2x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
100-127V~/ 14A, 47-63Hz
200-240V~/ 12.6A, 47-63Hz
DC Output:
Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
Input Output
Internal I/O
Per node:
1x COM header
1x TPM header
1x BMC SGPIO header
1x JTAG BMC header
1x PLD header
1x Clear CMOS jumper
1x IPMB connector
1x Buzzer

Front I/O
Per node:
1x Power button with LED
1x ID button with LED
1x Status LED

Total:
2 x Power button with LED
2 x ID button with LED
2 x Status LED
*1 x CMC status LED
*Only one CMC status LED per system

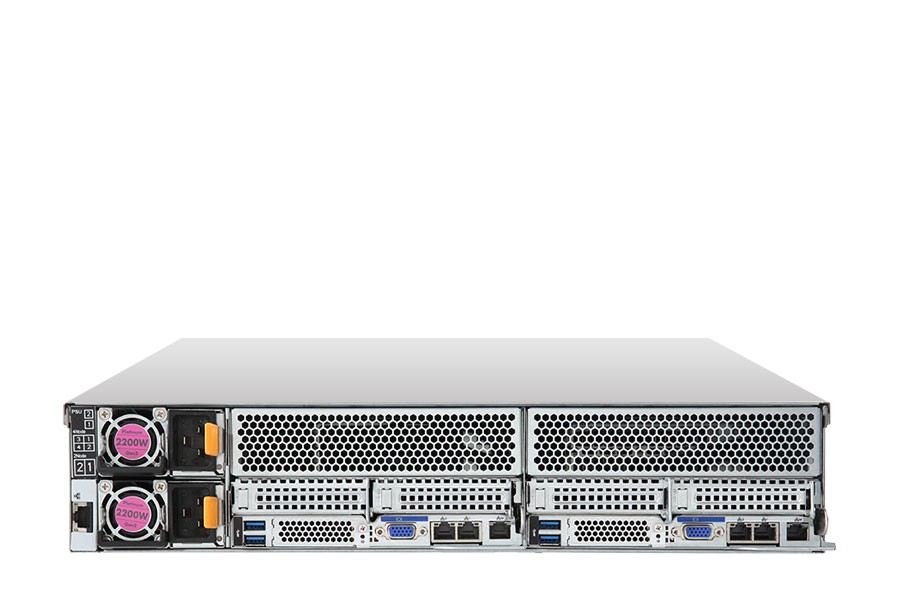

Rear I/O
Per node:
2x USB 3.0
1 x VGA
2x RJ45
1x RJ45 MLAN
1x ID LED

Total:
4 x USB 3.0
2 x VGA
4 x RJ45
2 x RJ45 MLAN
2 x ID LEDs
*1 x CMC global management port
*Only one CMC global management port per system
Backplane I/O:
24 x ports
12Gb/s & 6Gb/s compatible
PCIe Gen3 x4 U.2 port
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Details
System Management:
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
H231-G20H231-G20H231-G20H231-G20H231-G20H231-G20H231-G20H231-G20H231-G20H231-G20

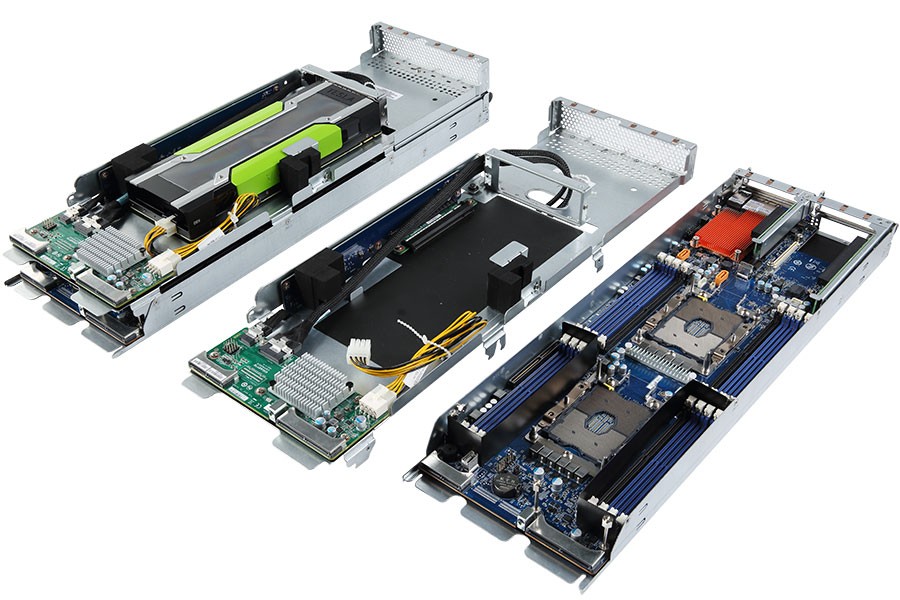

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $108.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $228.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $294.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $324.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $540.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $888.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,122.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,128.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,182.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,500.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,740.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $1,842.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $1,872.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $1,920.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $1,980.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,046.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,118.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,502.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,508.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,682.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $2,826.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $2,856.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,030.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,060.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,204.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,228.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,246.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,372.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,438.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,516.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,726.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $3,858.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,034.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,196.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,604.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,426.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,618.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,058.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,394.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,528.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $10,986.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,424.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $12,894.00
MeMory-1st Node
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
+ $67.00
32GB DDR4 2666 ECC Registered Memory
+ $142.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $187.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $410.00
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $11,244.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-2nd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $89.00
16GB DDR4 2666 ECC Registered Memory
+ $156.00
32GB DDR4 2666 ECC Registered Memory
+ $231.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $276.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $499.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
2.5" SATA 6Gb/s 7200RPM 500GB
Added
2.5" SATA 6Gb/s 7200RPM 1TB
+ $156.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $325.00
2.5" SAS 12Gb/s 10000RPM 600GB
+ $183.00
2.5" SAS 12Gb/s 10000RPM 900GB
+ $257.00
2.5" SAS 12Gb/s 10000RPM 1.2TB
+ $287.00
2.5" SAS 12Gb/s 10000RPM 1.8TB
+ $482.00
2.5" SSD SATA 6Gb/s 256GB
+ $35.00
2.5" SSD SATA 6Gb/s 512GB
+ $101.00
2.5" SSD SATA 6Gb/s 1TB
+ $273.00
2.5" SSD SATA 6Gb/s 2TB
+ $505.00
GPU/Coprocessor
*No GPU
Added
NVIDIA TESLA M4 with 4GB GPU
+ $1,776.00
NVIDIA TESLA P4 with 8GB GPU
+ $2,088.00
NVIDIA TESLA M10 with 32GB GPU
+ $2,558.00
Nvidia Tesla K40 with 12GB GPU
+ $3,444.00
Nvidia Tesla K80 with 24GB GPU
+ $4,320.00
NVIDIA TESLA M60 with 16GB GPU
+ $4,680.00
Nvidia Tesla P100 with 12GB PCIe GPU
+ $4,860.00
NVIDIA TESLA M40 with 12GB GPU
+ $5,400.00
Nvidia Tesla P100 with 16GB PCIe GPU
+ $6,120.00
NVIDIA TESLA P40 with 8GB GPU
+ $6,120.00
Nvidia Tesla V100 with 16GB PCIe GPU
+ $8,825.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2738
1
4370.0000
