FT77D-B7109
$4,893.00 Configured Summary
FT77D-B7109

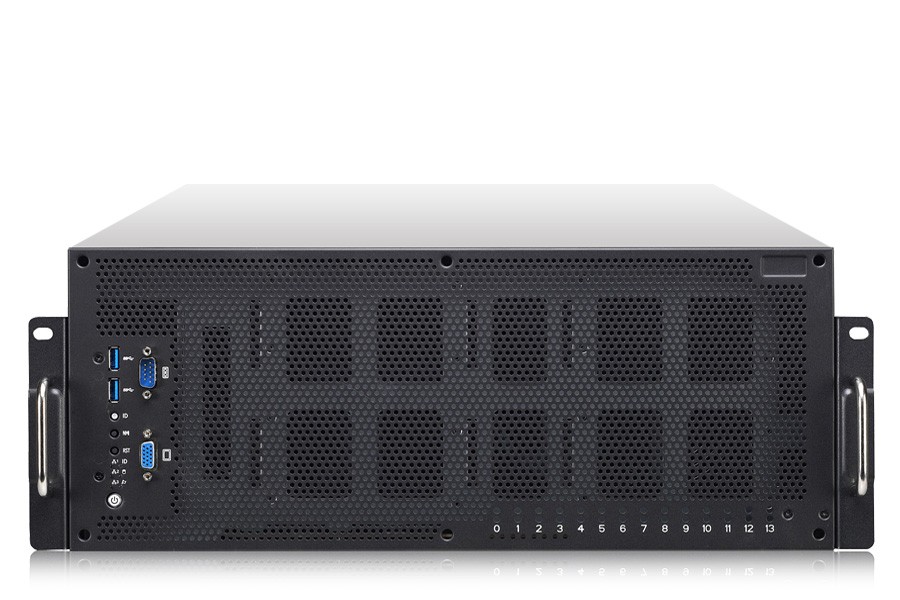

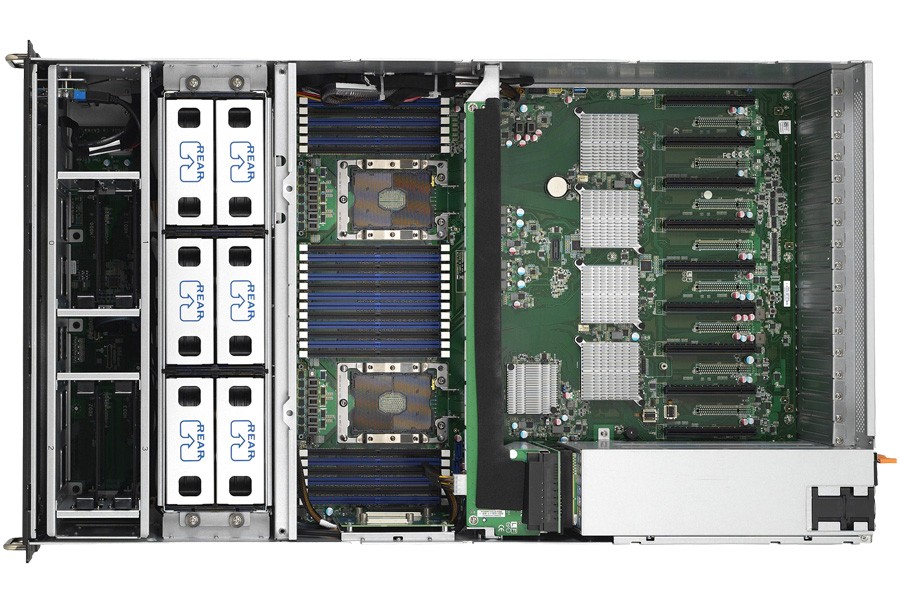

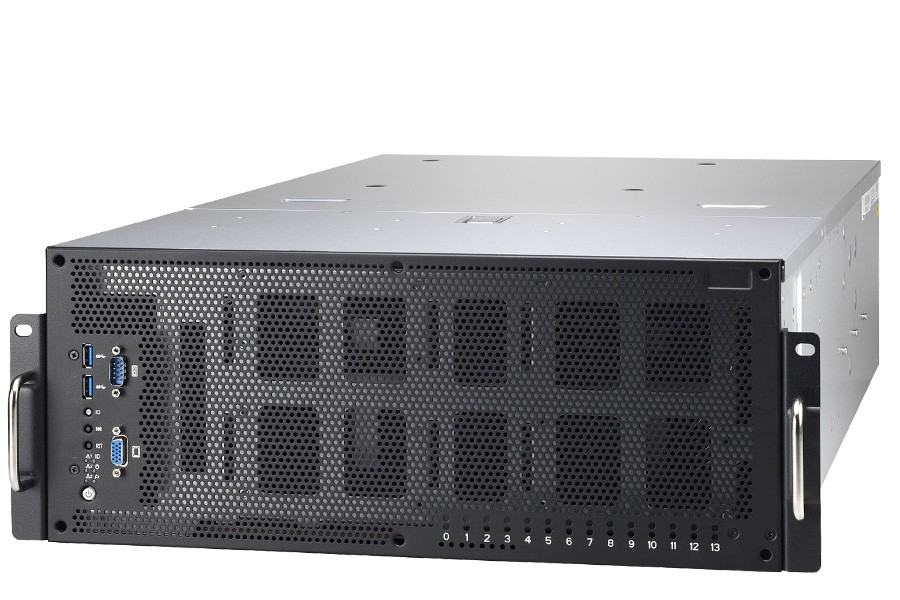

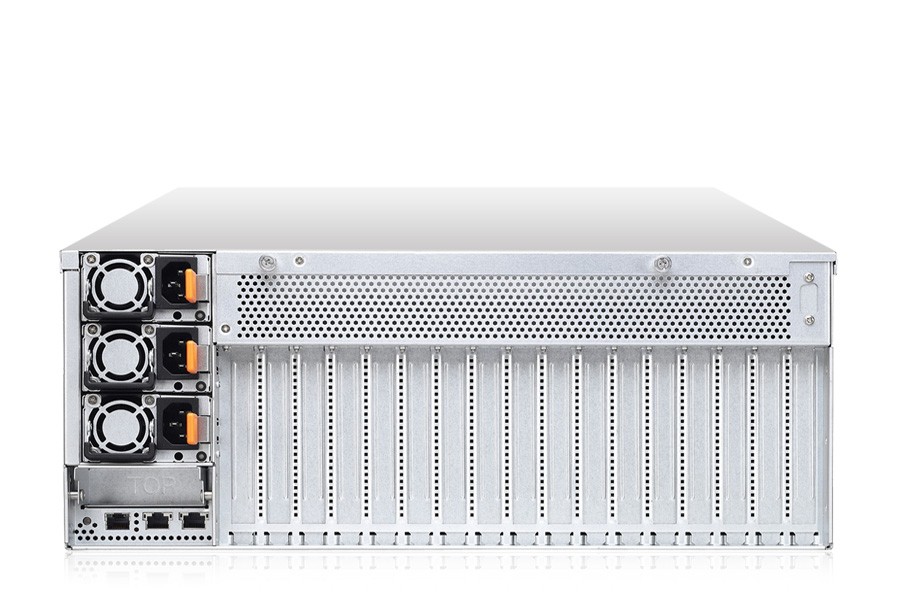

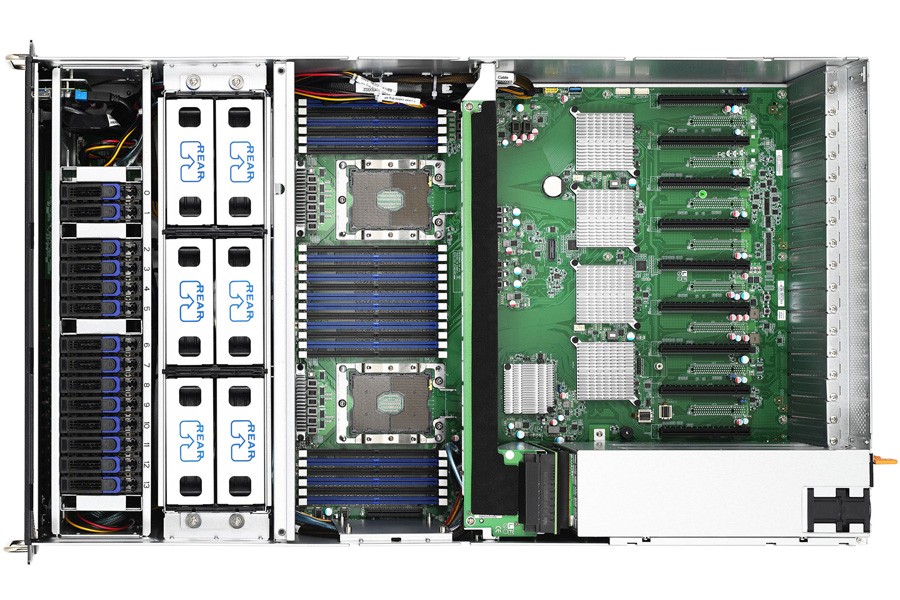

Tyan 4U 14Bays Dual 2nd Gen Scalable Processor up to 8GPU Server

  • Dual socket 2nd Gen Xeon Scalable Processor Family
  • 24 DIMM slots supporting up to 3TB DDR4 RAM
  • 8x Double-wide PCIe x16 slots for GPU card deployment
  • 1x PCIe x16 slot for high speed networking
  • LAN and internal storage mezzanine slots
  • 14x Hot-swappable 2.5" drive bays
  • AST2500 BMC with Redfish support

Storage configuration notice:
Hot-swap:
10x 2.5" SATA Hotswap Drive Bays
4x 2.5" U.2 Hotswap Drive Bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU FT77D-B7109
Processor
Socket:
2x LGA3647
Supported CPU Series:
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage:
Max up to 205W
System Bus:
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support
Chipset
PCH:

Intel C621
Switch IC:
4x PLX PEX8747
Memory
Supported DIMML
(12+12)x DIMM slots
DIMM Type / Speed:
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity:
Up to 768GB RDIMM/ 1,536GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel:
6 Channels per CPU
Memory voltage:
1.2V
Notification:
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact our Technical Support for more detail.
Chassis
4U Rackmount Chassis
Dimensions
D x W x H:
30.31" x 17.24" x 6.93"
770mm x 438mm x 176mm

Front Panel
Buttons:
(1) RST / (1) NMI / (1) ID / (1) PWR w/ LED
LEDs:
(1) HDD / (1) ID / (1) Warning / (3) LAN
I/O Ports:
(2) USB 3.0 port
Bios
Brand / ROM size:
AMI / 32MB
Feature:
Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
Onboard Devices
LAN
Port Q'ty:
(2) 10GbE ports / (1) PHY
Controller:
Intel X550-AT2
PHY:
Realtek RTL8211E

Storage
SATA

Connector:
(2) Mini-SAS HD (8-ports)
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)
sSATA
Connector:
(2) SATA-III / (1) Mini-SAS HD (4-ports)
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2500
HDD Drive Bays
Type / Q'ty:
2.5" Hot-Swap SSD/HDD/ (14)
Supported HDD Interface:
(14) SATA 6Gb/s
HDD Backplane Support:
SAS 12Gb/s /SATA 6Gb/s /NVMe
Expansion Slots
PCI-E:
(9) PCI-E Gen3 x16 slots / (2) PCI-E Gen3 x8 Tyan Mezzanine slots
Pre-install TYAN Riser Card:
M2215-L8-1F / M2217-L16-IO
Power Supply
Type:
RPSU
Input Range:
AC 100-127V/12.9A / AC 200-240V/9.5A
Frequency:
47-63 Hz
Output Watts:
2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input)
Efficiency:
PFC / 80 plus Platinum
Redundancy:
2+1
Input Output
USB:
(2) USB3.0 ports (at front)
COM:
(1) DB-9 COM port (at front)
VGA:
(1) D-Sub 15-pin port (at front)
RJ-45:
(2) 10GbE ports, (1) GbE dedicated for IPMI
Cooling
(5+1) hot-swap 12cm fans
Operating Environment
Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C
Details
TPM (Optional)
TPM Support:
Please refer to our TPM supported list.

System Monitoring
Chipset:
Aspeed AST2500
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2500
AST2500 iKVM Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature:
24-bit high quality video compression / 10/100/1000 Mb/s MAC interface
FT77D-B7109FT77D-B7109FT77D-B7109FT77D-B7109FT77D-B7109
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
File Description Date Type Size Download
FT77D-B7109 DataSheet 03-08-18 PDF 1,517.16 KB
FT77D-B7109 Service Engineer’s Manual 03-08-18 PDF 28,915.35 KB
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $231.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $31.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $84.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $208.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $245.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $3.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $34.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $87.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $211.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $715.00
Enterprise-Class HDD/SSD
*No Hard Drive
- $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $59.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $8.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $77.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $215.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $513.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,095.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $221.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $887.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $79.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $266.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $679.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $82.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $66.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $19.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $88.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $286.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,509.00
(Optional) Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $752.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,334.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $163.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $264.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $478.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $924.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
+ $218.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
+ $411.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
+ $770.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
+ $1,386.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
+ $251.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
+ $473.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
+ $886.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
+ $1,526.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $208.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $69.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $120.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $205.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $343.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $641.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,223.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $349.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $516.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,015.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $207.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $394.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $807.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $46.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $62.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $109.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $216.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $414.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $328.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $571.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $1,001.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,755.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,491.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,637.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
GPU/Coprocessor
*No GPU
Added
ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB
+ $759.00
PNY NVIDIA Quadro RTX A2000 GDDR6 Video Card 12GB
+ $839.00
PNY NVIDIA Quadro RTX A4000 GDDR6 Video Card 16GB
+ $1,369.00
PNY NVIDIA Quadro RTX A5000 GDDR6 Video Card 24GB
+ $2,389.00
PNY NVIDIA Quadro RTX A6000 GDDR6 Video Card 48GB
+ $5,655.00
PNY NVIDIA Quadro RTX 8000 GDDR6 Video Card 48GB
+ $7,150.00
NVIDIA TESLA T4 Video Card 16GB
+ $2,600.00
NVIDIA A100 PCIe Video Card 40GB
+ $10,440.00
NVIDIA A100 PCIe Video Card 80GB
+ $14,300.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3025
1
4500.0000
