FT48B-B7100
Please Inquire Configured Summary
FT48B-B7100

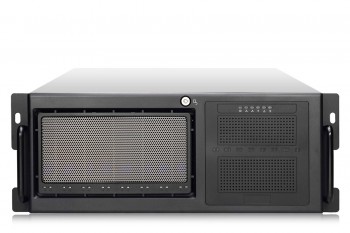

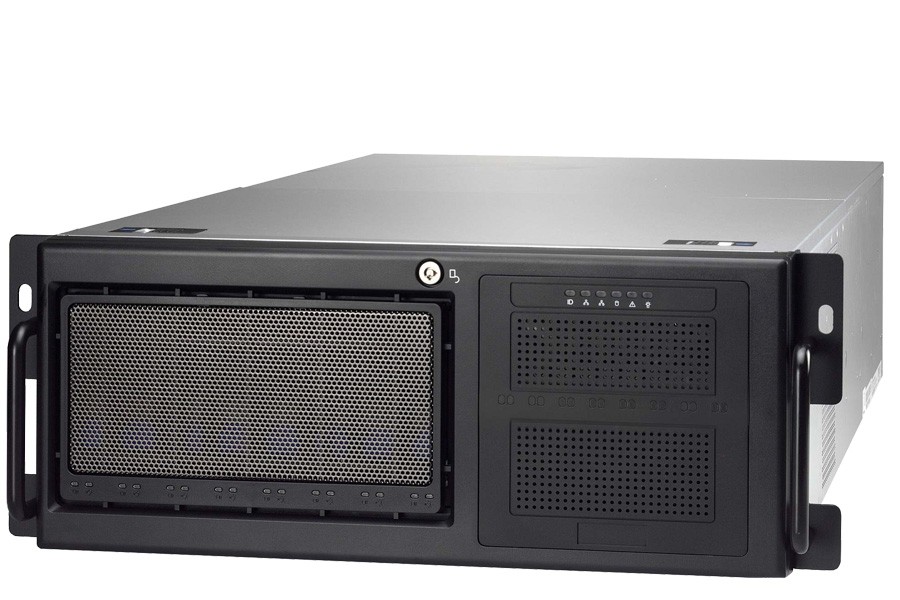

Tyan 4U 8Bays Dual 2nd Gen Scalable Processor up to 4GUP Server

  • Dual Socket Intel 2nd Gen Xeon Scalable Processor
  • (12) DIMM slots supporting up to 1.5TB DDR4-2667
  • (4) PCIe x16 + (3) PCIe x8 slots
  • Supports up to (4) GPU cards
  • (8) 2.5" SATA 6G Front Hotswap Drive Bays
  • (2) 2.5" SATA 6G Rear Hotswap Drive Bays
  • AST2500 BMC with Redfish Support
  • 1+1 1,600W Redundant Power Supply

Storage configuration notice:
Hot-swap:
8x 2.5" SATA 6G Front Hotswap Drive Bays
2x 2.5" SATA 6G Rear Hotswap Drive Bays
M.2:
2x M.2 Drive
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU FT48B-B7100
Processor
Socket:
2x LGA3647
Supported CPU Series:
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage:
Max up to 205W
System Bus:
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support

Chipset
PCH:
Intel C621
Memory
Supported DIMM:
(6+6)x DIMM slots
DIMM Type / Speed:
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity:
Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel:
6 Channels per CPU
Memory voltage:
1.2V
Notification:
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact our Technical Support for more detail.
Chassis
4U Rackmount Chassis
Dimensions
D x W x H:
27.5"x 16.8"x 6.9"
700mmx 427mmx 176mm

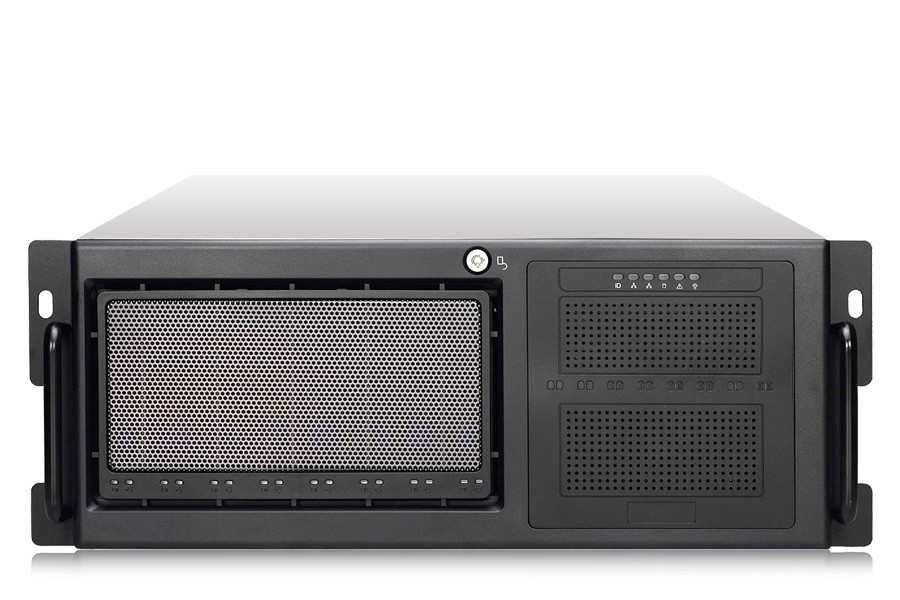

Front Panel
Buttons:
(1) PWR / (1) RST / (1) NMI / (1) ID
LEDs:
(1) PWR / (1) HDD / (2) LAN / (1) ID / (1) Warning / (1) BMC
I/O Ports:
(2) USB 3.0 port
Bios
Brand / ROM size:
AMI / 32MB
Feature:
Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
Onboard Devices
LAN
Port Q'ty:
(2) GbE ports (1 port shared with IPMI)
Controller:
Intel I350-AM2


Storage
SATA
Connector:
(2) Mini-SAS HD (8-ports)
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)

sSATA
Connector:
(2) SATA/SATA-DOM / (1) Mini-SAS HD (4-ports)
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)

NVMe
Connector (M.2) (1) 2242 (by PCI-E interface) / (1) 2242/2260/2280 (by PCI-E interface)

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2500
HDD Drive Bays
Type / Q'ty:
2.5" Hot-Swap SSD/HDD/ (8)@front + (2)@rear
HDD backplane support:
SATA 6Gb/s/ SAS 12Gb/s (@front), SATA 6Gb/s (@rear)
Supported HDD Interface:
(10) SATA 6Gb/s
Expansion Slots
(4) PCI-E Gen3 x16 slot / (3) PCI-E Gen3 x8 slots
Power Supply
Type:
RPSU
Input Range:
200-240V AC/9.48A / AC 100-127V/12A
Output Watts:
1,000 Watts Max.( for 100-127V AC) 1,600 Watts Max. (for 200-240V AC)
Efficiency:
80 plus Platinum
Redundancy:
1+1

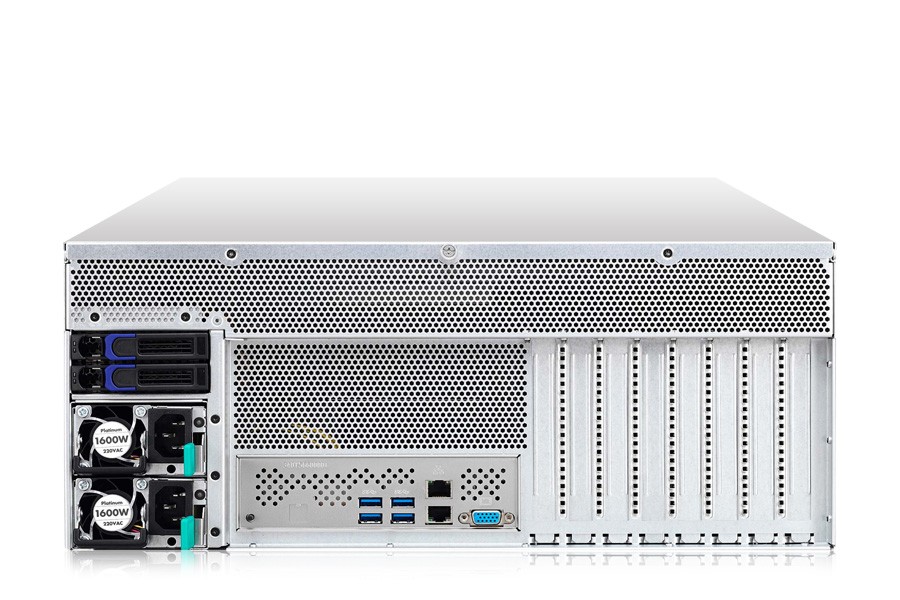

Input Output
USB:
(2) USB3.0 ports (at front) / (4) USB3.0 ports (at rear)
VGA:
(1) D-Sub 15-pin port
RJ-45:
(2) GbE ports (1 port shared with IPMI)
Others:
(1) ID button
Cooling
(5+1) 12cm fans
Operating Environment
Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C
Details
TPM (Optional)
TPM Support:
Please refer to our TPM supported list.

System Monitoring
Chipset:
Aspeed AST2500
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage:
Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2500
AST2500 iKVM Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature:
24-bit high quality video compression / 10/100/1000 Mb/s MAC interface
FT48B-B7100FT48B-B7100FT48B-B7100FT48B-B7100
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
File Description Date Type Size Download
FT48B-B7100 DataSheet 03-08-18 PDF 1,524.93 KB
FT48B-B7100 Service Engineer’s Manual 03-08-18 PDF 3,541.58 KB
