Tyan 2U 12Bays Dual 2nd Gen Scalable Processor 2GPU Server
- Dual Socket Intel 2nd Gen Xeon Scalable Processor
- Dual Socket 100G Omni-Path CPU support
- 8x PCIe x8 slots / 4x PCIe x16 slots
- NVIDIA NGC-Ready Server / NVIDIA EGX Platform
- Support for 4x single-wide NVIDIA T4 GPU cards

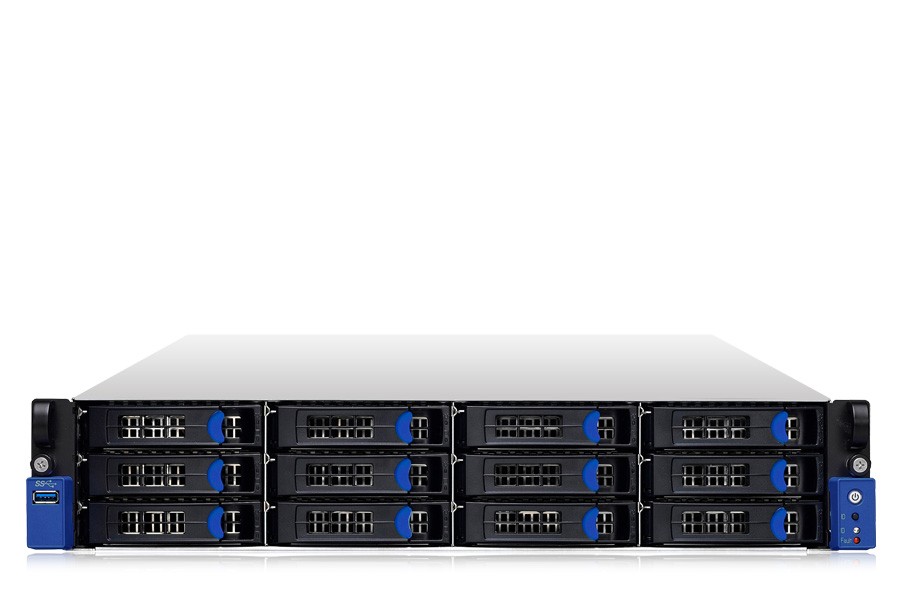

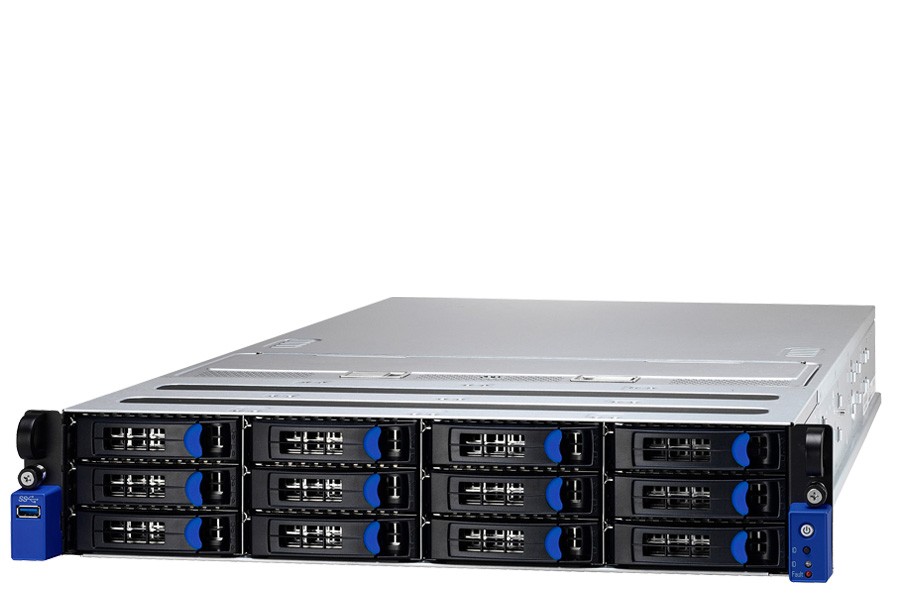

- 12x 3.5" SATA 6G Drive Bays
- AST2500 BMC with Redfish Support
- 1200W 1+1 Redundant PSU
Storage configuration notice:
Hot-swap:
12x 3.5" SATA 6G Drive Bays
Hot-swap:
12x 3.5" SATA 6G Drive Bays

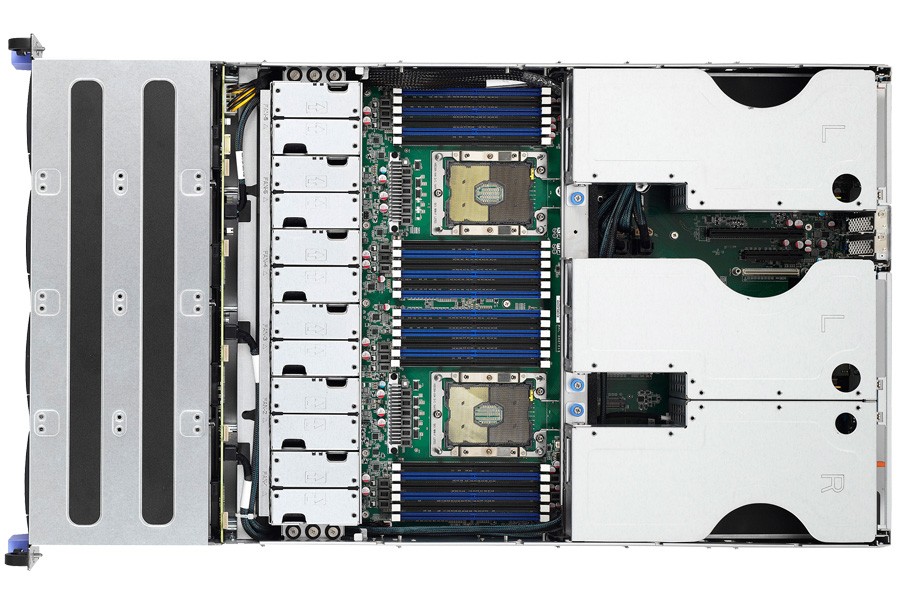

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU | TN76-B7102 |
Processor | Q'ty / Socket Type:
2x LGA3647 Supported CPU Series:
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor Thermal Design Power (TDP) Wattage:
Max up to 165W System Bus:
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support Notification:
205W CPUs are supported by purchasing FRU-TH-0220 option with certain system configurations. Please contact Technical Support for additional information. |
Memory | Supported DIMM Qty:
(12+12)x DIMM slots DIMM Type / Speed:
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM) Capacity:
Up to 768GB RDIMM/ 1,536GB LRDIMM/ 3,072GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR Memory channel:
6 Channels per CPU Memory voltage:
1.2V Notification:
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Technical Support for more detail. |
Chassis | 2U Rackmount Chassis
|
Dimensions | D x W x H:
29.9"x 17.2"x 3.4" 760mmx 438mmx 87.6mm |
Front Panel | Buttons:
(1) ID / (1) PWR w/ LED LEDs:
(1) ID / (1) Warning I/O Ports:
(1) USB 3.0 port |
Bios | Brand / ROM size:
AMI / 32MB Feature:
Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 |
Onboard Devices | LAN
Port Q'ty:
(2) 10GbE ports / (1) PHY
Controller:
Intel X550-AT2
PHY:
Realtek RTL8211E
Storage
SATA
Connector:
(2) Mini-SAS HD (8-ports)
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)
sSATA:
Connector:
(2) SATA/SATA-DOM / (1) Mini-SAS HD (4-ports)
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)
NVMe:
Connector (M.2) (1) 2242 (by PCI-E interface) / (1) 2280 (by PCI-E interface)
Graphic:
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset Aspeed:
AST2500
|
HDD Drive Bays | Type / Q'ty:
3.5"/2.5 Hot-Swap / (12) HDD backplane support:
SAS 12Gb/s /SATA 6Gb/s Supported HDD Interface:
(12) SATA 6Gb/s |
Expansion Slots | PCI-E:
(4) PCI-E Gen3 x8 slots (w/ x8/x0 link) / (4) PCI-E Gen3 x16 slots (w/ x8/x16 link) Pre-install TYAN Riser Card: M7102T76-R16-2F / (2) M7102T76-L16-2F Others: (1) PCI-E Gen3 x8 OCP 2.0 slots (conn.A+conn.C) / (1) PCI-E Gen3 x8 storage mezz. slot |
Power Supply | Type:
RPSU Input Range:
AC 100-127V/12.47A / AC 200-240V/7.08A Output Watts:
1,200 Watts Efficiency:
80 plus Platinum Redundancy:
1+1 |

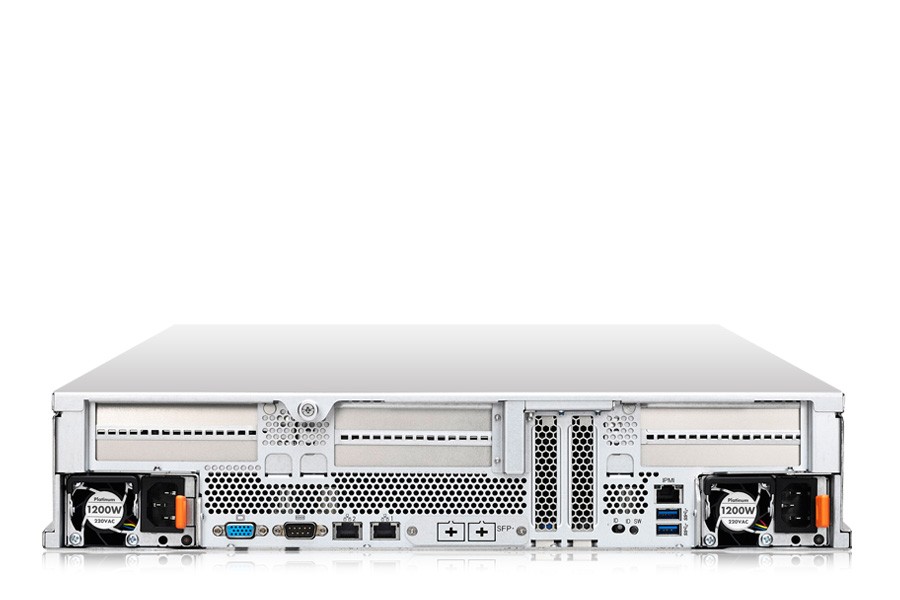

Input Output | USB:
(2) USB3.0 ports (at rear) / (1) USB3.0 ports (at front) COM:
(1) DB-9 COM port VGA:
(1) D-Sub 15-pin port RJ-45:
(2) 10GbE ports, (1) GbE dedicated for IPMI |
Cooling | (12) 6cm fans
|
Operating Environment | Operating Temp.:
10° C ~ 35° C (50° F~ 95° F) Non-operating Temp.: - 40° C ~ 70° C (-40° F ~ 158° F) In/Non-operating Humidity: 90%, non-condensing at 35° C |
Details | TPM (Optional)
TPM Support: Please refer to our TPM supported list. System Monitoring Chipset: Aspeed AST2500 Temperature: Monitors temperature for CPU & memory & system environment Voltage: Monitors voltage for CPU, memory, chipset & power supply LED: Over temperature warning indicator / Fan & PSU fail LED indicator Others: Watchdog timer support Server Management: Onboard Chipset: Onboard Aspeed AST2500 AST2500 iKVM Feature: IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub AST2500 IPMI Feature: 24-bit high quality video compression / 10/100/1000 Mb/s MAC interface |
File Description | Date | Type | Size | Download |
TN76-B7102 DataSheet | 03-08-18 | 1,454.97 KB | ![]() |
|
TN76-B7102 Service Engineer’s Manual | 03-08-18 | 11,603.76 KB | ![]() |
