FT48T-B7105
$2,657.00 Configured Summary
FT48T-B7105

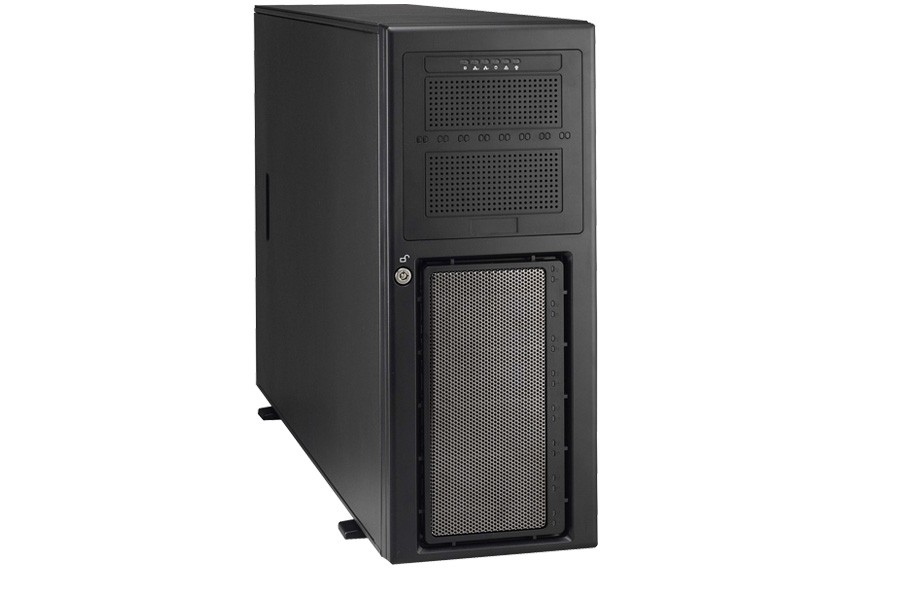

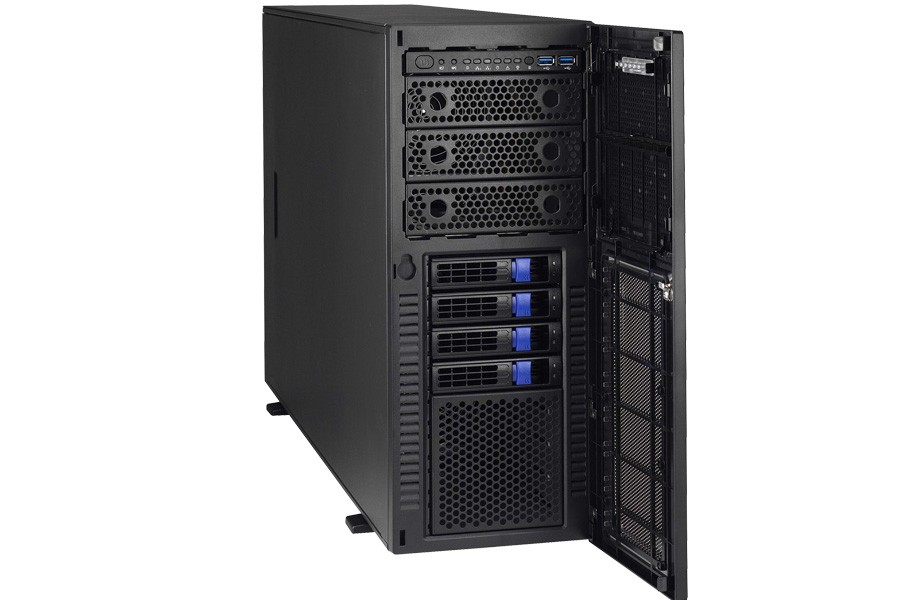

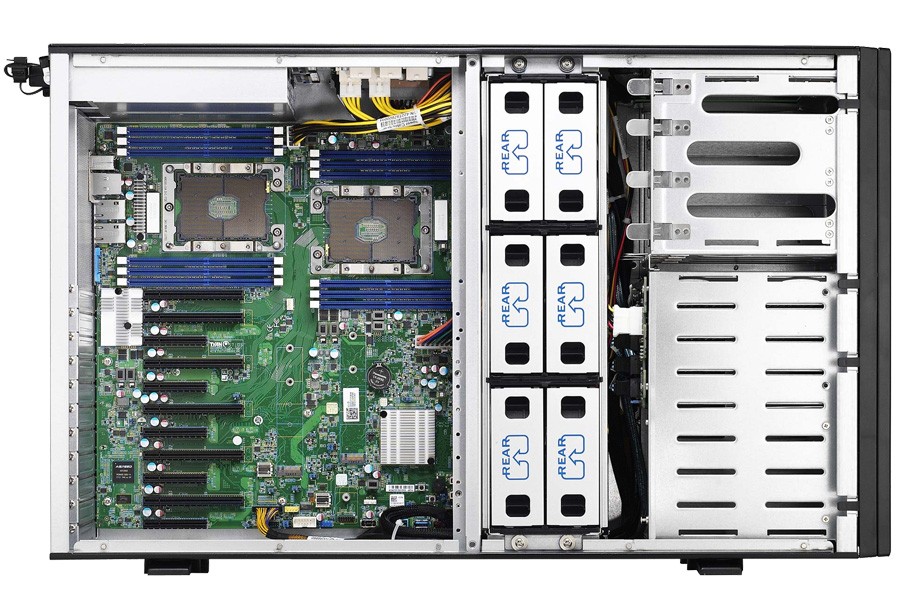

Tyan 4U/Tower Dual 2nd Gen Scalable Processor up to 5 GPU Server

  • Dual-Socket Intel 2nd Gen Xeon® Scalable Processors
  • 12x DDR4 DIMM slots supporting up to 1.5TB DDR4-2667
  • 4x Hot-Swap 3.5" SATA 6G drive bays
  • 6x PCIe x16 slots, supporting up to 5x GPU cards
  • Supports up to 11x PCIe slots in total
  • 2x onboard 10GBase-T LAN ports
  • AST2500 BMC with Redfish support
  • Tower-to-Rack convertible

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" drive bays
M.2:
2x NVMe based M.2 SSD
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU FT48T-B7105
Processor
Socket:
2x LGA3647
Supported CPU Series:
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage:
Max up to 205W
System Bus:
Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support
Chipset :
Intel C621
Memory
Supported DIMM Qty:
(6+6)x DIMM slots
DIMM Type / Speed:
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity:
Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel:
6 Channels per CPU
Memory voltage:
1.2V
Notification:
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact our Technical Support for more detail.
Chassis
4U/Tower Rackmount Chassis
Dimensions
D x W x H:
27.5" x 16.8" x 6.9"
700mm x 427mm x 176mm

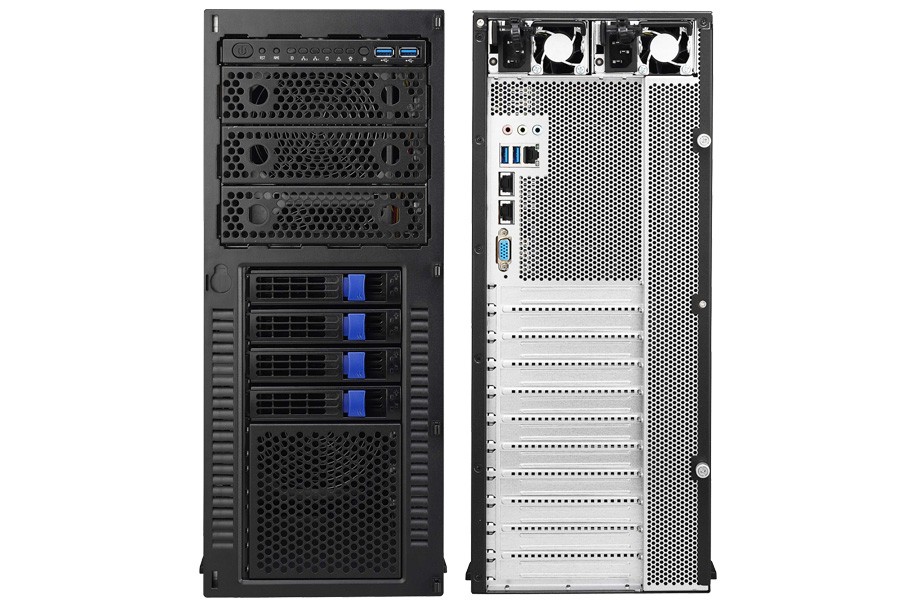

Front Panel
Buttons:
(1) RST / (1) ID / (1) PWR w/ LED
LEDs:
(1) HDD / (2) LAN / (1) ID / (1) System Event
I/O Ports:
(2) USB 3.0 port
Bios
Brand / ROM size:
AMI / 32MB
Feature:
Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1
Onboard Devices
LAN
Port Q'ty:
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Controller:
Intel X550-AT2
PHY:
Realtek RTL8211E

Storage
SATA
Connector:
(2) SATA
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)
sSATA
Connector:
(2) Mini-SAS HD (8-ports)
Controller:
Intel C621
Speed:
6.0 Gb/s
RAID:
RAID 0/1/10/5 (Intel RSTe)
NVMe
Connector (M.2):
(2) 22110/2280 (by PCI-E & SATA interface)

Graphic
Connector type:
D-Sub 15-pin
Resolution:
Up to 1920x1200
Chipset:
Aspeed AST2500
HDD Drive Bays
Type / Q'ty:
5.25" device bays / (3)
3.5"/2.5" Hot-Swap SSD/HDD / (4)
HDD Backplane Support:
SATA 6.0Gb/s
Supported HDD Interface:
(4) SATA 6Gb/s
Expansion Slots
(1) PCI-E Gen3 x16 slot / (5) PCI-E Gen3 x16 slots
Power Supply
Type:
RPSU
Input Range:
AC 100-127V/24A / AC 220-240V/10A
Frequency:
47-63 Hz
Output Watts:
2,000 Watts (100-127Vac input) / 1,968 Watts (220-240Vac input)
Efficiency:
80 plus Platinum
Redundancy:
1+1
Serviceability:
Hot-swap
Input Output
USB:
(2) USB3.0 ports (at rear) / (2) USB3.0 ports (at front)
VGA:
(1) D-Sub 15-pin port
Audio:
2.1
RJ-45:
(2) 10GbE ports, (1) GbE dedicated for IPMI
Others:
ID LED
Cooling
(5+1) hot-swap 12cm fans
Operating Environment
Operating Temp.:
10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp.:
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity:
90%, non-condensing at 35° C
Details
TPM (Optional)
TPM Support:
Please refer to our TPM supported list.

System Monitoring
Chipset Aspeed AST2500
Temperature:
Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED:
Over temperature warning indicator / Fan & PSU fail LED indicator
Others:
Watchdog timer support

Server Management
Onboard Chipset:
Onboard Aspeed AST2500
AST2500 iKVM Feature:
IPMI 2.0 compliant baseboard management controller (BMC) / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature:
24-bit high quality video compression / 10/100/1000 Mb/s MAC interface
FT48T-B7105FT48T-B7105FT48T-B7105FT48T-B7105
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
File Description Date Type Size Download
FT48T-B7105 Service Engineer’s Manual 03-08-18 PDF 3,698.53 KB
FT48T-B7105 Quick Installation Guide 03-08-18 PDF 42,039.19 KB
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $462.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $62.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $168.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $416.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $490.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $6.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $68.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $174.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $422.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $1,430.00
Enterprise-Class HDD/SSD
*No Hard Drive
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $214.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $285.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $349.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $361.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $436.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $477.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $577.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $160.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $174.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $223.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $229.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $299.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $306.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $359.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $381.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $456.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $484.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
+ $1,690.00
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
+ $3,010.00
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
+ $5,304.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $9,193.00
NVIDIA L40S 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3029
1
2352.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
