6049P-E1CR45L
Please Inquire Configured Summary
6049P-E1CR45L
Supermicro 4U 45Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking) Note: must bundle with Network card
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3; 2 rear Hot-swap 2.5" drive bays; optional 6 NVMe bays
  • Broadcom 3008 SAS3, IT mode
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5 Hot-swap 8cm rear exhaust PWM fans
  • 1600W Redundant Power Supplies Platinum Level (94%)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 24 HDDs and 1 NIC or SIOM card).

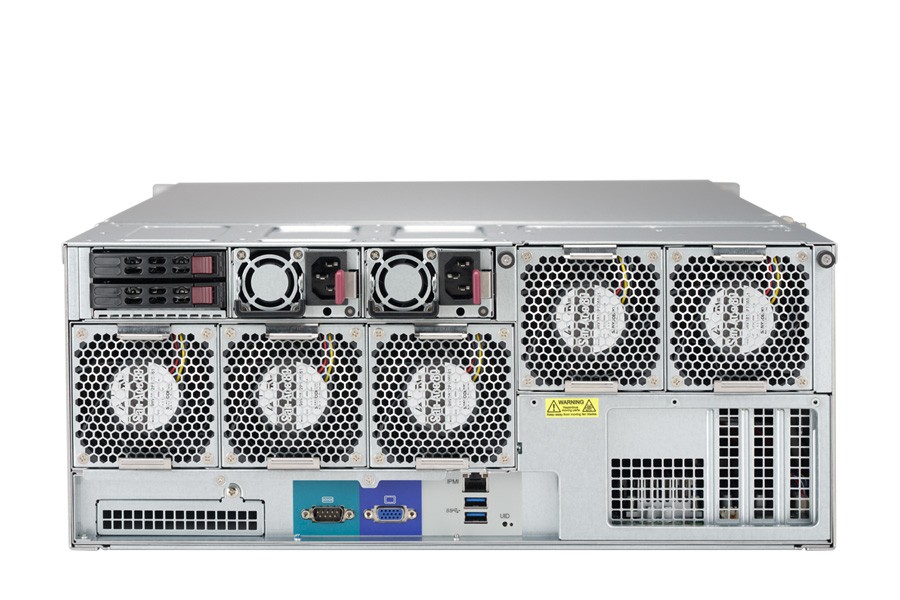

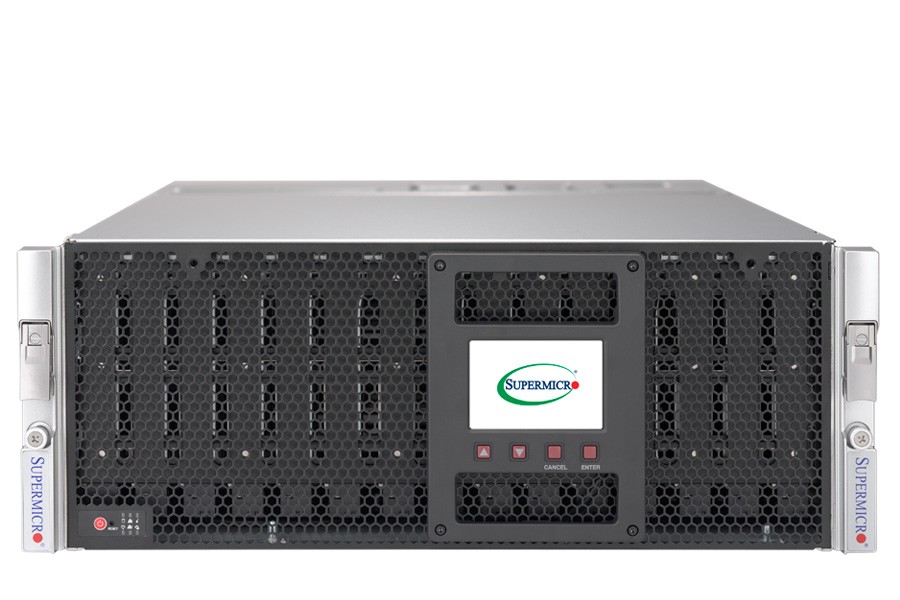

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 6049P-E1CR45L
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
7" (178mm)
Depth:
26" (660mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621 chipset
SAS:
SAS3 (12Gbps) via Broadcom 3108; HW RAID
RAID 0, 1, 5, 6, 10, 50, 60
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
45x Hot-swap 3.5" SAS3/SATA3 drive bays
2x Rear Hot-swap 2.5" SATA drive bays
Optional:
6x NVMe bays (optional)
Expansion Slots
PCI-Express:
2x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x8 slot
1x SIOM card support
(must bundle with network card)
Power Supply
1600W 1U Redundant Power Supplies with PMBus
Total Output Power:

1000W/1600W
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
100-127Vac / 12.9A Max / 50-60Hz
200-240Vac / 9.5A Max / 50-60Hz
+12V:
Max: 82A / Min: 0.1A (100-127Vac)
Max: 132A / Min: 0.1A (200-240Vac)
12V SB:
Max: 2A / Min: 0.2A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Platinum Level Certified94%+  Platinum Level
Input Output
Serial ATA:
8x SATA3 (6Gbps) ports
LAN:
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
1x Type A
VGA:
1x VGA D-Sub connector port
Serial Port / Header:
1x Fast UART 16550 port / 1x Header
Cooling
5x Hot-swap 8cm rear exhaust PWM fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Intel® Node Manager
IPMI 2.0
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watchdog

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
6049P-E1CR45L6049P-E1CR45L6049P-E1CR45L

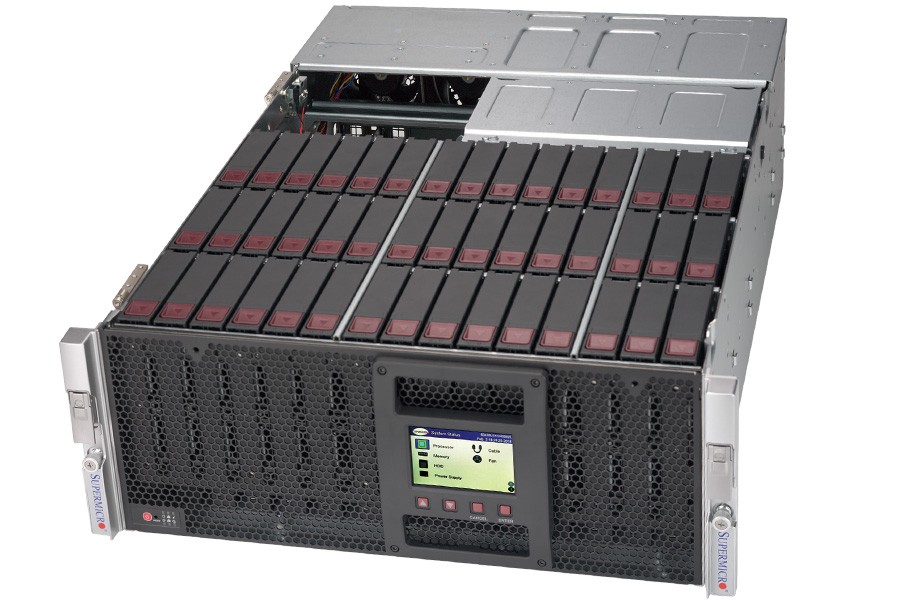

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
MEMORY
Select Memory Capacity:
8GB DDR4 2933 ECC RDIMM Memory
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
16GB DDR4 2933 ECC RDIMM Memory
32GB DDR4 2666 ECC Registered Memory
32GB DDR4 2933 ECC RDIMM Memory
64GB DDR4 2666 ECC LRDIMM Memory
64GB DDR4 2933 ECC LRDIMM Memory
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
3.5" SATA 6Gb/s 7200RPM 3TB
3.5" SATA 6Gb/s 7200RPM 4TB
3.5" SATA 6Gb/s 7200RPM 6TB
3.5" SATA 6Gb/s 7200RPM 8TB
3.5" SATA 6Gb/s 7200RPM 10TB
3.5" SAS 12Gb/s 7200RPM 2TB
3.5" SAS 12Gb/s 7200RPM 4TB
3.5" SAS 12Gb/s 7200RPM 6TB
3.5" SAS 12Gb/s 7200RPM 8TB
3.5" SAS 12Gb/s 7200RPM 12TB
(optional)HDD/SSD Intel/Samsung/WD/Seagate/HGST
*No Hard Drive
Added
2.5" SSD SATA 6Gb/s 256GB
2.5" SSD SATA 6Gb/s 512GB
2.5" SSD SATA 6Gb/s 1TB
2.5" SSD SATA 6Gb/s 2TB
2.5" SSD SATA 6Gb/s 4TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2016 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
