6049P-E1CR60L
$7,349.00 Configured Summary
6049P-E1CR60L
Supermicro 4U 60Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking) Note: must bundle with Network card
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3; 2 rear Hot-swap 2.5" drive bays
  • Broadcom 3008 SAS3, IT mode
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5 Hot-swap 8cm rear exhaust PWM fans
  • 2000W Redundant Power Supplies Titanium Level (96%)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN

Storage configuration notice:
Hot-swap:
60x Hot-swap 3.5" SAS3/SATA3 drive bays
2x Rear Hot-swap 2.5" SATA drive bays
Optional:
6x NVMe bays (optional)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 30 HDDs and 1 NIC or SIOM card).
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 6049P-E1CR60L
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
7" (178mm)
Depth:
30.2" (767mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621 chipset
SAS:
SAS3 (12Gbps) via Broadcom 3008 AOC; IT Mode
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
60x Hot-swap 3.5" SAS3/SATA3 drive bays
2x Rear Hot-swap 2.5" SATA drive bays
Expansion Slots
PCI-Express:
2x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x8 slot
1x SIOM card support
(must bundle with network card)
Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power:

1000W/1800W/1980W/2000W
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
100-120Vac / 12.5-9.5A / 50-60Hz
200-220Vac / 10-9.5A / 50-60Hz
220-230Vac / 10-9.8A / 50-60Hz
230-240Vac / 10-9.8A / 50-60Hz
200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V:
Max: 83.3A / Min: 0A (100-120Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 166.7A / Min: 0A (230-240Vac)
Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level
UL/cUL/CB/BSMI/CE/CCC
Input Output
Serial ATA:
8x SATA3 (6Gbps) ports
LAN:
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
1x Type A
VGA:
1x VGA D-Sub connector port
Serial Port / Header:
1x Fast UART 16550 port / 1x Header
Cooling
5x Hot-swap 8cm rear exhaust PWM fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watchdog

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

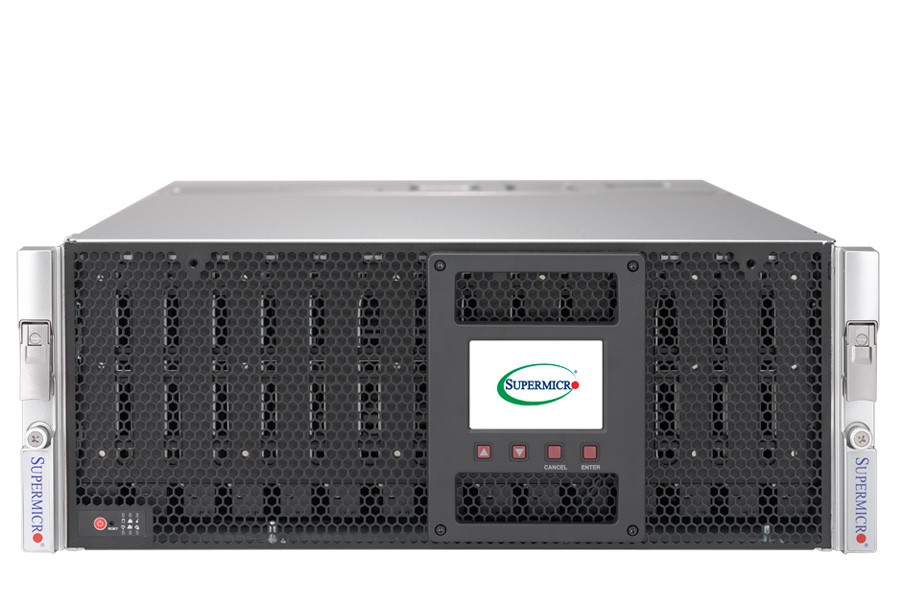

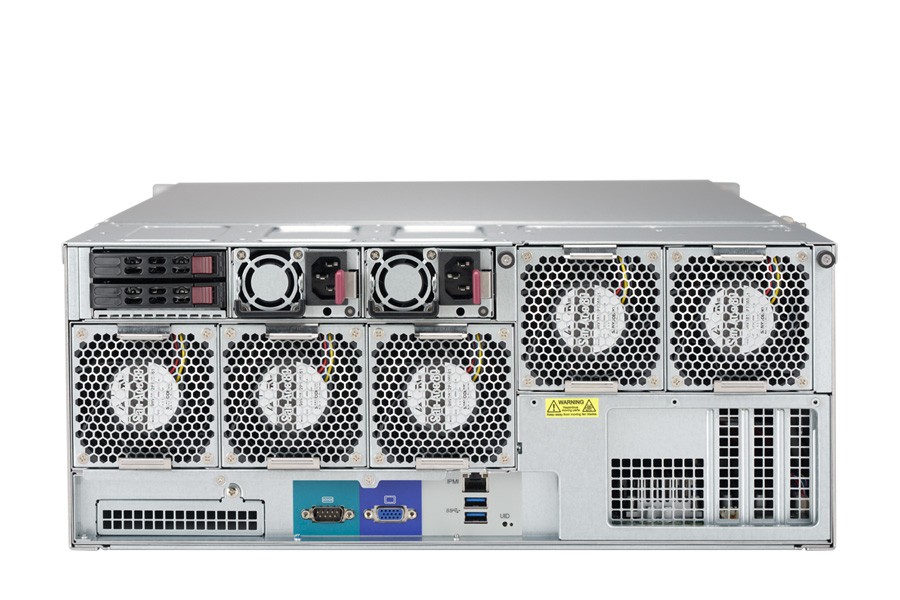

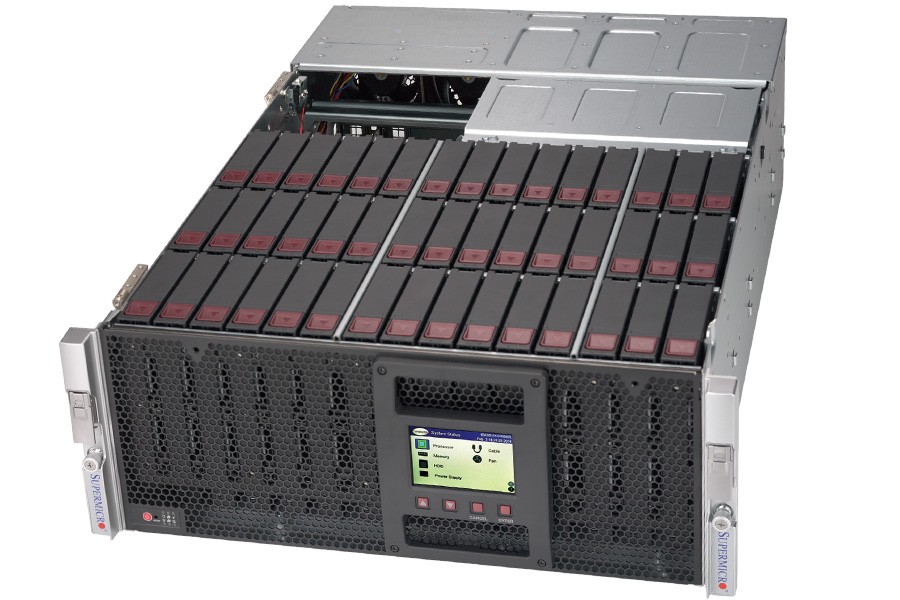

6049P-E1CR60L6049P-E1CR60L6049P-E1CR60L
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $238.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $674.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $1,170.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $1,450.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,828.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $2,166.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $2,406.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $3,038.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $2,142.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $3,150.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $2,466.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $5,408.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $3,678.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $5,226.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $6,920.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $5,606.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $7,278.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $7,590.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $8,412.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $5,790.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $156.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $508.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $1,340.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $16.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $160.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $552.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $1,356.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $5,850.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $6,870.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $7,770.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $8,670.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $10,770.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $11,550.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $15,600.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $19,200.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $21,900.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $7,470.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $8,670.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $9,870.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $13,440.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $15,060.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $16,650.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $21,600.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $24,300.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $6,450.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $7,170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $8,070.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $9,570.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $10,770.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $12,450.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $16,500.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $20,100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $22,800.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $7,050.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $7,770.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $8,670.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $10,470.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $14,340.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $15,960.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $17,550.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $22,500.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $25,200.00
NVMe U.2
*No NVMe U.2 Drives
Added
Intel P4510 U.2 2.5" PCIe NVMe SSD 1TB
+ $419.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 2TB
+ $948.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 4TB
+ $1,489.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 8TB
+ $2,508.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 1.6TB
+ $739.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 3.2TB
+ $1,589.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 6.4TB
+ $2,899.00
Intel D7-P5510 2.5" U.2 PCIe NVMe SSD 3.84TB
+ $936.00
Intel D7-P5510 2.5" U.2 PCIe NVMe SSD 7.68TB
+ $1,918.00
Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB
+ $213.00
Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB
+ $438.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $207.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $246.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $376.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $701.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $1,156.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $2,235.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
+ $94.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $137.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $228.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $437.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $804.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $234.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $429.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $778.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,492.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $236.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $438.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $839.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3189
1
6575.0000
