5049P-E1CR45H
Please Inquire Configured Summary
5049P-E1CR45H
Supermicro 4U 45bays Single Scalable Processor Rackmount Server

  • Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots
  • 2x PCI-E 3.0 x8 (in x16), 3x PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 1x PCI-E 3.0 x8 (occupied by HBA)
  • 2x GbE LAN ports via Intel i210
  • 45x Hot-swap 3.5" SAS3/SATA3 drive bays, 2x rear Hot-swap 2.5" SATA drive bays; optional 2x SATA or NVMe
  • Broadcom 3108 SAS3, HW RAID (AOC-S3108L-H8IR-P )
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5x Hot-swap 8cm redundant PWM fans
  • 1600W Redundant Power Supplies Platinum Level
  • Backup Storage, Cold Storage, Database Applications, Data Warehousing, Archiving

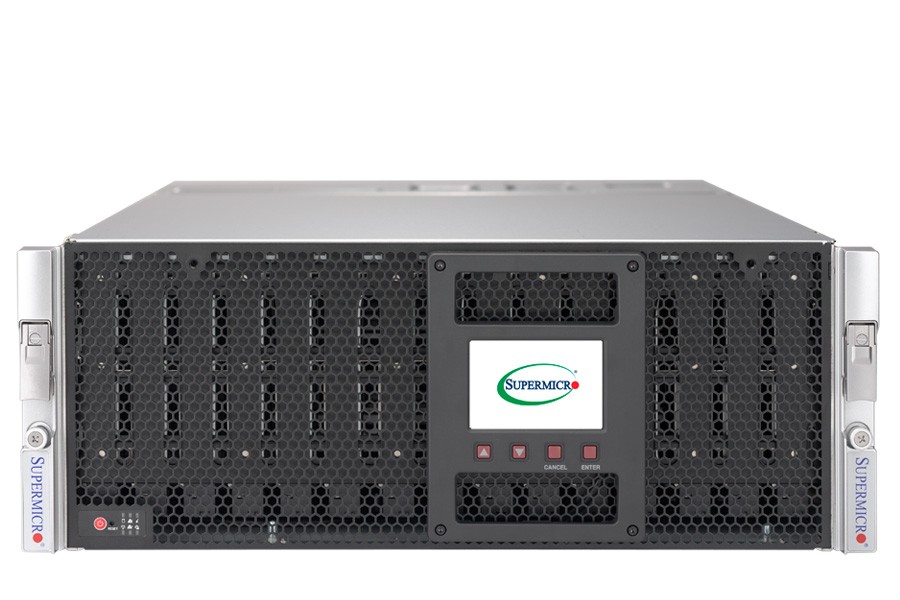

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 5049P-E1CR45H
Processor
CPU:
Single Socket P (LGA 3647)
Intel® Xeon® Scalable Processors
Support CPU TDP up to 165W
Cores:
Up to 28 Cores with Intel® HT Technology
Memory
Memory Capacity:
8 DIMM slots
Up to 1TB ECC 3DS LRDIMM, 256GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM

Chassis
4U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
7" (178mm)
Depth:
26" (660mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) via Intel® C621 controller
RAID 0, 1, 5, 10 support
SAS:
Broadcom 3108 SAS3, HW RAID
(AOC-S3108L-H8IR-P)
Network Controllers:
Dual 1GbE LAN ports with Intel® I210
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
45x Hot-swap 3.5" SAS3/SATA3 drive bays
2x Rear Hot-swap 2.5" SATA3 drive bays
Optional:
2x Hot-swap 2.5" NVMe/SATA drive bays (rear)
Expansion Slots
PCI-Express:
2x PCI-E 3.0 x8 (in x16)
3x PCI-E 3.0 x8
1x PCI-E 3.0 x4 (in x8)
1x PCI-E 3.0 x4 (occupied by HBA card)
M.2:
Interface: PCIe 3.0 x4
Form Factor: 2280, 22110
Power Supply
1600W 1U Redundant Power Supplies with PMBus
Total Output Power:

1000W/1600W
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
100-127Vac / 12.9A Max / 50-60Hz
200-240Vac / 9.5A Max / 50-60Hz
+12V:
Max: 82A / Min: 0.1A (100-127Vac)
Max: 132A / Min: 0.1A (200-240Vac)
12V SB:
Max: 2A / Min: 0.2A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Platinum Level Certified
Input Output
LAN:
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)
VGA:
1x VGA port
Serial Port / Header:
2x COM Ports (1x rear, 1x header)
Cooling
5x High-performance 80mm cooling fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
5049P-E1CR45H5049P-E1CR45H5049P-E1CR45H

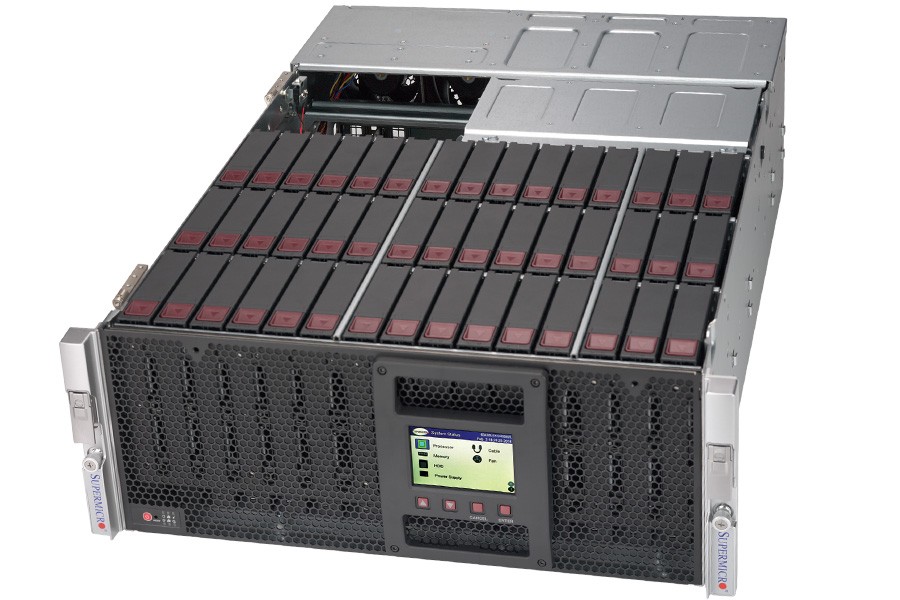

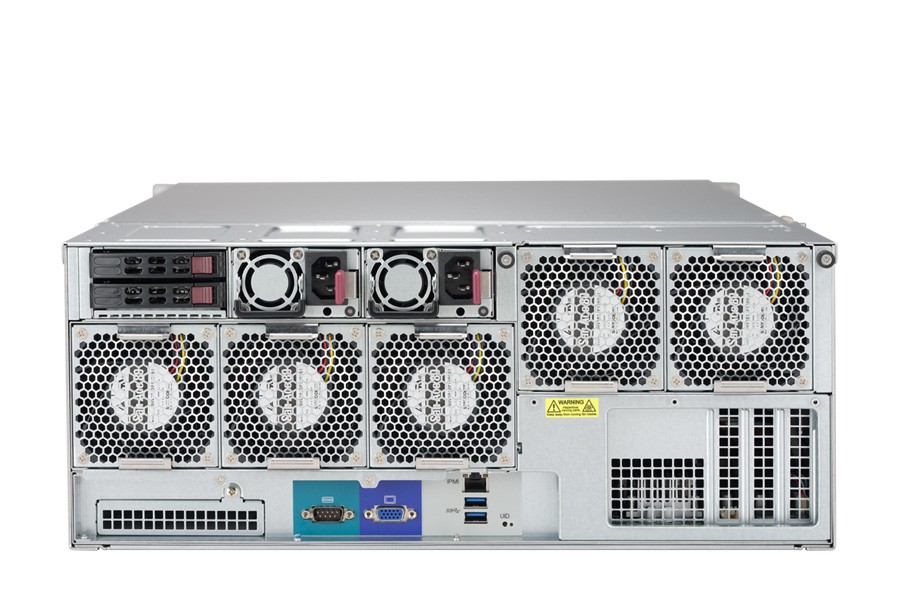

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
MEMORY
Select Memory Capacity:
8GB DDR4 2400 ECC Registered Memory
Added
16GB DDR4 2400 ECC Registered Memory
32GB DDR4 2400 ECC Registered Memory
64GB DDR4 2400 ECC LRDIMM Memory
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
3.5" SATA 6Gb/s 7200RPM 3TB
3.5" SATA 6Gb/s 7200RPM 4TB
3.5" SATA 6Gb/s 7200RPM 6TB
3.5" SATA 6Gb/s 7200RPM 8TB
3.5" SATA 6Gb/s 7200RPM 10TB
3.5" SAS 12Gb/s 7200RPM 2TB
3.5" SAS 12Gb/s 7200RPM 4TB
3.5" SAS 12Gb/s 7200RPM 6TB
3.5" SAS 12Gb/s 7200RPM 8TB
3.5" SAS 12Gb/s 7200RPM 12TB
(optional)HDD/SSD Intel/Samsung/WD/Seagate/HGST
2.5" SSD SATA 6Gb/s 256GB
Added
2.5" SSD SATA 6Gb/s 512GB
2.5" SSD SATA 6Gb/s 1TB
2.5" SSD SATA 6Gb/s 2TB
2.5" SSD SATA 6Gb/s 4TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Microsoft Windows Server 2016 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
