5049P-E1CR45L
Please Inquire Configured Summary
5049P-E1CR45L
Supermicro 4U 45bays Single 2nd Gen Scalable Processor Rackmount Server

  • Single Socket P (LGA 3647) supports 2nd Gen. Intel® Xeon® Scalable processor (Cascade Lake/Skylake)
  • 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x8 (in x16), 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 1 PCI-E 3.0 x8 (occupied by HBA)
  • 2 GbE LAN ports via Intel i210
  • 45 Hot-swap 3.5" SAS3/SATA3 drive bays, 2 rear Hot-swap 2.5" SATA drive bays; optional 2 SATA or NVMe
  • Broadcom 3008 SAS3 IT mode (AOC-S3008L-L8E)
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5 Hot-swap 8cm redundant PWM fans
  • 1600W Redundant Power Supplies Platinum Level
  • Backup Storage, Cold Storage, Database Applications, Data Warehousing, Archiving
To maintain quality and integrity, this product is sold only as a completely-assembled system (including 1 CPU, 1 DIMM, 20 HDDs).

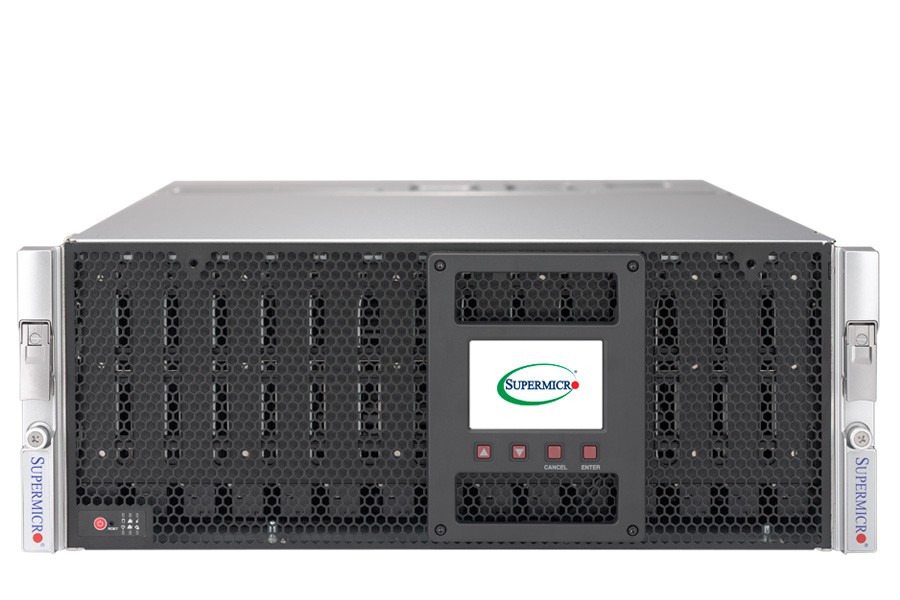

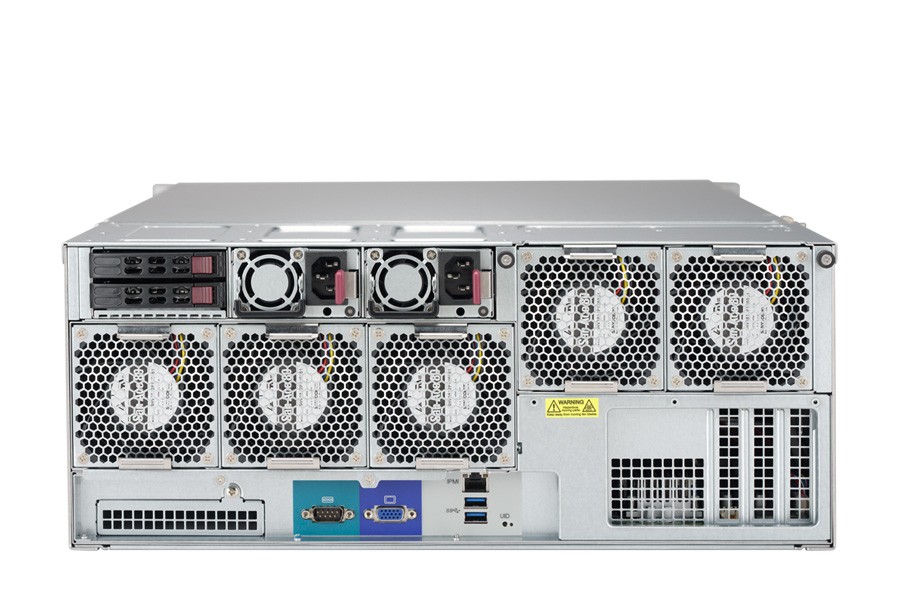

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 5049P-E1CR45L
Processor
CPU:
Single Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)
Support CPU TDP up to 165W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0b or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
8 DIMM slots
Up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
7" (178mm)
Depth:
26" (660mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 (6Gbps) via Intel® C621 controller
RAID 0, 1, 5, 10 support
SAS:
Broadcom 3008 SAS3 IT mode (AOC-S3008L-L8E) SW RAID 0, 1, 10
Network Controllers:
Dual 1GbE LAN ports with Intel® I210
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
45x Hot-swap 3.5" SAS3/SATA3 drive bays
2x Rear Hot-swap 2.5" SATA3 drive bays
Optional:
2x Hot-swap 2.5" NVMe/SATA drive bays (rear)
Expansion Slots
PCI-Express:
2x PCI-E 3.0 x8 (in x16)
3x PCI-E 3.0 x8
1x PCI-E 3.0 x4 (in x8)
1x PCI-E 3.0 x4 (occupied by HBA card)
M.2:
Interface: PCIe 3.0 x4
Form Factor: 2280, 22110
Power Supply
1600W 1U Redundant Power Supplies with PMBus
Total Output Power:

1000W/1600W
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
100-127Vac / 12.9A Max / 50-60Hz
200-240Vac / 9.5A Max / 50-60Hz
+12V:
Max: 82A / Min: 0.1A (100-127Vac)
Max: 132A / Min: 0.1A (200-240Vac)
12V SB:
Max: 2A / Min: 0.2A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Platinum Level Certified
Input Output
LAN:
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)
VGA:
1x VGA port
Serial Port / Header:
2x COM Ports (1x rear, 1x header)
Cooling
5x High-performance 80mm cooling fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI Power Management

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
5049P-E1CR45L5049P-E1CR45L5049P-E1CR45L

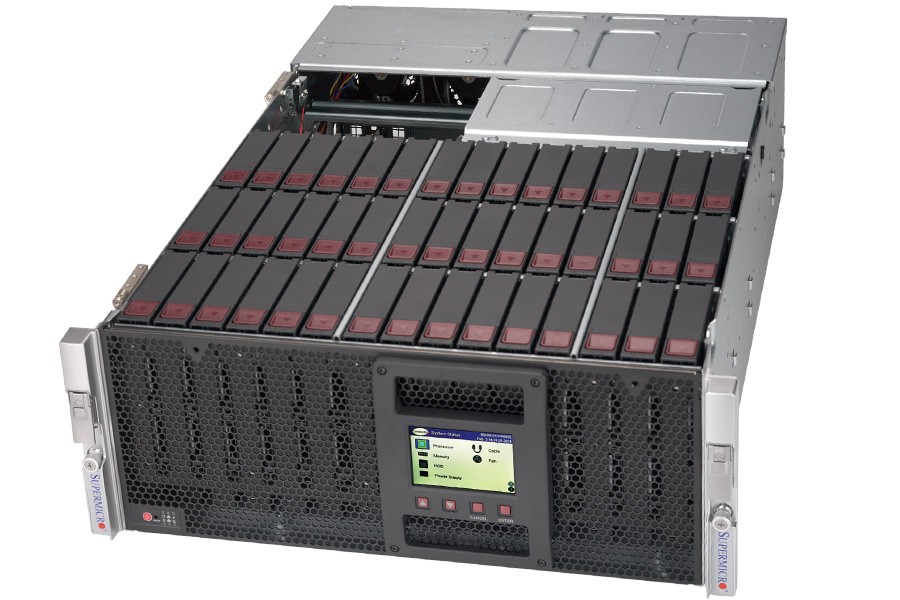

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
MEMORY
Select Memory Capacity:
8GB DDR4 2933 ECC RDIMM Memory
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
16GB DDR4 2933 ECC RDIMM Memory
32GB DDR4 2666 ECC Registered Memory
32GB DDR4 2933 ECC RDIMM Memory
64GB DDR4 2666 ECC LRDIMM Memory
64GB DDR4 2933 ECC LRDIMM Memory
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
3.5" SATA 6Gb/s 7200RPM 3TB
3.5" SATA 6Gb/s 7200RPM 4TB
3.5" SATA 6Gb/s 7200RPM 6TB
3.5" SATA 6Gb/s 7200RPM 10TB
3.5" SAS 12Gb/s 7200RPM 2TB
3.5" SAS 12Gb/s 7200RPM 4TB
3.5" SAS 12Gb/s 7200RPM 6TB
3.5" SAS 12Gb/s 7200RPM 8TB
3.5" SAS 12Gb/s 7200RPM 12TB
(optional)HDD/SSD Intel/Samsung/WD/Seagate/HGST
*No Hard Drive
Added
2.5" SSD SATA 6Gb/s 256GB
2.5" SSD SATA 6Gb/s 512GB
2.5" SSD SATA 6Gb/s 1TB
2.5" SSD SATA 6Gb/s 2TB
2.5" SSD SATA 6Gb/s 4TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2016 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
