G481-S80
$8,005.00 Configured Summary
G481-S80
Gigabyte 4U 10Bays Dual 2nd Gen Scalable Processor up to 8 GPU Rackmount Server

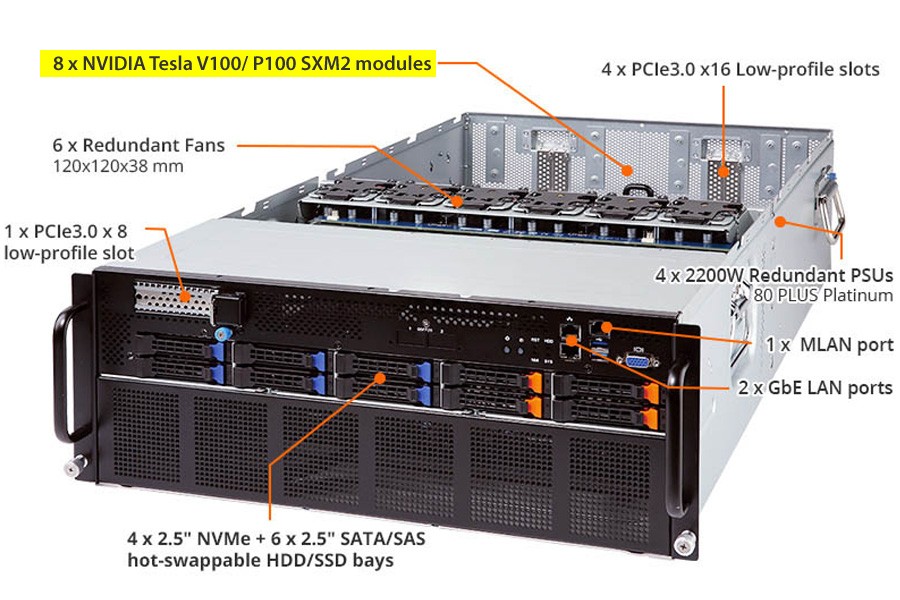

  • Up to 8 x NVIDIA Tesla® V100 SXM2 modules
  • Up to 300GB/s GPU interconnection by NVIDIA® NVLINK™ technology
  • 2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
  • Intel® Omni-Path Architecture Technology support as an option
  • 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
  • Supports Intel® Optane™ DC Persistent Memory
  • 2 x GbE LAN ports (Intel® I350-AM2)
  • 1 x dedicated management port
  • 4 x 2.5" NVMe, 6 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
  • 5 x low profile PCIe Gen3 expansion slots
  • 1 x OCP Gen3 x8 mezzanine slot
  • Aspeed® AST2500 remote management controller
  • 4 x 80 PLUS Platinum 2200W redundant PSU
  • Optimized performance with Mellanox Infiniband EDR and Ethernet 100G products

Storage configuration notice:
2x amber HDD trays compatible with NVMe devices only
2x amber HDD trays compatible with NVMe, SATA/SAS devices
6x blue HDD trays compatible with SATA/SAS devices only
SAS card is required to enable SAS devices support
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU G481-S80
Processor
CPU:
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon®Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
NOTE: If only 1 CPU is installed, some PCIe and memory functions might be unavailable
Socket:
2 x LGA 3647
Socket P
TDP up to 205W
Memory
24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz
Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs
DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)
NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our technical or sales representative
Chassis
4U Rackmount Chassis
Dimensions
448mm(W) x 176mm(H) x 880mm(D)
Onboard Devices
LAN
Rear Side:
1x 10/100/1000 management LAN (in option)
Front Side:
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
1x 10/100/1000 management LAN
* 4 x QSFP28 LAN ports with Intel® Omni-Path Host Fabric Interface (as an option)
- Provides 25Gb/s bandwidth per port, total 100Gb/s bandwidth with 4 QSFP28 LAN ports
* NOTE: Please select Intel® Xeon processors with Omni-Path Architecture to enable Intel® Omni-Path Host Fabric Interface
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
RAID
For SATA/SAS drives:
Intel® SATA RAID 0/1/10/5
For NVMe drives:
Intel® Virtual RAID On CPU (VROC) RAID 0, 1, 5
Note: VROC module is compatible for Intel®SSD only
HDD Drive Bays
10x 2.5" hot-swappable HDD/SSD bays
-2x amber HDD trays compatible with NVMe devices only
-2x amber HDD trays compatible with NVMe, SATA/SAS devices
-6x blue HDD trays compatible with SATA/SAS devices only
SAS card is required to enable SAS devices support
Expansion Slots
8 x SXM2 sockets (Gen3 x8 bus) for NVIDIA Tesla® V100/ P100 SXM2 modules
Rear Side:
4x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots
1x OCP mezzanine slot
- PCIe Gen3 x8
- Type1, P1, P2, P3, P4, K2, K3
- Dedicated for GIGABYTE optional designed LAN HBA
Front Side:
1x PCIe x16 (Gen3 x8 bus) Half-length low-profile slot
Power Supply
4x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord
Input Output
Internal I/O
1 x TPM header
1 x VROC connector
1 x Front VGA header
1 x Serial header
Front I/O
2 x USB 3.0
1 x VGA (Primary port)
3 x RJ45
4 x Onmi-Pach QSFP28 LAN ports (Reserved)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
1 x Onmi-Path activity LED
Rear I/O
1 x MLAN (Reserved, enabled by cable switch)
Backplane I/O
2 x ports compatible with NVMe only
2 x hybrid ports compatible with NVMe, SATA/SAS
6 x ports compatible with SATA/SAS only
Cooling
12 x 60x60x38mm (23000rpm)
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Details
TPM
1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
G481-S80G481-S80G481-S80G481-S80G481-S80G481-S80G481-S80
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Enterprise-Class HDD/SSD
*No Hard Drive
- $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $56.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $3.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $87.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $230.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $542.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,150.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $221.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $887.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $81.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $295.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $694.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $82.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $60.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $19.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $90.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $304.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $200.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $443.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $873.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,627.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,363.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,509.00
NVMe U.2/U.3
*No NVMe U.2 Drives
Added
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
+ $218.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
+ $411.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
+ $770.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
+ $1,386.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
+ $251.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
+ $473.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
+ $886.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
+ $1,526.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $208.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $369.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $749.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,294.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,559.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $238.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $421.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $856.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,478.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,924.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $231.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $439.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $781.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,459.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,886.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $752.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,334.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $163.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $264.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $478.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $924.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
+ $218.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
+ $411.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
+ $770.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
+ $1,386.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
+ $251.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
+ $473.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
+ $886.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
+ $1,526.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $208.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $125.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $215.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $358.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $670.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,278.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $349.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $516.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,015.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $209.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $423.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $822.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $46.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $68.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $109.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $218.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $432.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $328.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $571.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $1,001.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,755.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,491.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,637.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
NVIDIA TESLA P100 VLink Video Card 16GB
+ $8,289.00
NVIDIA TESLA V100 NVLink Video Card 16GB
+ $8,898.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3216
1
7492.0000
