G481-HA0
$7,824.00 Configured Summary
G481-HA0
Gigabyte 4U 12Bays Dual 2nd Gen Scalable Processor up to 10GPU Server

  • Up to 10 x NVIDIA Tesla® V100 PCIe GPGPU cards
  • 2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
  • Intel® Omni-Path architecture technology support as an option
  • 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
  • Supports Intel® Optane™ DC Persistent Memory
  • 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
  • 2 x GbE LAN ports (Intel® I350-AM2)
  • 1 x dedicated management port
  • 8 x NVMe, 2 x SATA/SAS 2.5" hot-swappable HDD/SSD bays
  • 12 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
  • 2 x low profile PCIe Gen3 expansion slots
  • Aspeed® AST2500 remote management controller
  • 3 x 80 PLUS Platinum 2200W redundant PSU
  • Optimized performance with Mellanox Infiniband EDR and Ethernet 100G products

Storage configuration notice:
12x 3.5" hot-swappable HDD/SSD bays
8x 2.5" NVMe or SATA/SAS devices
2x 2.5" SATA/SAS devices

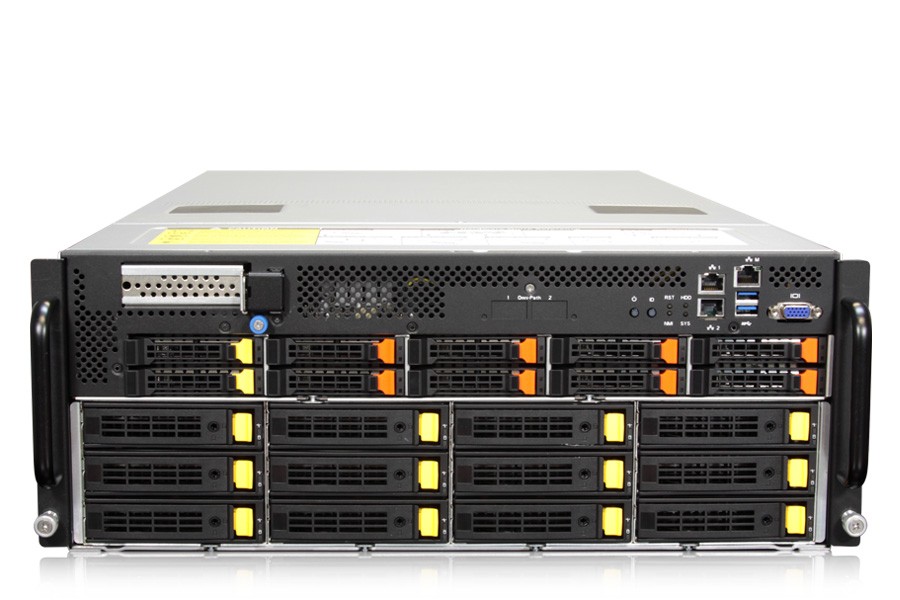

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU G481-HA0
Processor
CPU:
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Socket:
2x LGA 3647
Socket P
TDP up to 205W
Memory
24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz

Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs

DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)

NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our technical or sales representative
Chassis
4U Rackmount Chassis
Dimensions
448mm(W) x 176mm(H) x 880mm(D)
Onboard Devices
LAN
Rear Side:
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1x 10/100/1000 management LAN
Front Side:
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
4x QSFP28 LAN ports with Intel® Omni-Path Host Fabric Interface (in option)
- Provides 25Gb/s bandwidth per port, total 100Gb/s bandwidth with 4 QSFP28 LAN ports
NOTE: Please select Intel® Xeon processors with Omni-Path Architecture to enable Intel® Omni-Path Host Fabric Interface

Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
12x 3.5" hot-swappable HDD/SSD bays
- Compatible with SATA/SAS devices only
10x 2.5" hot-swappable HDD/SSD bays
- 8 x amber HDD trays compatible with NVMe or SATA/SAS devices
- 2 x blue HDD trays compatible with SATA/SAS devices only
Pre-install with Broadcom SAS3008 storage adapter with IR mode and expander board
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Expansion Slots
10x PCIe x16 slots (Gen3 x16 bus) for GPUs
1x PCIe x16 (Gen3 x8 bus) Half-length low-profile slots in front side, occupied by CRA3338 HBA
1x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots in rear side
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
Power Supply
3x 2200W redundant PSUs
80 PLUS Platinum

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A

NOTE: The system power supply requires C19 type power cord
Input Output
Internal I/O
1x TPM header
1x VROC connector
1x Front VGA header
1x Serial header

Front I/O
2x USB 3.0
1x VGA
2x RJ45
1x MLAN (Reserved, enabled by cable switch)
4x Onmi-Pach QSFP28 LAN ports (Reserved)
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED
1x Onmi-Pach activity LED

Rear I/O
2x RJ45
1x MLAN (Primary port)

Backplane I/O
12x 3.5" ports and 10 x 2.5" ports
Cooling
4x 40x40x28mm (25000rpm)
12x 60x60x38mm (23000rpm)
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Details
TPM
1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
G481-HA0G481-HA0G481-HA0G481-HA0G481-HA0

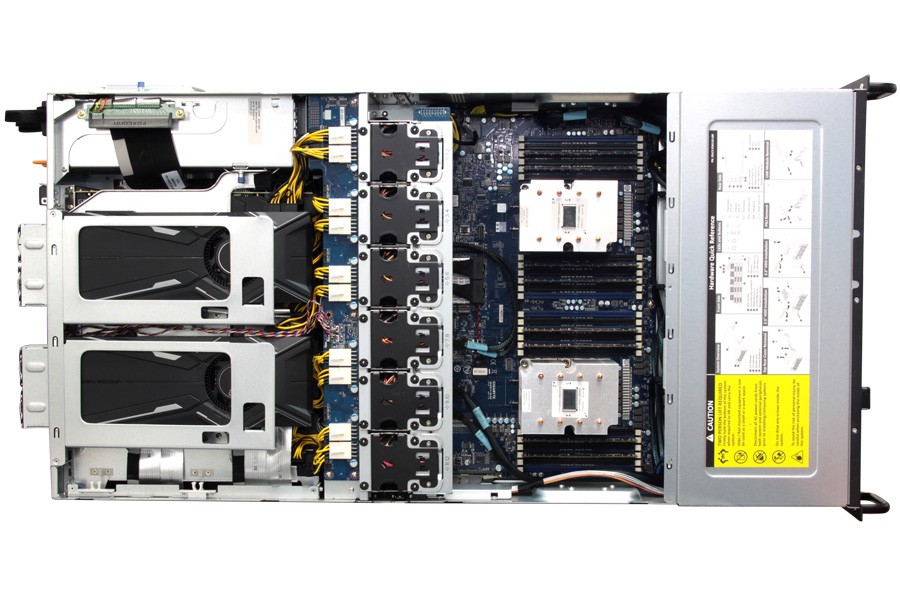

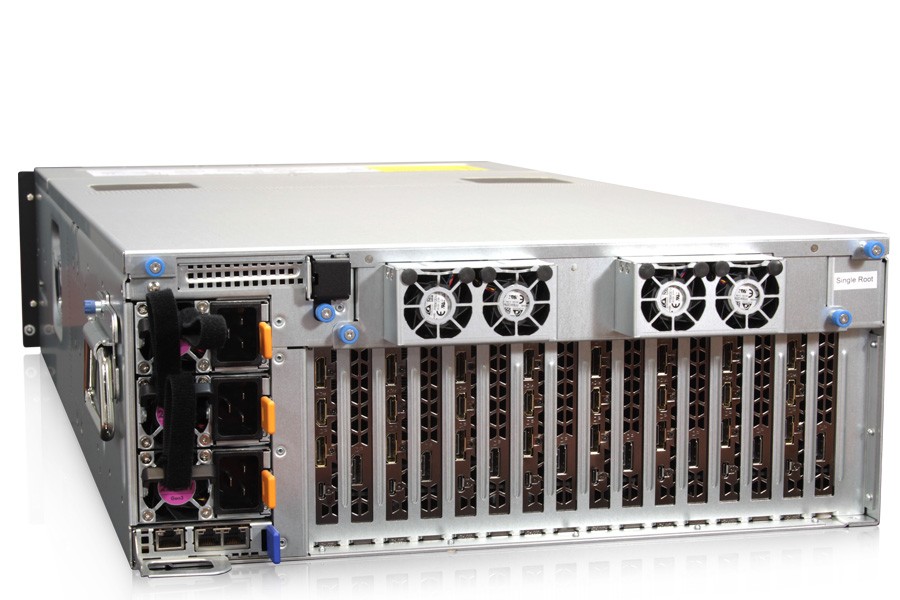

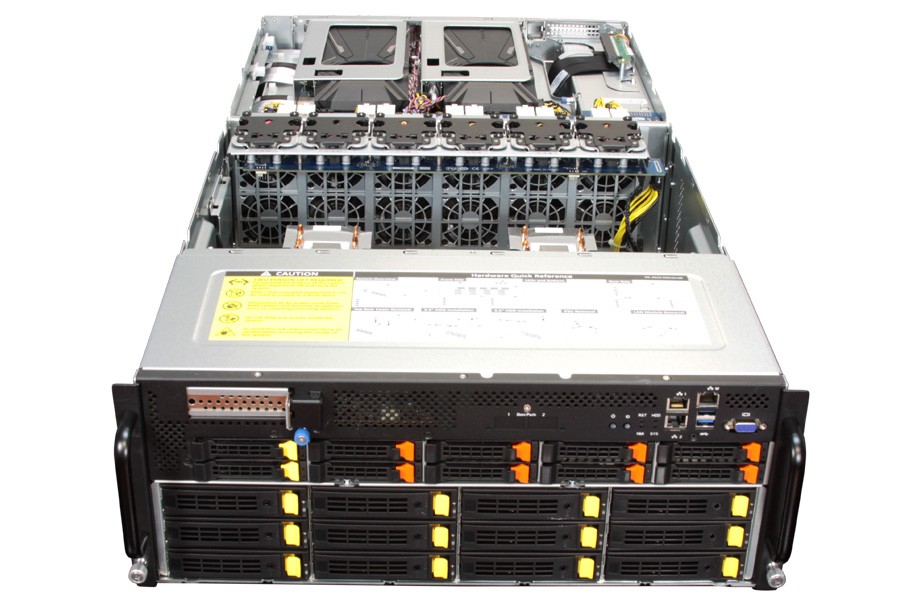

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $156.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $508.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $1,340.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $16.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $160.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $552.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $1,356.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $34.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $64.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $94.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $164.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $190.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $325.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $445.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $535.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $54.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $94.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $134.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $253.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $307.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $360.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $525.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $615.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $20.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $44.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $74.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $124.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $164.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $355.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $475.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $565.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $40.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $64.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $154.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $283.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $390.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $555.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $645.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Intel P4510 U.2 2.5" PCIe NVMe SSD 1TB
+ $419.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 2TB
+ $948.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 4TB
+ $1,489.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 8TB
+ $2,508.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 1.6TB
+ $739.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 3.2TB
+ $1,589.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 6.4TB
+ $2,899.00
Intel D7-P5510 2.5" U.2 PCIe NVMe SSD 3.84TB
+ $936.00
Intel D7-P5510 2.5" U.2 PCIe NVMe SSD 7.68TB
+ $1,918.00
Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB
+ $213.00
Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB
+ $438.00
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $207.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $246.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $376.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $701.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $1,156.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $2,235.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
+ $94.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $137.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $228.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $437.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $804.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $234.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $429.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $778.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,492.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $236.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $438.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $839.00
OS DRIVE
*No OS Drive
Added
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $207.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $246.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $376.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $701.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $1,156.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $2,235.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
+ $94.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $137.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $228.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $437.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $804.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $234.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $429.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $778.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,492.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $236.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $438.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $839.00
NETWORK CARD
*No Network Card
Added
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $155.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $360.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $350.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $348.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $412.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $350.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $358.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $449.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $504.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $960.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,225.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,800.00
GPU/Coprocessor
*No GPU
Added
ASUS GeForce RTX 3070 TURBO Video Card 8GB
+ $1,169.00
ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G
+ $2,899.00
GIGABYTE​ GeForce RTX 3080 TURBO Video Card 10G
+ $1,989.00
GIGABYTE​ GeForce RTX 3090 TURBO Video Card 24G
+ $2,899.00
PNY NVIDIA Quadro RTX 4000 GDDR6 Video Card 8GB
+ $1,365.00
PNY NVIDIA Quadro RTX 5000 GDDR6 Video Card 16GB
+ $3,236.00
PNY NVIDIA Quadro RTX 6000 GDDR6 Video Card 24GB
+ $5,638.00
PNY NVIDIA Quadro RTX 8000 GDDR6 Video Card 48GB
+ $9,989.00
NVIDIA TESLA T4 Video Card 16GB
+ $2,600.00
NVIDIA TESLA V100 PCIe Video Card 16GB
+ $8,898.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3217
1
7080.0000
