5039C-I
Please Inquire Configured Summary
5039C-I
Supermicro 4Bays Single Processor Mid-Tower server

  • Single socket H4 (LGA 1151) supports Intel® Xeon® E processor, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
  • Intel® C242 chipset
  • Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4x DIMM slots
  • 1x PCI-E 3.0 x8 (in x16) slot, 2x PCI-E 3.0 x4 (in x8) slots
  • 4x internal 3.5" drive bays, 2x external 5.25" peripheral bays
  • M.2 Interface: 1x PCI-E 3.0 x4, M.2 Form Factor: 22110/2280, M.2 Key: M-Key
  • 2x USB 3.1 Gen1 (front), 2x USB 3.1 Gen1 (rear), 2x USB 2.0 (rear)
  • 1x COM port, 1x VGA port Power Supply
  • 400W Gold Certified High Efficient Power Supply
  • Entry-Level Server for SOHO, SMB, Remote access for mobile users, Data sharing/storage and Centralized backup
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 5039C-I
Processor
Single Socket H4 (LGA 1151),
CPU TDP support up to 95W
Support Intel® Xeon® E processors,
8th Gen. Intel® Core™ i3 Processors,
Intel® Celeron®, Intel® Pentium®
Memory
Memory Capacity:
4 DIMM slots
Up to 128GB ECC UDIMM
Up to DDR4-2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes:
32GB, 16GB, 8GB
Note:
Future support for 128GB via BIOS update expected in early 2019
Chassis
Mid-Tower Chassis

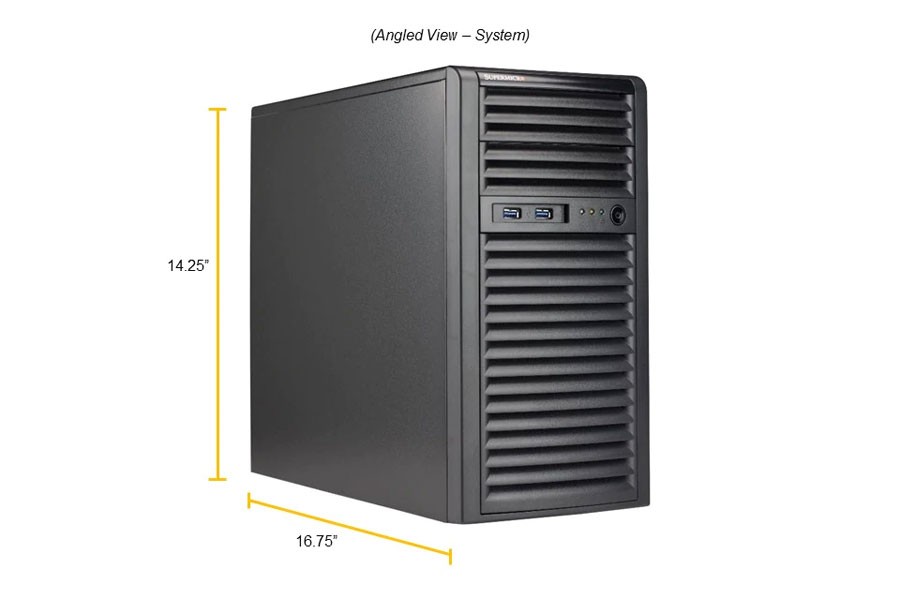

Dimensions
Height:
14.25" (362mm)
Width:
7.25" (184mm)
Depth:
16.75" (425mm)

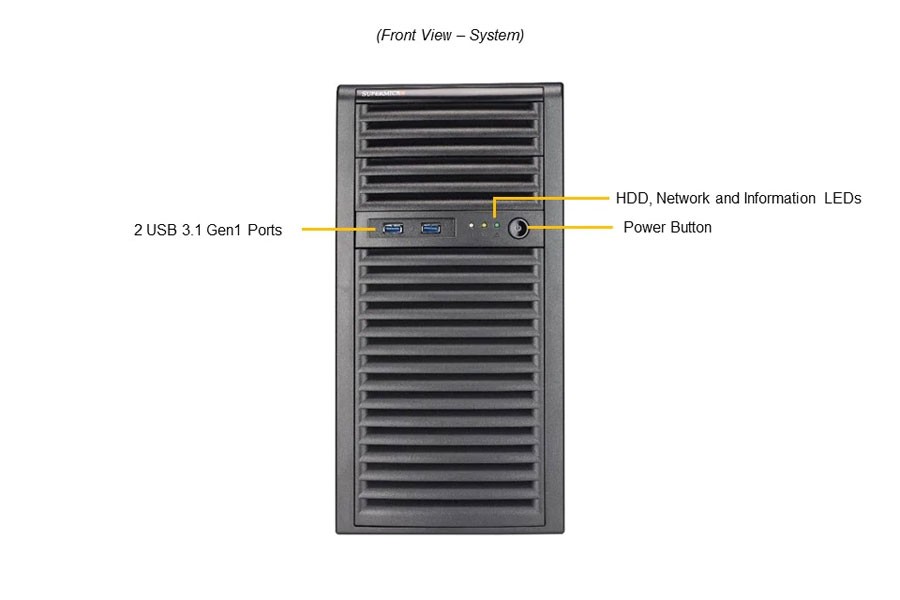

Front Panel
Buttons:
Power On/Off button
LEDs:
Power LED
Hard drive activity LED
Network activity LED
System Information LED
Ports:
2 USB 3.1 Gen 1 ports
Bios
BIOS Type:
UEFI 256Mb
BIOS Features:
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
PCI F/W 3.0
Onboard Devices
Chipset:
Intel® C242 chipset
SATA:
SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support
Network Controllers:
Dual LAN with Intel® I210-AT
HDD Drive Bays
Internal:
4x Fixed 3.5" drive bays
Peripheral:
2x External 5.25" Peripheral bays
Expansion Slots
PCI-Express:
1x PCI-E 3.0 x8 (in x16) slot
2x PCI-E 3.0 x4 (in x8) slots
M.2:
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 22110/2280
M.2 Key: M-Key
Power Supply
Super quiet operation with 12cm cooling fan and 80plus gold certification
Total Output Power and Input:

400W with Input 100 - 240Vac
AC Input Frequency:
50-60Hz
Dimensions (L x W x H):
140 x 150 x 86 mm
-12V:
Max: 0.3A
+12V:
18A
+5V:
Max: 22A
+3.3V:
Max: 24A
+5V standby:
Max: 3A
Certification:
80 PLUS Gold Certified

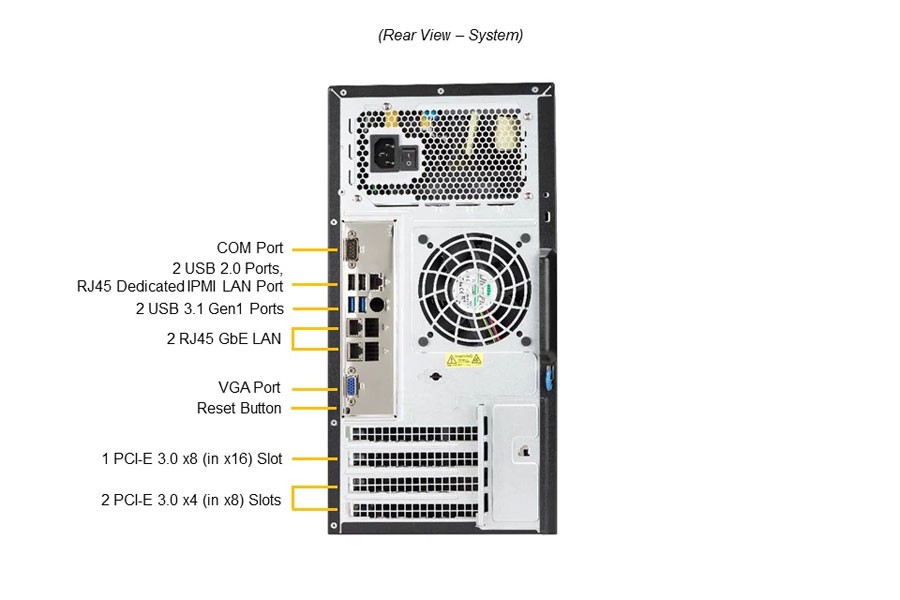

Input Output
SATA:
6x SATA3 (6Gbps) ports
LAN:
2x RJ45 Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.1 (front)
2x USB 3.1 (rear)
2x USB 2.0 (rear)
Video:
1x VGA port
Serial Port / Header:
1x COM port
TPM:
1x TPM 2.0 Header
Cooling
1x 9cm (rear) PWM fan w/ tool-less design
Optional 1x 8cm (front) cooling fan
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   20% to 95% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Software:
SuperDoctor® 5
Watch Dog
Non-maskable Interrupt (NMI)

5039C-I5039C-I5039C-I5039C-I
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® E-2124 Processor (4.30 GHz,71W)
Added
Intel® Xeon® E-2124G Processor (4.50 GHz,71W)
Intel® Xeon® E-2134 Processor (4.50 GHz,71W)
Intel® Xeon® E-2126G Processor (4.50 GHz,80W)
Intel® Xeon® E-2144G Processor (4.50 GHz,71W)
Intel® Xeon® E-2136 Processor (4.50 GHz,80W)
Intel® Xeon® E-2146G Processor (4.50 GHz,80W)
Intel® Xeon® E-2176G Processor (4.70 GHz,80W)
Intel® Xeon® E-2186G Processor (4.70 GHz,95W)
MEMORY
Select Memory Capacity:
8GB DDR4 2666 Non-Ecc Memory
Added
16GB DDR4 2666 Non-Ecc Memory
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
3.5" SATA 6Gb/s 7200RPM 3TB
3.5" SATA 6Gb/s 7200RPM 4TB
3.5" SATA 6Gb/s 7200RPM 6TB
3.5" SATA 6Gb/s 7200RPM 8TB
3.5" SATA 6Gb/s 7200RPM 10TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2016 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
