5039C-T
$814.00 Configured Summary
5039C-T

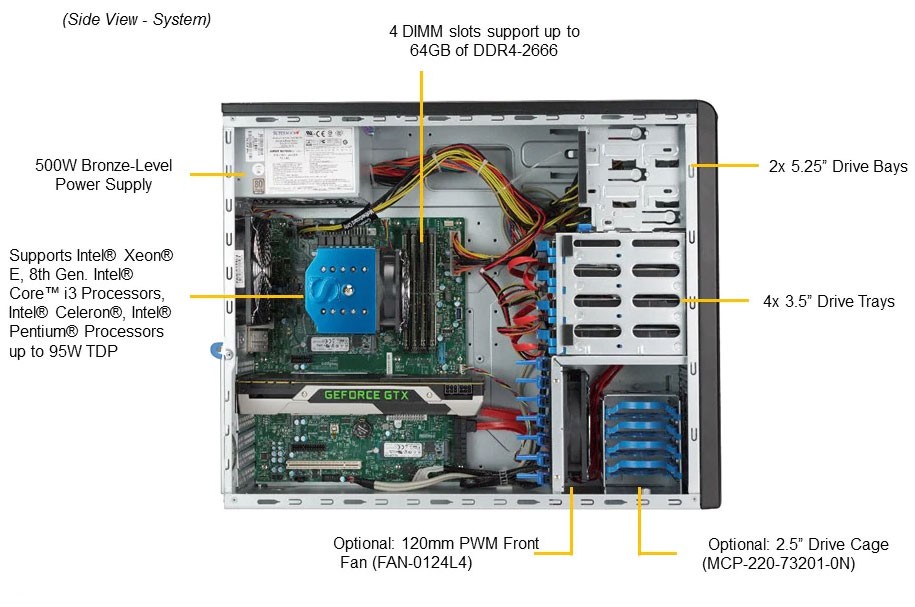

Supermicro 4Bays Single Processor Mid-Tower Server

  • Single socket H4 (LGA 1151) supports Intel® Xeon® E processor, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
  • Intel® C246 chipset
  • Up to 64GB ECC/non-ECC UDIMM, up to DDR4-2666MHz; 4x DIMM slots
  • 2x PCI-E 3.0 x16 running at NA/16 or 8/8, 1x PCI-E 3.0 x4 slot, 1x PCI-E 3.0 x1 slot
  • 2x M.2 (M-key, 2260/2280/22110), 1x U.2 for optional expanded storages
  • 2x USB Type A & Type C, 4x USB 3.1 Gen1 (2x rear + 2x front), 2x USB 2.0 (front)
  • 1x HDMI 2.0a port, 1x DVI-Dport, 1x DP 1.2 port, 1x TPM header, 1x COM header
  • 4x Fixed 3.5", Opt. 4x 2.5" drive bays, 2x Standard 5.25" drive bays, 1x Fixed 3.5" device bay
  • 500W Bronze Certified High Efficient Power Supply
  • Entry-Level Workstation, Designed for CAD and 3D Modeling Applications, NVIDIA® Quadro® Professional GPU Support
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 5039C-T
Processor
CPU:
Single Socket H4 (LGA 1151),
CPU TDP support up to 95W
Support Intel® Xeon® E processors,
8th Gen. Intel® Core™ i3 Processors,
Intel® Celeron®, Intel® Pentium®
Core/Cache:
Up to 6-Cores
Memory
Memory Capacity:
4 DIMM slots
Up to 64GB ECC/non-ECC UDIMM
Up to DDR4-2666MHz
Memory Type:
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes:
64GB, 32GB, 16GB, 8GB
Chassis
Mid-Tower Chassis

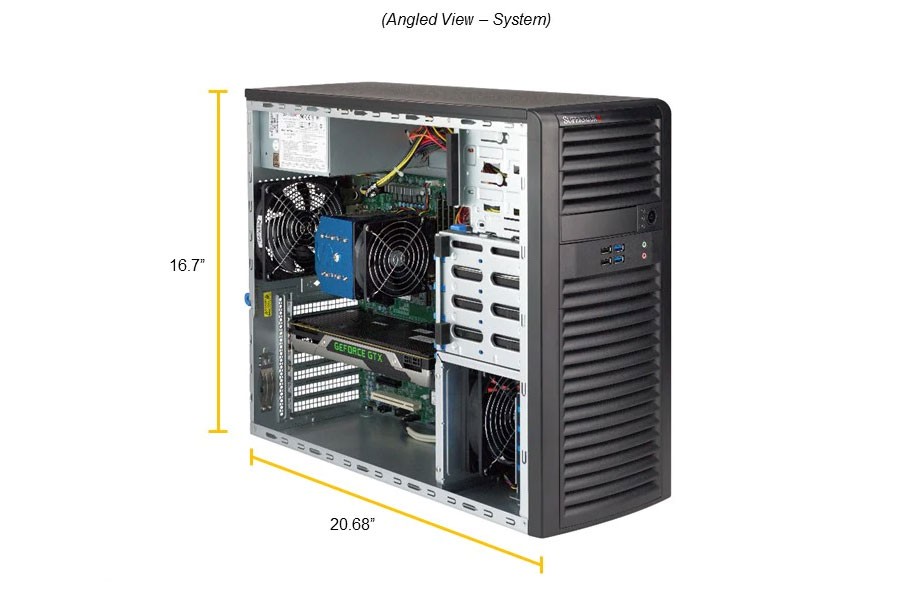

Dimensions
Height:
16.7" (424mm)
Width:
7.6" (193mm)
Depth:
20.68" (525.3mm)

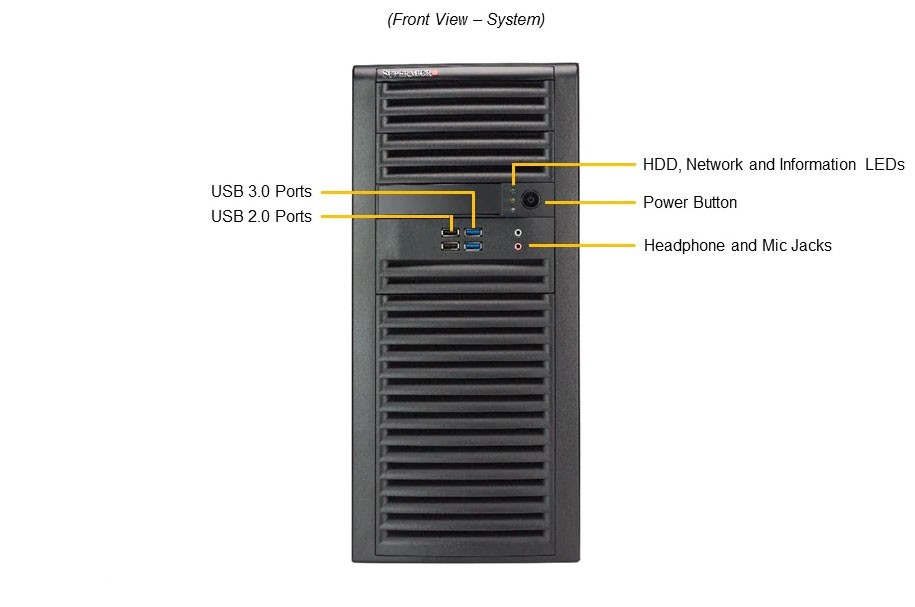

Front Panel
Buttons:
Power On/Off button
LEDs:
Power LED
Hard drive activity LED
Network activity LED
System Information LED
Ports:
2x USB 2.0 ports, 2x USB 3.1 Gen 1x ports
1x Line-out, 1 Mic-in
Bios
BIOS Type:
UEFI 256Mb
BIOS Features:
ACPI 3.0 or later
SMBIOS 2.7 or later
SPI dual/quad speed support
RTC wakeup
Onboard Devices
Chipset:
Intel® C246 chipset
SATA:
SATA3 (6Gbps) via Intel C246 controller
RAID 0, 1, 5, 10 support
Network Controllers
Single LAN with Intel® I210-AT
Single LAN with Intel® PHY I219LM
HDD Drive Bays
Internal:
4x Fixed 3.5" drive bays
Optional 4x internal 2.5" drive bays
Enterprise SATA HDD only recommended
Peripheral:
2x Standard 5.25" Peripheral drive bays
1x Internal 3.5" Fixed device bay
Expansion Slots
PCI-Express:
2x PCI-E 3.0 x16 running at NA/16 or 8/8
1x PCI-E 3.0 x4 slot
1x PCI-E 3.0 x1 slot
1x PCI 32bit 5V slot
M.2:
M.2 Interface: 2x PCI-E 3.0 x4
M.2 Form Factor: 2260/ 2280/ 22110
M.2 Key: M-Key (RAID 0,1 support)
U.2 Interface: 1x PCI-E 3.0 x4 (Shared with M.2#2)
Power Supply
500W AC power supply w/ PFC
AC Voltage:

100 - 240V, 50-60Hz, 7-3.5 Amp
+5V:
20 Amp
+5V standby:
3 Amp
+12V1:
17 Amp
+12V2:
17 Amp
+12V3:
17 Amp
+12V4:
18 Amp
-12V:
0.5 Amp
+3.3V:
15 Amp
Certification:
Bronze Level Bronze Certified

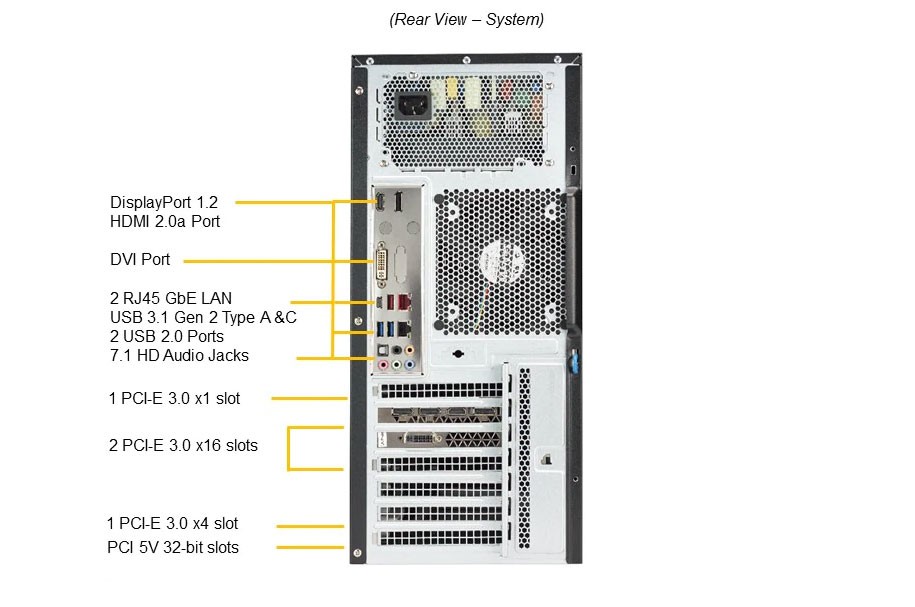

Input Output
SATA:
8x SATA3 (6Gbps) ports from Intel® C246
LAN:
2x RJ45 Ethernet LAN ports
USB:
2x USB 3.1 Gen 2 Type A and Type C (rear)
4x USB 3.1 Gen 1 (2x rear + 2x front)
2x USB 2.0 (front)
Video:
1x HDMI (2.0a) port
1x DVI-D port, 1 DisplayPort 1.2 port
Audio:
7.1 HD Jacks
Serial Port / Header:
1x COM port (header)
TPM:
1x TPM 2.0 Header
Cooling
1x 12cm rear exhaust fan
Optional 1x 12cm front cooling fan
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
PC Health Monitoring
CPU:
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
4+2-Phase-switching voltage regulator
FAN:
Low noise fan speed control
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 5x 4-pin fan connectors
PECI
5039C-T5039C-T5039C-T5039C-T
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® E-2124 Processor (4.30 GHz,71W)
Added
Intel® Xeon® E-2124G Processor (4.50 GHz,71W)
+ $23.00
Intel® Xeon® E-2134 Processor (4.50 GHz,71W)
+ $65.00
Intel® Xeon® E-2126G Processor (4.50 GHz,80W)
+ $70.00
Intel® Xeon® E-2144G Processor (4.50 GHz,71W)
+ $78.00
Intel® Xeon® E-2136 Processor (4.50 GHz,80W)
+ $102.00
Intel® Xeon® E-2146G Processor (4.50 GHz,80W)
+ $134.00
Intel® Xeon® E-2176G Processor (4.70 GHz,80W)
+ $190.00
Intel® Xeon® E-2186G Processor (4.70 GHz,95W)
+ $289.00
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
+ $88.00
32GB DDR4 2666 ECC Registered Memory
+ $302.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $419.00
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
+ $49.00
3.5" SATA 6Gb/s 7200RPM 3TB
+ $90.00
3.5" SATA 6Gb/s 7200RPM 4TB
+ $104.00
3.5" SATA 6Gb/s 7200RPM 6TB
+ $145.00
3.5" SATA 6Gb/s 7200RPM 8TB
+ $244.00
3.5" SATA 6Gb/s 7200RPM 10TB
+ $305.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
-Microsoft Windows 10 Professional 32/64-bit
+ $166.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
