2029GP-TR
$3,657.00 Configured Summary
2029GP-TR
Supermicro 2U 10Bays Dual 2nd Gen Scalable Processor GPU Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 6 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (in x16) slots
  • 8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMedrive bays
  • 1 SIOM for flexible Networking
  • 5x 8cm heavy duty fans with optimal fan speed control
  • 2000W Redundant Power Supplies Platinum Level (94%)
  • Supports up to 6 GPUs

Storage configuration notice:
Hot-swap:
8x Hot-swap 2.5" SAS/SATA drive bays
2x Hot-swap 2.5" SATA/NVMe drive bays
Barebones and Complete System must be installed with at least one SIOM or network card per system
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 2029GP-TR
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W

Cores:
Up to 28 Cores

Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors

GPU Support:
Please refer to:Compatible GPU list
Memory
Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM

Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact our sales rep for more info.
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (89mm)

Width:
17.2" (437mm)

Depth:
31" (787mm)
Front Panel
Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 256Mb SPI Flash ROM
Onboard Devices
Chipset:
Intel® C621 chipset

SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
10x Hot-swap 2.5" drive bays
Expansion Slots
6x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x8 (in x16, LP) slot
Power Supply
2000W 1U Redundant Power Supplies with PMBus
Total Output Power:

1000W/1800W/1980W/2000W

Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
100-120Vac / 12.5-10.5A / 50-60Hz
200-220Vac / 10-9.5A / 50-60Hz
220-230Vac / 10-9.8A / 50-60Hz
230-240Vac / 10-9.8A / 50-60Hz
200-240Vac / 10-9.8A (UL/cUL only)
200-240Vdc / 10-9.1A (CCC only)

+12V:
Max: 83.3A / Min: 0.1A (100-120Vac)
Max: 150A / Min: 0.1A (200-220Vac)
Max: 165A / Min: 0.1A (220-230Vac)
Max: 166.7A / Min: 0.1A (230-240Vac)
Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only)

12V SB:
Max: 3.5A / Min: 0A

Output Type:
25 Pairs Gold Finger Connector

Certification:
Platinum Level
Input Output
SATA:
2x SATA3 (6Gbps) ports, 2x miniSAS ports

LAN:
1x RJ45 Dedicated IPMI LAN port

USB:
2x USB 3.0 ports (rear)

Video:
1x VGA port

Serial Header:
1x Fast UART 16550 header
Cooling
5x 8cm Heavy duty fans with optimal fan speed control
Operating Environment
RoHS:
RoHS Compliant


Environmental Spec.:

Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:
   8% to 90% (non-condensing)

Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management

Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog

Power Configurations:
ACPI / APM Power Management

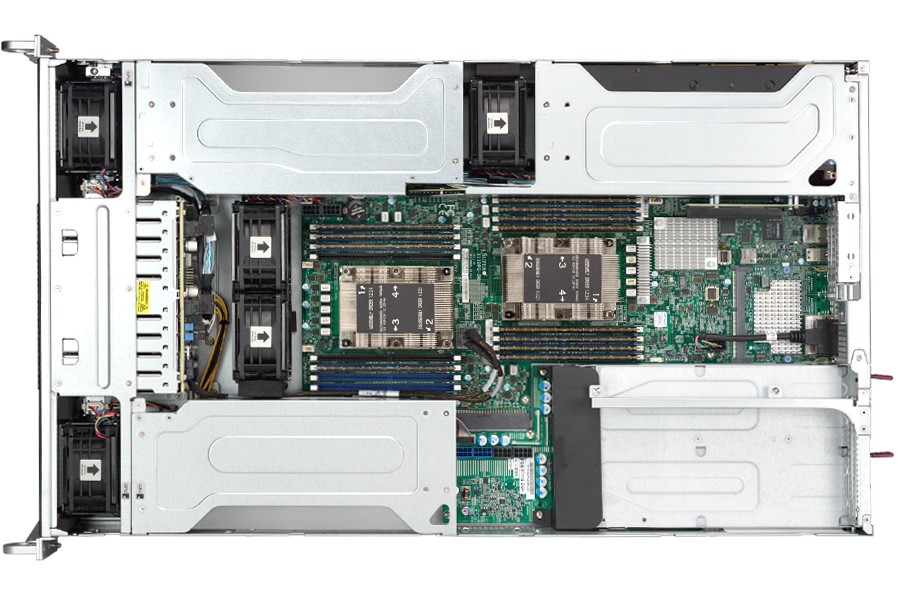

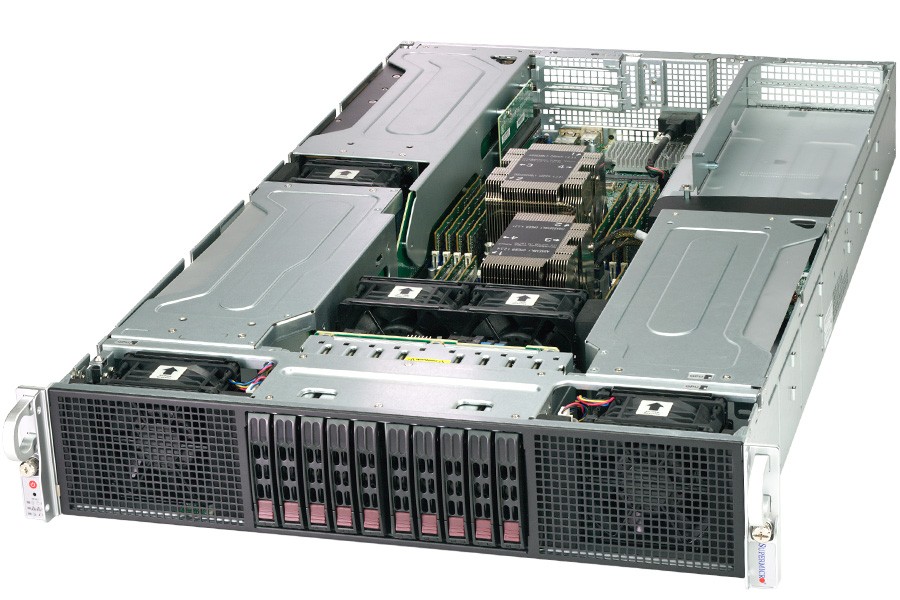

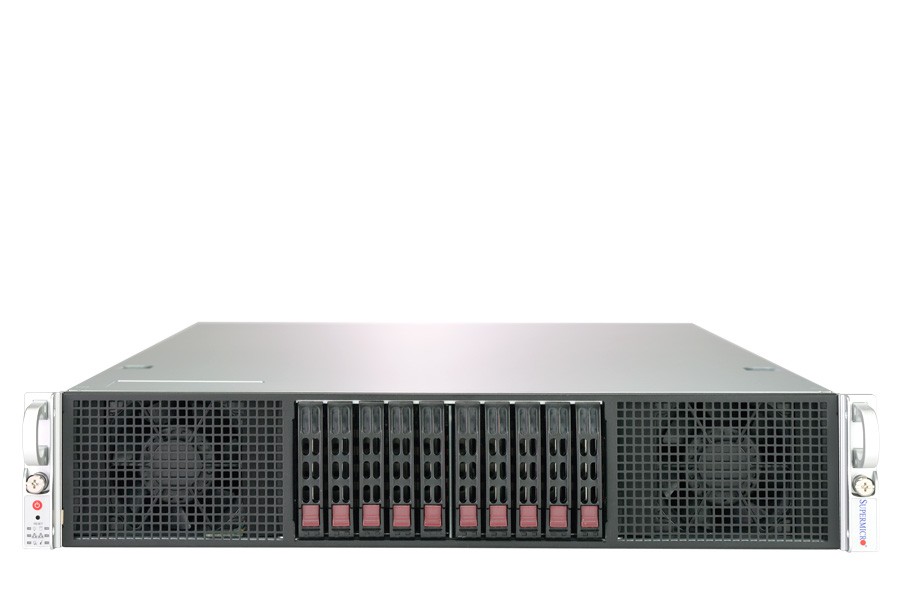

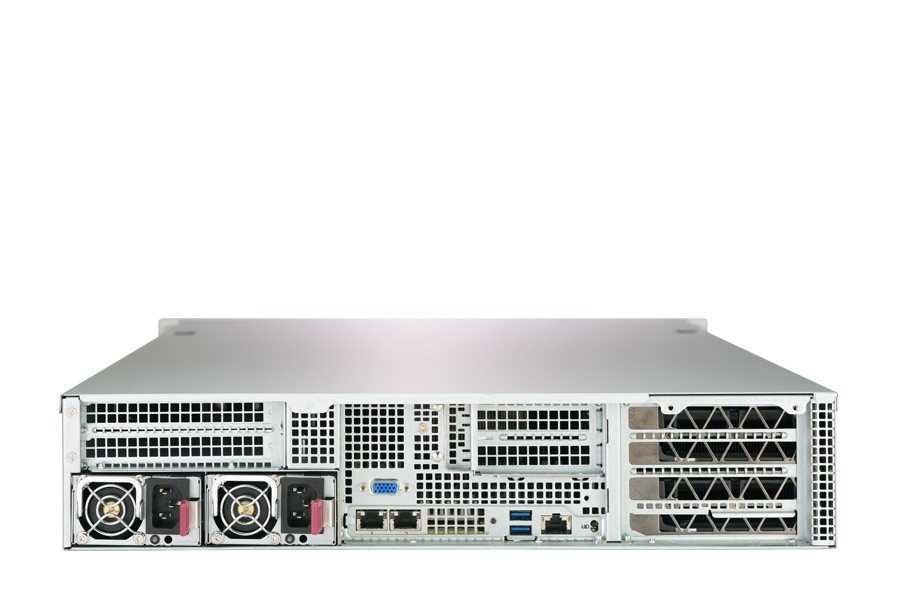

2029GP-TR2029GP-TR2029GP-TR2029GP-TR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $78.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $254.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $670.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $8.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $80.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $276.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $678.00
Enterprise-Class HDD/SSD
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $113.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $152.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $282.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $607.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $1,062.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $2,141.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
Added
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $43.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $134.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $343.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $710.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $140.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $335.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $684.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,398.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $142.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $344.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $745.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Intel P4510 U.2 2.5" PCIe NVMe SSD 1TB
+ $419.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 2TB
+ $948.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 4TB
+ $1,489.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 8TB
+ $2,508.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 1.6TB
+ $739.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 3.2TB
+ $1,589.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 6.4TB
+ $2,899.00
Intel D7-P5510 2.5" U.2 PCIe NVMe SSD 3.84TB
+ $936.00
Intel D7-P5510 2.5" U.2 PCIe NVMe SSD 7.68TB
+ $1,918.00
Samsung 983 DCT 2.5" U.2 NVMe SSD 960GB
+ $213.00
Samsung 983 DCT 2.5" U.2 NVMe SSD 1.9TB
+ $438.00
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $207.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $246.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $376.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $701.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $1,156.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $2,235.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
+ $94.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $137.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $228.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $437.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $804.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $234.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $429.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $778.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,492.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $236.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $438.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $839.00
NETWORK CARD
*No Network Card
Added
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $155.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $360.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $350.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $348.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $412.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $358.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $449.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $504.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $960.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,225.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,800.00
GPU/Coprocessor
*No GPU
Added
ASUS GeForce RTX 3070 TURBO Video Card 8GB
+ $1,169.00
ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G
+ $2,899.00
GIGABYTE​ GeForce RTX 3080 TURBO Video Card 10G
+ $1,989.00
GIGABYTE​ GeForce RTX 3090 TURBO Video Card 24G
+ $2,899.00
PNY NVIDIA Quadro RTX 4000 GDDR6 Video Card 8GB
+ $1,365.00
PNY NVIDIA Quadro RTX 5000 GDDR6 Video Card 16GB
+ $3,236.00
PNY NVIDIA Quadro RTX 6000 GDDR6 Video Card 24GB
+ $5,638.00
PNY NVIDIA Quadro RTX 8000 GDDR6 Video Card 48GB
+ $9,989.00
NVIDIA TESLA V100 NVLink Video Card 16GB
+ $8,898.00
NVIDIA TESLA T4 Video Card 16GB
+ $2,600.00
NVIDIA TESLA V100 PCIe Video Card 16GB
+ $8,898.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3269
1
3176.0000
