4029GP-TRT2
$7,422.00 Configured Summary
4029GP-TRT2

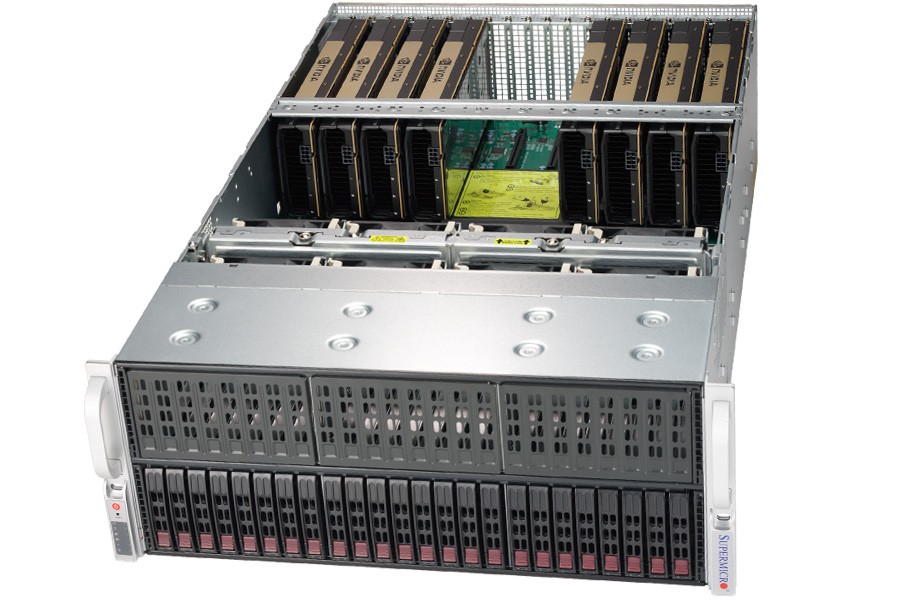

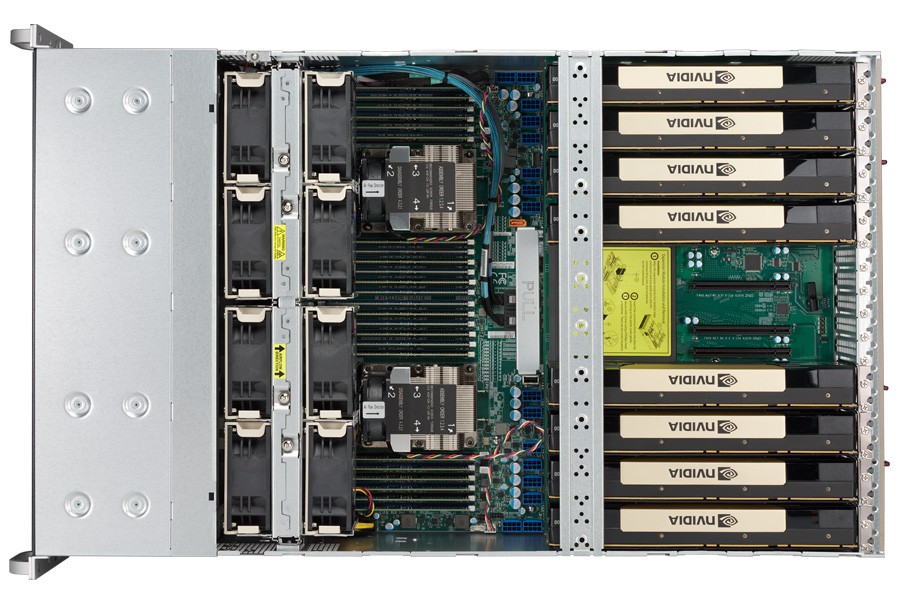

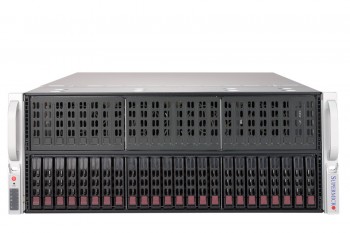

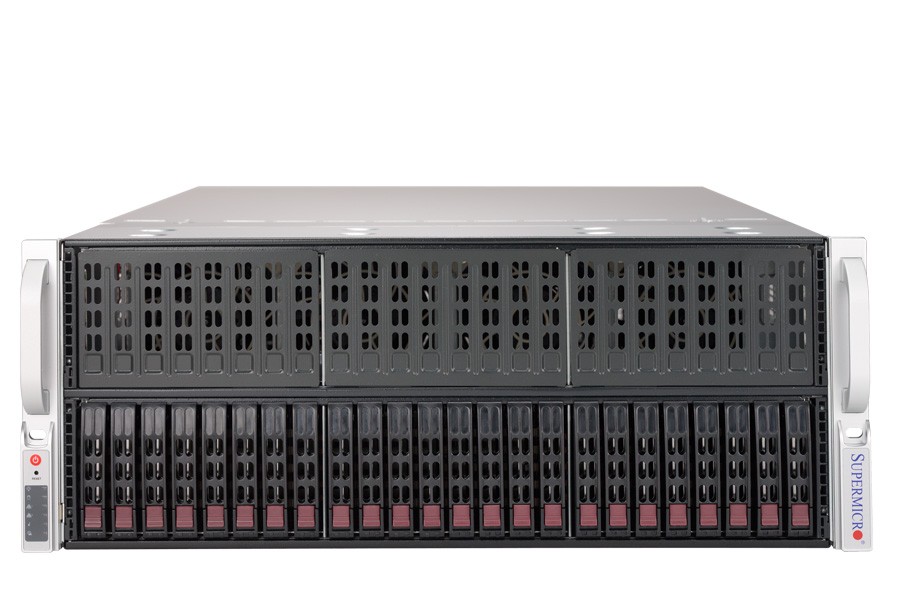

Supermicro 4U 24Bays Dual 2nd Gen Scalable Processor GPU Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 11 PCI-E 3.0 x16 (FH, FL) slots 1 PCI-E 3.0 x8 (FH, FL in x16 slot)
  • Up to 24 Hot-swap 2.5" drive bays; 8x 2.5" SATA drives supported with included H/W, 2x 2.5" NVMe drives supported with included H/W, 1 NVMe based M.2 SSD
  • 2x 10GBase-T LAN ports via Intel C622
  • 8 Hot-swap 92mm RPM cooling fans
  • 2000W (2+2) Redundant Power Supplies Titanium Level (96%+)
  • Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence, Single Root System for excellent GPU peer to peer communication with sufficient CPU to GPU throughput

Storage configuration notice:
Hot-swap:
Up to 24x 2.5" SAS/SATA drive bays
8x 2.5" SATA supported natively
2x 2.5" NVMe supported natively
M.2:
1x NVMe based M.2 SSD
Form Factors: 2260, 2280, 22110
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 4029GP-TRT2
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U Rackmount Chassis
Dimensions
Height:
7.0" (178mm)
Width:
17.2" (437mm)
Depth:
29" (737mm)
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM
Onboard Devices
Chipset:
Intel® C622 chipset
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers:
Dual Port 10GbE from C622
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
Up to 24x 2.5" SAS/SATA drive bays
8x 2.5" SAS/SATA supported natively
2x 2.5" NVMe supported natively
M.2:
1 NVMe based M.2 SSD
Form Factors: 2260, 2280, 22110
Expansion Slots
11 PCI-E 3.0 x16 (FH, FL) slots
1 PCI-E 3.0 x8 (FH, FL, in x16) slot
Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power:

1000W/1800W/1980W/2000W
Dimension (W x H x L):
73.5 x 40 x 265 mm
Input:
100-120Vac / 12.5-9.5A / 50-60Hz
200-220Vac / 10-9.5A / 50-60Hz
220-230Vac / 10-9.8A / 50-60Hz
230-240Vac / 10-9.8A / 50-60Hz
200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V:
Max: 83.3A / Min: 0A (100-120Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 166.7A / Min: 0A (230-240Vac)
Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level

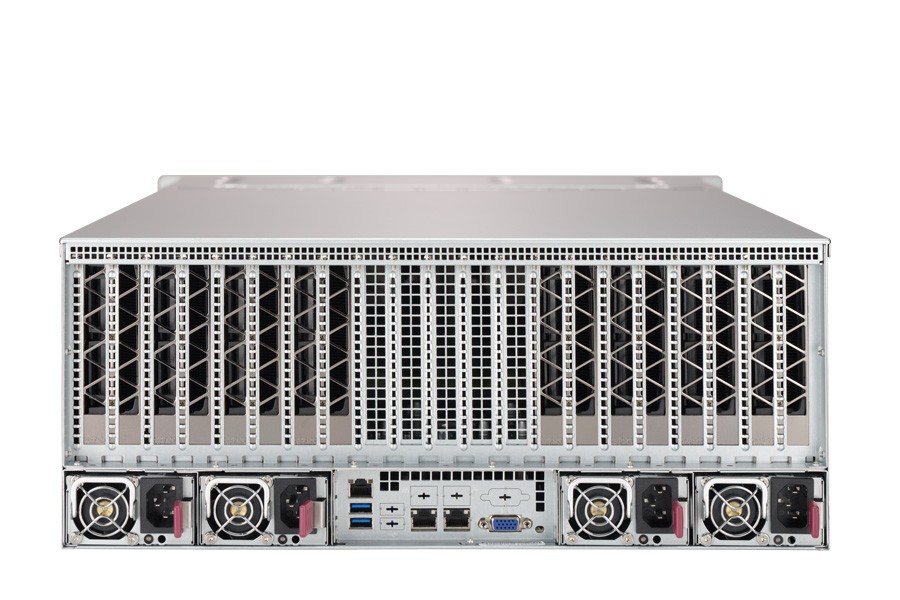

Input Output
SATA:
10 SATA3 (6Gbps) ports
LAN:
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB:
4 USB 3.0 ports (rear)
Video:
1 VGA Connector
COM Port:
1 COM port (rear)
Cooling
Fans:
8 Hot-swap 92mm cooling fans
Shrouds:
1 Air Shroud (MCP-310-41808-0B)
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watchdog
4029GP-TRT24029GP-TRT24029GP-TRT24029GP-TRT2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Enterprise-Class HDD/SSD
*No Hard Drive
- $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $56.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $3.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $87.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $230.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $542.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,150.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $221.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $887.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $81.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $295.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $694.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $82.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $60.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $19.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $90.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $304.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $200.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $443.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $873.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,627.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,363.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,509.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $83.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $122.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $224.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $107.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $157.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $272.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $445.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $780.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $752.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,334.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $163.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $264.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $478.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $924.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
+ $218.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
+ $411.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
+ $770.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
+ $1,386.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
+ $251.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
+ $473.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
+ $886.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
+ $1,526.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $208.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $125.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $215.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $358.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $670.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,278.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $349.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $516.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,015.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $209.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $423.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $822.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $46.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $68.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $109.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $218.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $432.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $328.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $571.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $1,001.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,755.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,491.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,637.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB
+ $759.00
ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G
+ $1,089.00
PNY NVIDIA Quadro RTX A2000 GDDR6 Video Card 12GB
+ $839.00
PNY NVIDIA Quadro RTX A4000 GDDR6 Video Card 16GB
+ $1,369.00
PNY NVIDIA Quadro RTX A5000 GDDR6 Video Card 24GB
+ $2,389.00
PNY NVIDIA Quadro RTX A6000 GDDR6 Video Card 48GB
+ $5,655.00
PNY NVIDIA Quadro RTX 8000 GDDR6 Video Card 48GB
+ $7,150.00
NVIDIA TESLA T4 Video Card 16GB
+ $2,600.00
NVIDIA A100 PCIe Video Card 40GB
+ $10,440.00
NVIDIA A100 PCIe Video Card 80GB
+ $14,300.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3271
1
6909.0000
