G481-HA1
$6,632.00 Configured Summary
G481-HA1
Gigabyte 4U 12Bays Dual 2nd Gen Scalable Processor up to 10GPU Server

  • Up to 10 x NVIDIA Tesla® V100 PCIe GPGPU cards
  • 2nd Gen. Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
  • Intel® Omni-Path architecture technology support as an option
  • 6-Channel RDIMM/LRDIMM DDR4, 24 x DIMMs
  • Supports Intel® Optane™ DC Persistent Memory
  • 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
  • 2 x GbE LAN ports (Intel® I350-AM2)
  • 1 x dedicated management port
  • 8 x NVMe, 2 x SATA/SAS 2.5" hot-swappable HDD/SSD bays
  • 12 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
  • 2 x low profile PCIe Gen3 expansion slots
  • Aspeed® AST2500 remote management controller
  • 3 x 80 PLUS Platinum 2200W redundant PSU
  • Optimized performance with Mellanox Infiniband EDR and Ethernet 100G products

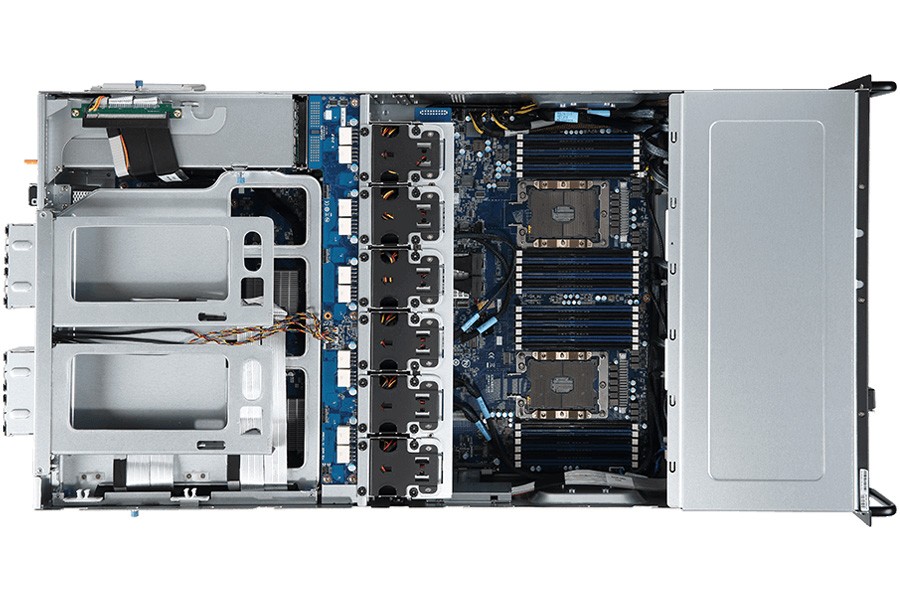

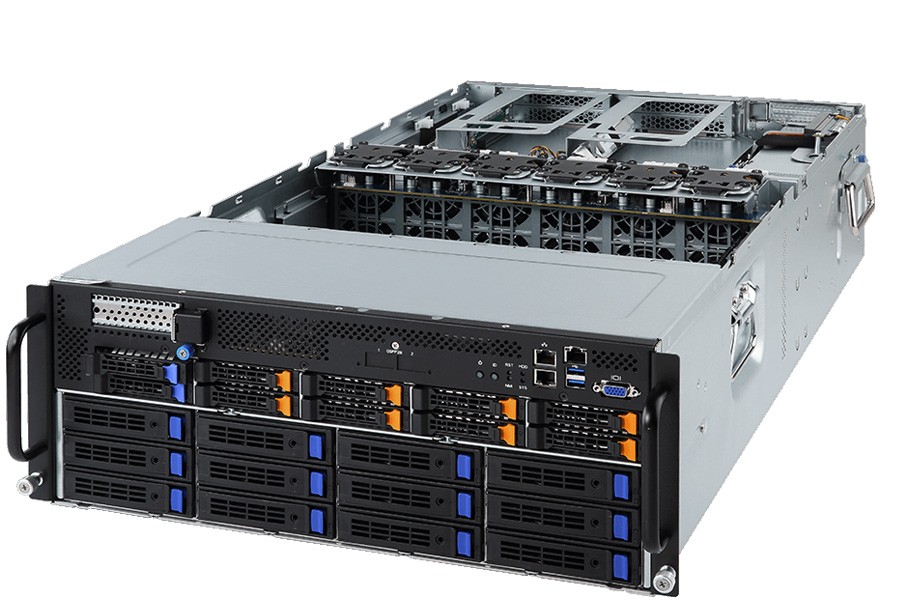

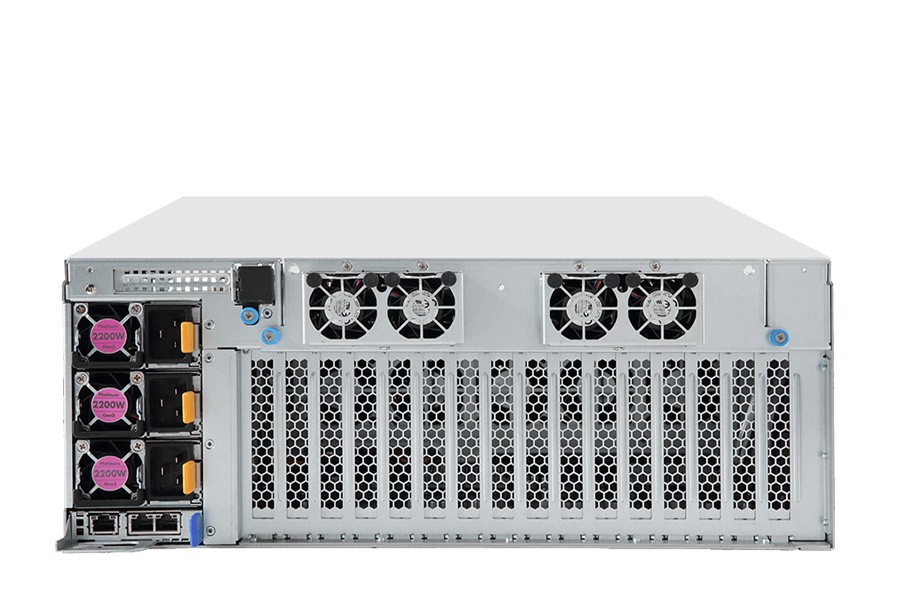

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU G481-HA1
Processor
CPU:
2nd Generation Intel® Xeon® Scalable and Intel® Xeon® Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket:
2x LGA 3647
Socket P
TDP up to 205W
Memory
24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Supports Intel® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933( 1DPC)/2666/2400/2133 MHz
Maximum verified DCPMM configuration:
* Ambient temperature 35°C
* 2nd Generation Intel® Xeon® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs
DCPMM installation locations:
DIMM_P0_( A1, B1, C1)
DIMM_P0_( D1, E1, F1)
DIMM_P1_( G1, H1, I1)
DIMM_P1_( J1, K1, L1)
NOTE:
1. 2933MHz for 2nd Generation Intel® Xeon® Scalable Processors only
2. Intel® Optane™ DC Persistent Memory for 2nd Generation Intel® Xeon® Scalable Processors only
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C
4. To enquire about installing a greater number of DCPMM, please consult with our technical or sales representative
Chassis
4U Rackmount Chassis
Dimensions
448mm(W) x 176mm(H) x 880mm(D)
Onboard Devices
LAN
Rear Side:
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1x 10/100/1000 management LAN
Front Side:
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
4x QSFP28 LAN ports with Intel® Omni-Path Host Fabric Interface (in option)
- Provides 25Gb/s bandwidth per port, total 100Gb/s bandwidth with 4 QSFP28 LAN ports
NOTE: Please select Intel® Xeon processors with Omni-Path Architecture to enable Intel® Omni-Path Host Fabric Interface
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
12x 3.5" hot-swappable HDD/SSD bays
- Compatible with SATA/SAS devices only
10x 2.5" hot-swappable HDD/SSD bays
- 8 x amber HDD trays compatible with NVMe or SATA/SAS devices
- 2 x blue HDD trays compatible with SATA/SAS devices only
Pre-install with Broadcom SAS3008 storage adapter with IR mode and expander board
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Expansion Slots
10x PCIe x16 slots (Gen3 x16 bus) for GPUs
1x PCIe x16 (Gen3 x8 bus) Half-length low-profile slots in front side, occupied by CRA3338 HBA
1x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots in rear side
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
Power Supply
3x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord
Input Output
Internal I/O
1x TPM header
1x VROC connector
1x Front VGA header
1x Serial header
Front I/O
2x USB 3.0
1x VGA
2x RJ45
1x MLAN (Reserved, enabled by cable switch)
4x Onmi-Pach QSFP28 LAN ports (Reserved)
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED
1x Onmi-Pach activity LED
Rear I/O
2x RJ45
1x MLAN (Primary port)
Backplane I/O
12x 3.5" ports and 10 x 2.5" ports
Cooling
4x 40x40x28mm (25000rpm)
12x 60x60x38mm (23000rpm)
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Details
TPM
1x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Hardware information
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Fan profiles
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (HTML5)
G481-HA1G481-HA1G481-HA1G481-HA1G481-HA1G481-HA1G481-HA1

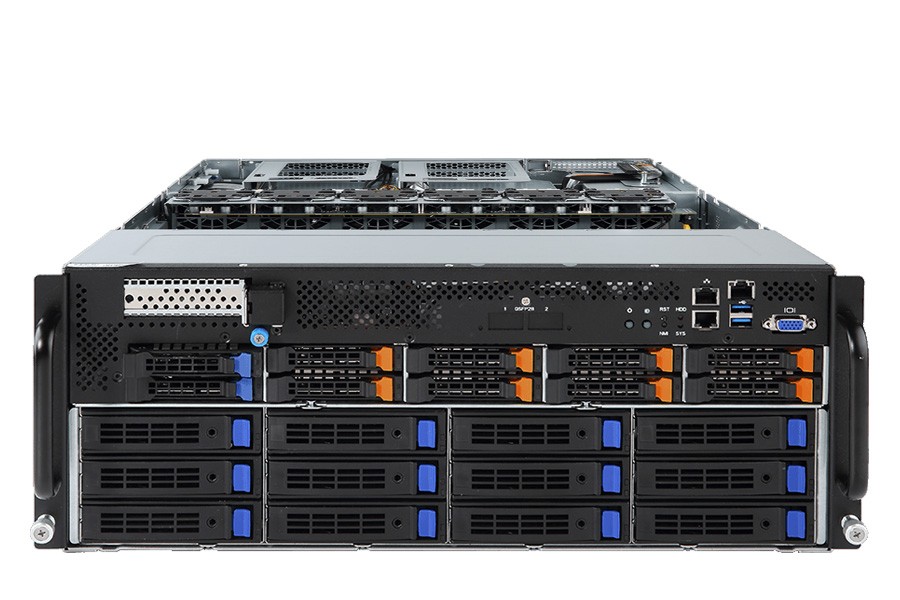

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $4,020.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $6,612.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $11,244.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $14,604.00
MEMORY
Samsung 8GB DDR4 2666 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2666 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2666 ECC RDIMM Memory
+ $500.00
Samsung 64GB DDR4 2666 ECC LRDIMM Memory
+ $1,084.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
+ $8.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $144.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $500.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $1,240.00
Enterprise 3.5 HDD/2.5 HDD/2.5 SSD
WD Ultrastar 3.5" SATA 6Gb/s HDD 2TB
+ $150.00
WD Ultrastar 3.5" SATA 6Gb/s HDD 4TB
+ $188.00
WD Ultrastar 3.5" SATA 6Gb/s HDD 6TB
+ $208.00
WD Ultrastar 3.5" SATA 6Gb/s HDD 8TB
+ $275.00
WD Ultrastar 3.5" SATA 6Gb/s HDD 10TB
+ $298.00
WD Ultrastar 3.5" SATA 6Gb/s HDD 12TB
+ $378.00
WD Ultrastar 3.5" SATA 6Gb/s HDD 14TB
+ $409.00
WD Ultrastar 3.5" SATA 6Gb/s HDD 16TB
+ $498.00
WD Ultrastar 3.5" SATA 6Gb/s HDD 18TB
+ $569.00
WD Ultrastar 3.5" SAS 12Gb/s HDD 4TB
+ $205.00
WD Ultrastar 3.5" SAS 12Gb/s HDD 6TB
+ $225.00
WD Ultrastar 3.5" SAS 12Gb/s HDD 8TB
+ $238.00
WD Ultrastar 3.5" SAS 12Gb/s HDD 10TB
+ $315.00
WD Ultrastar 3.5" SAS 12Gb/s HDD 12TB
+ $388.00
WD Ultrastar 3.5" SAS 12Gb/s HDD 14TB
+ $428.00
WD Ultrastar 3.5" SAS 12Gb/s HDD 16TB
+ $508.00
WD Ultrastar 3.5" SAS 12Gb/s HDD 18TB
+ $569.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 2TB
+ $168.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 4TB
+ $199.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 6TB
+ $227.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 8TB
+ $294.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 10TB
+ $478.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 12TB
+ $393.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 14TB
+ $442.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 16TB
+ $493.00
Seagate Exos 3.5" SATA 6.0GB/s HDD 18TB
+ $574.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 2TB
+ $183.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 4TB
+ $215.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 6TB
+ $240.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 8TB
+ $306.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 10TB
+ $345.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 12TB
+ $414.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 14TB
+ $453.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 16TB
+ $528.00
Seagate Exos 3.5" SAS 12.0Gb/s HDD 18TB
+ $610.00
NVMe U.2
*No NVMe U.2 Drives
Added
Intel P4510 U.2 2.5" PCIe NVMe SSD 1TB
+ $293.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 2TB
+ $505.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 4TB
+ $836.00
Intel P4510 U.2 2.5" PCIe NVMe SSD 8TB
+ $1,638.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 1.6TB
+ $543.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 3.2TB
+ $993.00
Intel P4610 U.2 2.5" PCIe NVMe SSD 6.4TB
+ $1,780.00
Micron 9300 MAX 2.5" U.2 NVMe SSD 3.2TB
+ $953.00
Micron 9300 PRO 2.5" U.2 NVMe SSD 3.8TB
+ $840.00
Micron 9300 MAX 2.5" U.2 NVMe SSD 6.4TB
+ $1,762.00
Micron 9300 PRO 2.5" U.2 NVMe SSD 7.68TB
+ $1,644.00
Micron 9300 MAX 2.5" U.2 NVMe SSD 12.8TB
+ $3,289.00
Micron 9300 PRO 2.5" U.2 NVMe SSD 15.36TB
+ $2,580.00
Samsung 983 DCT MZ-QLB1T9NE U.2 NVMe 1.9TB
+ $454.00
(optional)HDD/SSD
*No Hard Drive
Added
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $291.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $485.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $841.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $1,774.00
Micron 5210 ION 2.5" SATAIII QLC Enterprise SSD 1.92TB
+ $355.00
Micron 5210 ION 2.5" SATAIII QLC Enterprise SSD 3.8TB
+ $580.00
Micron 5210 ION 2.5" SATAIII QLC Enterprise SSD 7.68TB
+ $970.00
Samsung 860 Pro 2.5" SATA 6Gb/s 1TB SSD
+ $240.00
Samsung 860 Pro 2.5" SATA 6Gb/s 2TB SSD
+ $370.00
Samsung 860 Pro 2.5" SATA 6Gb/s 4TB SSD
+ $685.00
GPU/Coprocessor
*No GPU
Added
ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G
+ $3,289.00
GIGABYTE​ GeForce RTX 3080 TURBO Video Card 10G
+ $2,189.00
GIGABYTE​ GeForce RTX 3090 TURBO Video Card 24G
+ $3,289.00
PNY NVIDIA Quadro RTX 4000 GDDR6 Video Card 8GB
+ $1,199.00
PNY NVIDIA Quadro RTX 5000 GDDR6 Video Card 16GB
+ $2,589.00
PNY NVIDIA Quadro RTX 6000 GDDR6 Video Card 24GB
+ $4,513.00
PNY NVIDIA Quadro RTX 8000 GDDR6 Video Card 48GB
+ $6,725.00
NVIDIA TESLA T4 Video Card 16GB
+ $2,600.00
NVIDIA TESLA V100 PCIe Video Card 16GB
+ $8,825.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3286
1
6360.0000
