1019D-FRN5TP
Please Inquire Configured Summary
1019D-FRN5TP

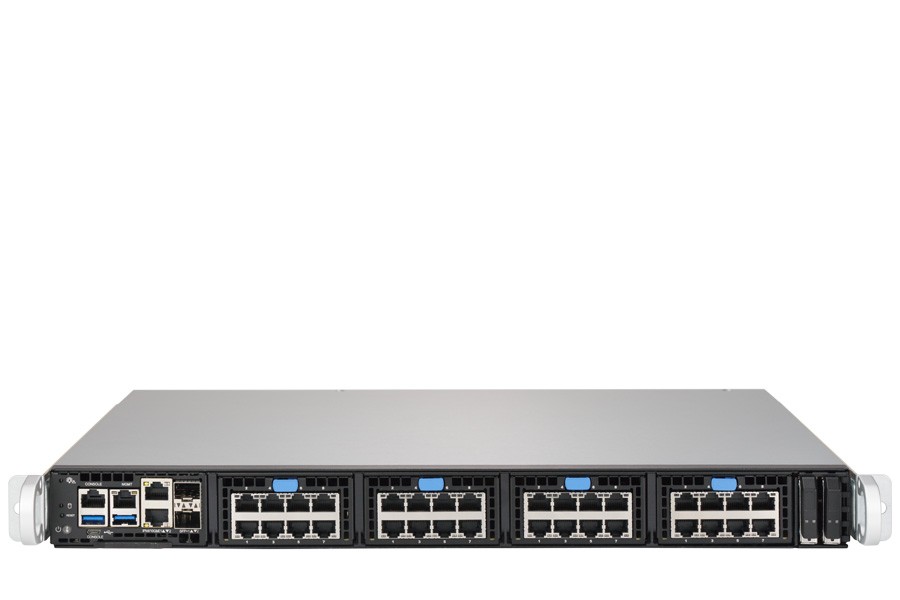

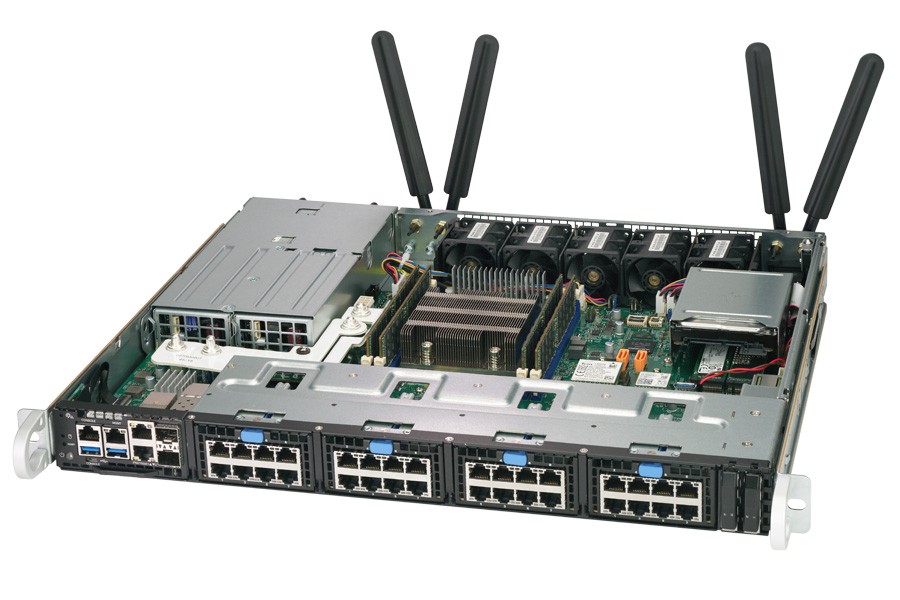

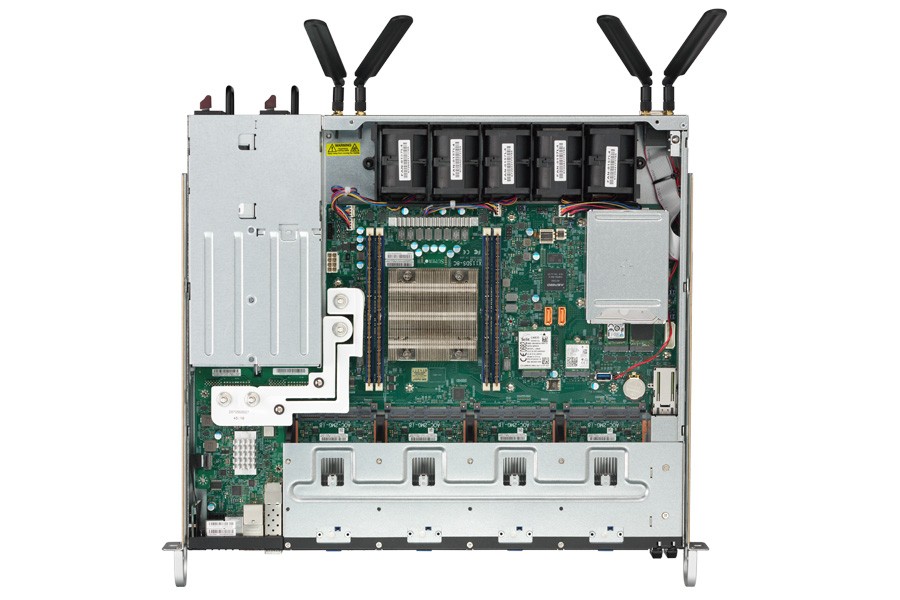

Supermicro 1U 2Bays Single Intel® Xeon®  D-2146NT CPU SuperServer

  • Intel® Xeon® D-2146NT Processor, 8-Core, 16 Threads, 2.3 GHz, 80W
  • Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2133Mz; in 4 DIMM slots
  • 4 PCI-E 3.0 x8 slots for optional AIOM
  • 2x 2.5" drive bays (one drive space shares with M.2), 2 EDSFF
  • 2 M.2 M-Key: 2280/22110 (space share with one 2.5" drive bay), 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
  • 2x 10GbE (shared with IPMI), 2x 10G SFP+, 1 Ethernet Management port
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45 or Micro USB
  • 400W Redundant Platinum Level Power Supplies
  • Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)

Storage configuration notice:
Internal:
2x 2.5" drive bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-1019D-FRN5TP
Processor
CPU:
Intel® Xeon® processor D-2146NT,
CPU TDP support 80W
Cores / Cache:
8 Cores, 16 Threads
Memory
Memory Capacity:
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
4 DIMM slots
Memory Type:
2666/2400/2133MHz ECC DDR4 L/RDIMM
Operating speed up to 2133MHz
DIMM Sizes:
128GB, 64GB, 32GB, 16GB
Memory Voltage:
1.2 V
Chassis
1U rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
15" (381mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Bios
BIOS Type:
128Mb SPI Flash with AMI BIOS
Onboard Devices
Chipset:
System on Chip (SoC)
SATA:
SATA3 (6Gbps) ports via SoC controller
Network Controllers:
Dual 10G SFP+ via SoC
Dual 10GBase-T (share with IPMI)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:
VGA via BMC
HDD Drive Bays
Hot-swap:
2x 2.5" drive bays (one drive space shares with M.2)
Others:
2 EDSFF
Expansion Slots
PCI-Express:

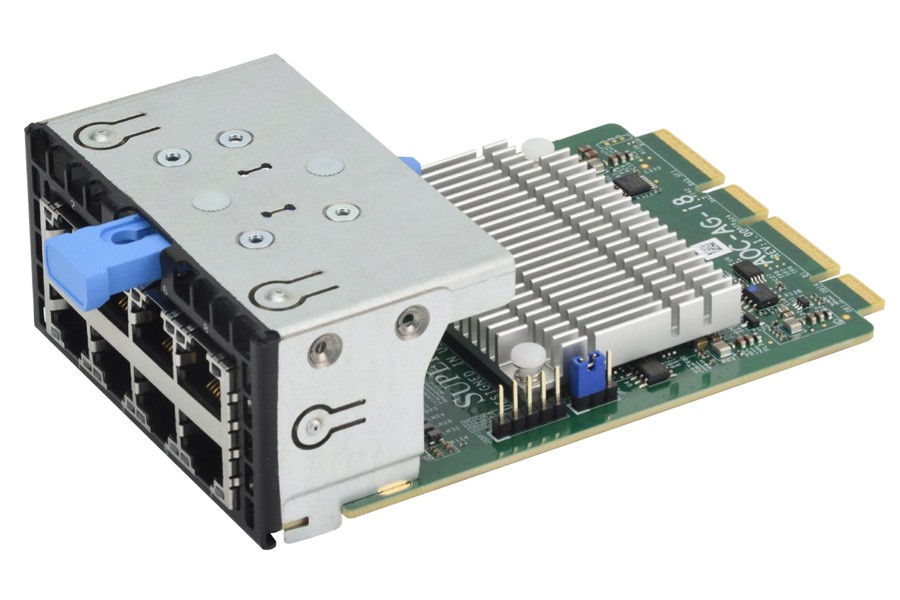

4 PCI-E 3.0 x8 slots for AIOM (AIOM is sold separately, it is not included in this standard/barebone system)
M.2:
2 M.2 M-Key 2280/22110 (space share with one 2.5" drive bay)
1 M.2 E-Key 2230
1 M.2 B-Key 3042
Power Supply

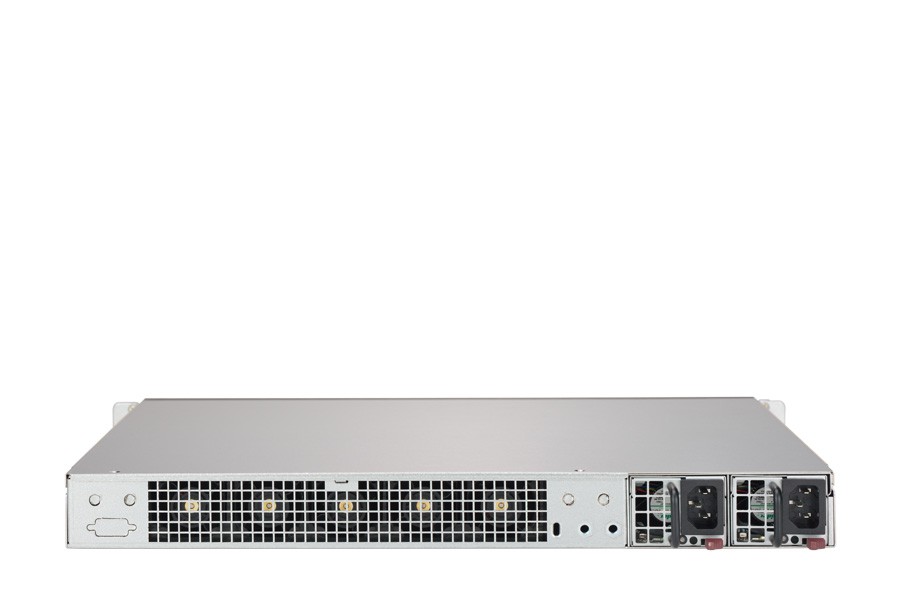

400W 1U Redundant Power Supplies with PMbus
Total Output Power:
400W
Dimension (W x H x L):
54.5 x 40 x 220 mm
Input:
100 - 240Vac / 6.0 - 3.0A / 50-60Hz
200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V:
Max: 33A / Min: 0.5A
+5V sb:
Max: 3A / Min: 0A
Output Type:
Gold Finger Connector Mating with Molex 45984-4343
Certification:
Platinum Level Certified
Input Output
SATA:
2 SATA3 (6Gbps) ports
LAN:
2 RJ45 10GbE LAN ports (shared with IPMI)
2 10G SFP+ LAN ports
1 Ethernet Management port
USB:
2 USB 3.0 ports (front)
Video:
1 VGA port
Serial Port / Header:
1 COM via RJ45 or Micro USB
Cooling
5x 40x40x56 mm 13K-11K RPM Counter-rotating Fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   0°C to 45°C (32°F to 113°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Software:
Intel® Node Manager
IPMI 2.0
NMI
SUM
Watch Dog
SuperDoctor® 5
1019D-FRN5TP1019D-FRN5TP1019D-FRN5TP1019D-FRN5TP1019D-FRN5TP
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® D-2146NT Processor (2.30GHz,80W)
Added
MEMORY
Samsung 64GB DDR4 3200 ECC RDIMM Memory
Enterprise-Class HDD/SSD
*No Hard Drive
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
NVMe M.2
*No NVMe M.2 Drives
Added
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
NETWORK CARD
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
