2013S-C0R
Please Inquire Configured Summary
2013S-C0R
SuperMicro 2U 8Bays Single Processor AMD Rackmount Server

  • Single AMD EPYC™ 7000-Series Processor
  • Up to 1TB Registered ECC DDR4, 2666MHz SDRAM in 8 DIMMs
  • Expansion slots:3 PCI-E 3.0 x16 (low profile);3 PCI-E 3.0 x8 (low profile), M.2 Interface: PCI-E 3.0 x4 (NVMe based), M.2 Form Factor: 2280, 22110, M.2 Key: Onboard M-key, Number of M.2: Single
  • Integrated IPMI 2.0 + KVM with, dedicated LAN, Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • 2x 1GbE LAN ports via Intel® I210
  • 8 hot-swap 3.5" SAS3/SATA3 Drive Bays (on-board Broadcom 3008 IR mode), 1 M.2 NVMe SSD slot Supported
  • 740W Redundant Platinum Level, high-efficiency Power Supplies (Full redundancy based on configuration and application load)
  • Cloud and Virtualization needs, Connectivity/Storage Computer Nodes, Database Processing & Storage, High End Enterprise Server, Hosting & Application delivery

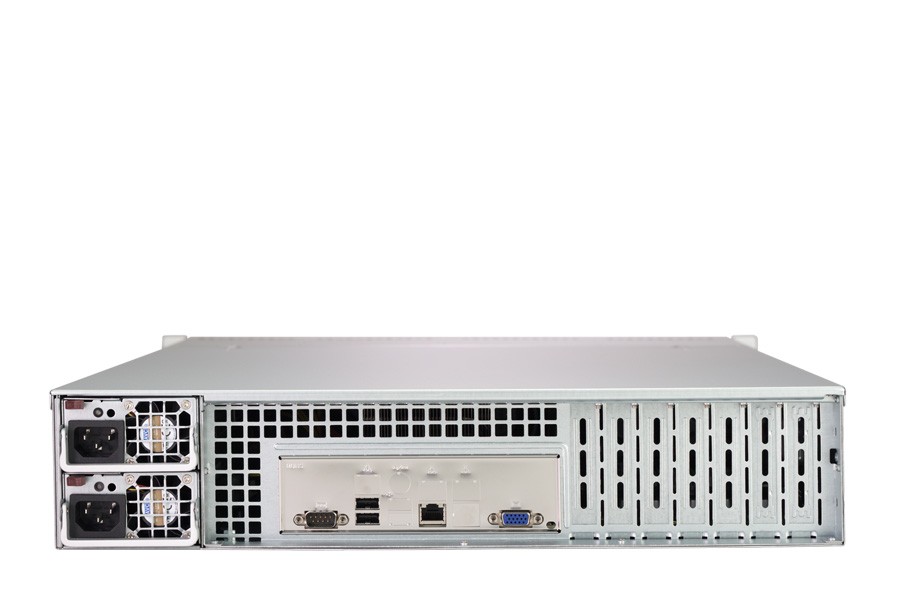

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-2013S-C0R
Processor
CPU:
Single AMD EPYC™ 7000-series Processor (up to 200W)
Socket SP3
Cores:
Up to 32 Cores
Chipset:
System on Chip (SoC)
Memory
Memory Capacity:
8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM
8-channel memory bus
Memory Type:
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
2U Rackmount  Chassis
Dimensions
Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
25.5" (647mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 128Mb SPI Flash EEPROM
BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Onboard Devices
SATA/SAS:
SATA3 (6 Gbps)
Broadcom 3008 SAS3 (12 Gbps) controller
IR mode; RAID 0, 1, 10
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers:
Intel® I210 Controller
VGA:
ASPEED AST2500 BMC
HDD Drive Bays
8 hot-swap 3.5" SAS3/SATA3 Drive Bays
Expansion Slots
PCI Express:
3 PCI-E 3.0 x16 (low profile)
3 PCI-E 3.0 x8 (low profile)
M.2:
Interface: PCI-E 3.0 x4 (NVMe based)
Form Factor: 2280, 22110
Key: Onboard M-key
Number of M.2: Single
Power Supply
740W Redundant high-efficiency power supply with PMBus
AC Input:

100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output:
  4 Amp @ +5V standby
  61.7 Amp @ +12V
Certification:
Platinum Level Certified
Input Output
SATA/SAS:
8 SATA3 (6 Gbps) /
8 SAS3 ports via Broadcom 3008
LAN:
2x 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB:
3 USB 3.0 ports
2 USB 2.0 ports
VGA:
1 VGA port
Others:
1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header
Cooling
3 heavy-duty PWM fans with optimal fan speed control
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
PC Health Monitoring
CPU:

Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator
FAN:
Fan status tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I²C Temperature Sensing Logic
LED:
CPU / System Overheat LED
Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header
2013S-C0R2013S-C0R2013S-C0R2013S-C0R

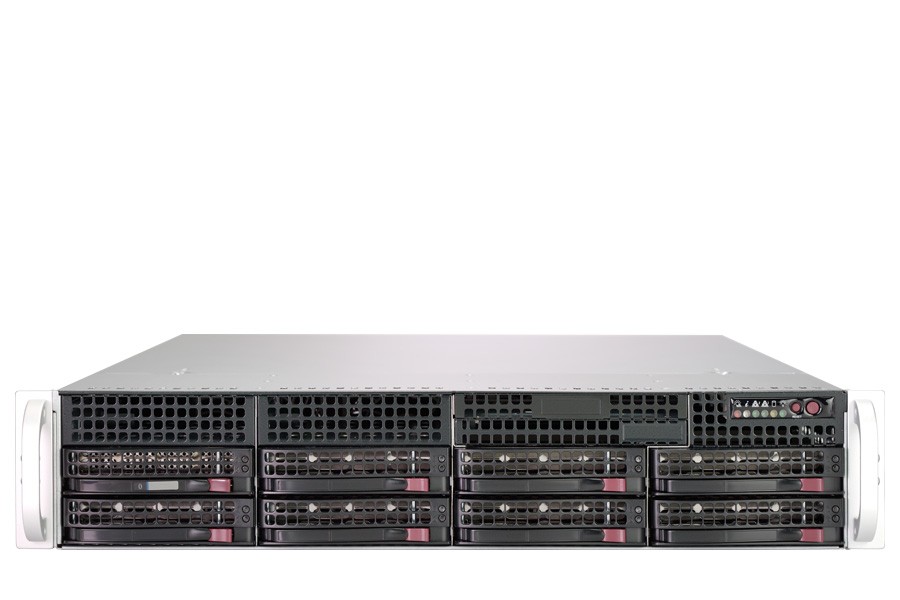

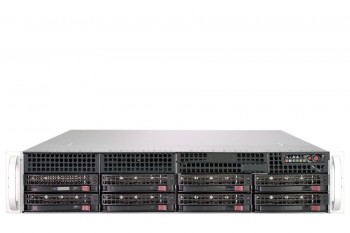

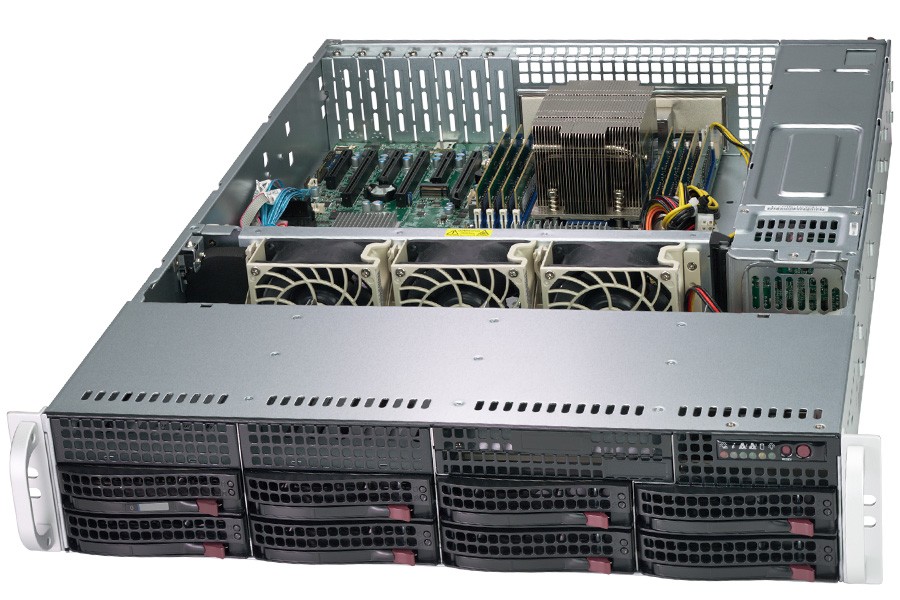

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
AMD ROME EPYC™ 7252 Processor 3.1Ghz,120W)
AMD EPYC™ 7251 Processor (2.1Ghz,120W)
Added
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD EPYC™ 7281 Processor (2.1Ghz,155/170W)
AMD EPYC™ 7351P Processor (2.4Ghz,155/170W)
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
AMD EPYC™ 7301 Processor (2.2Ghz,155/170W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD EPYC™ 7401P Processor (2.0Ghz,155/170W)
AMD EPYC™ 7351 Processor (2.4Ghz,155/170W)
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD EPYC™ 7401 Processor (2.0Ghz,155/170W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD EPYC™ 7551P Processor (2.0Ghz,180W)
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
AMD EPYC™ 7451 Processor (2.3Ghz,180W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD EPYC™ 7501 Processor (2.0Ghz,155/170W)
AMD EPYC™ 7551 Processor (2.0Ghz,180W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD EPYC™ 7601 Processor (2.2Ghz,180W)
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7742 Processor (2.25Ghz,225W)
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
32GB DDR4 2666 ECC Registered Memory
64GB DDR4 2666 ECC LRDIMM Memory
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
3.5" SATA 6Gb/s 7200RPM 3TB
3.5" SATA 6Gb/s 7200RPM 4TB
3.5" SATA 6Gb/s 7200RPM 6TB
3.5" SATA 6Gb/s 7200RPM 8TB
3.5" SATA 6Gb/s 7200RPM 10TB
3.5" SAS 12Gb/s 7200RPM 2TB
3.5" SAS 12Gb/s 7200RPM 4TB
3.5" SAS 12Gb/s 7200RPM 6TB
3.5" SAS 12Gb/s 7200RPM 8TB
3.5" SAS 12Gb/s 7200RPM 10TB
3.5" SAS 12Gb/s 7200RPM 12TB
3.5" SAS 12Gb/s 7200RPM 14TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2016 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value Over $10000
