1113S-WN10RT
Please Inquire Configured Summary
1113S-WN10RT
Supermicro 1U 10Bays Single Processor AMD Rackmount Server

  • Single AMD EPYC™ 7000-Series Processor
  • Up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
  • Expansion slots: 2 PCI-E 3.0 x16 (FH/HL) slots, 1 PCI-E 3.0 x16 (LP) slot, M.2 Interface: PCI-E 3.0 x2 (NVMe based), M.2 Form Factor: 2280, 22110, M.2 Key: Onboard M-key, Number of M.2: 2
  • Integrated IPMI 2.0 + KVM with dedicated LAN, Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • 2x 10GBase-T LAN ports, via Broadcom BCM57416
  • 10 hot-swap 2.5" U.2 NVMe drive bays, optional 4 SATA3 drive support with additional cables
  • 750W Redundant Power Supplies Platinum Level (94%) (Full redundancy based on configuration and application load)
  • Virtualization, Cloud Computing, All Flash Storage
To maintain quality and integrity, this product is sold only as a completely-assembled system (with 1 CPU, minimum 8 DIMMs, 1 NVMe). Recommended configuration for best performance is at least 24 or 32 Cores per CPU.

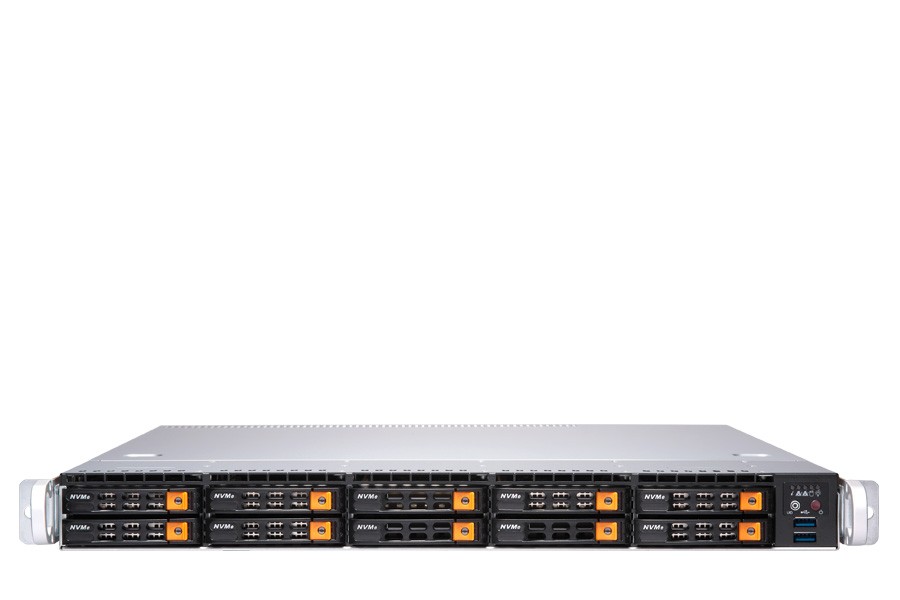

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-1113S-WN10RT
Processor
CPU:
Single AMD EPYC™ 7000-series Processor
Socket SP3
Cores:
Up to 32 Cores
Chipset:
System on Chip (SoC)
Memory
Memory Capacity:
16 DIMM slots
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM
8-channel memory bus
Memory Type:
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
23.5" (597mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 128Mb SPI Flash EEPROM
BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Onboard Devices
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers:
Broadcom BCM57416 Controller
VGA:
ASPEED AST2500 BMC
HDD Drive Bays
10 hot-swap 2.5" U.2 NVMe drive bays
Expansion Slots
PCI Express:
2 PCI-E 3.0 x16 (FH/HL) slots
1 PCI-E 3.0 x16 (LP) slot
M.2:
Interface: PCI-E 3.0 x2 (NVMe based)
Form Factor: 2280, 22110
Key: Onboard M-key
Number of M.2: 2
Power Supply
700W/750W Redundant Power Supplies with PMBus
Total Output Power:

700W/750W
Dimension (W x H x L):
54.5 x 40.25 x 320 mm
Input:
100 - 140Vac / 8 - 6A / 50-60Hz
200 - 240Vac / 4.5 - 3.8A / 50-60Hz
200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V:
Max: 58A / Min: 0.5A (100 - 140Vac)
Max: 62A / Min: 0.5A (200 - 240Vac)
Max: 62A / Min: 0.5A (200 - 240Vdc)
(CB/CCC Only)
+5V sb:
Max: 3A / Min: 0A
Output Type:
Gold Finger Connector Mating with Molex 45984-4343
Certification:
Platinum Level Certified
Input Output
NVMe:
Up to 10 U.2 NVMe support
SATA:
Optional 4 SATA3 (6 Gbps) support via additional cables
LAN:
2x 10GbBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB:
7 USB 3.0 ports (4 rear + 2 front + 1 Type A)
VGA:
1 VGA port
Others:
1 COM port
2 SATA DOM power connectors
TPM 1.2 header
Cooling
Fans:
6 heavy-duty PWM fans with optimal fan speed control
Air Shroud:
1 Air Shroud
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 30°C (50°F to 86°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
PC Health Monitoring
CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator
FAN:
Up to 6-fan status tachometer monitoring
Up to six 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 6x Fan connectors
I²C Temperature Sensing Logic
LED:
CPU / System Overheat LED
Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header
1113S-WN10RT1113S-WN10RT1113S-WN10RT1113S-WN10RT

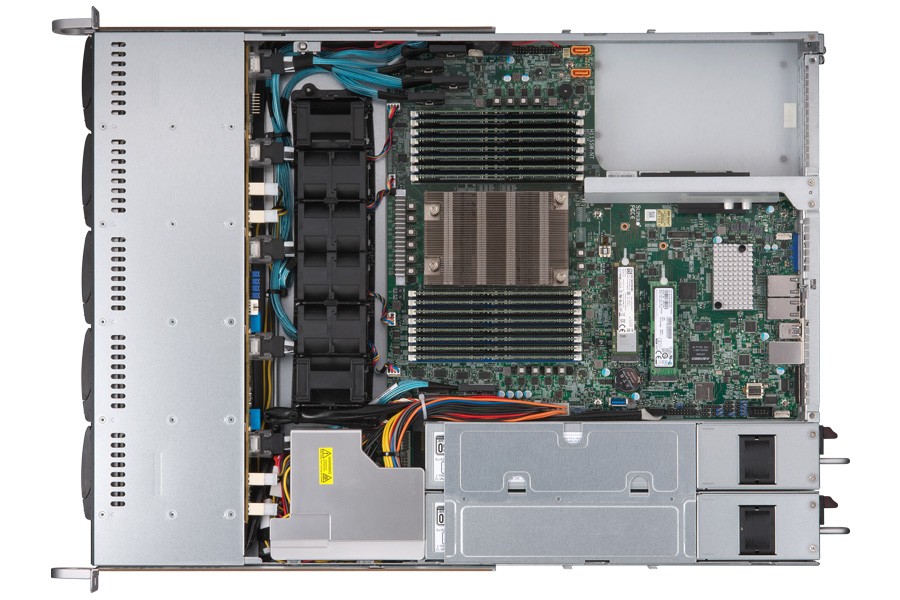

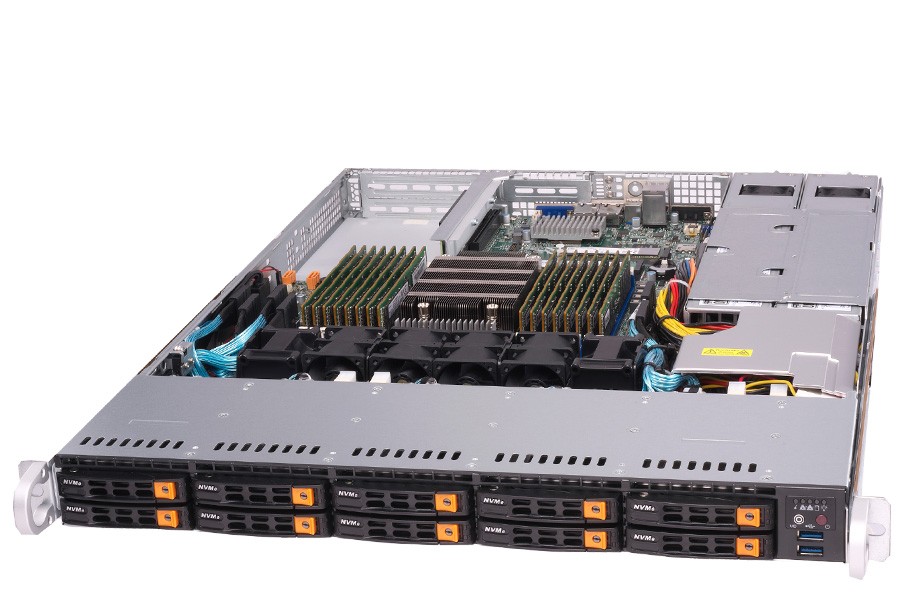

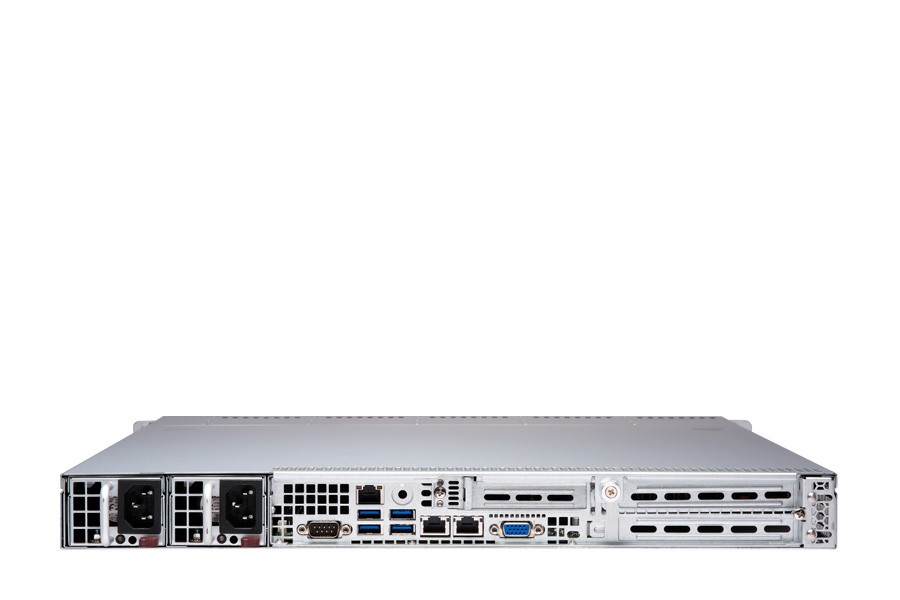

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
AMD ROME EPYC™ 7252 Processor 3.1Ghz,120W)
AMD EPYC™ 7251 Processor (2.1Ghz,120W)
Added
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD EPYC™ 7281 Processor (2.1Ghz,155/170W)
AMD EPYC™ 7351P Processor (2.4Ghz,155/170W)
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
AMD EPYC™ 7301 Processor (2.2Ghz,155/170W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD EPYC™ 7401P Processor (2.0Ghz,155/170W)
AMD EPYC™ 7351 Processor (2.4Ghz,155/170W)
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD EPYC™ 7401 Processor (2.0Ghz,155/170W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD EPYC™ 7551P Processor (2.0Ghz,180W)
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
AMD EPYC™ 7451 Processor (2.3Ghz,180W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD EPYC™ 7501 Processor (2.0Ghz,155/170W)
AMD EPYC™ 7551 Processor (2.0Ghz,180W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD EPYC™ 7601 Processor (2.2Ghz,180W)
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7742 Processor (2.25Ghz,225W)
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
16GB DDR4 2666 ECC Registered Memory
32GB DDR4 2666 ECC Registered Memory
64GB DDR4 2666 ECC LRDIMM Memory
HDD/SSD Intel/Samsung/WD/Seagate/HGST
Select Storage Capacity:
NVMe 2.5" U.2 Enterprise SSD 960GB
Added
NVMe 2.5" U.2 Enterprise SSD 1.92TB
NVMe 2.5" U.2 Enterprise SSD 3.84TB
NVMe 2.5" U.2 Enterprise SSD 3.84TB
NVMe 2.5" U.2 Enterprise SSD 15.36TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2016 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
