PWS-741P-1R
$59.00 Configured Summary
PWS-741P-1R

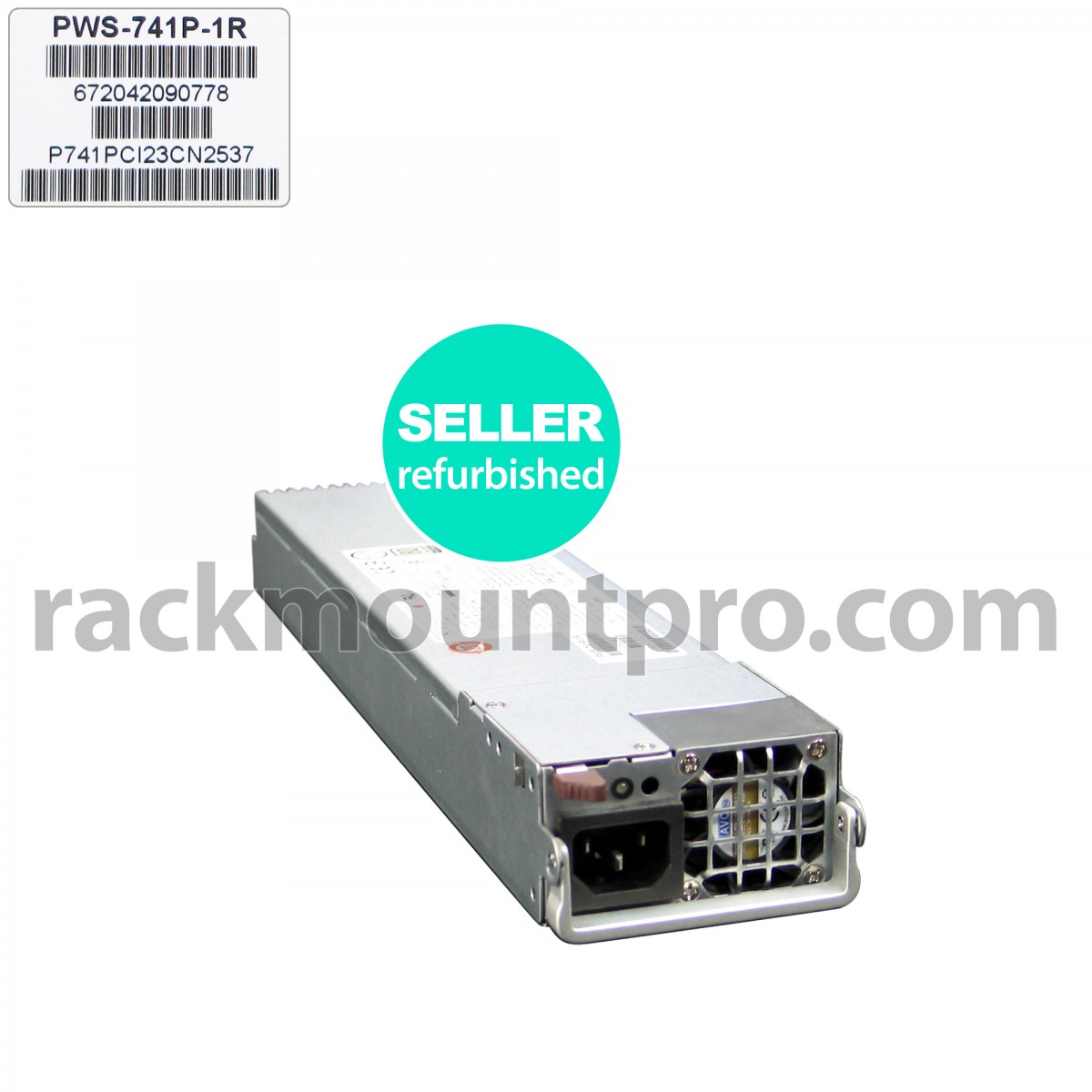

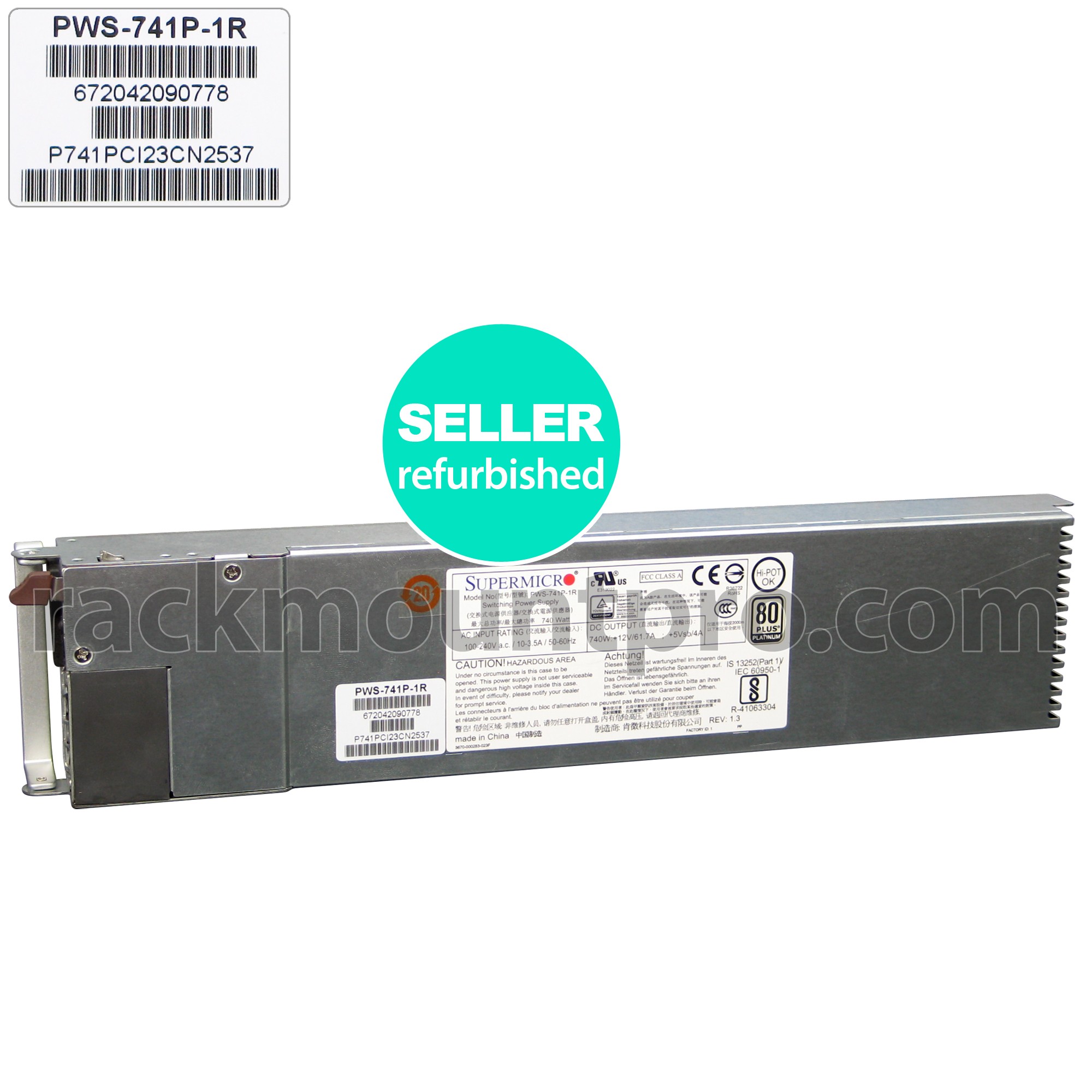

Supermicro PWS-741P-1R 740W 1U Power Supply
  ( 1 Pcs in Stock)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 09000060-PWS-741P-1R
Details
TOTAL POWER OUTPUT:
740W
TYPE:
Module
TYPE OF POWER SUPPLY:
Power Supply
FORM FACTOR:
1U
DIMENSION (W X H X L):
76 x 40.4 x 336mm
+5V:
N/A
+12V:
61.7A
+3.3V:
N/A
5V STANDBY:
4A
+12V STANDBY:
No
INPUT VOLTAGE RANGE:
100-240Vac
INPUT FREQUENCY RANGE:
50-60Hz
INPUT CURRENT RANGE:
10-3.5A
OUTPUT TYPE:
Gold Finger (19 Pair Connector)
8PIN / 4PIN (12V) CONNECTOR:
N/A
PFC:
Yes
PMBUS:
Yes
ENERGY EFFICIENCY:
94% Peak
80 PLUS CERTIFICATION:
80 Plus Platinum
