2029U-MTNRV-NEBS
$9,413.00 Configured Summary
2029U-MTNRV-NEBS
SuperServer 2029U-MTNRV-NEBS 2U 6 Bays  Intel® Xeon Dual Socket Complete System

  • NEBS Level 3 Certified
  • Dual Socket P (LGA 3647)
  • Intel® Xeon® Gold 6240R
  • 24 DIMMs; up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM
  • Up to 8 PCI-E Add-on Cards
  • Flexible LAN options

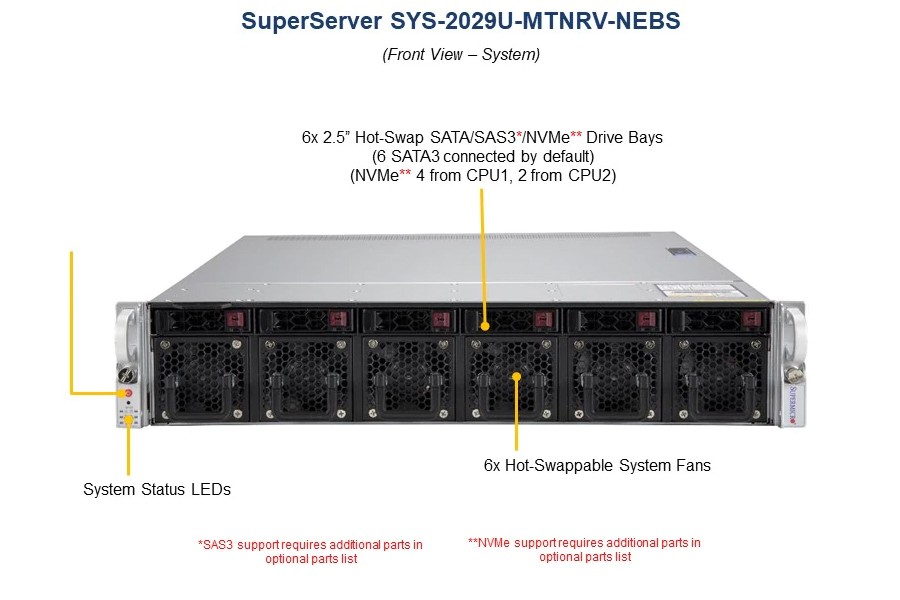

  • 6 Hot-swap 2.5" drive bays
  • 6 Hot-swap Heavy duty 6cm PWM fans
  • NVMe/SATA ports (NVMe from CPU1) or 6 SATA ports
  • 1600W Redundant Power Supplies
  • Titanium Level (96%)
  • GPU Support (Optional)
  • Telecom Central Office and Data Center, 5G Core and Edge Computing, AI Inference and Machine Learning, Network Functions Virtualization, Cloud Computing
Storage configuration notice:
Hot-swap:
6x Hot-swap 2.5" drive bays, 6x NVMe/SATA ports (NVMe from CPU1) or 6x SATA ports; Optional SAS support via SAS storage controller
Note: SAS3 or NVMe support requires additional optional parts
M.2:
1x M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1x M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
2x M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*). *NIC adapter requirement includes 1 Ultra Riser card.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 2029U-MTNRV-NEBS
Processor
CPU:
Dual Socket P (LGA 3647)
Intel® Xeon® Gold 6240R Processors (2.4GHZ) integrated for Complete System
CPU TDP 165W

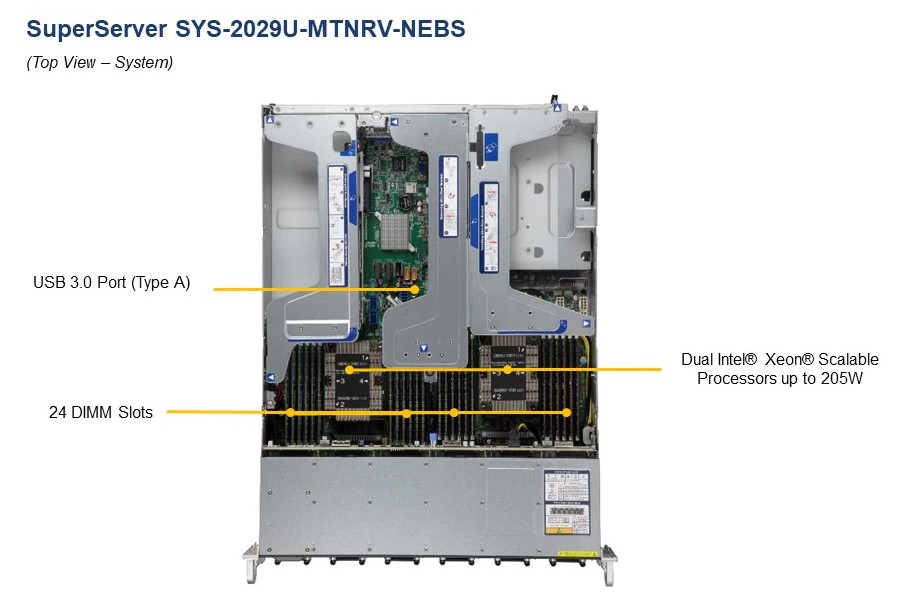

Memory
Memory Capacity:

24 DIMM slots
Up to 1.5TB 3DS ECC DDR4-2933MHz† RDIMM

Memory Type:
2933†/2666/2400/2133MHz ECC DDR4 RDIMM
2666 ECC DDR4 NVDIMM

Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Chassis
2U Short Depth Rackmount

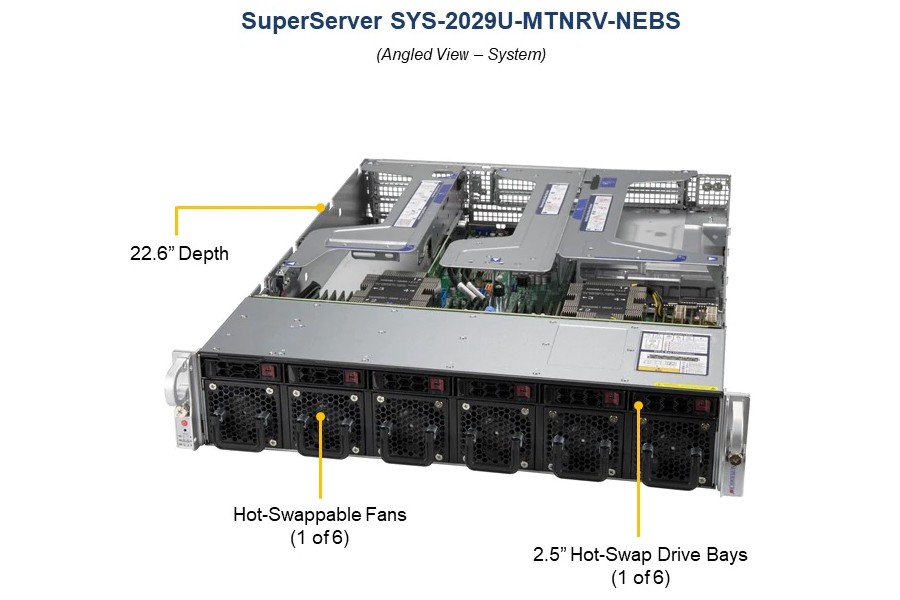

Dimensions
Width
17.2" (432mm)

Height
3.5" (89mm)

Depth
22.6" (574mm)
Front Panel

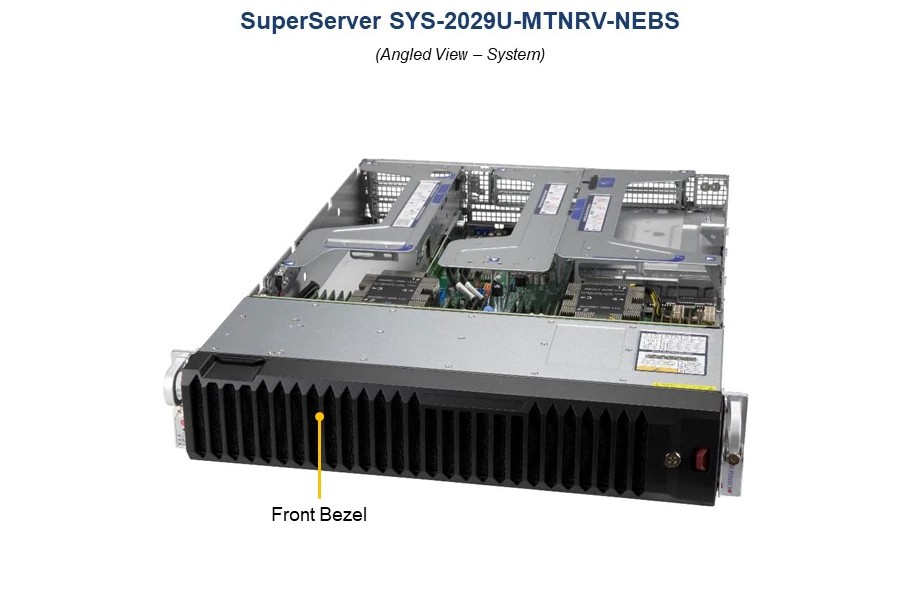

Front Bezel:
2U Front Bezel
Replaceable UL900-2004 certified air filter

Buttons:
Power On/Off button
System Reset button

LEDs:
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM
Onboard Devices
Chipset:
Intel® C621 chipset

SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10

Network Connectivity:
Flexible Networking options

Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
6 Hot-swap 2.5" drive bays, 6 NVMe/SATA ports (NVMe from CPU1) or 6 SATA ports; Optional SAS support via SAS storage controller
Note: SAS3 or NVMe support requires additional optional parts

M.2:
1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2

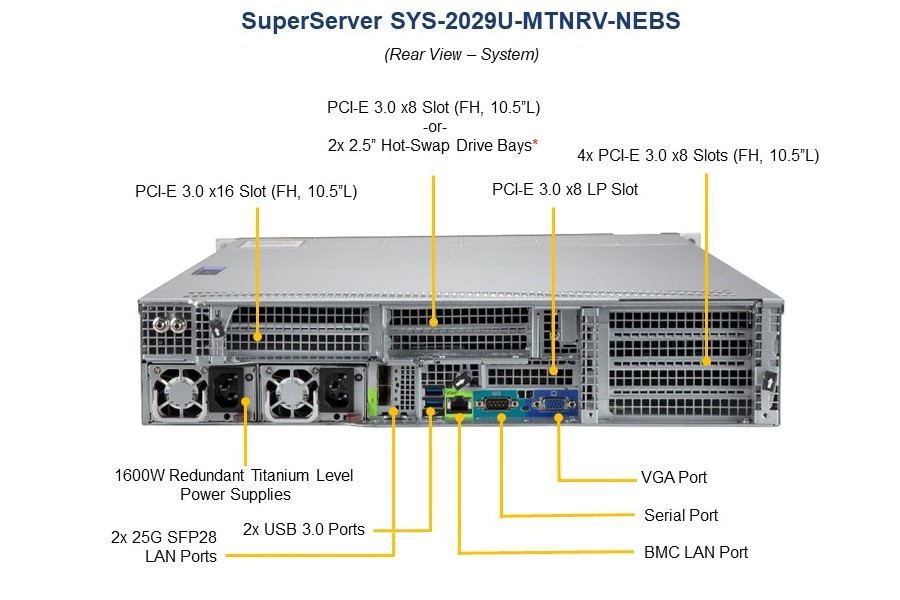

Expansion Slots
PCI-Express:
2 PCI-E 3.0 x16 (FH, 10.5"L)
4 PCI-E 3.0 x8 (FH, 10.5"L)
1 PCI-E 3.0 x8 (LP)
1 PCI-E 3.0 x8 (int)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Power Supply
1600W Redundant Power Supplies with PMBus:

Total Output Power:
1600W/1000W

Dimension:
(W x H x L)
73.5 x 40 x 203 mm

Input:
100-127Vac / 13 - 9A / 50-60Hz
200-240Vac / 10 - 8A / 50-60Hz

+12V:
Max: 83.3A / Min: 0A (100-127Vac)
Max: 133A / Min: 0A (200-240Vac)

12Vsb:
Max: 2.1A / Min: 0A

Output Type:
25 Pairs Gold Finger Connector
Input Output
SATA:
6 SATA3 (6Gbps) ports

LAN:
Flexible LAN options

USB:
2 USB 3.0 ports (rear)

Video:
1 VGA Connector

Serial Header:
1 Serial header

DOM:
2 SuperDOM (Disk on Module) ports
Cooling
Fans:
6 Hot-swap Heavy duty fans with optimal fan speed control

Air Shroud:
1 Set of Air Shroud
Operating Environment
RoHS
RoHS Compliant

Environmental Spec.

Operating Temperature:
   Continuous: 5°C ~ 40°C (41°F ~ 104°F)
   Short term: -5°C ~ 55°C (23°F ~ 131°F)

Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)

Operating Relative Humidity:
   5% to 85% with excursion of
   5% to 93% (non-condensing)

Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Software:
Intel® Node Manager
Redfish API
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5

Power Configurations:
ACPI Power Management
2029U-MTNRV-NEBS2029U-MTNRV-NEBS2029U-MTNRV-NEBS2029U-MTNRV-NEBS2029U-MTNRV-NEBS
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
Added
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $924.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $980.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $2,860.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $85.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $122.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $304.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $707.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,214.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $83.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $168.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $402.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $870.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $75.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $28.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $68.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $100.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $263.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $603.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,222.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $93.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $186.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $393.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $65.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $230.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $653.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $65.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $40.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $4.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $93.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $317.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $217.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $401.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $780.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,382.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,850.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,858.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
