G292-Z22
Please Inquire Configured Summary

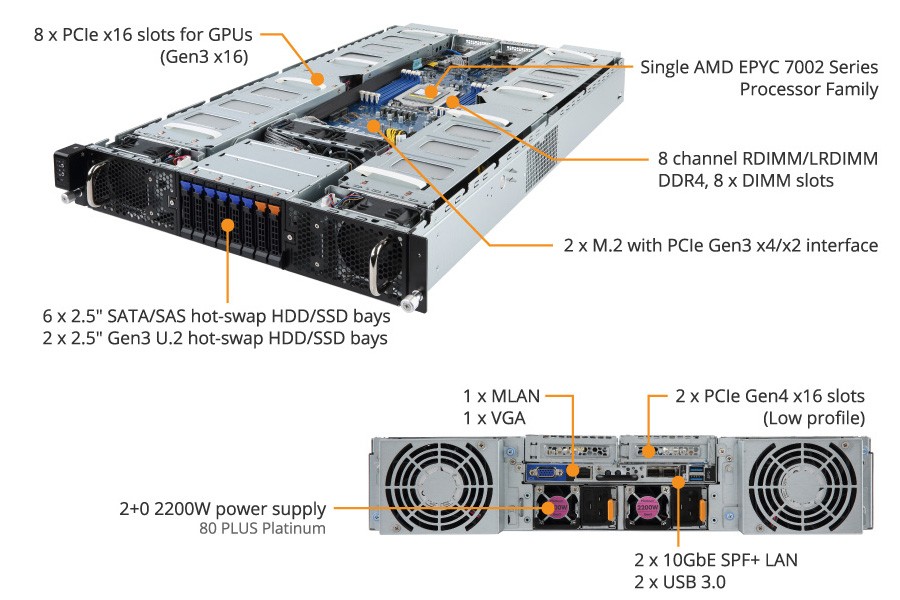

G292-Z22
Gigabyte 2U 8Bays Single AMD Processor Rackmount GPU Server

  • Supports up to 8x double slot GPU cards
  • AMD EPYC™ 7002 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
  • 2x 10Gb/s SFP+ LAN ports (Mellanox® ConnectX-4 Lx controller)
  • 1x Dedicated management port
  • 6x 2.5" SATA and 2 x 2.5 NVMe/SATA hot-swappable HDD/SSD bays
  • 2x M.2 with PCIe Gen3 x4/x2 interface
  • 8x PCIe Gen3 expansion slots for GPU cards
  • 2x PCIe Gen4 x16 low-profile half-length slots for add-on cards
  • Aspeed® AST2500 remote management controller
  • 2+0 2200W 80 PLUS Platinum power supply

Storage configuration notice:
Hot-swap:
6x 2.5" SATA/SAS hot-swappable HDD/SSD bays
2x 2.5" NVMe/SATA hot-swappable SSD bays
SAS card is required for SAS devices support

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU G292-Z22
Memory
AMD EPYC™ 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
Compatible with AMD EPYC™ 7001 series processor family
Chassis
2U Rackmount Chassis
Dimensions
448 x 87.5 x 800 (mm)
Onboard Devices
LAN:
2‎x SFP+ 10Gb/s LAN ports (Mellanox® ConnectX-4 Lx controller)
Pin-to-Pin compatible with Mellanox® 25Gb/s LAN controller ( as an option)
1x 10/100/1000 management LAN
Video:
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
6‎x 2.5" SATA/SAS hot-swappable HDD/SSD bays
2x 2.5" NVMe/SATA hot-swappable SSD bays
SAS card is required for SAS devices support
Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
Expansion Slots
8‎x PCIe x16 slots (Gen3 x16 bus) for GPU cards
2x PCIe x16 (Gen4 x16 bus) Low-profile half-length slots

1x M.2 slot:
M-key
PCIe Gen3 x4
Supports NGFF-2242/2260/2280/22110 cards

1x M.2 slot:
M-key
PCIe Gen3 x2
Supports NGFF-2242/2260/2280/22110 cards

Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
System is validated for population with a uniform GPU model
Support is not provided for mixed GPU populations
For the latest GPU cards QVL, please contact your GIGABYTE representative
Power Supply
2‎+0 2200W 80 PLUS Platinum hot-swappable power supply

AC Input:
100-127V~/ 14A, 47-63Hz
200-240V~/ 12.6A, 47-63Hz

DC Output:
Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A

NOTE:
The system power supply requires C19 type power cord
Input Output
Internal I/O
1‎x TPM header
4x SlimSAS connectors
2x M.2 slots
1x Buzzer

Front I/O
1 x Power button with LED
1x ID button with LED
2x LAN activity LEDs
1x HDD activity LED
1x System status LED
1x Reset button

Rear I/O
2 x USB 3.0
1x VGA
2x SFP+
1x MLAN
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED

Backplane I/O
6x SAS/SATA and 2x NVMe ports
Backplane P/N: 9CBPG083NR-00
Bandwidth: SATA 6Gb/s, SAS 12Gb/s and PCIe x4
Cooling
8‎x 80x80x38mm Fans(16,300rpm)
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
NOTE: Please contact Technical Support for more information about optimized GPU operating temperature
Included Items
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

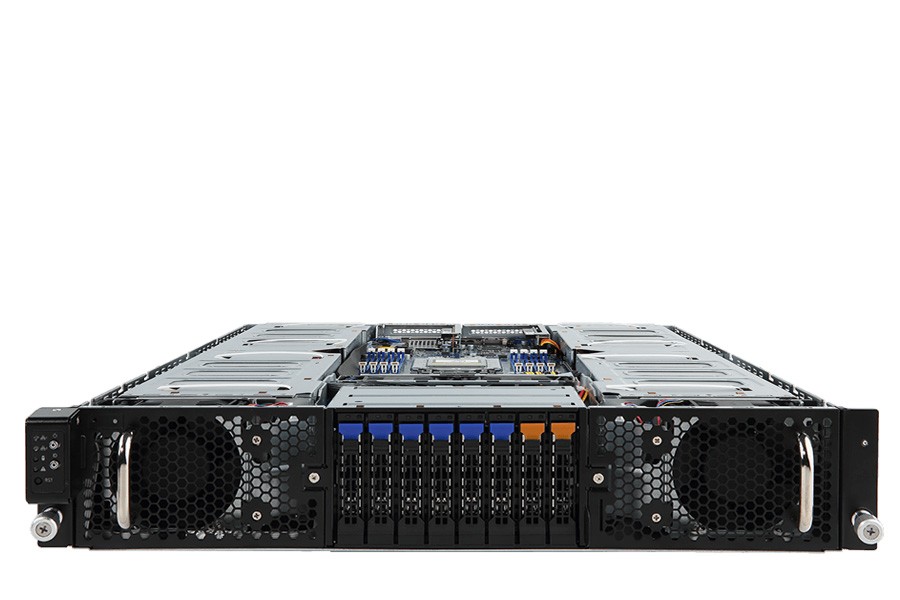

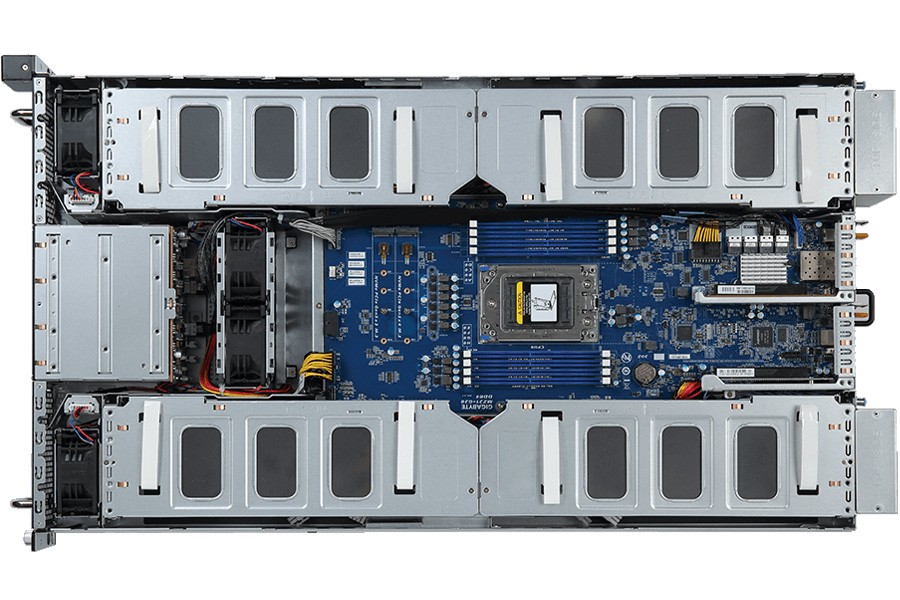

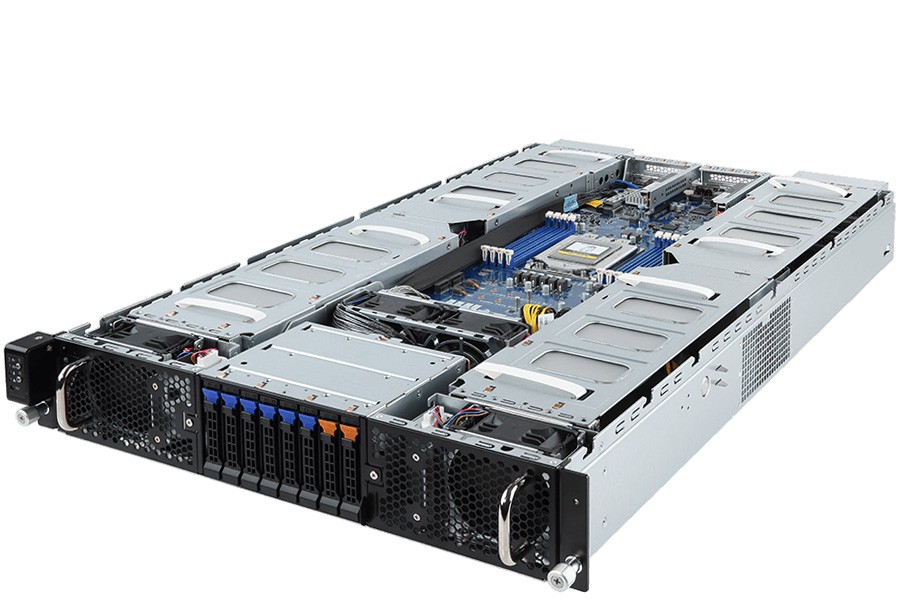

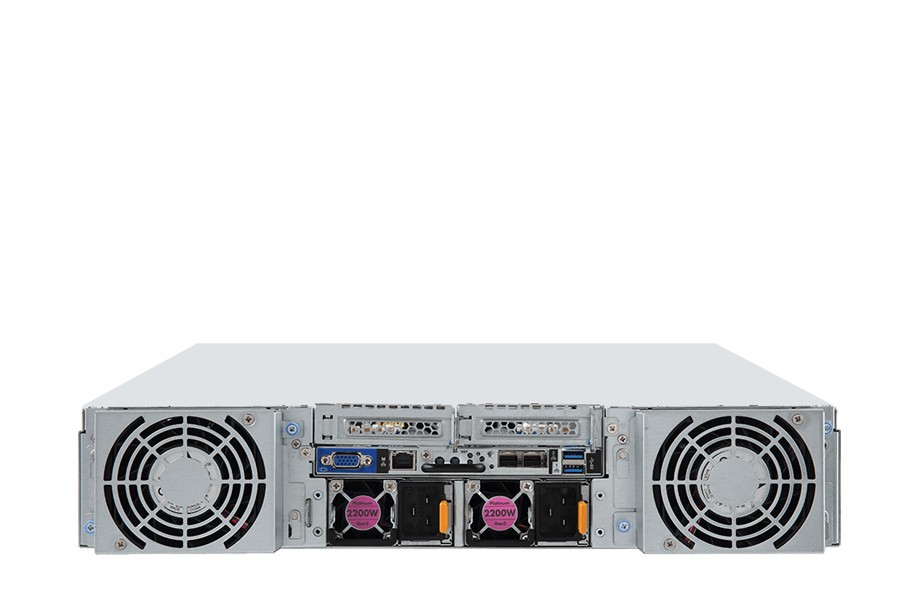

G292-Z22G292-Z22G292-Z22G292-Z22G292-Z22
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
Added
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
MEMORY
Samsung 64GB DDR4 3200 ECC RDIMM Memory
Enterprise-Class HDD/SSD
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA
Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller
Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card
Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card
Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
NVIDIA L40 48GB GDDR6 GPU Card
NVIDIA L40S 48GB GDDR6 GPU Card
NVIDIA A100 80GB HBM2e GPU Card
NVIDIA H100 80GB HBM2e GPU Card
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
