Gigabyte 2U 8Bays Dual Processor AMD Rackmount GPU Server

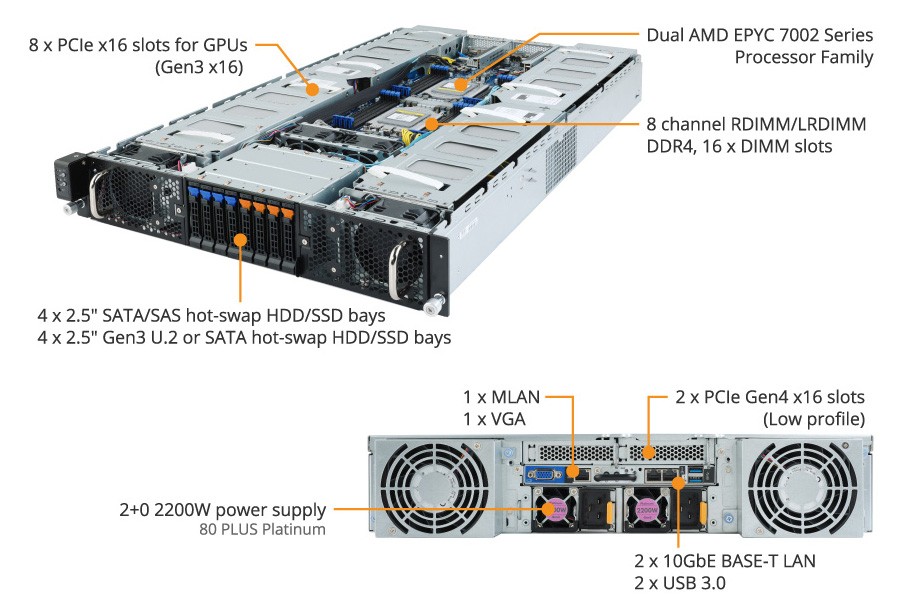

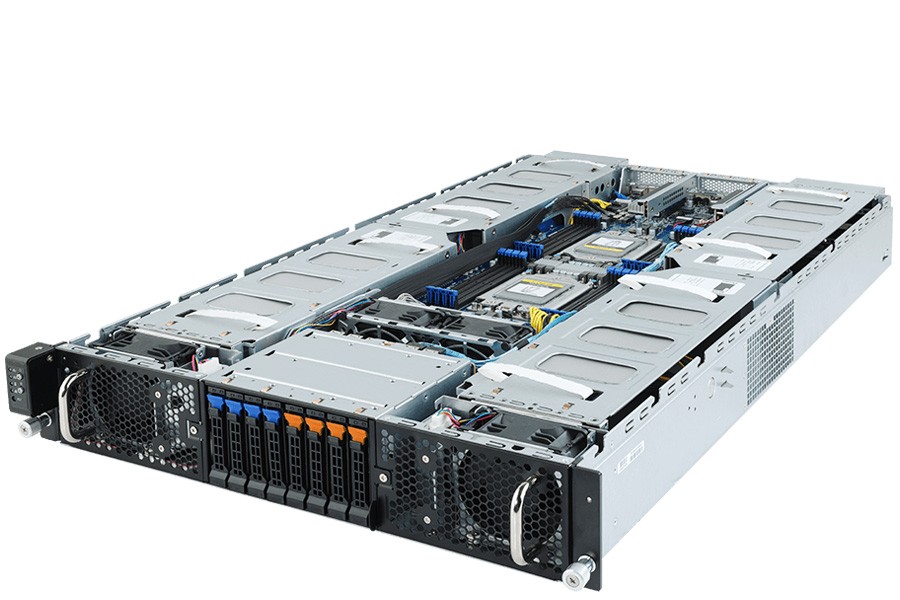

Gigabyte 2U 8Bays Dual Processor AMD Rackmount GPU Server

Supports up to 8x double slot GPU cards
Dual AMD EPYC™ 7002 series processor family
8-Channel RDIMM/LRDIMM DDR4 per processor, total 16 x DIMMs
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2 controller)
1x Dedicated management port
4x NVMe, 4 x SATA/SAS 2.5" hot-swappable HDD/SSD bays
8x PCIe Gen3 expansion slots for GPUs
2x PCIe Gen4 x16 half-length low-profile slots for add-on cards
Aspeed® AST2500 remote management controller
2+0 2200W 80 PLUS Platinum power supply

Storage configuration notice:
Hot-swap:
4x NVMe or SATA/SAS devices
4x SATA/SAS devices
SAS card is required for SAS devices support

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	G292-Z42
Processor	AMD EPYC™ 7002 series processor family Dual processors, 7nm technology Up to 64-core, 128 threads per processor cTDP up to 240W NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Memory	1‎6x DIMM slots DDR4 memory supported only 8-Channel memory architecture per processor RDIMM modules up to 128GB supported LRDIMM modules up to 128GB supported Memory speed: Up to 3200 MHz
Chassis	2U Rackmount Chassis
Dimensions	448x 87.5x 800 (mm)
Onboard Devices	LAN: 2‎x 10Gb/s BASE-T LAN ports (Intel® X550-AT2 controller) 1x 10/100/1000 management LAN Video: Integrated in Aspeed® AST2500 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays	8‎x 2.5" hot-swappable HDD/SSD bays - 4x amber HDD trays compatible with NVMe or SATA/SAS devices - 4x blue HDD trays compatible with SATA/SAS devices only SAS card is required for SAS devices support Recommended 12Gb/s SAS cards: CRA4448 CRA4548
Expansion Slots	8‎x PCIe x16 slots (Gen3 x16 bus) for GPUs 2x PCIe x16 (Gen4 x16 bus) Half-length low-profile slots - Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H) - System is validated for population with a uniform GPU model - Support is not provided for mixed GPU populations - For the latest GPU cards QVL, please contact your GIGABYTE representative
Power Supply	2‎+0 2200W 80 PLUS Platinum power supply AC Input: - 100-127V~/ 14A, 47-63Hz - 200-240V~/ 12.6A, 47-63Hz DC Output: - Max 1200W/ 100-127V~ +12.12V/ 95.6A +12Vsb/ 3.5A - Max 2200W/ 200-240V +12.12V/ 178.1A +12Vsb/ 3.5A NOTE: The system power supply requires C19 type power cord
Input Output	Internal I/O: TBD 1 x TPM header 1 x Serial header 1 x Buzzer Front I/O: 1‎ x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs 1 x HDD activity LED 1 x System status LED 1 x Reset button Rear I/O: 2‎ x USB 3.0 1 x VGA 2 x RJ45 1 x MLAN 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x NMI button 1 x System status LED Backplane I/O: 4‎ x SAS/SATA and 4 x NVMe ports Backplane P/N: 9CBPG083NR-00 Bandwidth: SATA 6Gb/s, SAS 12Gb/s and PCIe x4
Cooling	8‎x 80x80x38mm Fans (16,300rpm)
Operating Environment	Operating temperature: 10°C to 35°C Operating humidity: 8%-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) NOTE: Please contact Technical Support for more information about optimized GPU operating temperature
Details	System Management Aspeed® AST2500 management controller GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Dashboard JAVA Based Serial Over LAN HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)

Added

AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)

AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)

AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)

AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)

AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)

AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)

AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)

AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)

AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)

AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)

AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)

AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)

MEMORY

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Enterprise-Class HDD/SSD

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

(Optional) Enterprise-Class HDD/SSD

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

NETWORK CARD

*No Network Card

Added

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

GPU/Coprocessor

*No GPU

Added

NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB

NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB

NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB

NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB

NVIDIA L40 48GB GDDR6 GPU Card

NVIDIA L40S 48GB GDDR6 GPU Card

NVIDIA A100 80GB HBM2e GPU Card

NVIDIA H100 80GB HBM2e GPU Card

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
