G482-Z50
Please Inquire Configured Summary
G482-Z50
Gigabyte 4U (12+10) Bays Dual Processor AMD Rackmount GPU Server

  • Up to 10x PCIe GPGPU cards
  • Dual AMD EPYC™ 7002 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • 2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
  • 2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
  • 1x dedicated management port
  • 8x 2.5" NVMe, 2 x SATA/SAS 2.5" hot-swappable HDD/SSD bays
  • 12x 3.5" SATA/SAS hot-swappable HDD/SSD bays
  • 10x FHFL Gen3 expansion slots for GPU cards
  • 1x low profile PCIe Gen3 expansion slot
  • Aspeed® AST2500 remote management controller
  • 3x 80 PLUS Platinum 2200W redundant PSU

Storage configuration notice:
Hot-swap:
12x 3.5" hot-swappable HDD/SSD bays
8x amber HDD trays compatible with NVMe or SATA/SAS devices
2x blue HDD trays compatible with SATA/SAS devices only

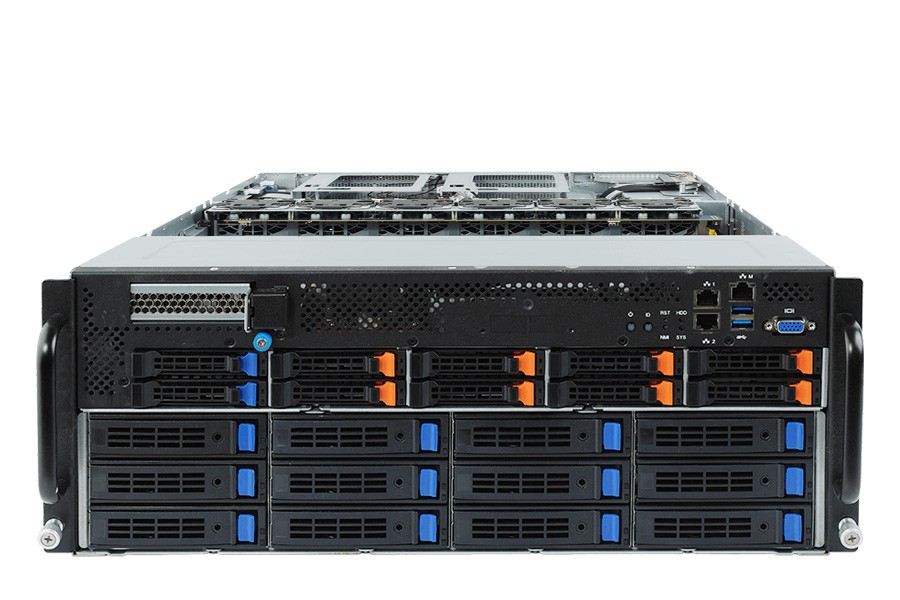

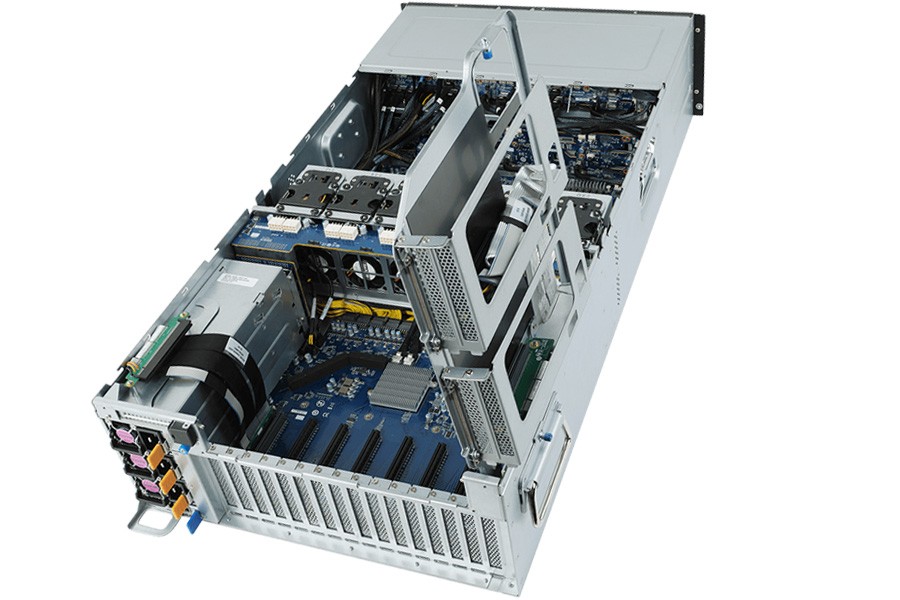

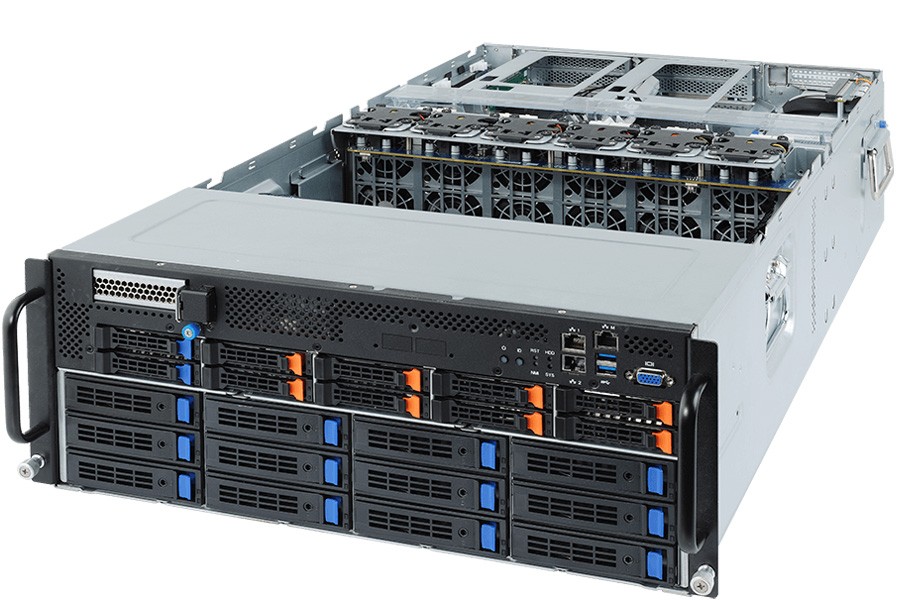

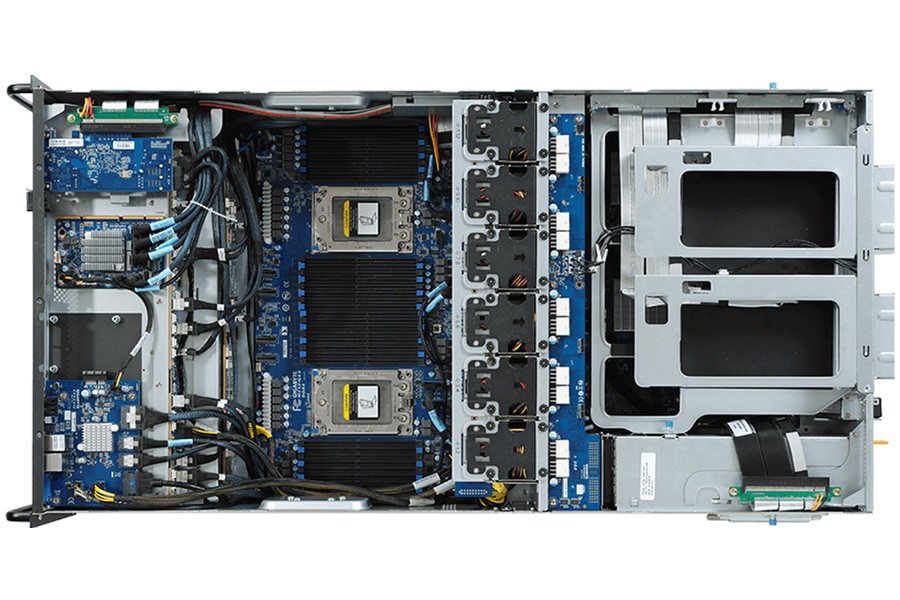

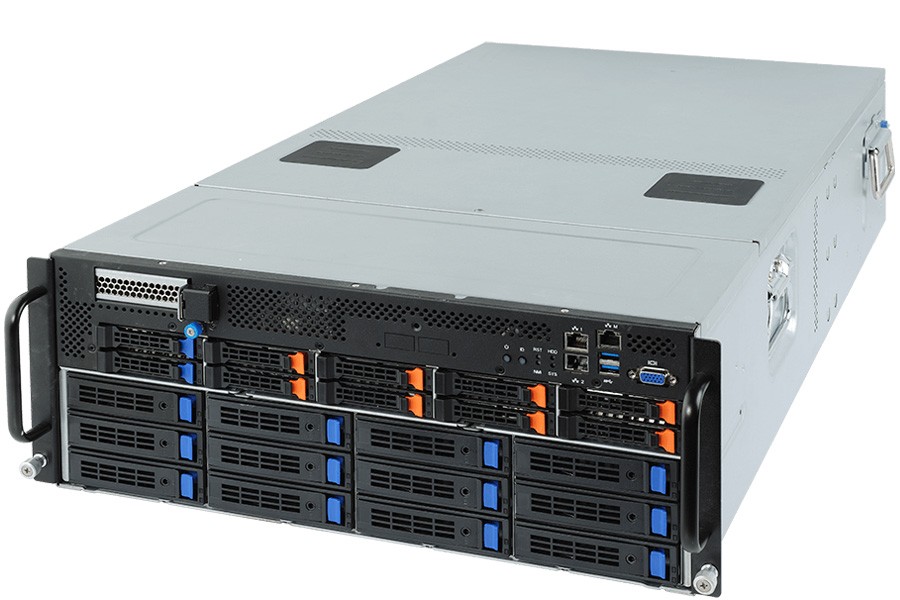

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU G482-Z50
Processor
AMD EPYC™ 7002 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
NOTE:
If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7001 series processor family
Memory
3‎2x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200/ 2933 MHz
Note:
Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
Chassis
4U Rackmount Chassis
Dimensions
448x 176x 880 (mm)
Onboard Devices
LAN
Rear Side:
2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1x 10/100/1000 management LAN
Front Side:
2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)

Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
1‎2x 3.5" hot-swappable HDD/SSD bays
- Compatible with SATA/SAS devices only
10x 2.5" hot-swappable HDD/SSD bays
- 8x amber HDD trays compatible with NVMe or SATA/SAS devices
- 2x blue HDD trays compatible with SATA/SAS devices only
Pre-install with Broadcom SAS3008 storage adapter with IR mode and expander board
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Expansion Slots
1‎0x PCIe x16 slots (Gen3 x16 bus) for GPUs
1x PCIe x16 (Gen3 x8 bus) Half-length low-profile slot in front, occupied by CRA3338 HBA
1x PCIe x16 (Gen3 x16 bus) Half-length low-profile slot in rear side#
Non-supported SAS Card with internal cable due to cable routing limitation
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
Power Supply
3‎x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
NOTE:
The system power supply requires C19 type power cord
Input Output
Internal I/O
1x TPM header
1x Front panel header
Front I/O
2‎x USB 3.0
1x VGA
2x RJ45
1x MLAN (Reserved, enabled by jumper switch)
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED

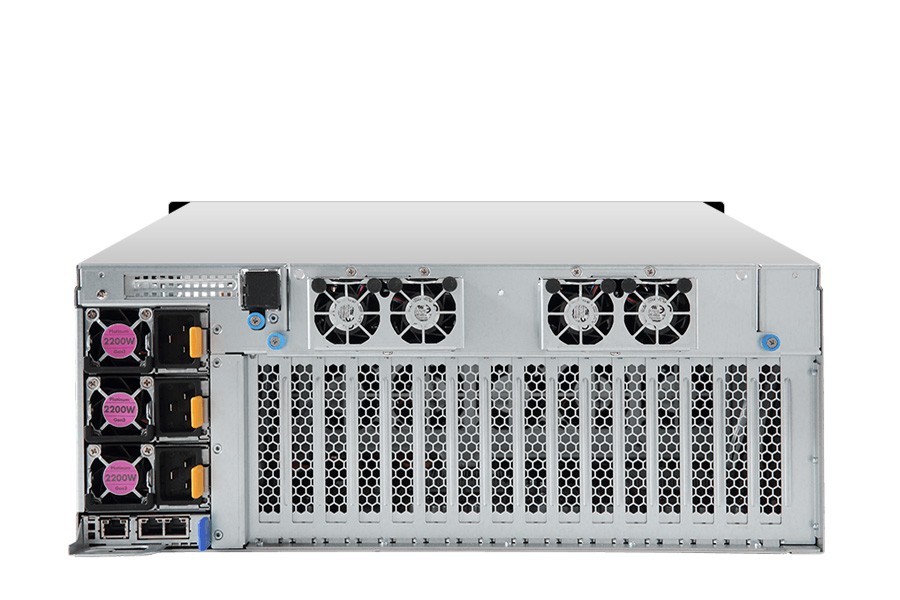

Rear I/O
2x RJ45
1x MLAN (Primary port)
Backplane I/O
1‎2x 3.5" ports and 10x 2.5" ports
Cooling

4‎x 40x40x28mm Fans(25,000rpm)
6x 60x60x76mm Fans(21,700rpm)
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
NOTE:
Please contact Technical Support for more information about optimized GPU operating temperature
Details
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
G482-Z50G482-Z50G482-Z50G482-Z50G482-Z50G482-Z50G482-Z50G482-Z50
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
Added
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
MEMORY
Samsung 64GB DDR4 3200 ECC RDIMM Memory
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
OS DRIVE
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
NVIDIA L40 48GB GDDR6 GPU Card
NVIDIA L40S 48GB GDDR6 GPU Card
NVIDIA A100 80GB HBM2e GPU Card
NVIDIA H100 80GB HBM2e GPU Card
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2025 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
3538
1
6134.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
