G482-Z51
$5,544.00 Configured Summary
G482-Z51

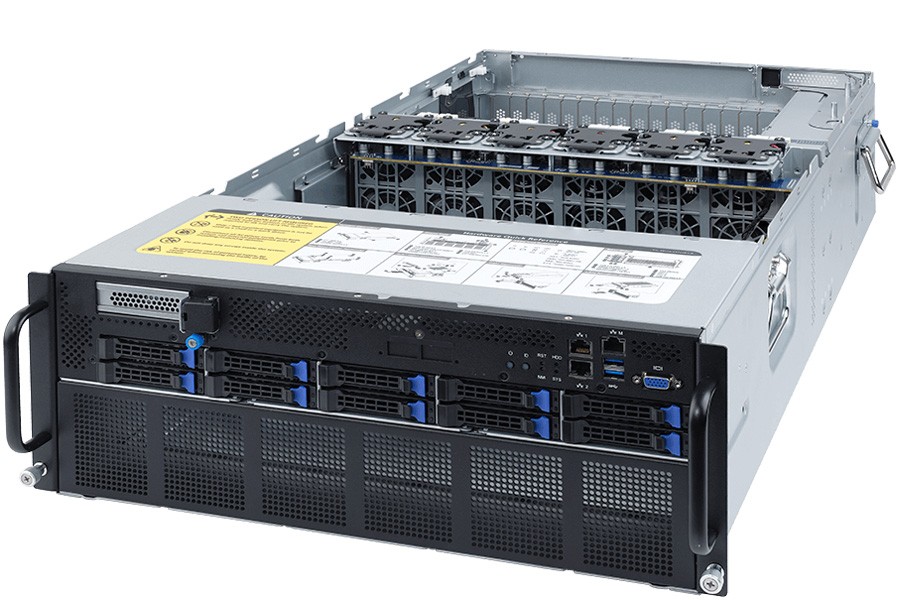

Gigabyte 4U 10Bays Dual Processor AMD Rackmount GPU Server

  • Up to 8x PCIe Gen4 GPGPU cards
  • Dual AMD EPYC™ 7002 series processor family
  • 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
  • 2x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
  • 2x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
  • 1x dedicated management port
  • 10x SATA 2.5" hot-swappable HDD/SSD bays
  • 8 x FHFL Gen4 expansion slots for GPU cards
  • Aspeed® AST2500 remote management controller
  • 3x 80 PLUS Platinum 2200W redundant PSU


Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU G482-Z51
Processor
AMD EPYC™ 7002 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
NOTE:
If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7001 series processor family
Memory
3‎2 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200/ 2933 MHz
Note:
Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
Chassis
4U Rackmount Chassis
Dimensions
448x 176x 880 (mm)
Onboard Devices
LAN
Rear Side:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1 x 10/100/1000 management LAN
Front Side:
2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)

Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
HDD Drive Bays
1‎0x 2.5" SATA hot-swappable HDD/SSD bays

NOTE:
SATA devices supported only
Expansion Slots
8‎x PCIe x16 slots (Gen4 x16 bus) for GPUs
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- Limited to PCIe Gen3 when using AMD Naples
Power Supply
3‎x 2200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V
+12.12V/ 178.1A
+12Vsb/ 3.5A
NOTE:
The system power supply requires C19 type power cord
Input Output
Internal I/O
1‎x TPM header
1x Front panel header

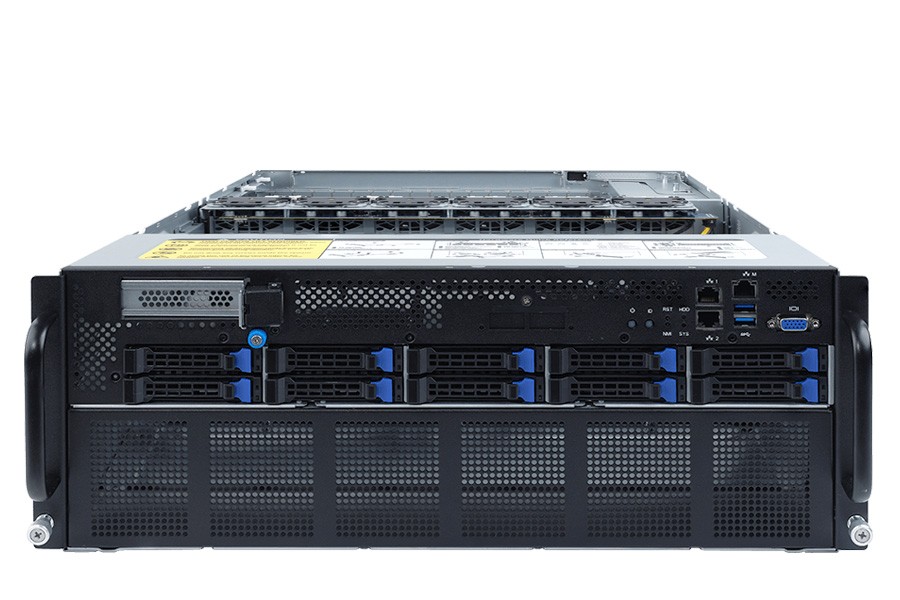

Front I/O
2 x USB 3.0
1x VGA
2x RJ45
1x MLAN (Reserved, enabled by jumper switch)
1x Power button with LED
1x ID button with LED
1x Reset button
1x NMI button
1x System status LED
1x HDD access LED

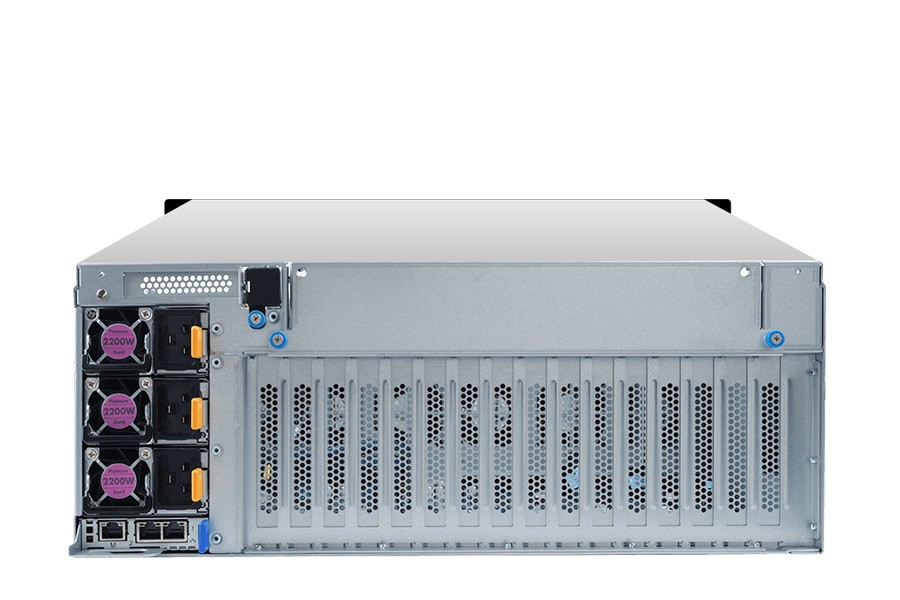

Rear I/O
2x RJ45
1x MLAN (Primary port)
Backplane I/O
1‎0x 2.5" ports
Supports SATA 6Gb/s
Cooling
6‎x 60x60x76mm Fans(21,700rpm)
Operating Environment
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
NOTE:
Please contact Technical Support for more information about optimized GPU operating temperature
Details
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
G482-Z51G482-Z51G482-Z51G482-Z51G482-Z51G482-Z51
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
Added
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
+ $120.00
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
+ $180.00
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
+ $210.00
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
+ $600.00
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
+ $420.00
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
+ $1,044.00
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
+ $1,560.00
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
+ $924.00
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
+ $1,848.00
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
+ $2,532.00
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
+ $2,172.00
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
+ $3,480.00
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
+ $4,224.00
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
+ $5,112.00
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
+ $7,104.00
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
+ $4,704.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $68.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $246.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $616.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
- $28.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $62.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $254.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $612.00
Enterprise 3.5 HDD/2.5 HDD/2.5 SSD
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $291.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $485.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $841.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $1,774.00
Micron 5210 ION 2.5" SATAIII QLC Enterprise SSD 1.92TB
+ $355.00
Micron 5210 ION 2.5" SATAIII QLC Enterprise SSD 3.8TB
+ $580.00
Micron 5210 ION 2.5" SATAIII QLC Enterprise SSD 7.68TB
+ $970.00
Samsung 860 Pro 2.5" SATA 6Gb/s 1TB SSD
+ $240.00
Samsung 860 Pro 2.5" SATA 6Gb/s 2TB SSD
+ $370.00
Samsung 860 Pro 2.5" SATA 6Gb/s 4TB SSD
+ $685.00
GPU/Coprocessor
*No GPU
Added
ASUS GeForce RTX 3090 TURBO GDDR6 Video Card 24G
+ $3,289.00
GIGABYTE​ GeForce RTX 3080 TURBO Video Card 10G
+ $2,189.00
GIGABYTE​ GeForce RTX 3090 TURBO Video Card 24G
+ $3,289.00
PNY NVIDIA Quadro RTX 4000 GDDR6 Video Card 8GB
+ $1,199.00
PNY NVIDIA Quadro RTX 5000 GDDR6 Video Card 16GB
+ $2,589.00
PNY NVIDIA Quadro RTX 6000 GDDR6 Video Card 24GB
+ $4,513.00
PNY NVIDIA Quadro RTX 8000 GDDR6 Video Card 48GB
+ $6,725.00
NVIDIA TESLA V100 PCIe Video Card 16GB
+ $8,825.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
