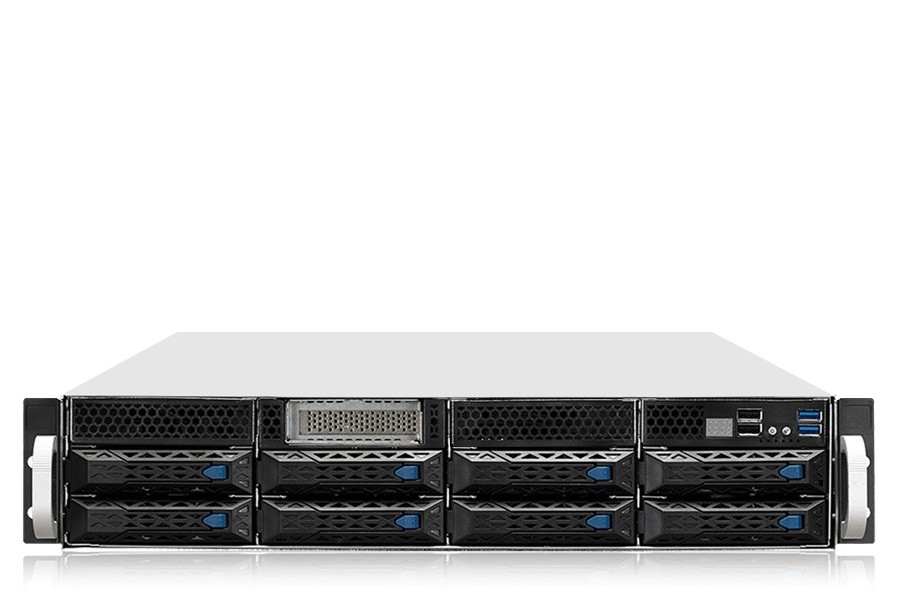

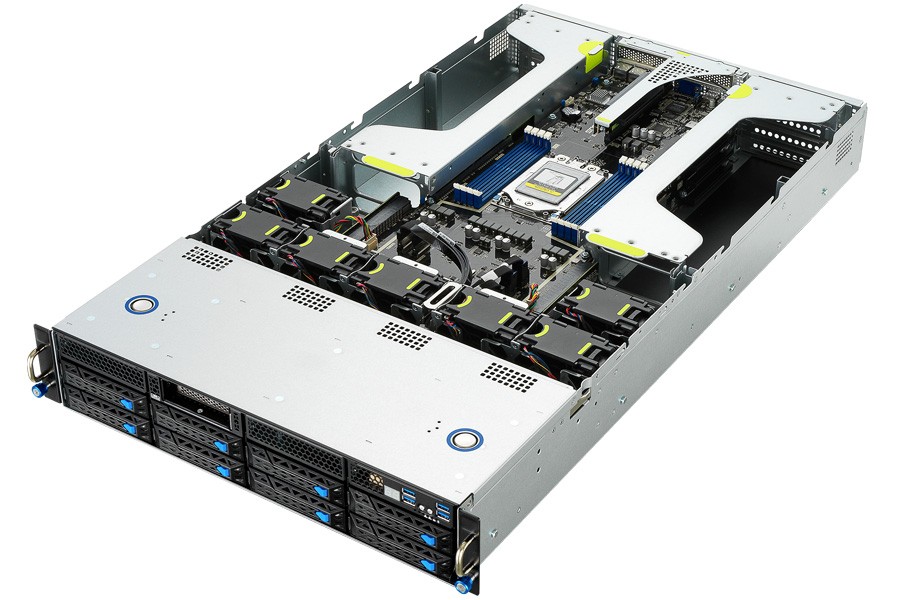

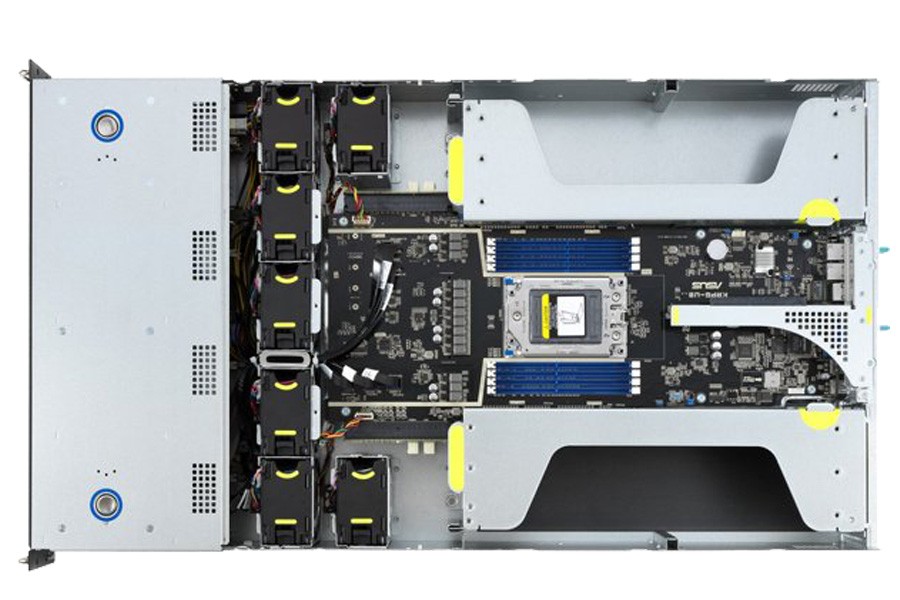

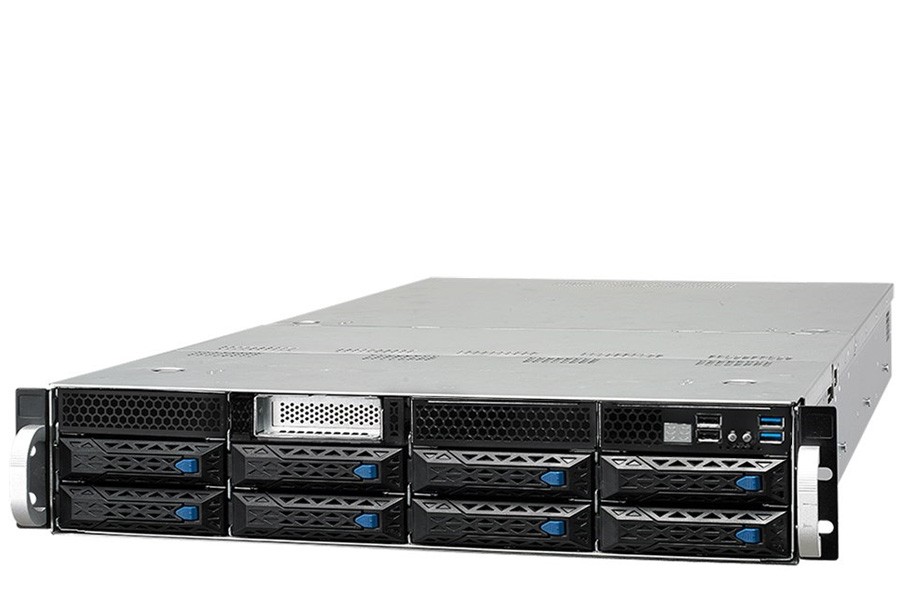

ASUS 2U 8Bays Dual 3rd Gen MILAN Processor Rackmount Server
- Powered by AMD EPYC™ 7002/7003 processor
- Up to 11 PCIe® 4.0 slots
- GPU-optimized design
- Supports NVIDIA® NVLink
- A choice of PCIe Gen 4.0, OCP 3.0, NVMe and M.2
- Redundant 2200W Platinum power supplies
- ASUS thermal control technology
- ASUS performance tuning technology
- Complete IT infrastructure remote management
Storage configuration notice:
8x SATA3 6Gb/s ports + 1 x M.2 connector /or
6x SATA3 6Gb/s ports + 2 x U.2 NVMe drives + 1x M.2 connector
8x SATA3 6Gb/s ports + 1 x M.2 connector /or
6x SATA3 6Gb/s ports + 2 x U.2 NVMe drives + 1x M.2 connector
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU | ESC4000A-E10-WOCPU068Z |
Processor | 1 x Socket SP3 (LGA 4094)
AMD EPYC™ 7002 Series |
Memory | Total Slots : 8 (8-channel)
Capacity : Maximum up to 2048GB RDIMM
Memory Type :
DDR4 3200 RDIMM DDR4 3200 LRDIMM DDR4 3200 LR-DIMM 3DS Memory Size :
256GB, 128GB, 64GB, 32GB, 16GB |
Chassis | 2U Rackmount Chassis
|
Dimensions | 800mm x 440mm x 88.9mm (2U)
31.50" x 17.22" x 3.5" |
Front Panel | 1 x Q-code/port-80 LED
4 x USB 3.2 Gen1 ports |
Onboard Devices | Networking
1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN Graphic
Aspeed AST2500 with 64MB VRAM |
HDD Drive Bays | 8 x 3.5" or 2.5" Hot-swap Storage Bays
(Backplane Supports 4 x SATA/SAS + 4 x SATA/SAS/NVMe Devices)
*default setting supports 2 x NVMe devices.
Note
*Users need to remove Slimline cables from the PCIe riser board, and re-connect the cables to the backplane for total 4 x NVMe devices. |
Expansion Slots | Rear:
4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards 2 x PCIe x16 slots (Gen4 x16 link, LP,HL)
Front:
SKU-1 (default) 1 x PCIe x8 slot (Gen4 x8 link, LP,HL) SKU-2 (by request)
1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
1 x OCP3.0 slot (Gen4 x8 link) by switching cables SKU-3 (by request)
1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or 2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables |
Power Supply | 1+1 Redundant 2200W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz
|

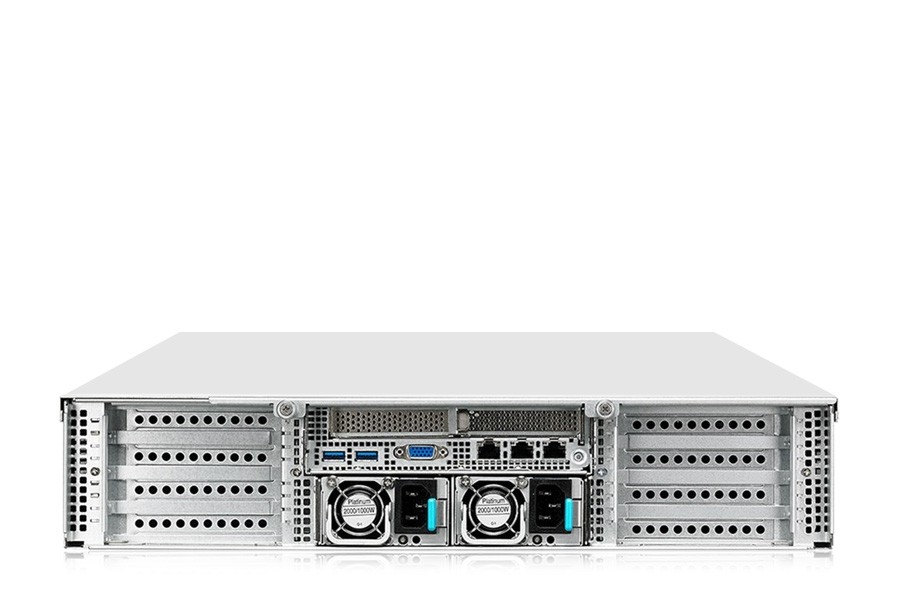

Input Output | Front I/O Ports
1 x Q-code/port-80 LED 4 x USB 3.2 Gen1 ports Rear I/O Ports
2 x USB 3.2 Gen1 port 1 x VGA port 1 x Management port (RJ45) 2 x Gigabit LAN ports (RJ45) |
Operating Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing) |
CPU
AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz
Added
AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz
- $205.00
AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz
+ $1,662.00
AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz
+ $578.00
AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz
+ $2,925.00
AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz
+ $2,695.00
AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz
+ $1,113.00
AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz
+ $305.00
AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz
+ $584.00
AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz
+ $2,180.00
AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz
+ $2,108.00
AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz
+ $3,214.00
AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz
+ $1,977.00
AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz
+ $4,533.00
AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz
+ $4,694.00
AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz
+ $6,340.00
AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz
+ $7,173.00
AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz
+ $4,713.00
AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz
+ $8,168.00
AMD ROME EPYC™ 7252 Processor (3.1Ghz,120W)
- $736.00
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
- $616.00
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
- $556.00
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
- $526.00
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
- $136.00
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
- $316.00
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
+ $308.00
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
+ $824.00
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
+ $188.00
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
+ $1,112.00
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
+ $1,796.00
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
+ $1,436.00
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
+ $2,744.00
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
+ $3,488.00
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
+ $4,376.00
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
+ $6,368.00
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
+ $3,968.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $924.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $980.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $2,860.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NVMe U.2/U.3
*No NVMe U.2 Drives
Added
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $299.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $585.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $715.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,300.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,470.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $338.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $494.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $845.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,495.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,860.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $291.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $466.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $861.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,547.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,754.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA
+ $533.00
Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller
+ $855.00
Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,117.00
Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,299.00
Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller
+ $1,323.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
+ $1,690.00
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
+ $3,010.00
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
+ $5,304.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $9,193.00
NVIDIA L40 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA L40S 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
NVIDIA H100 80GB HBM2e GPU Card
+ $32,156.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
Power Cord
220V to 110V, C19 to NEMA 5-15P, Black 10ft Power Cord
Added
220V to 220V, C19 to NEMA L6-20, Black 10ft Power Cord
+ $35.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3622
1
2782.0000
