RM13304-X11SPL-F
$1,482.00 Configured Summary
RM13304-X11SPL-F

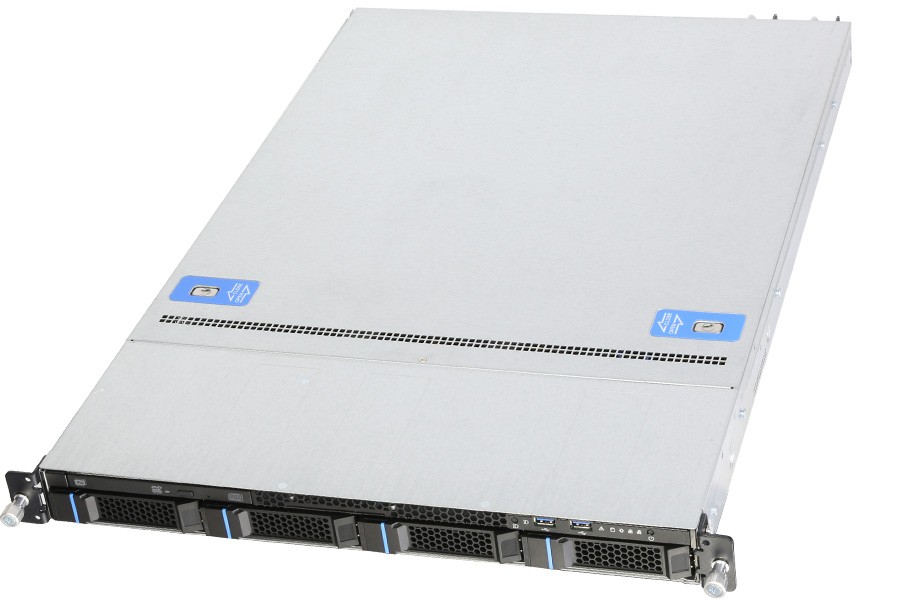

Chenbro 1U 4Bay Single Processor rackmount Server

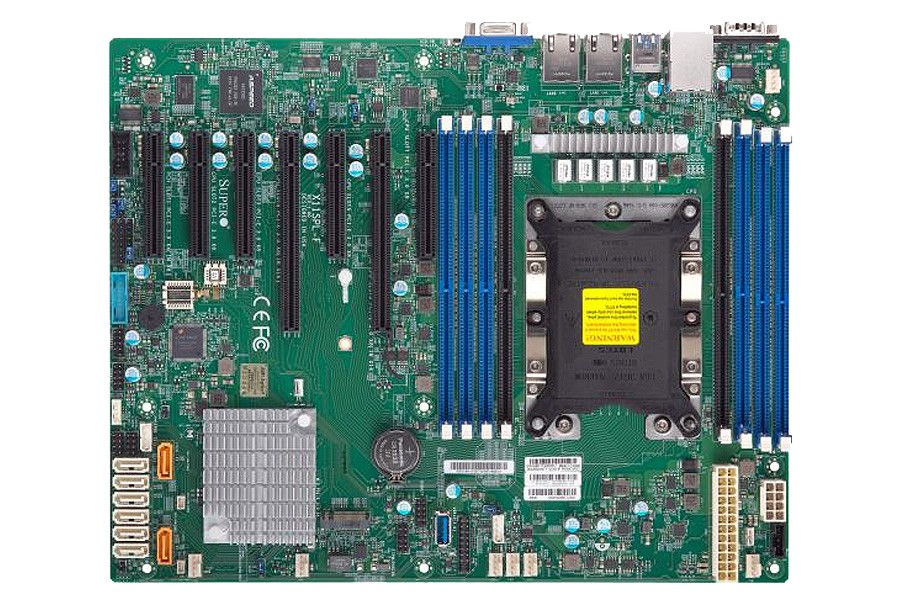

  • Supermicro Motherboard X11SPL-F
  • 2nd Gen Intel® Xeon® Scalable Processors, Single Socket LGA-3647 (Socket P) supported
  • 8x DIMM Slots,up to 2TB ECC RDIMM
  • Intel® C621 Chipset
  • 4x 3.5" Hot-swap HDD bays
  • 650W Redundant Power supply

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" SAS/SATA drive bays
M.2:
Supports 1x M.2 form factor 2280
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU RM13304-X11SPL-F
Processor
CPU:
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Cores / Cache:
Up to 28 cores
Note:
BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
Memory
Memory Capacity:
Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots;
Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes:
RDIMM: 8GB, 16GB, 32GB, 64GB
LRDIMM: 32GB, 64GB, 128GB
3DS LRDIMM: 64GB, 128GB, 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Chassis
1U Rackmount Chassis
Dimensions
D x W x H
657.5 x 438.5 x 43.5 (mm)
25.89”x 17.27” x 1.72”

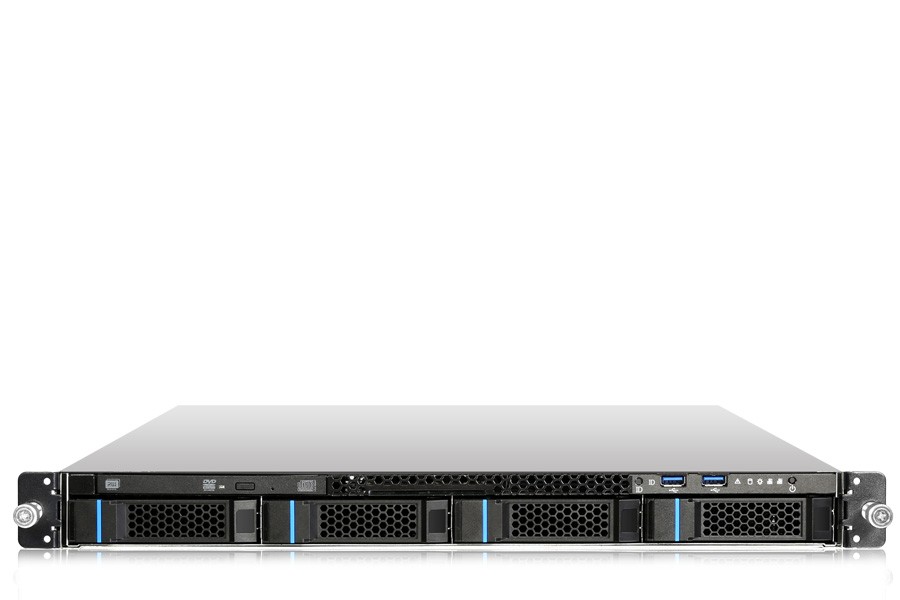

Front Panel
1x Power On/Off
1x UID
2x USB3.0
Bios
BIOS Type:
AMI UEFI
BIOS Features:
ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or later
Onboard Devices
Chipset:
Intel® C621
SATA:
Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI:
ASPEED AST2500
Network Controllers:
Dual LAN with 1GbE with Intel® I210
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
4x 3.5" Hot-swap HDD bays
Expansion Slots
1x Full Height PCIe Gen3 x16
Power Supply
650W Redundant PSU

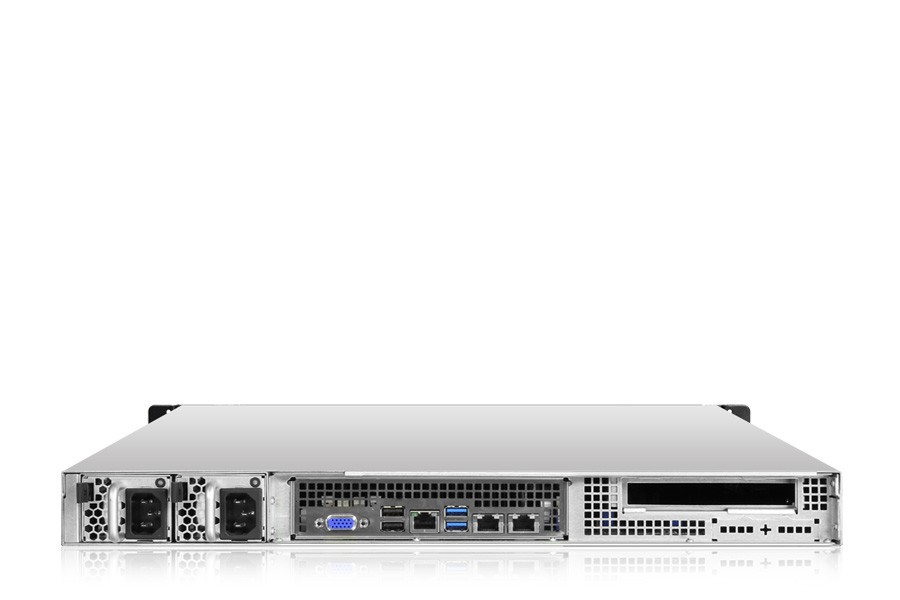

Input Output
SATA:
8x SATA3 (6Gbps) port
LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
8x USB 2.0 ports (2x rear + 6x via headers)
5x USB 3.2 Gen1 ports (2x rear + 2x via headers + 1x Type A)
Video Output:
1x VGA port
Serial Port / Header:
2x COM Ports (1x rear, 1x header)
TPM:
TPM Header
Cooling
4x 40mm Fan, PWM, T28, Ball Bearing, L500mm

Operating Environment
Operating Temperature Range:
0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range:
5% - 95% (non-condensing)
RM13304-X11SPL-FRM13304-X11SPL-FRM13304-X11SPL-FRM13304-X11SPL-FRM13304-X11SPL-F
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $39.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $127.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $335.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $4.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $40.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $138.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $339.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $34.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $64.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $94.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $140.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $160.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $194.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $220.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $20.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $44.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $74.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $124.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $164.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $355.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $475.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $565.00
NVMe M.2
*No NVMe M.2 Drives
Added
Intel 670p Series M.2 NVMe SSD 512GB
+ $95.00
Intel 670p Series M.2 NVMe SSD 1TB
+ $158.00
Intel 670p Series M.2 NVMe SSD 2TB
+ $345.00
KIOXIA Toshiba M.2 NVMe SSD 256GB
+ $75.00
KIOXIA Toshiba M.2 NVMe SSD 512GB
+ $150.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $108.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $176.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $379.00
Samsung 970 PRO M.2 NVMe SSD 512GB
+ $173.00
Samsung 970 PRO M.2 NVMe SSD 1TB
+ $293.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $158.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $269.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $478.00
Samsung 983 DCT M.2 NVMe SSD 960GB
+ $243.00
Samsung 983 DCT M.2 NVMe SSD 1.92TB
+ $529.00
WD Blue SN500 M.2 NVMe SSD 250GB
+ $66.00
WD Blue SN500 M.2 NVMe SSD 500GB
+ $72.00
WD Blue SN500 M.2 NVMe SSD 1TB
+ $139.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NETWORK CARD
*No Network Card
Added
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $155.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $360.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $350.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $348.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $412.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $350.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $358.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $449.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $504.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $960.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,225.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,800.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
