RM35206-X11SPL-F
$1,878.00 Configured Summary
RM35206-X11SPL-F

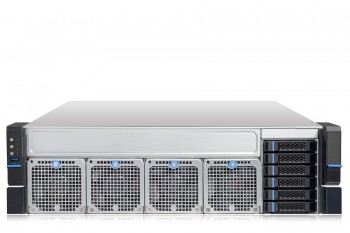

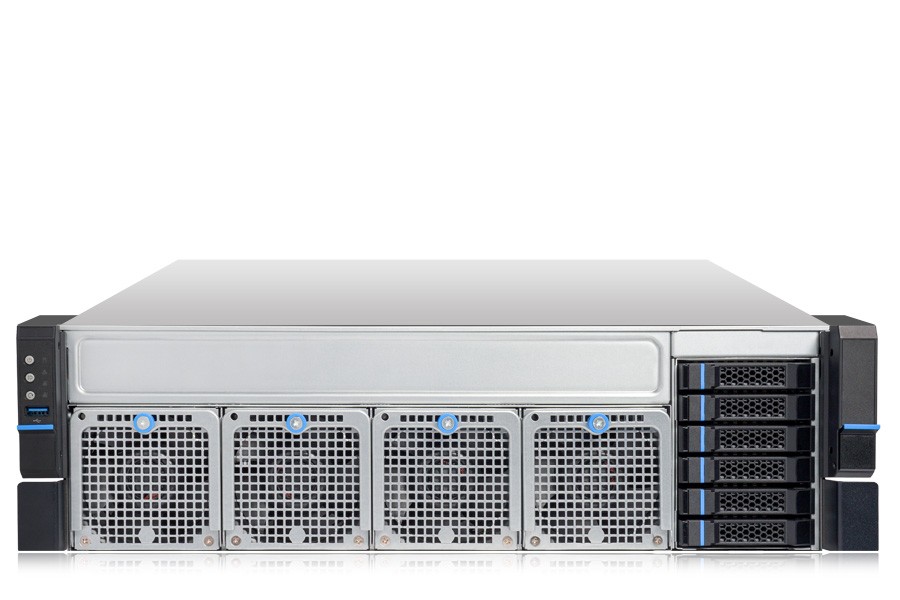

Chenbro 3U 6Bay Single Processor Rackmount Server

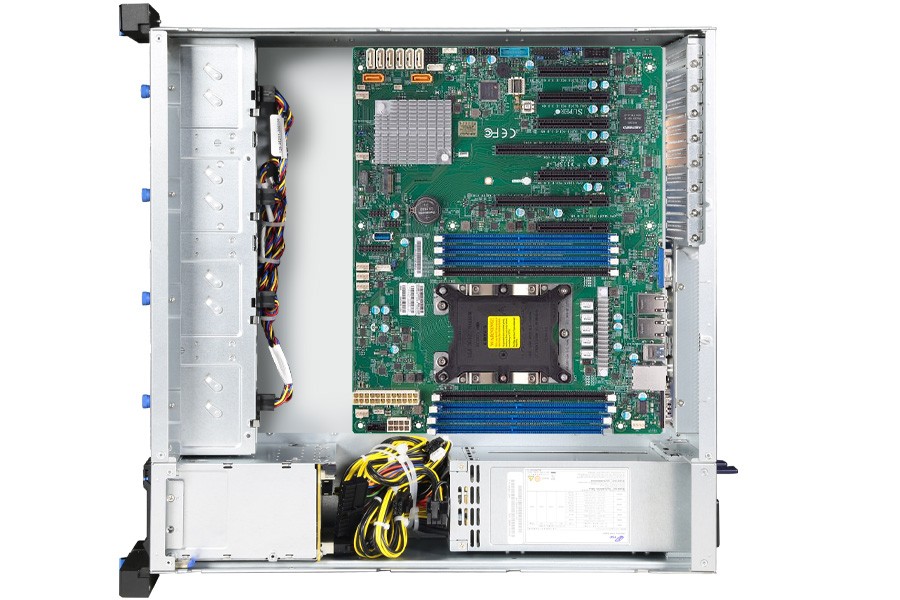

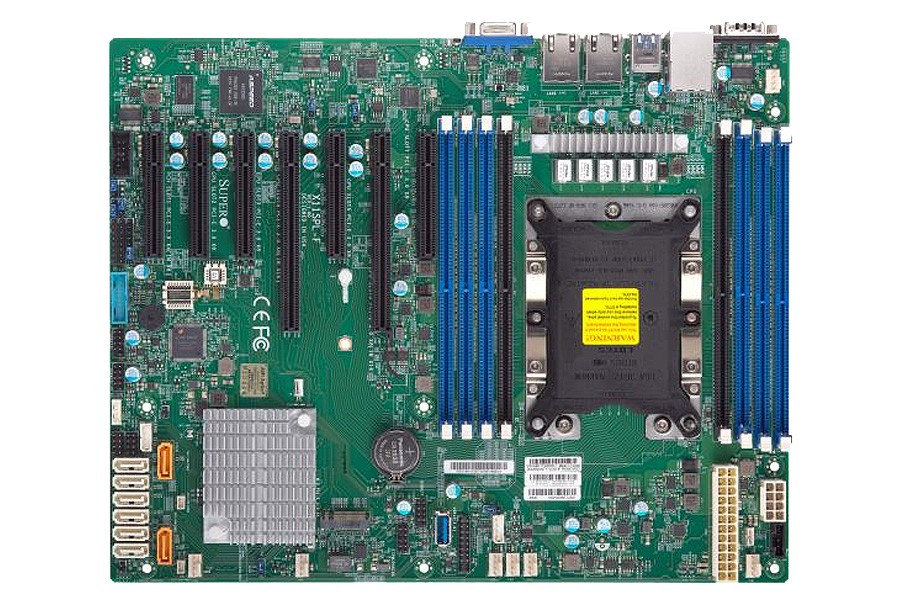

  • Supermicro Motherboard X11SPL-F
  • 2nd Gen Intel® Xeon® Scalable Processors, Single Socket LGA-3647 (Socket P) supported
  • 8x DIMM Slots,up to 2TB ECC RDIMM
  • Intel® C621 Chipset
  • 6x 2.5" Hot-swap HDD bays
  • 1600W Redundant Power supply

Storage configuration notice:
Hot-swap:
6x Hot-swap 2.5" SAS/SATA drive bays
M.2:
Supports 1x M.2 form factor 2280
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU RM35206-X11SPL-F
Processor
CPU:
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Single Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 165W TDP
Cores / Cache:
Up to 28 cores
Note:
BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
Memory
Memory Capacity:
Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots;
Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes:
RDIMM: 8GB, 16GB, 32GB, 64GB
LRDIMM: 32GB, 64GB, 128GB
3DS LRDIMM: 64GB, 128GB, 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Chassis
3U Rackmount Chassis
Dimensions
D x W x H
450.0 x 438.0 x 131.0 mm
17.72” x 17.24” x 5.15”

Front Panel
1x Power On/Off
1x System Reset
1x UID
1x USB 3.0
Bios
BIOS Type:
AMI UEFI
BIOS Features:
ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or later
Onboard Devices
Chipset:
Intel® C621
SATA:
Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI:
ASPEED AST2500
Network Controllers:
Dual LAN with 1GbE with Intel® I210
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
6x 2.5" Hot-swap HDD bays
Expansion Slots
8 x Full Height ( 3 x Double-width GPGPU )
Power Supply
1600W Redundant PSU

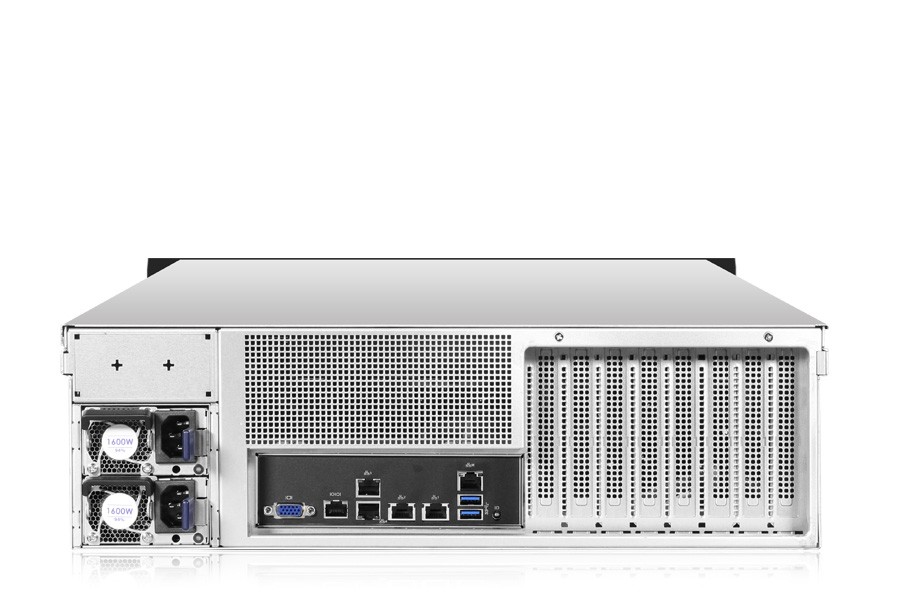

Input Output
SATA:
8x SATA3 (6Gbps) port
LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
8x USB 2.0 ports (2x rear + 6x via headers)
5x USB 3.2 Gen1 ports (2x rear + 2x via headers + 1x Type A)
Video Output:
1x VGA port
Serial Port / Header:
2x COM Ports (1x rear, 1x header)
TPM:
TPM Header
Cooling
Rear : 80 mm(4) , 11000 RPM
up to T=38 mm, Hot-swap
Operating Environment
Operating Temperature Range:
0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range:
5% - 95% (non-condensing)
RM35206-X11SPL-FRM35206-X11SPL-FRM35206-X11SPL-FRM35206-X11SPL-F
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $231.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $31.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $84.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $208.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $245.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $3.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $34.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $87.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $211.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $715.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $85.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $122.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $304.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $707.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,214.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $83.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $168.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $402.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $870.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $75.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $28.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $68.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $100.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $263.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $603.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,222.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $93.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $186.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $393.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $65.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $230.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $653.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $65.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $40.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $4.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $93.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $317.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $217.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $401.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $780.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,382.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,850.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,858.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA
+ $533.00
Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller
+ $855.00
Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,117.00
Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,299.00
Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller
+ $1,323.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
