RM43348-X11DPi-N
$4,292.00 Configured Summary
RM43348-X11DPi-N

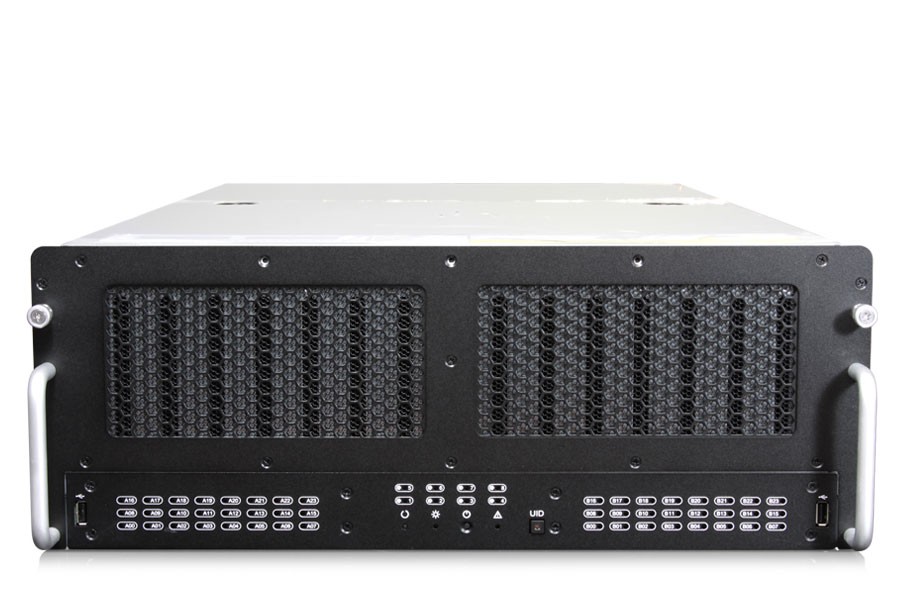

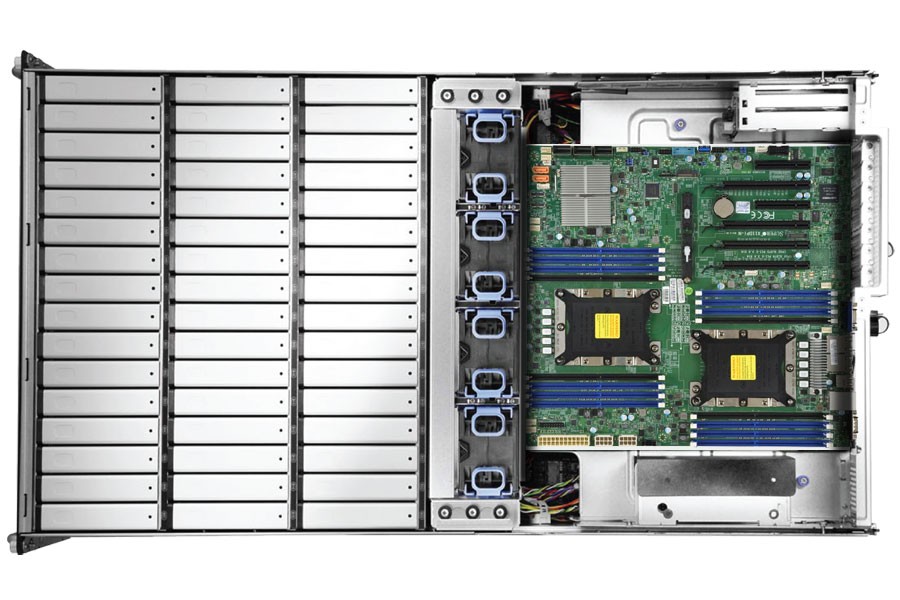

Chenbro 4U 48Bay Dual Processor rackmount Server

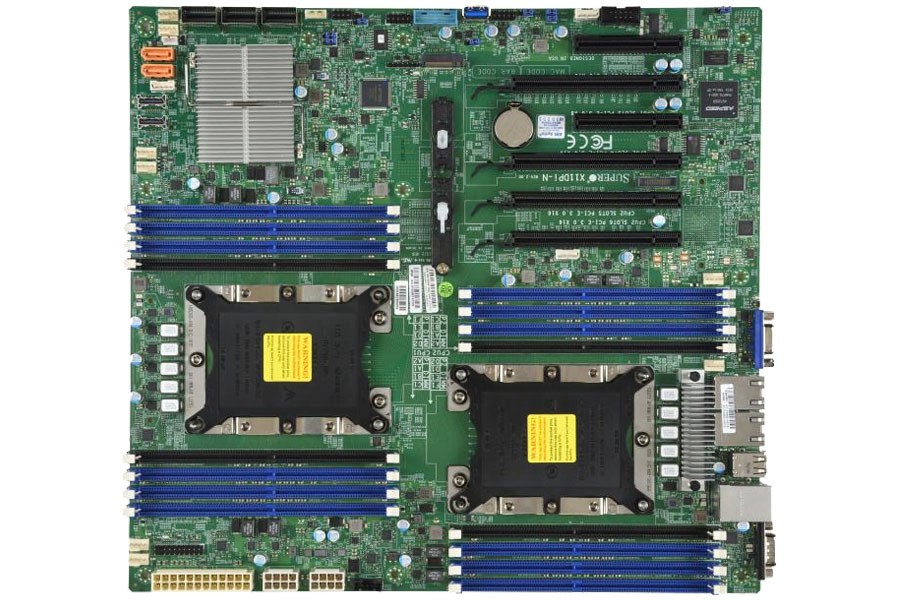

  • Supermicro Motherboard X11DPi-N
  • 2nd Gen Intel® Xeon® Scalable Processors, Dual Socket LGA-3647 (Socket P) supported
  • 16x DIMM Slots,up to 2TB ECC RDIMM
  • Intel® C621 Chipset
  • 48x 3.5" Hot-swap HDD bays
  • 1100W Redundant Power supply

Storage configuration notice:
Hot-swap:
48x Hot-swap 3.5" SAS/SATA drive bays
2x 2.5" Rear Drive
M.2:
Supports 1x M.2 form factor 2280
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU RM43348-X11DPi-N
Processor
CPU:
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Cores / Cache:
Up to 28 cores
Note:
BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
Memory
Memory Capacity:
Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes:
RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
4U Rackmount Chassis
Dimensions
D x W x H
832.8 x 448 x 175.8 (mm)
32.79” x 17.24” x 6.92”
Front Panel
1x Power On/Off
1x System Reset
1x UID
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621
SATA:
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI:
ASPEED AST2500
Network Controllers:
Dual LAN with 1GbE LAN with Intel® X722
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
48x 3.5" Hot-swap HDD bays
2x 2.5" Rear Drive
Expansion Slots
7 x Low Profile
Power Supply
1 x Redundant PSU, 1+1, 1100W, w/Power distribution board

Input Output
SATA:
14x SATA3 (6Gbps) port
LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
4x USB 2.0 ports (2x rear + 2x via headers)
5x USB 3.2 Gen1 ports (2x rear + 2x via headers + 1x Type A)
Video Output:
1x VGA port
Serial Port / Header:
2x COM Ports (1x rear, 1x header)
TPM:
1x TPM Header
Cooling
4x 80mm Fan, Dual Rotor,PWM, Ball Bearing,L35mm, w/Fan Holder

Operating Environment
Operating Temperature Range:
0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range:
5% - 95% (non-condensing)
RM43348-X11DPi-NRM43348-X11DPi-NRM43348-X11DPi-NRM43348-X11DPi-NRM43348-X11DPi-NRM43348-X11DPi-N
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $231.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $31.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $84.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $208.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $245.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $3.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $34.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $87.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $211.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $715.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $61.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $108.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $208.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $119.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $139.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $155.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $242.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $468.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $752.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $264.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $924.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $53.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $93.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $164.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $315.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $507.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,004.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $218.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $311.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $518.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $177.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $325.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $670.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $41.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $64.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $108.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $189.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $376.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $342.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $526.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $905.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,507.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,975.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,983.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,226.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3742
1
3898.0000
