RM13604-X12DPl-i6
$2,354.00 Configured Summary
RM13604-X12DPl-i6

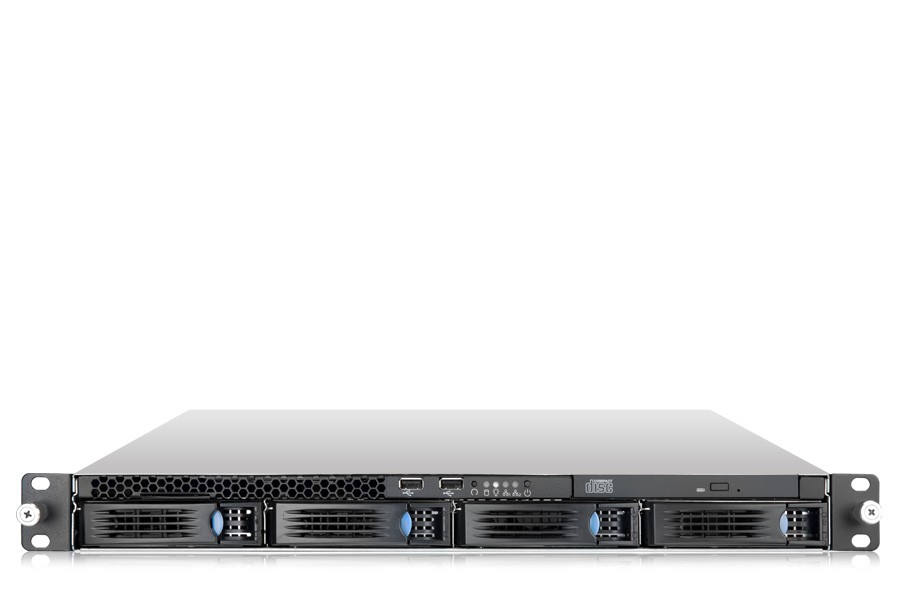

Chenbro 1U 4Bay Dual Processor rackmount Server

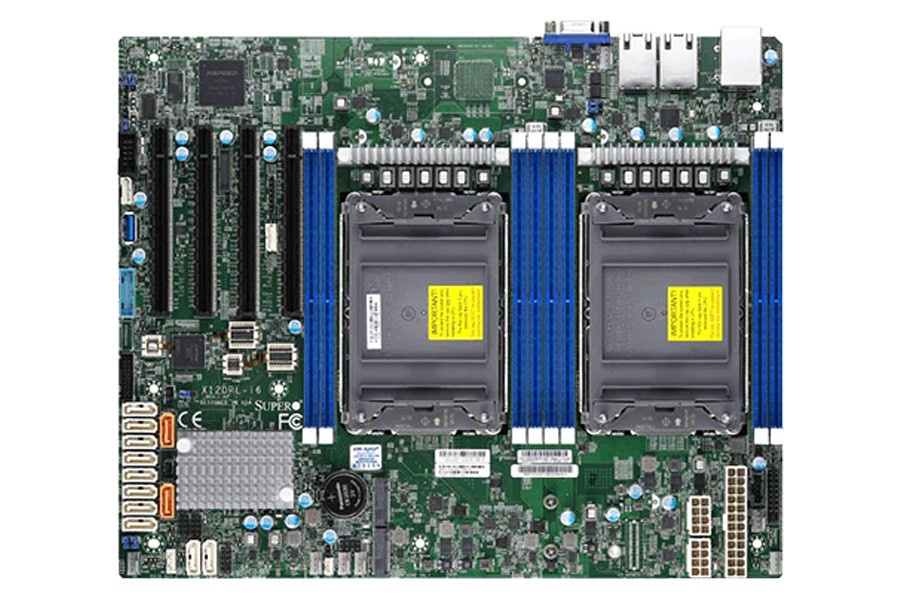

  • Supermicro Motherboard X12DPl-i6
  • 3rd Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4189 (Socket P+)
  • 8x DIMM Slots,up to 2TB ECC RDIMM
  • Intel® C621A Chipset
  • 4x 3.5" Hot-swap HDD bays
  • 650W Redundant Power supply

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" SAS/SATA drive bays
M.2:
Supports 1x M.2 form factor 2280

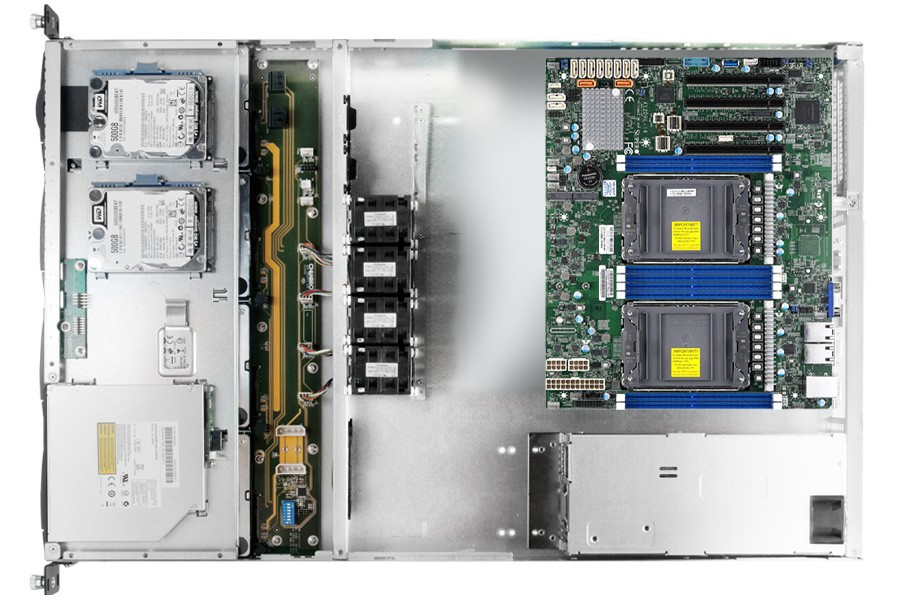

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU RM13604-X12DPl-i6
Processor
3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, Dual UPI up to 11.2 GT/s
Memory
Memory Capacity:
8 DIMM slots
Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
Memory Type:
3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes:
256GB
LRDIMM: 256GB
RDIMM: 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis

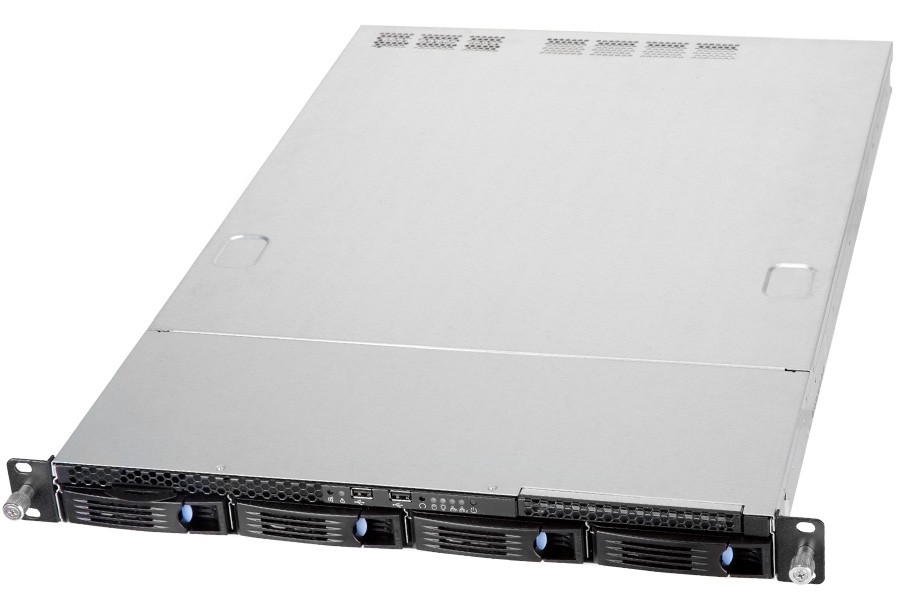

1U Rackmount Chassis
Dimensions
D x W x H
658.4 x 430 x 43.3 (mm)
25.92” x 16.93” x 1.7”
Front Panel
1x Power On/Off
1x Alarm Mute
1x System Reset
2x USB2.0
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621A
SATA:
Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI:
ASPEED AST2600 BMC
Graphics:
ASPEED AST2600 BMC
Network Controllers:
Dual LAN with Intel® i210 Gigabit Ethernet Controller
HDD Drive Bays
4x 3.5" Hot-swap HDD bays
Expansion Slots
1 x Full Height & Length
Power Supply
650W Redundant PSU

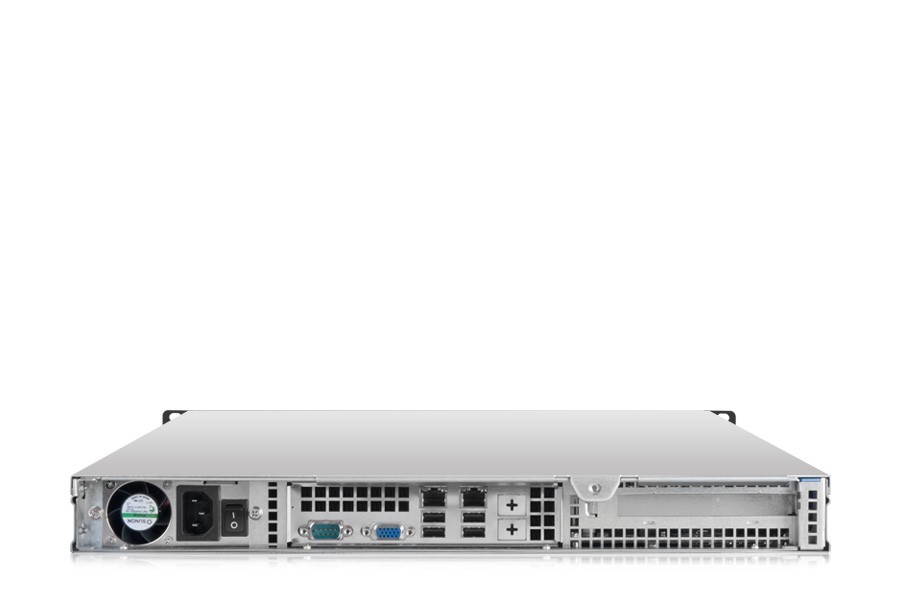

Input Output
LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
5x USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output:
1x VGA port(s)
Serial Port:
1x COM Port(s) (1 header)
DOM:
2x SATA DOM (Disk on Module) power connector support
TPM:
1x TPM Header
Cooling
4 x 40mm Fan, PWM, T28, Two Ball Bearing, 16500RPM, L100mm

Operating Environment
Operating Temperature Range:
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
8% - 90% (non-condensing)
Non Operating Relative Humidity Range:
5% - 95% (non-condensing)
RM13604-X12DPl-i6RM13604-X12DPl-i6RM13604-X12DPl-i6RM13604-X12DPl-i6RM13604-X12DPl-i6
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
Added
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
+ $232.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
+ $601.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
+ $461.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
+ $526.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
+ $914.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
+ $1,036.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
+ $1,387.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
+ $914.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
+ $1,264.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
+ $1,252.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
+ $1,459.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
+ $1,659.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
+ $1,821.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
+ $2,043.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
+ $1,772.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
+ $2,740.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
+ $2,677.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
+ $2,896.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
+ $4,023.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
+ $4,242.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
+ $2,990.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $542.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
+ $80.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $142.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $248.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $496.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $570.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $86.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $148.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $254.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $502.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $1,510.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $61.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $108.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $208.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $119.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $139.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $155.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $242.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $468.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
-Microsoft Windows 11 Professional 32/64-bit
+ $166.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
