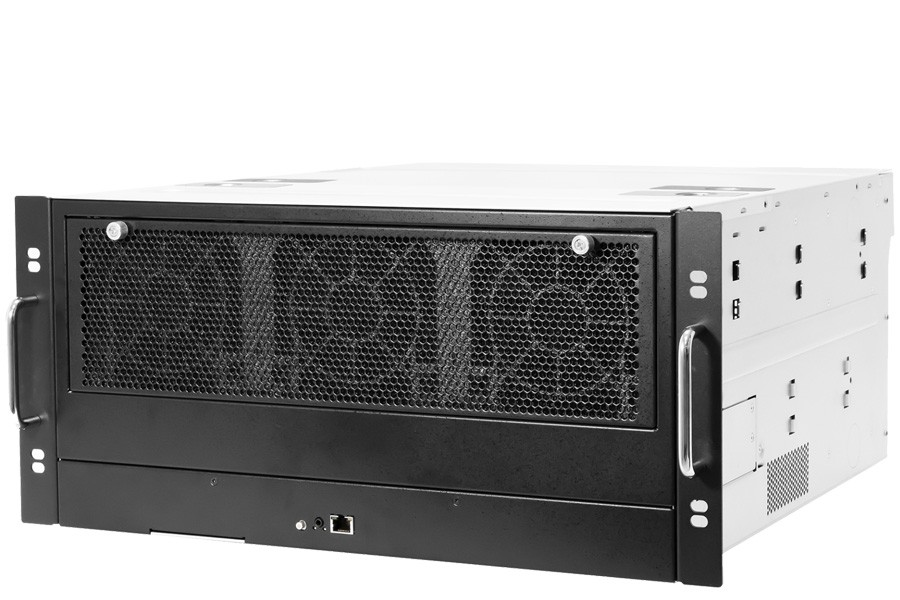

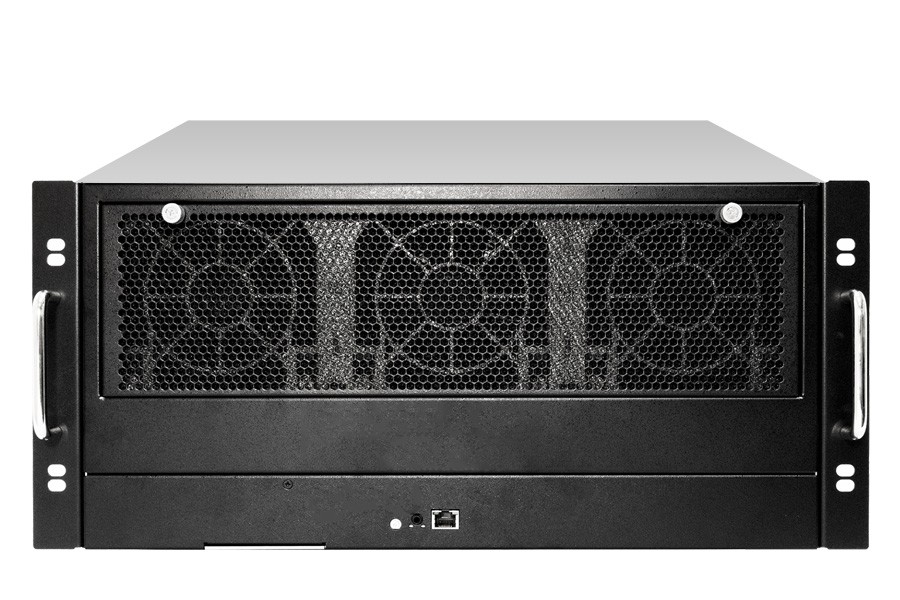

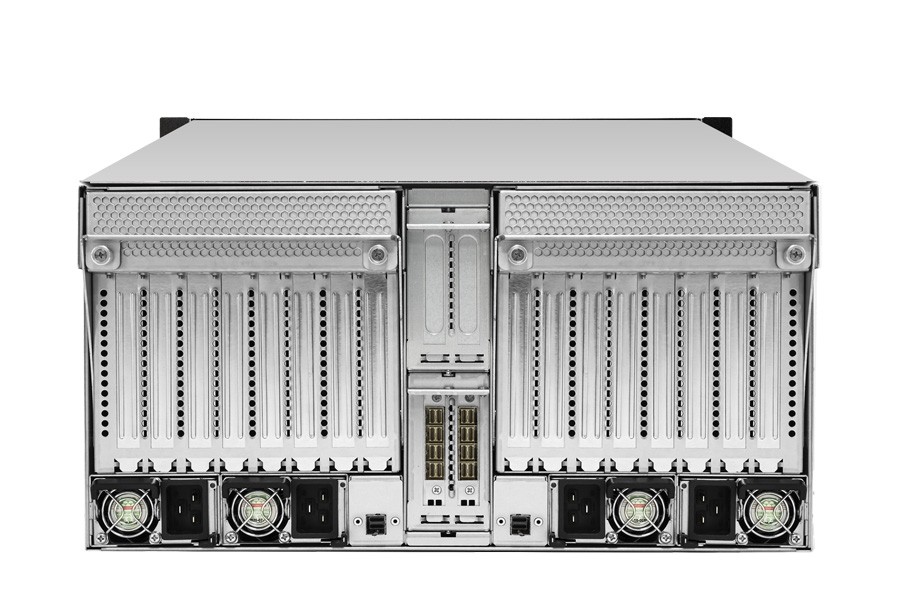

AIC 5U with PCIe switch JBOX
- Based on Broadcom Atlas 88096 PCIe Gen4 Switch Solution
- 450mm short-depth system design
- High-efficiency/wattage redundant power supply
- High-performance and low noise swappable system fans
- BMC for system remote monitoring
- Extended PCIe slot pitch for better air cooling flow
- 4U height PCIe card carrier design for top insertion power input Gaming GPU cards
- Modular backplane design options for different applications
- PCIe X16 GPU / PCIe X8 Add-on cards / PCIe X4 NVMe
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | J5010-02-G4 |
| Chassis | 5U Chassis
|
| Dimensions | 435mm x450mm x219mm
17.1" x17.7" x8.6" |
| Expansion Slots | Form Factor:
Supports 8x full-height, full-length dual slot/double-width cards 2x PCIe X16 HHHL add-on cards 2x PCIe X1 link for PCIe switch management |
| Power Supply | 2000W dual 1+1 hot-swap redundant 80+ Platinum
1200W dual 1+1 hot-swap redundant 80+ Platinum Power Entry: AC Inlet 2000W module C20 1200W module C14 |
| Cooling | 6x 12038 PWM fans
|
| Operating Environment | Operating Environment:
Operating temperature: 0° - 35°C System relative humidity: 20% - 80% Non-operating Environment: Operating altitude condition: 0 ~ 10K ft Storage temperature: -20° ~ 60°C System relative humidity: 10% - 90% |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| File Description | Date | Type | Size | Download |
| J5010-02-G4 Datasheet | 05-11-22 | 979.68 KB |  |
|
| AIC JBOX J5010-02 Review | 05-11-22 | 1,861.64 KB | |
