SB101-A6
$2,711.00 Configured Summary
SB101-A6

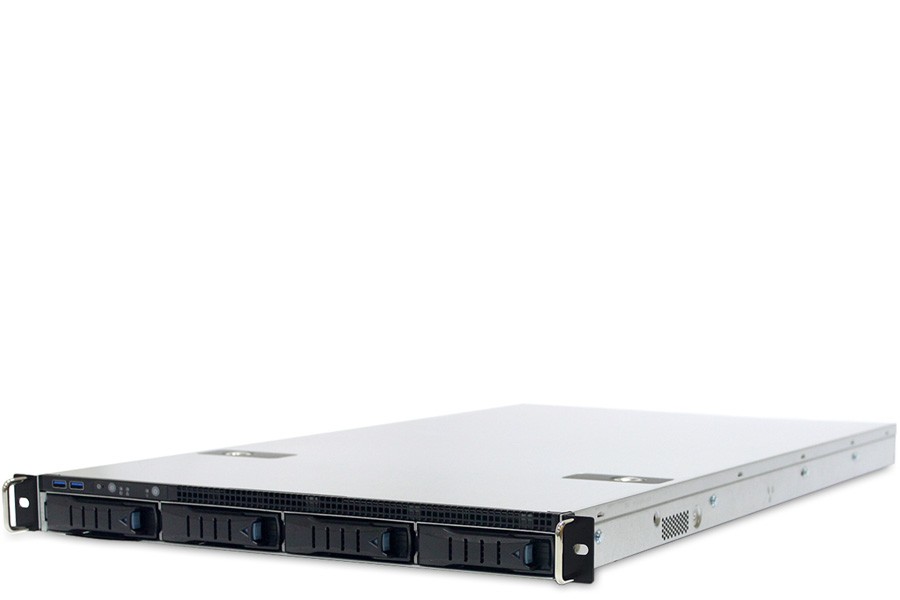

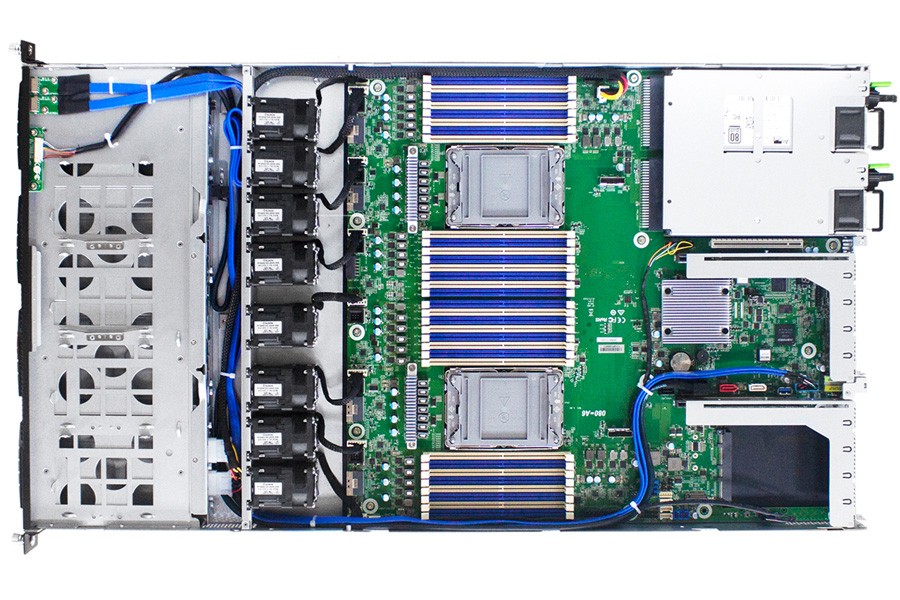

AIC SB101-A6 1U 4Bays Dual Procesor Rackmount Server

  • 1U general purpose storage server supports 4 hot swap 3.5"/2.5” universal SATA/SAS/NVMe U.2 drive bays
  • Supports 3rd Gen. Intel® Xeon® Scalable processors (codename Ice Lake)
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions
  • Dedicated BMC management port

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" drive bays
M.2:
1x M.2 Drive
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU XP1-S101A602
Processor
Processor Support :
Intel® Ice Lake-SP Processors
Supports CPU TDP up to 270W
UPI Speeds: 10.4 GT/s, 9.6 GT/s
Socket Type : Socket P0 (LGA-4189 Socket)
Memory
DDR4 3200/2933/2666/2400 (1DPC/2DPC) MHz
Total 16+16 DIMM slots (2DPC))
Up to 12TB 3DS ECC RDIMM/LRDIMM
Intel® Optane™ Persistent Memory 200 Series support
Chassis
1U Rackmount Chassis
Dimensions
438mm x 800mm x 43.5mm
17.2" x 31.5" x 1.7"

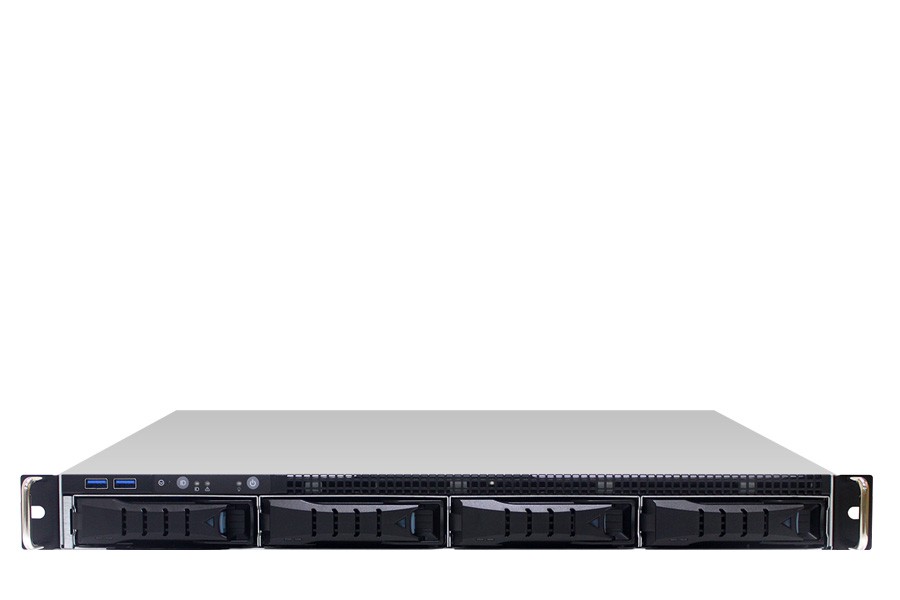

Front Panel
System power on/off
System reset
2x USB 3.2 Gen1 Type A
System ID
Bios
BIOS Type:
AMI UEFI BIOS
BIOS Features:
ACPI
PXE
AC loss recovery
IPMI KCS interface
SMBIOS
Serial console redirection
BIOS Boot Specification
BIOS Recovery Mode
Onboard Devices
SATA:
Intel® Lewisburg PCH on-chip solution
14x SATA 6.0 Gb/s; 3 Mini-SAS HD, SATA DOM, SATA DOM or M.2
RAID 0, 1, 5, 10 support by Intel RSTe
IPMI:
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
Baseboard Management Controller
Intelligent Platform Interface 2.0 (IPMI 2.0)
iKVM, Media Redirection, IPMI over LAN, Serial over LAN
SMASH Support
HTML5
Redfish
Network Controller:
Networking options provided via OCP Mezzanine extension
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Process
PCIe VGA/2D Controller
1920x1200@60Hz 32bpp
HDD Drive Bays
External: 4x 3.5” hot swap HDD (6G SATA/12G SAS/ PCIe x4 NVMe)
Internal: 2x 2.5” OS
Expansion Slots
2 PCIe4.0 x16
1 OCP NIC 3.0
Power Supply
1200W redundant power supply Platinum

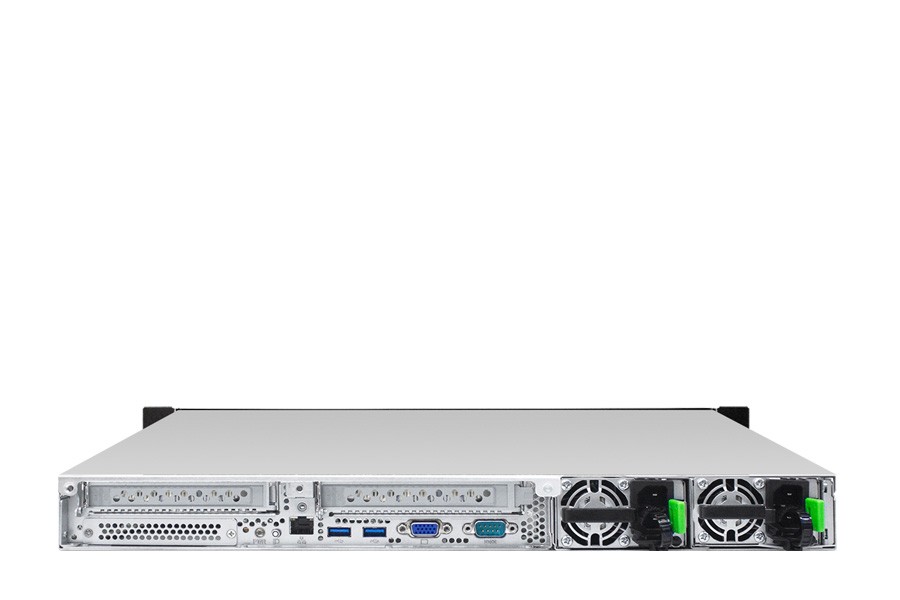

Input Output
LAN:
1x GbE RJ45 dedicated to BMC management
USB:
2x USB 3.2 Type A
VGA:
1x external DB-15 VGA port
Serial Port:
1x RS-232 connector
Cooling
8x 40x56mm easy swap fans
Operating Environment
Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
Storage operating humidity : 5%~95% non-condensing
SB101-A6SB101-A6SB101-A6SB101-A6
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
+ $614.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
+ $846.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
+ $1,215.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
+ $1,075.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
+ $1,140.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
+ $1,528.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
+ $1,650.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
+ $2,001.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
+ $1,528.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
+ $1,878.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
+ $1,866.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
+ $2,073.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330 (2.00 Ghz 205W)
+ $2,286.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
+ $2,273.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
+ $2,435.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
+ $2,657.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
+ $2,386.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338 (2.00 GHz 205W)
+ $3,135.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
+ $3,354.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
+ $3,291.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6342 (2.80 GHz 230W)
+ $3,035.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6346 (3.10 GHz 205W)
+ $2,760.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348 (2.60 GHz 235W)
+ $3,994.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
+ $3,510.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8351N (2.40 GHz 225W)
+ $3,633.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
+ $4,637.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
+ $4,856.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352V (2.10 GHz 195W)
+ $4,140.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352Y (2.20 GHz 205W)
+ $4,140.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
+ $3,604.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8354H (3.10 GHz 205W)
+ $4,200.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8356H (3.90 GHz 190W)
+ $4,080.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358 (2.60 GHz 250W)
+ $4,740.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8358P (2.60 GHz 240W)
+ $4,740.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360H (3.00 GHz 225W)
+ $5,040.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360HL (3.00 GHz 225W)
+ $8,644.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8360Y (2.40 GHz 250W)
+ $5,643.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8362 (2.80 GHz 265W)
+ $6,538.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368 (2.40 GHz 270W)
+ $7,563.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8368Q (2.60 GHz 270W)
+ $8,092.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $456.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
- $6.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $56.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $162.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $410.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $484.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $62.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $168.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $416.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $1,424.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
OS DRIVE
*No OS Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $125.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $210.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $247.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $429.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $832.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,339.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $208.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $293.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $527.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $995.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $153.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $193.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $225.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $728.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,347.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $218.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $311.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $518.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $190.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $355.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $778.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $60.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $85.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $121.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $218.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $442.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $342.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $526.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $905.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,507.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,975.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,983.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3908
1
2496.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
