AIC 2U 24Bays Dual Processor Rackmount Server

AIC 2U 24Bays Dual Processor Rackmount Server

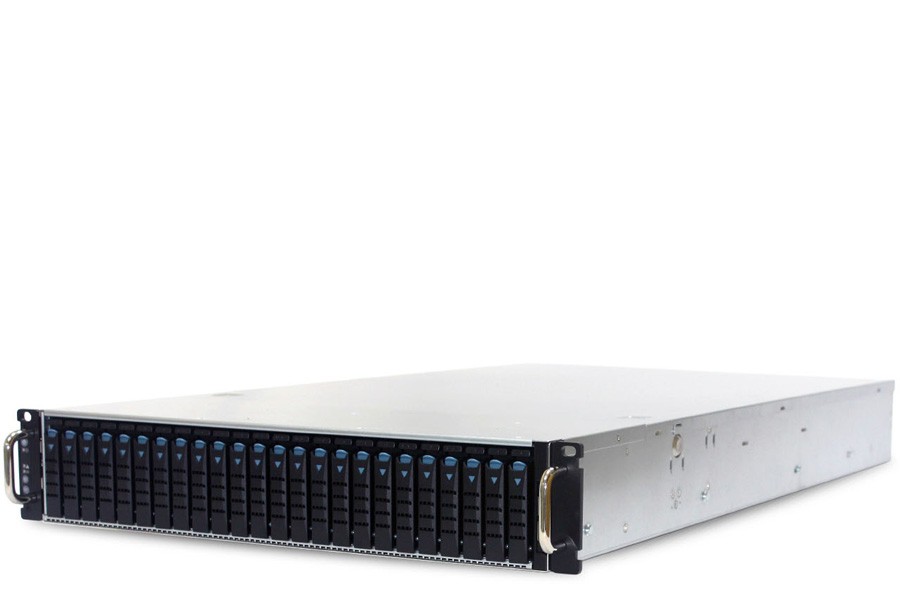

2U general purpose storage server supports 24 hot swap 2.5” SATA / SAS drive bays
Supports 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake Refresh/Cascade Lake/Skylake)
Onboard Baseboard Management Controller for system management and IPMI control
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
Two 10GbE SFP+ ports plus dedicated BMC management port

Storage configuration notice:
Hot-swap:

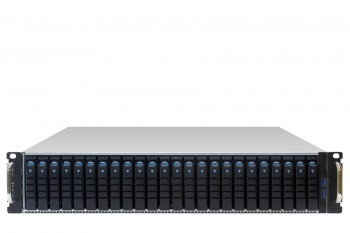

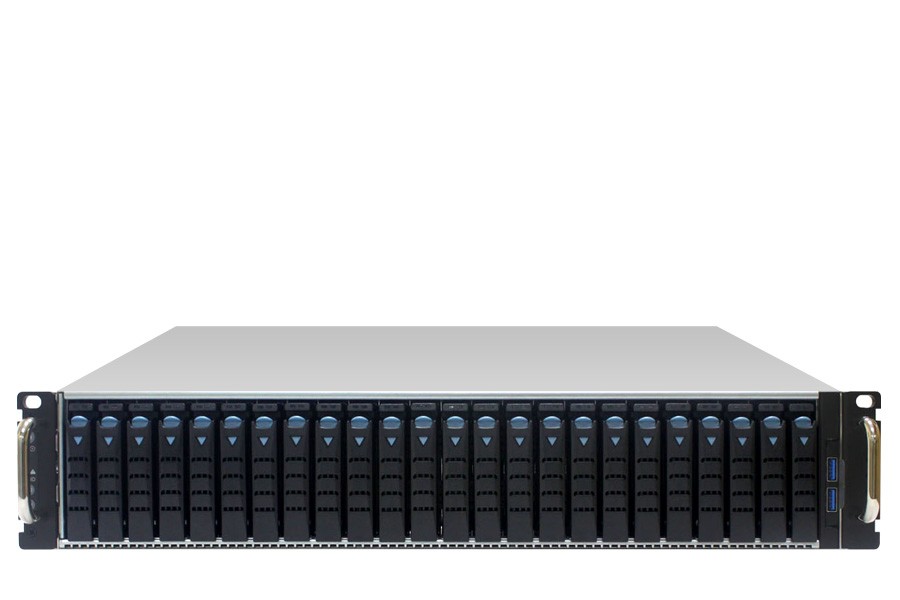

24x Hot-swap 2.5" drive bays
2x 2.5" Rear Bays for OS

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SB201-UR
Processor	Processor Support : Dual Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake) Supports CPU TDP up to 205W UPI Speeds: 10.4 GT/s, 9.6 GT/s Socket Type : Socket P0 (LGA-3647 Socket)
Memory	DDR4 2933/2666/2400 (1DPC/2DPC) MHz Total 24 memory slots ; 6 channel per CPU (2DPC) Up to 3TB 3DS ECC RDIMM/LRDIMM Intel® Optane™ DC Persistent Memory (Apache Pass) support
Chassis	2U Chassis
Dimensions	438mm x 800mm x 87.3mm 17.4" x 31.5" x 3.4"
Front Panel	System power on/off System ID System reset 2x USB 3.0 Type A
Bios	BIOS Type : AMI UEFI BIOS BIOS Features : ACPI PXE WOL AC loss recovery IPMI KCS interface SMBIOS Serial console redirection BIOS Boot Specification BIOS Recovery Mode
Onboard Devices	SATA: Intel® Lewisburg PCH on-chip solution 12x SATA 6.0 Gb/s (by 3 x Slimline) 2x SATA 6.0 Gb/s (by 2 x SATA 7 pin) RAID 0, 1, 5, 10 support by Intel RSTe IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor Baseboard Management Controller Intelligent Platform Interface 2.0 (IPMI 2.0) iKVM, Media Redirection, IPMI over LAN, Serial over LAN SMASH Support HTML5 Redfish Network Controller : Intel® PCH (C622) Integrated 10GbE LAN Controller support 2 x 10GbE SFP+ Networking options provided via OCP Mezzanine extension Broadcom BCM54612 (GbE) for BMC dedicated management port Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor PCIe VGA/2D Controller 1920x1200@60Hz 32bpp
HDD Drive Bays	External: 24x 2.5" hot swap Notification: Customer has to purchasea discrete SAS HBA/RAID card for the front drives connection. 2x 2.5'' hot swap (15mm, rear) Backplane Options: 1x 24-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors (BTO) 1x 24-port 12Gb SAS backplane with 6 SFF-8643 connectors
Expansion Slots	6 x8 PCIe slots ( 4 LP, 2 FHHL) 2 x OCP Mezzanine support: 1 PCIe Gen3 x16 (V2.0) 1 PCIe Gen3 x8 (V1.2)
Power Supply	550W 1+1 redundant power supply 80+ Platinum AC INPUT : 100~240V,50/60Hz,7-3.5A 800W 1+1 redundant power supply 80+ Platinum (BTO) AC INPUT : 100~240V,50/60Hz,10-5A

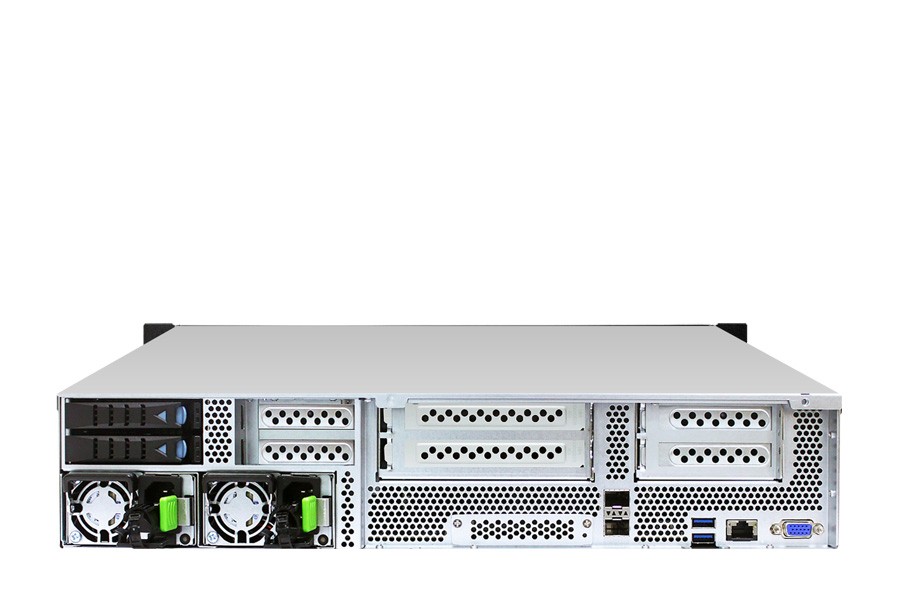

Input Output	Rear I/O LAN: 2x 10GbE SFP+ 1x GbE RJ45 dedicated to BMC management USB: 2x USB 3.0 Type A VGA: 1x external DB-15 VGA port Serial Port: 1x internal serial header Other: 1x TPM connector
Cooling	5x 60x38mm hot swap fans
Operating Environment	Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) Storage operating humidity : 5%~95% non-condensing

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)

Added

Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)

Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)

Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)

MEMORY

Hynix 64GB DDR4 2666 ECC LRDIMM Memory

Samsung 8GB DDR4 2933 ECC RDIMM Memory

Samsung 16GB DDR4 2933 ECC RDIMM Memory

Samsung 32GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC RDIMM Memory

Samsung 64GB DDR4 2933 ECC LRDIMM Memory

Samsung 8GB DDR4 3200 ECC RDIMM Memory

Added

Samsung 16GB DDR4 3200 ECC RDIMM Memory

Samsung 32GB DDR4 3200 ECC RDIMM Memory

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Samsung 128GB DDR4 3200 ECC LRDIMM Memory

Enterprise-Class HDD/SSD

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

OS DRIVE

*No OS Drive

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
