CB201-Z1
$4,719.00 Configured Summary
CB201-Z1
AIC 2U 6 Internal Bays Dual Processor Rackmount GPU Server

  • 2U 4 GPU server
  • Supports 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Cascade Lake Refresh/Skylake)
  • Supports maximum 165W CPU with 16 memory DIMM
  • Flexible choice on versatile accelerators
  • Supports maximum 4 dual-slot GPU cards
  • 1+1 redundant 1600W power supply 80+ Platinum
  • Fully integrated remote server management

Storage configuration notice:
Hot-swap:
6x Internal 2.5" SATA drive bays
1x M.2 Bay
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU CB201-Z1
Processor
Dual Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake)
Supports CPU TDP up to 165W
Memory
6x memory channels per CPU
16x DIMM slots support:
DDR4 2933 (1 DIMM per channel)
DDR4 2666/2400/2133 RDIMM/LRDIMM/LRDIMM 3DS (2DIMM per channel)
Note:
2933MHz will drop to 2666MHx when using 2DPC configurations
up to 512GB RDIMM
up to 2048GB RDIMM 3DS
up to 2048GB LRDIMM
up to 4096GB LRDIMM 3DS
up to 8192GB DCPMM
Chassis
2U Chassis
Dimensions
435mm x620mm x88mm
17.1" x24.4" x3.5"

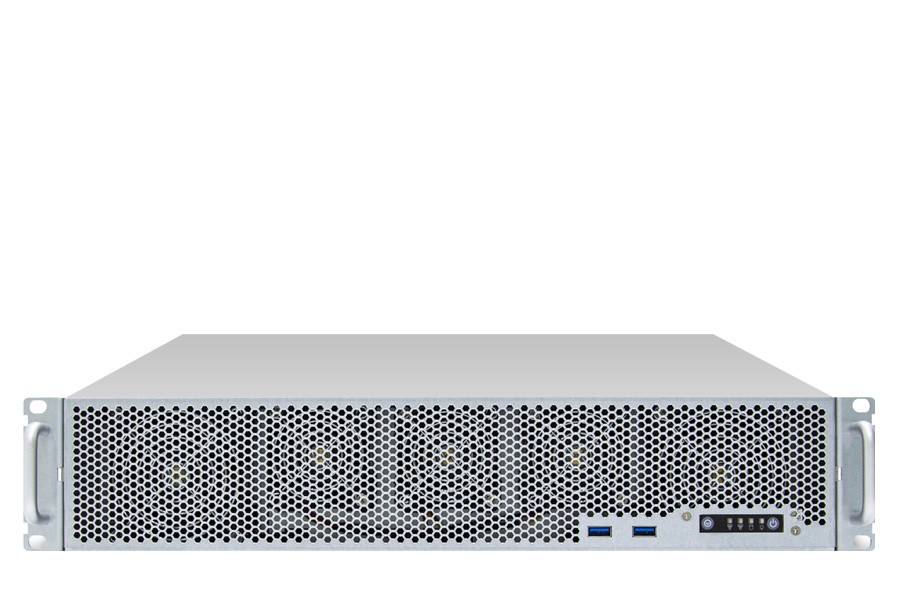

Front Panel
System power on/off
System reset
2x USB 3.0 Type A
Bios
BIOS Type :
AMI UEFI BIOS
SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
ACPI
PXE
WOL
AC loss recovery
IPMI 2.0 KCS interface
Serial console redirection
SMBIOS
BIOS Boot Specification
BIOS Recovery Mode
SRIOV
iSCSI
TPM
PCIe Hotplug
Onboard Devices
SATA :
Intel® C621 PCH
IPMI :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
Network Controllers :
Intel® Ethernet Controller I350 Gigabit MAC/PHY to support 2 x RJ45 GbE
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
PCIe VGA/2D Controller
1920x1200@60Hz 32bpp
HDD Drive Bays
1x M.2
6x 2.5” SATA SSD/HDD
4x 2.5” U.2 NVMe + 2x 2.5" SATA SSD/HDD (BTO)
Expansion Slots
4 x16 slots (FHFL) + 1 x16 + 1 x8 PCIe slots (HHHL)
Riser card:
4x16 PCIe slots (right)
4x16 PCIe slots (left)
1x16 + 1 x8 PICe slot
Please contact Our Technical Support for more info/details about GPU card.
Power Supply
1600W 1+1 redundant 80+ Platinum
AC Input : 100-127~ / 12.9A
DC Output : 1000W Max
AC Input : 200-240V~ / 9.5A
DC Output : 1600W Max
Input Output

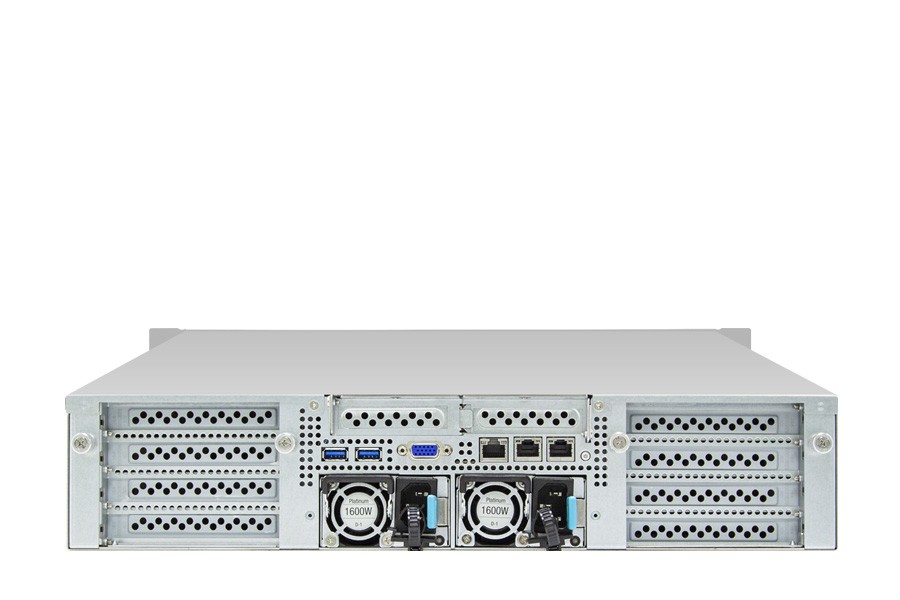

Rear I/O
LAN :
2x GbE RJ45
1x GbE RJ45 dedicated to BMC management
USB :
2x USB 3.0 Type A
VGA :
1x external DB-15 VGA port
Other :
TPM connector
Cooling
4x 80x38mm + 3 x 60x38mm fans with Smart Fan control
Operating Environment
Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
Storage operating humidity : 5%~95% non-condensing
CB201-Z1CB201-Z1CB201-Z1CB201-Z1
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $228.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
- $3.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $28.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $81.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $205.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $242.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $31.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $84.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $208.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $712.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $75.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $35.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $36.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $187.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $379.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $876.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $90.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $183.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $390.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $49.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $197.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $542.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $87.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $64.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $20.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $61.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $248.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $214.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $398.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $777.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,379.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,847.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,855.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $61.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $108.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $208.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $119.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $139.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $155.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $242.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $468.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX A4000 GDDR6 Video Card 16GB
+ $1,203.00
NVIDIA RTX A5000 GDDR6 Video Card 24GB
+ $2,502.00
NVIDIA RTX A6000 GDDR6 Video Card 48GB
+ $4,940.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $8,710.00
NVIDIA A30 24GB HBM2 GPU Card
+ $4,950.00
NVIDIA A40 48GB GDDR6 GPU Card
+ $5,824.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
NVIDIA H100 80GB HBM2e GPU Card
+ $32,156.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
