CB121-VL
$2,874.00 Configured Summary
CB121-VL

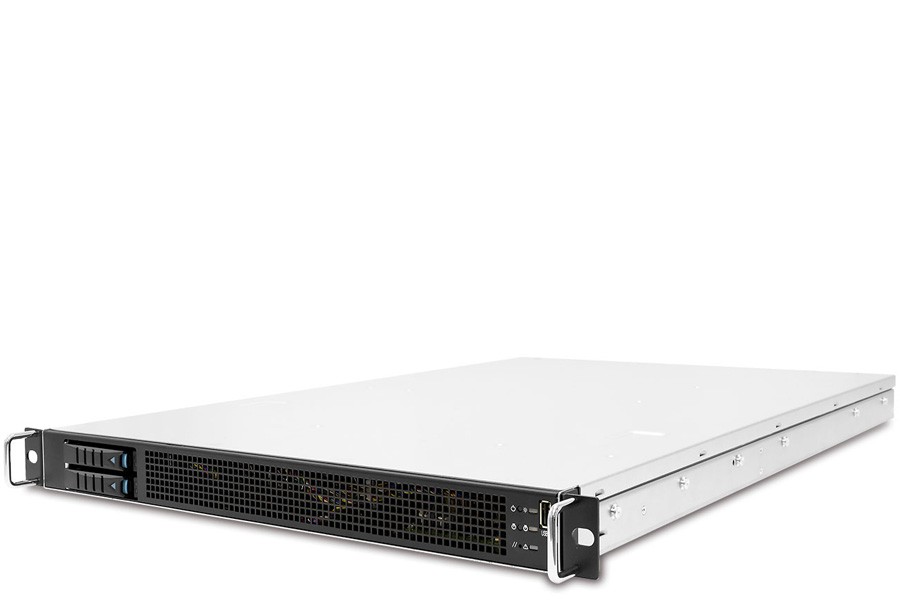

AIC 1U 2Bays Dual Processor Rackmount GPU Server

  • 1U single GPU/FPGA server supports 2x 2.5” hot-swappable SATA/NVMe drive bays
  • Supports two 2nd Gen Intel® Xeon® Scalable processor product family
  • Three PCIe Gen.3 X16 expansion slots for add-in cards
  • With Intel® C621 Series Chipset to provide 5+ years product life cycle
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and easy swap fans to provide optimal thermal conditions
  • Compact system size to fit short 800mm depth cabinet

Storage configuration notice:
Hot-swap:
2x Hot-swap 2.5" drive bays
2x M.2 Bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU CB121-VL
Processor
Dual 2nd Generation Intel® Xeon® Scalable Processor product family (Cascade Lake Refresh/Cascade Lake/Skylake)
Support CPU TDP up to 165W

QPI Speeds:
10.4 GT/s, 9.6 GT/s
Socket Type:
Socket P0 (LGA-3647 Socket)
Memory
6x memory channels per CPU 2 channels with 2DPC + 4 channels with 1DPC
16x DIMM slots support: DDR4 2933/2666/2400MHz RDIMM/LRDIMM
Intel® Optane™ DC Persistent Memory (Apache Pass) support
Chassis
1U Chassis
Dimensions
438mm x 650mm x 44.4mm
17.2" x 26.5" x 1.75"

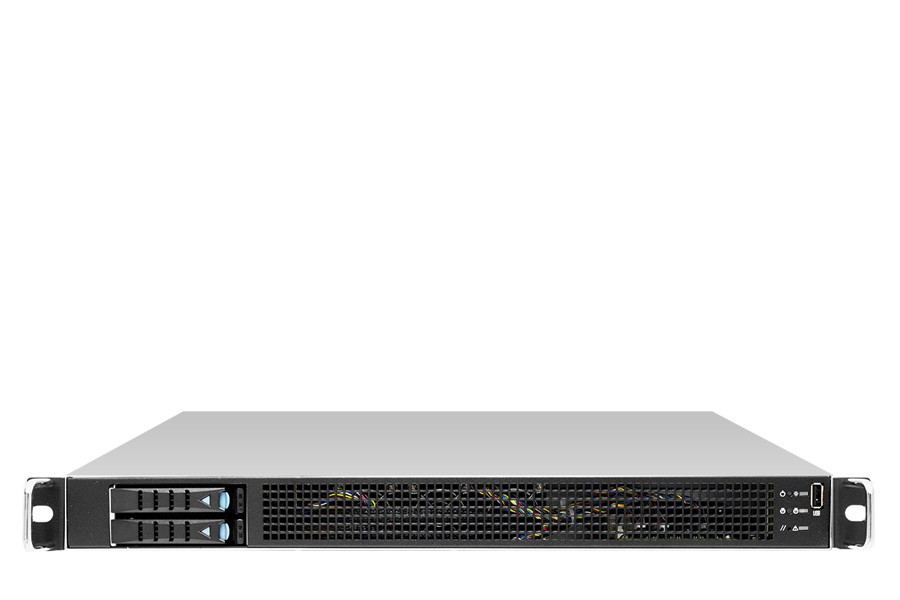

Front Panel
System power on/off
System ID
System reset
USB 2.0 Type A connector
Bios
BIOS Type :
Insyde UEFI BIOS
BIOS Features :
ACPI
PXE
WOL
AC loss recovery
IPMI 2.0 KCS interface
SMBIOS
Serial console redirection
BIOS Boot Specification
BIOS Recovery Mode
SRIOV
iSCSI
TPM
Onboard Devices
SATA :
Intel® Lewisburg PCH on-chip solution
2x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
8x SATA 6.0 Gb/s by edge slot for extension
RAID 0,1,5,10 support by Intel® RSTe
Network Controllers :
Via OCP Mezzanine card/PCIe slots extension
Realtek RTL8211E GbE Ethernet for BMC dedicated management port
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
PCIe VGA/2D Controller
1920x1200@60Hz 32bpp
HDD Drive Bays
External:
2x 2.5" hot-swap
Internal:
2x M.2(NGFF)/M-Key/2280
Expansion Slots
1x OCP
1x FHFL, PCIe X16
1x FHHL, PCIe X16
Power Supply
AC 750W 1+1 redundant high-efficiency power supply 80+
90~264VAC, 47~63 Hz
Input Output

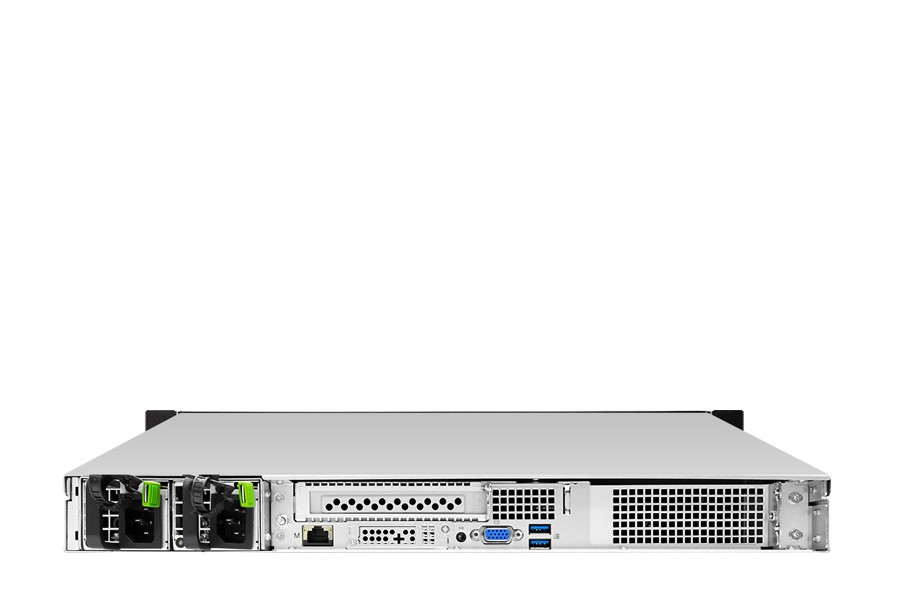

Rear I/O
LAN:
1x RJ45 dedicated to BMC management
USB:
2x USB 3.0
VGA:
1x external DB-15 VGA port
Serial Port:
1x external COM port by 3.5mm phone jack
Cooling
5x 40x56mm easy swap fans
Operating Environment
Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
Storage operating humidity: 5%~95% non-condensing
CB121-VLCB121-VLCB121-VLCB121-VL
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
- $3.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $28.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $81.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $205.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $31.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $84.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $208.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $56.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $3.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $87.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $230.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $542.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,150.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $221.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $887.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $81.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $295.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $694.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $82.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $60.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $19.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $90.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $304.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $200.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $443.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $873.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,627.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,363.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,509.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $83.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $122.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $224.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $107.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $157.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $272.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $445.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $780.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
GPU/Coprocessor
*No GPU
Added
ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB
+ $759.00
ASUS GeForce RTX 3080 TURBO GDDR6 Video Card 10G
+ $1,089.00
PNY NVIDIA Quadro RTX A2000 GDDR6 Video Card 12GB
+ $839.00
PNY NVIDIA Quadro RTX A4000 GDDR6 Video Card 16GB
+ $1,369.00
PNY NVIDIA Quadro RTX A5000 GDDR6 Video Card 24GB
+ $2,389.00
PNY NVIDIA Quadro RTX A6000 GDDR6 Video Card 48GB
+ $5,655.00
PNY NVIDIA Quadro RTX 8000 GDDR6 Video Card 48GB
+ $7,150.00
NVIDIA TESLA T4 Video Card 16GB
+ $2,600.00
NVIDIA A100 PCIe Video Card 40GB
+ $10,440.00
NVIDIA A100 PCIe Video Card 80GB
+ $14,300.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
