AIC 4U 24Bays Dual Processor Rackmount Server

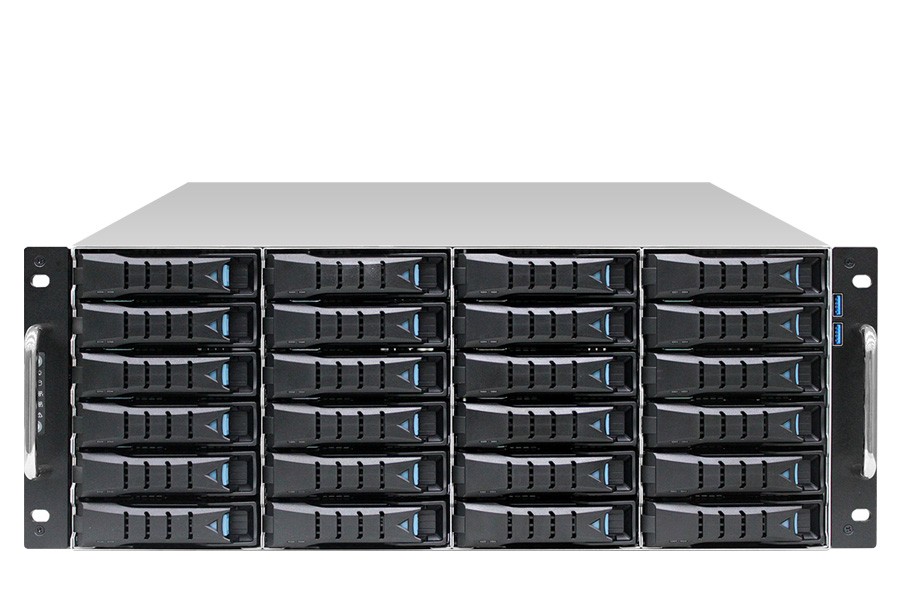

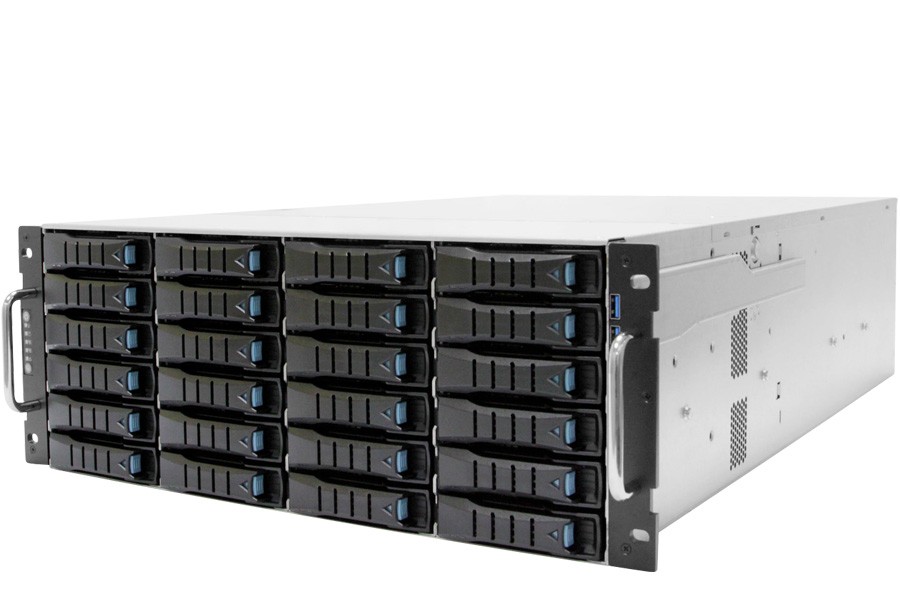

- 4U general purpose storage server supports 24 hot swap 3.5” SAS drive bays
- Supports 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake Refresh/Cascade Lake/Skylake)
- With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle
- Onboard Baseboard Management Controller for system management and IPMI control
- Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
- Two 10GbE SFP+ ports plus dedicated BMC management port
Storage configuration notice:
Hot-swap:
24x Hot-swap 3.5" Drive Bays
2x 2.5" rear Drive Bays
24x Hot-swap 3.5" Drive Bays
2x 2.5" rear Drive Bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU | SB401-VG |
Processor | Processor Support :
Dual Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake) Supports CPU TDP up to 140W UPI Speeds: 10.4 GT/s, 9.6 GT/s
Socket Type : Socket P0 (LGA-3647 Socket) |
Memory | 6x memory channels per CPU, 1 x DIMM per channel
12x DIMM slots support: 2933/2666/2400MHz Intel® Optane™ DC Persistent Memory (Apache Pass) support |
Chassis | 4U Chassis
|
Dimensions | 430mm x 680mm x 174.3mm
16.9" x 26.8" x 6.9" |
Front Panel | System power on/off, System ID, System reset, 2x USB 3.0 Type A
|
Bios | BIOS Type: Insyde UEFI BIOS
BIOS Features : ACPI PXE WOL AC loss recovery IPMI 2.0 KCS interface SMBIOS Serial console redirection BIOS Boot Specification BIOS Recovery Mode SRIOV iSCSI TPM PCIe Hotplug |
Onboard Devices | SAS/ SATA :
Intel® Lewisburg PCH on-chip solution 8x SATA 6.0 Gb/s (by 2 x mini-SAS) 2x SATA 6.0 Gb/s (by 2 x SATA 7 pin) RAID 0, 1, 5, 10 support by Intel RSTe Broadcom SAS IOC SAS3008 supports up to 8 ports 12G SAS via 2 x mini-SAS HD (optional) BMC : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor Baseboard Management Controller Intelligent Platform Interface 2.0 (IPMI 2.0) iKVM, Media Redirection, IPMI over LAN, Serial over LAN SMASH Support HTML5 Redfish Network Controller : Intel® PCH (Lewisburg) Integrated 10GbE LAN controller with dual 10GbE SFP+ + 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option) Realtek RTL8201EL for BMC dedicated management port Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor PCIe VGA/2D Controller 1920x1200@60Hz 32bpp |
HDD Drive Bays | External:
24x 3.5” hot swap Internal: 2x 2.5” hot swap (15mm, rear) |
Expansion Slots | 2 x16 slots (FHHL)
3 x8 slots (FHHL) |
Power Supply | 1200W 1+1 redundant power supply 80+ Platinum
AC INPUT: 100~127V,50/60Hz,10A DC OUTPUT: 800W AC INPUT: 200~240V,50/60Hz,8A DC OUTPUT: 1200W |

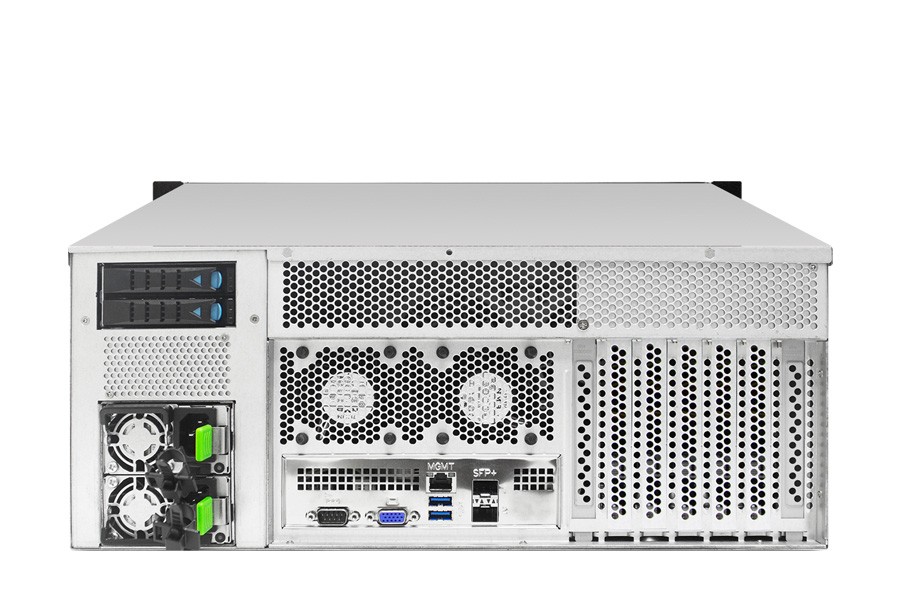

Input Output | Rear I/O
LAN: 2x 10GbE SFP+ 1x 10/100M RJ45 dedicated to BMC management USB:
2x USB 3.0 Type A VGA:
1x external DB-15 VGA port Serial Port:
1x external DB-9 COM port |

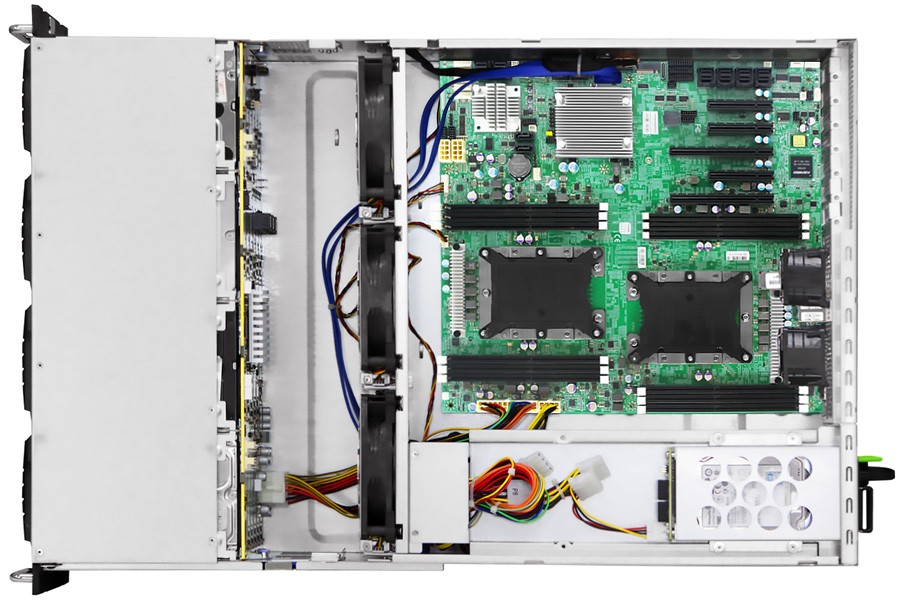

Cooling | 3x 120x25mm hot swap fans + 2x 60x38mm hot swap fans
|
Operating Environment | Storage temperature: -10ºC(14ºF) ~ 60ºC(140ºF)
Operating temperature: 0ºC(32ºF) ~ 35ºC(95ºF) Storage operating humidity: 5%~95% non-condensing |
CPU
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214R (2.40 Ghz 100W)
+ $585.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $228.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
- $3.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $28.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $81.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $205.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $242.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $31.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $84.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $208.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $712.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
OS DRIVE
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
- $93.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
- $8.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $29.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $211.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $614.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,121.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
- $10.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $309.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $777.00
Samsung SM883 2.5" SATA III SSD 480GB
- $18.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $65.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $25.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $7.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $170.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $510.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,129.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Added
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $93.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $300.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
- $28.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $137.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $560.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $158.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $133.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $97.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $224.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $124.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $308.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $687.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,289.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,757.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,765.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,226.00
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,421.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
