RSC-2AT-X12DPi-N6
$3,536.00 Configured Summary

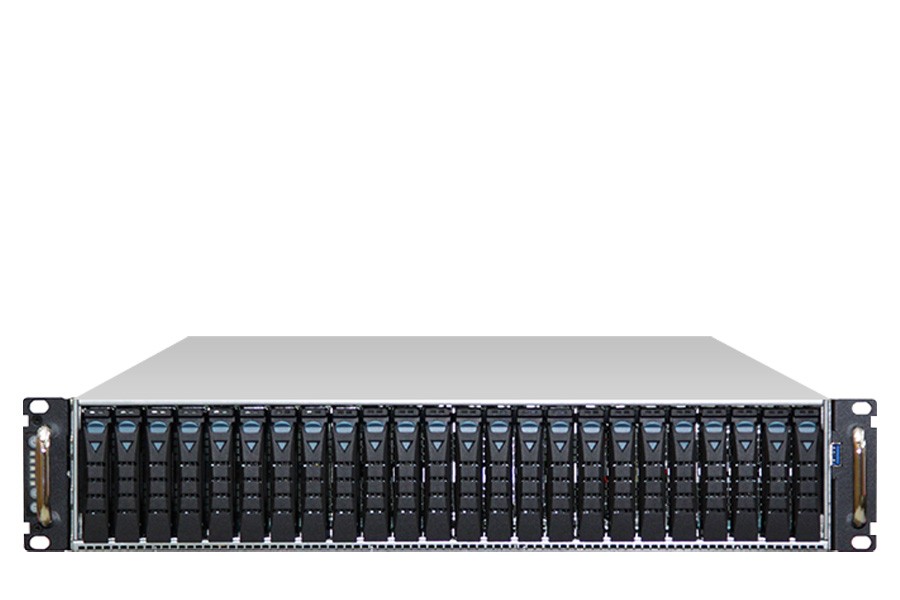

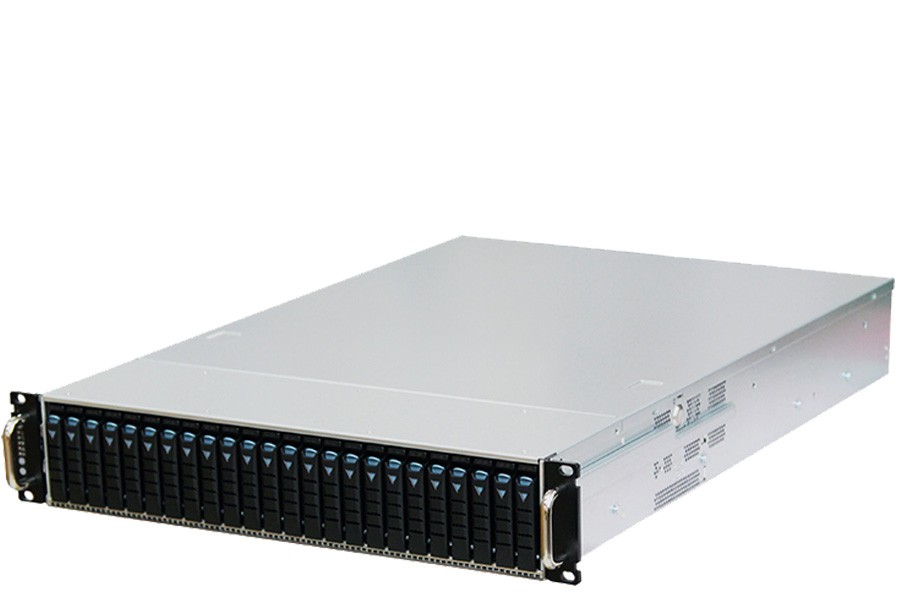

RSC-2AT-X12DPi-N6
AIC 2U 24Bays Dual Processor Rackmount Server

  • Supermicro Motherboard X12DPi-N6
  • 3rd Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4189 (Socket P+) supported
  • 18x DIMM slots, up to 2TB DIMM
  • 24x 2.5" hot-swap HDD Bays
  • Tool-less design supports quick installation and easy maintenance

Storage configuration notice:
Hot-swap:
24x 2.5" Hot-swap drive bays

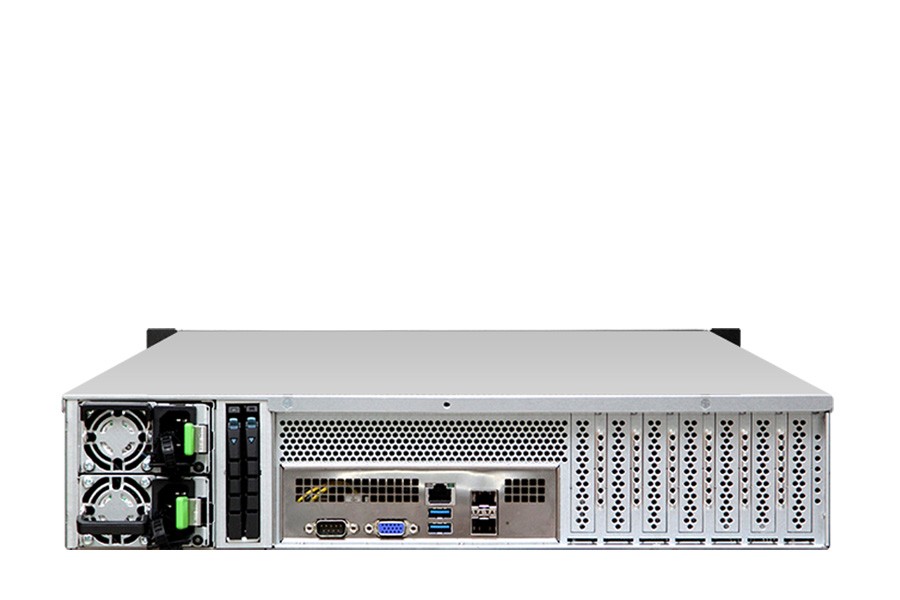

2x 2.5" Rear Hot-swap drive bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU RSC-2AT-X12DPi-N6
Processor
CPU:
3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core:
Up to 40 cores
Memory
Memory Capacity:
18 DIMM slots
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type:
3200/2933/2666MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes:
LRDIMM: 256GB
RDIMM: 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
2U Chassis
Dimensions
430mm x 680mm x 88mm
17" x 26.8" x 3.5"
Front Panel
Front Panel:
System Power on/off
System reset
1x USB 3.0 port
LED Indicators:
Power
LAN
Drive
Alert
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621A
SATA:
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI:
ASPEED AST2600 BMC
Network Controllers:
Dual LAN with Intel® i350 Gigabit Ethernet Controller
HDD Drive Bays
Drive Bays
External:
24 x 2.5” hot swap
External:
2 x 2.5" hot swap (7mm, rear)
Backplane
1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors
Expansion Slots
7 low-profile
Power Supply
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum
Input Output
Onboard Input / Output
SATA:
14x SATA3 (6Gbps) port(s)
LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
7x USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
2x USB 2.0 port(s) (2 via header)
Video Output:
2x VGA (1 rear bezel, 1 front panel) port(s)
Serial Port:
2x COM Port(s) (1 header; 1 rear)
TPM:
1x TPM Header
Cooling
3x 80x38mm PWM & low-power consumption hot swap fans
Operating Environment
Operating Temperature Range:
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
8% - 90% (non-condensing)
Non Operating Relative Humidity Range:
5% - 95% (non-condensing)
RSC-2AT-X12DPi-N6RSC-2AT-X12DPi-N6RSC-2AT-X12DPi-N6
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
Added
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
+ $232.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
+ $601.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
+ $461.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
+ $526.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
+ $914.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
+ $1,036.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
+ $1,387.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
+ $914.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
+ $1,264.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
+ $1,252.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
+ $1,459.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
+ $1,659.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
+ $1,821.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
+ $2,043.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
+ $1,772.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
+ $2,740.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
+ $2,677.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
+ $2,896.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
+ $4,023.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
+ $4,242.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
+ $2,990.00
MEMORY
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $228.00
Samsung 8GB DDR4 2933 ECC RDIMM Memory
- $3.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $28.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $81.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $205.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $242.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $31.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $84.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $208.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $712.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $3.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $75.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $252.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $624.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,206.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $35.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $136.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $350.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $796.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $75.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $35.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $36.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $187.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $379.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $876.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $90.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $183.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $390.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $49.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $197.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $542.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $87.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $64.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $20.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $61.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $248.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $214.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $398.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $777.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,379.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,847.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,855.00
OS DRIVE
*No OS Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $478.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $93.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $315.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $507.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,004.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $218.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $311.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $518.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $177.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $325.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $41.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $64.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $108.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $189.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $376.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $342.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $526.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $905.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,507.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,975.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,983.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA
+ $533.00
Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller
+ $855.00
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller
+ $1,323.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3963
1
2751.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
