RSC-3ET-X12DPi-N6
$3,244.00 Configured Summary
RSC-3ET-X12DPi-N6

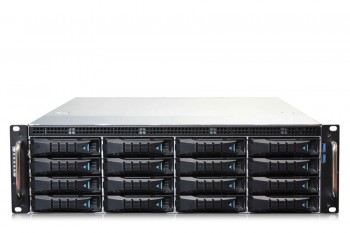

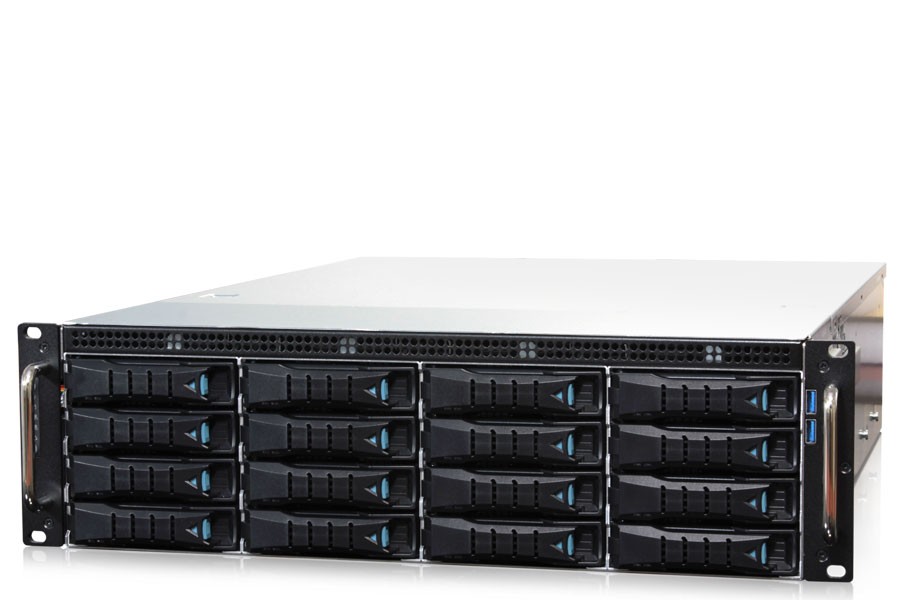

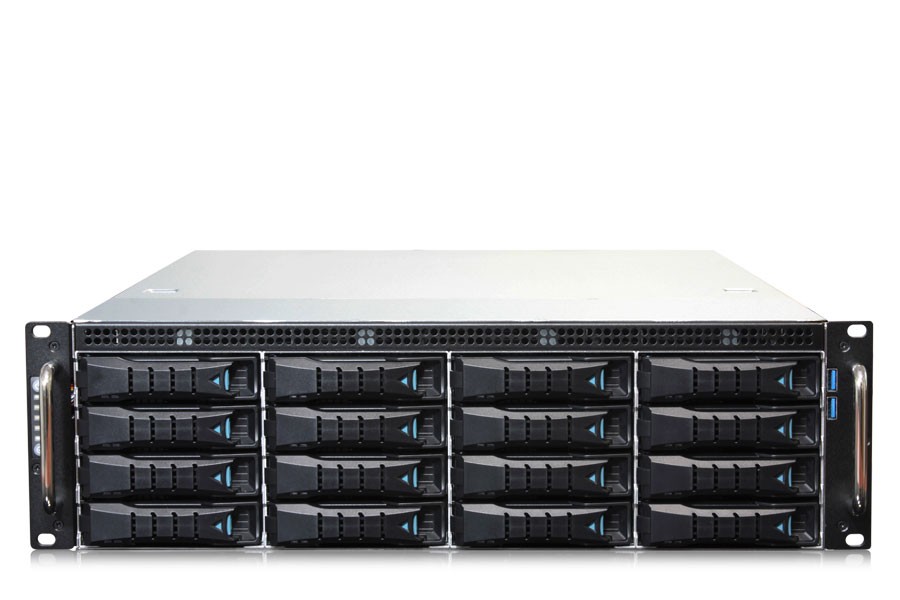

AIC 3U 16Bays Dual Processor Rackmount Server

  • Supermicro Motherboard X12DPi-N6
  • 3rd Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4189 (Socket P+) supported
  • 18x DIMM slots, up to 2TB DIMM
  • 16x 3.5" hot-swap HDD Bays
  • Tool-less design supports quick installation and easy maintenance

Storage configuration notice:
Hot-swap:
16x 3.5" Hot-swap drive bays
2x 2.5" Rear Hot-swap drive bays
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU RSC-3ET-X12DPi-N6
Processor
CPU:
3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core:
Up to 40 cores
Memory
Memory Capacity:
18 DIMM slots
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type:
3200/2933/2666MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes:
LRDIMM: 256GB
RDIMM: 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
3U Chassis
Dimensions
430mm x 680mm x 133mm
17" x 26.8" x 5.2"
Front Panel
Front Panel:
System power on/off
System reset
2x USB 3.0 port
LED Indicators:
Power
LAN
Drive
Alert
Bios
BIOS Type:
AMI UEFI
Onboard Devices
Chipset:
Intel® C621A
SATA:
Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI:
ASPEED AST2600 BMC
Network Controllers:
Dual LAN with Intel® i350 Gigabit Ethernet Controller
HDD Drive Bays
Drive Bays
External:
16x 3.5" hot swap
2x 2.5" rear hot swap
Internal
4x 2.5” internal
Backplane
1x 16-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
Expansion Slots
7x low profile
Power Supply
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

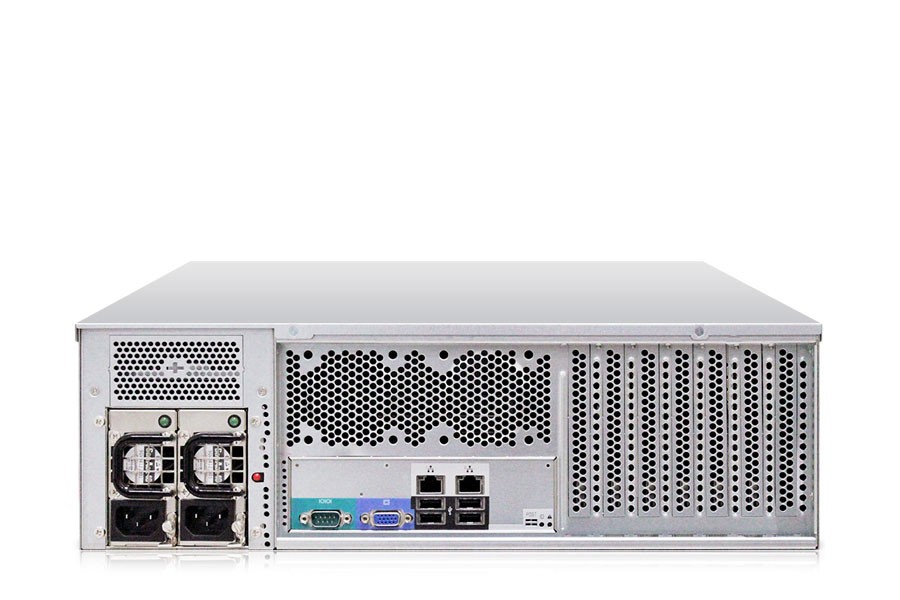

Input Output
Onboard Input / Output
SATA:
14x SATA3 (6Gbps) port(s)
LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
7x USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
2x USB 2.0 port(s) (2 via header)
Video Output:
2x VGA (1 rear bezel, 1 front panel) port(s)
Serial Port:
2x COM Port(s) (1 header; 1 rear)
TPM:
1x TPM Header
Cooling
3x 80x38mm PWM & low-power consumption hot swap fans
Operating Environment
Operating Temperature Range:
10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range:
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range:
8% - 90% (non-condensing)
Non Operating Relative Humidity Range:
5% - 95% (non-condensing)
RSC-3ET-X12DPi-N6RSC-3ET-X12DPi-N6RSC-3ET-X12DPi-N6
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)
Added
Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)
+ $232.00
Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)
+ $601.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)
+ $461.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)
+ $526.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)
+ $914.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)
+ $1,036.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)
+ $1,387.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)
+ $914.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)
+ $1,264.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)
+ $1,252.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)
+ $1,459.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)
+ $1,659.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)
+ $1,821.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)
+ $2,043.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)
+ $1,772.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)
+ $2,740.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)
+ $2,677.00
Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)
+ $2,896.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)
+ $4,023.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)
+ $4,242.00
Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)
+ $2,990.00
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
- $3.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $28.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $81.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $205.00
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $31.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $84.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $208.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $752.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,334.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $163.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $264.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $478.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $924.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $125.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $215.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $358.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $670.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,278.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $349.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $516.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,015.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $209.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $423.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $822.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $46.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $68.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $109.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $218.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $432.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $328.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $571.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $1,001.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,755.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,491.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,637.00
OS DRIVE
*No OS Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $128.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $131.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $203.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $380.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $752.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,334.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $163.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $264.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $478.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $924.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $72.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $125.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $215.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $358.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $670.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,278.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $349.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $516.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,015.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $209.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $423.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $822.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $46.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $68.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $109.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $218.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $432.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $328.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $571.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $1,001.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,755.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $3,491.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $6,637.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA
+ $533.00
Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller
+ $855.00
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller
+ $1,323.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2019 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
3966
1
2458.0000
