AIC 4U 24Bays Dual Processor Rackmount Server

AIC 4U 24Bays Dual Processor Rackmount Server

Supermicro Motherboard X12DPi-N6
3rd Gen Intel® Xeon® Scalable processors, Dual Socket LGA-4189 (Socket P+) supported
18x DIMM slots, up to 2TB DIMM

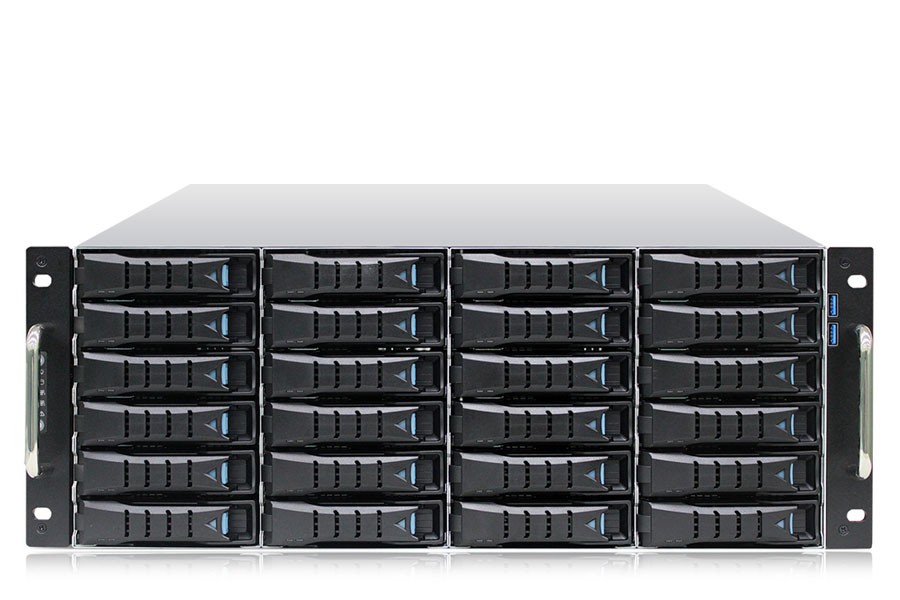

24x 3.5" hot-swap HDD Bays
Tool-less design supports quick installation and easy maintenance

Storage configuration notice:
Hot-swap:
24x 3.5" Hot-swap drive bays

2x 2.5" Rear Hot-swap drive bays

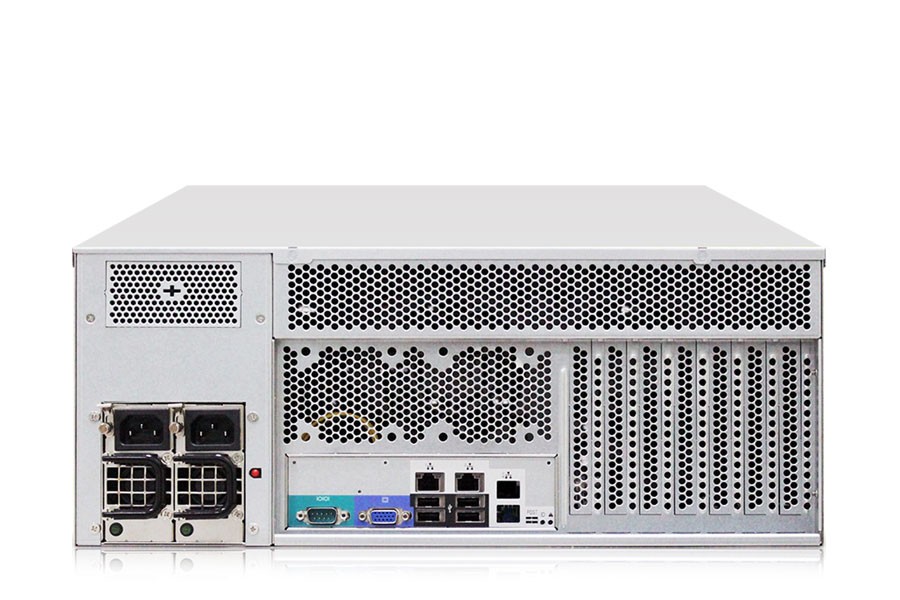

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	RSC-4ET-X12DPi-N6
Processor	CPU: 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s Core: Up to 40 cores
Memory	Memory Capacity: 18 DIMM slots Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only. Memory Type: 3200/2933/2666MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS) DIMM Sizes: LRDIMM: 256GB RDIMM: 256GB Memory Voltage: 1.2V Error Detection: Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chassis	4U Chassis
Dimensions	430mm x 680mm x 174.3mm 16.9" x 26.8" x 6.9"
Front Panel	Front Panel: System power on/off System reset 2 x USB 3.0 ports LED Indicators: Power LAN Drive Alert
Bios	BIOS Type: AMI UEFI
Onboard Devices	Chipset: Intel® C621A SATA: Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI: ASPEED AST2600 BMC Network Controllers: Dual LAN with Intel® i350 Gigabit Ethernet Controller
HDD Drive Bays	Drive Bays External: 24x 3.5" hot swap 2x 2.5" rear hot swap Backplane 1x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors
Expansion Slots	7 full height
Power Supply	1200W 1+1 redundant PSU 80+ Platinum
Input Output	Onboard Input / Output SATA: 14x SATA3 (6Gbps) port(s) LAN: 2x RJ45 Gigabit Ethernet LAN ports USB: 7x USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A) 2x USB 2.0 port(s) (2 via header) Video Output: 2x VGA (1 rear bezel, 1 front panel) port(s) Serial Port: 2x COM Port(s) (1 header; 1 rear) TPM: 1x TPM Header
Cooling	3x 80x38mm PWM & low-power consumption hot swap fans
Operating Environment	Operating Temperature Range: 10°C - 35°C (50°F - 95°F) Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) Operating Relative Humidity Range: 8% - 90% (non-condensing) Non Operating Relative Humidity Range: 5% - 95% (non-condensing)

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

Intel® Xeon® Scalable 3rd Gen Silver Processor 4310 (2.10 GHz 120W)

Added

Intel® Xeon® Scalable 3rd Gen Silver Processor 4314 (2.40 GHz 135W)

Intel® Xeon® Scalable 3rd Gen Silver Processor 4316 (2.30 GHz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5315Y (3.20 Ghz 140W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5317 (3.00 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318H (2.50 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318N (2.10 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318S (2.10 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5318Y (2.10 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320 (2.20 Ghz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320H (2.40 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 5320T (2.30 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330H (2.00 Ghz 150W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6330N (2.20 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6334 (3.60 Ghz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6336Y (2.40 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338N (2.20 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6338T (2.10 GHz 165W)

Intel® Xeon® Scalable 3rd Gen Gold Processor 6348H (2.30 GHz 165W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352M (2.30 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8352S (2.30 GHz 185W)

Intel® Xeon® Scalable 3rd Gen Platinum Processor 8353H (2.50 GHz 150W)

MEMORY

Samsung 64GB DDR4 3200 ECC RDIMM Memory

Enterprise-Class HDD/SSD

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB

Added

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB

Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB

OS DRIVE

*No OS Drive

Added

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card

Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card

NETWORK CARD

*No Network Card

Added

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2025 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
