ESC4000 G4 Chassis
$2,160.00 Configured Summary
ESC4000 G4 Chassis
ASUS 2U 8Bays Dual 2nd Gen Scalable Processor Rackmount Server Chassis

  • Powered by Intel® Xeon® Scalable Platform
  • 150W CPU with 16 DIMM support
  • Flexible choice on versatile accelerators
  • Maximum flexible 8+3 expansion slots in a 2U server
  • Expandable storage for faster transfer speeds
  • NVMe port-to-port design and one M.2 slot with 2280-size SSD support
  • High power-efficiency with 1+1 redundant 2200W 80 plus (platinum level) power supply
  • User-friendly design for easier server maintenance
  • Tool-less chassis design for installation and removal
  • Fully integrated remote server management
  • Smart thermal design for energy efficiency

Storage configuration notice:
8x SATA3 6Gb/s ports + 1 x M.2 connector /or
6x SATA3 6Gb/s ports + 2 x U.2 NVMe drives + 1x M.2 connector

( 4 Pcs in Stock)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU ESC4000-G4_CH
Processor
2 x Socket P (LGA 3647) (CPU not included)
1st and 2nd Gen Xeon® Scalable Processor Family (150W)

Intel® Lewisburg PCH C621
Memory
Total Slots:
16 (6-channel per CPU, 8 DIMM per CPU) (Memory not included)

Capacity:
Maximum up to 2048GB LRDIMM

Memory Type:
DDR4 2933/2666/2400 /2133 RDIMM
DDR4 2933/2666/2400 /2133 LRDIMM
DDR4 2933/2666/2400 /2133 LR-DIMM 3DS
DDR4 Intel® Optane™ DC Persistent Memory

Memory Size:
64GB, 32GB, 16GB RDIMM
128GB, 64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
Chassis
2U Rackmount Chassis
Dimensions
800mmx 440mmx 88mm
Onboard Devices
Networking:
1x Dual Port Intel I350-AM2 Gigabit LAN controller + 1x Mgmt LAN

Graphic:
Aspeed AST2500 with 64MB VRAM
HDD Drive Bays
8x Hot-swap 3.5" HDD Bays (HDD not included)

SATA Controller :
Intel® C621
8x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link /2280/2260)
or
6x SATA3 6Gb/s ports + 2 x U.2 NVMe drives + 1x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link /2280/2260)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )

SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
12G SAS Support
Expansion Slots
Total: 8 + 3
Full-length/Full-height
8x PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link)
Half-length/Low-profile

Rear:
1x PCI-E 3.0 x24 (support with riser card)
(1x PCI-E x16 (x16 Gen3 Link) and 1x PCI-E x8 (x8 Gen3 Link))

Front:
1x PCI-E x8 (internal HBA/RAID card)
Power Supply
1+1 Redundant 2200W 80 PLUS Platinum Power Supply
200-240Vac,9.5A, 2200W
Input Output

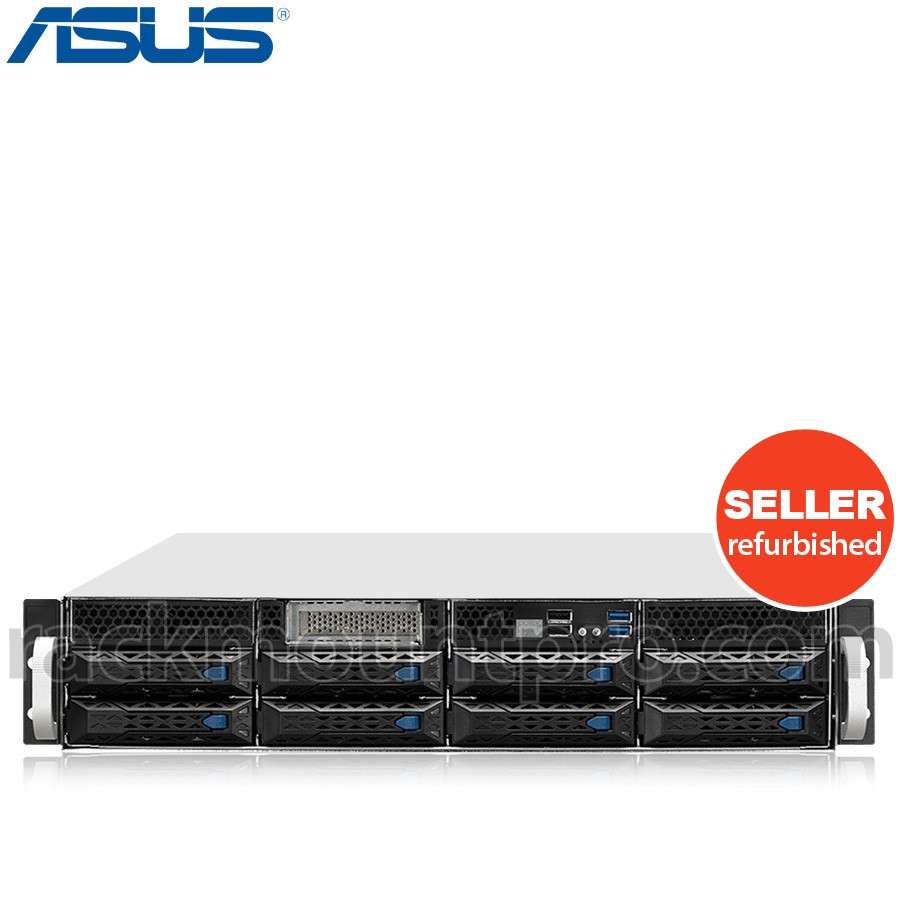

Front I/O Ports:
1x 80 port
2x USB 3.0 ports + 2 x USB 2.0 ports

Rear I/O Ports:
2x USB 3.0 port
1x VGA port
1x RJ-45 Mgmt LAN port
2x RJ-45 GbE LAN ports

Switch/LED:
Rear Switch/LED:
1x Power switch/LED
1x Location LED
1x Message LED
1x HDD Access LED
Front Switch/LED:
1x Power switch/LED
1x Location switch/LED
Operating Environment
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
Details
Management Solution
ACC
On-Board ASMB9-iKVM for KVM-over-IP
