RM13304MR-H12SSL-i
Please Inquire Configured Summary
RM13304MR-H12SSL-i

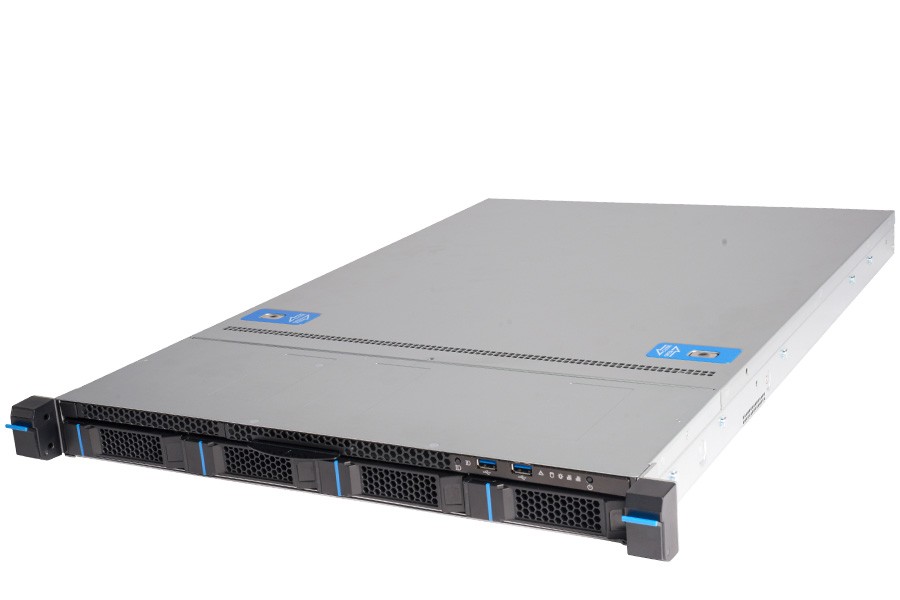

Chenbro 1U 4Bay Single AMD Processor Rackmount Server

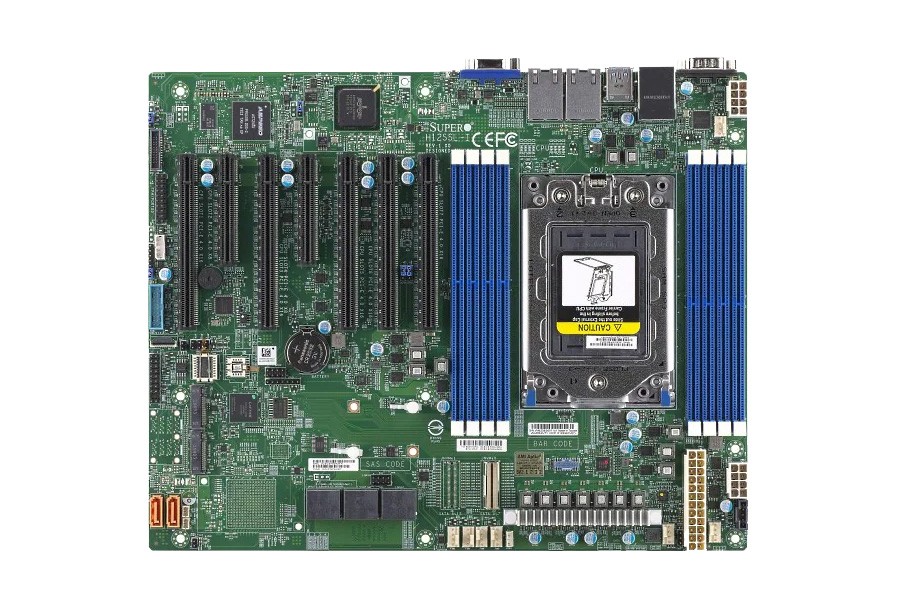

  • Supermicro Motherboard H12SSL-i
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 16x DIMM Slots,up to 4TB ECC RDIMM
  • 4x 3.5" Hot-swap HDD bays
  • 800W Redundant Power supply

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" drive bays
M.2:
2x M.2 drive
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU RM13304MR-H12SSL-i
Processor
CPU:
Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Cores:
Up to 64 Cores
Chipset:
System on Chip
Memory
Memory Capacity:
8x DIMM slots
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus
Memory Type:
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes:
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
1U Rackmount Chassis
Dimensions
D x W x H
661.3 x 438.5 x 43.5 (mm)

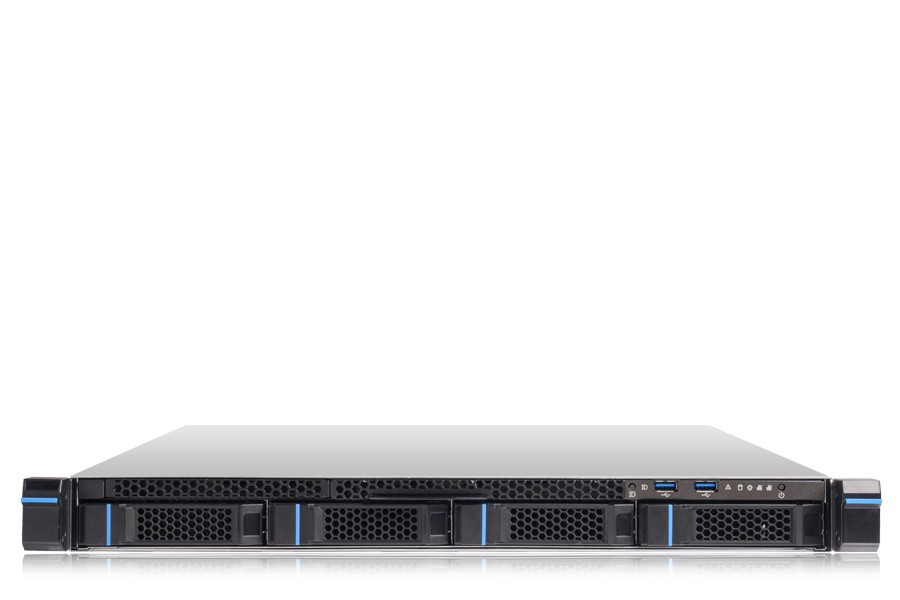

Front Panel
1x Power On/Off
1x System Reset
2x USB3.0
Bios
BIOS Type:
AMI 256Mb SPI Flash EEPROM
BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Onboard Devices
SATA:
SATA3 (6 Gbps)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers:
Dual gigabit LAN via Broadcom BCM5720
1 Realtek RTL8211F PHY (dedicated IPMI)
VGA:
ASPEED AST2500 BMC
HDD Drive Bays
4x 3.5" Hot-swap HDD bays
Expansion Slots
1x Full Height & Half Length
Power Supply
1U Single CRPS with PDB, 800W (80+, Platinum)

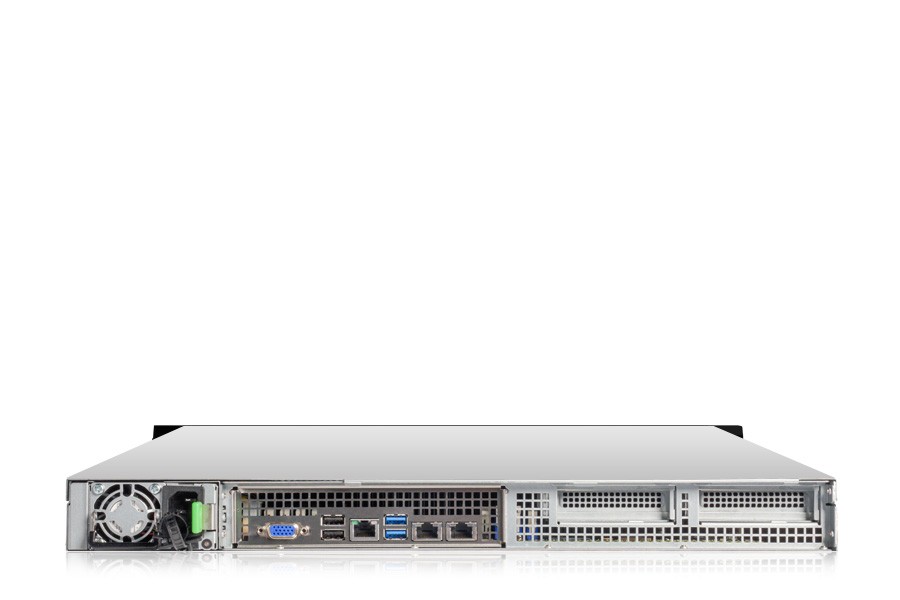

Input Output
onboare IO
SATA:
8x SATA3 (6 Gbps) ports
SATA/NVMe Hybrid
8x SATA3 or 2 NVMe via single SlimSAS x8
LAN:
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
6x USB 3.0 ports
(4 rear + 2 via header)
VGA:
1x VGA port
Others:
1x COM port (rear)
2x SATA DOM power connectors
1x TPM 2.0 header

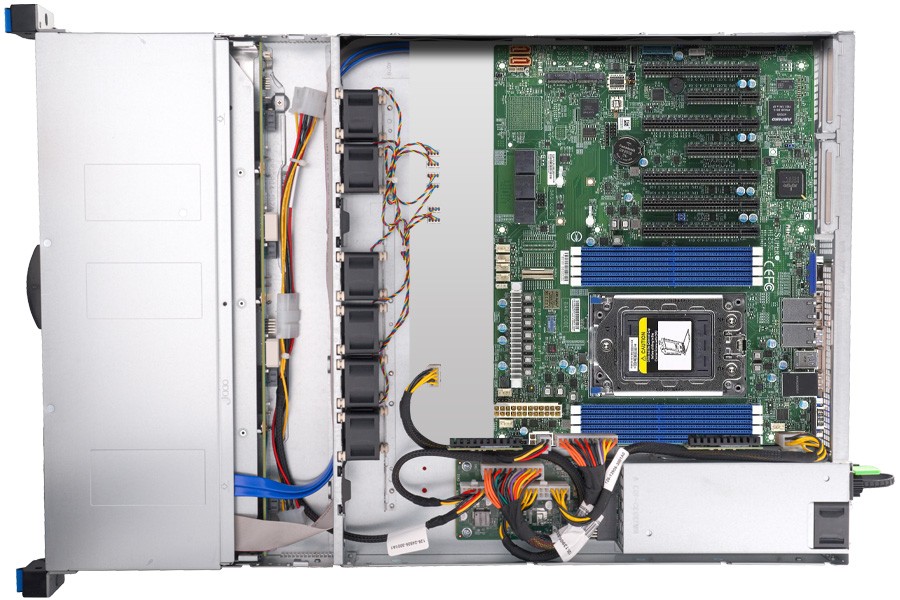

Cooling
6 x 40mm (T:28mm), 23000 RPM, PWM, Hot-swap
2 x Dummy Cover, 1 x Air Duct (Option)
Operating Environment
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
RM13304MR-H12SSL-iRM13304MR-H12SSL-iRM13304MR-H12SSL-iRM13304MR-H12SSL-iRM13304MR-H12SSL-i
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz
AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz
Added
AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz
AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz
AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz
AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz
AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz
AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz
AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz
AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz
MEMORY
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Samsung 16GB DDR4 2933 ECC RDIMM Memory
Samsung 32GB DDR4 2933 ECC RDIMM Memory
Samsung 64GB DDR4 2933 ECC RDIMM Memory
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
Samsung 32GB DDR4 3200 ECC RDIMM Memory
Samsung 64GB DDR4 3200 ECC RDIMM Memory
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2019 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
