AS-1115CS-TNR
$2,402.00 Configured Summary
AS-1115CS-TNR
Supermicro 1U 10Bays Single AMD Rackmount Server

  • Single 4th Generation AMD EPYC™ 9004 Series Processors
  • 12x DIMM slots up to 3TB 3DS ECC RDIMM DDR5-4800MHz
  • 2x PCI-E 5.0 x16 FHHL
  • Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
  • 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
  • (*Full redundancy based on configuration and application load)
  • 2x On-board PCI-E 3.0 x2 M.2 NVMe 80mm/110mm (Boot)
Web Server, Firewall ApplicationData, Center Optimized, Value IaaS, Cloud Computing, Compact Server, DNS & Gateway Servers, Firewall Application, CDN, Edge Nodes
Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system (with minimum 1CPU, 2DIMMs and 1 storege device HDD/HDS/M.2, and 1NIC)

Storage configuration notice:
External:
10x 2.5" Hot-swap HDD Bays
M.2:
2x M.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-1115CS-TNR
Processor
CPU:
Single Socket SP5
4th Generation AMD EPYC™ 9004 Series Processor
Support CPU TDP up to 360W
Cores:
Up to 96C/192T
Note:
Certain CPUs with high TDP may be supported only under specific conditions. Please contact Our Technical Support for additional information about specialized system optimization
Memory
Memory:
Memory Capacity: 12 DIMM slots
Up to 3TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type: 4800MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory
Note:
For optimal performance AMD recommends full memory population
Memory Voltage:
1.1 V
Error Detection:
Corrects single-bit errors Detects double-bit errors (using ECC memory)

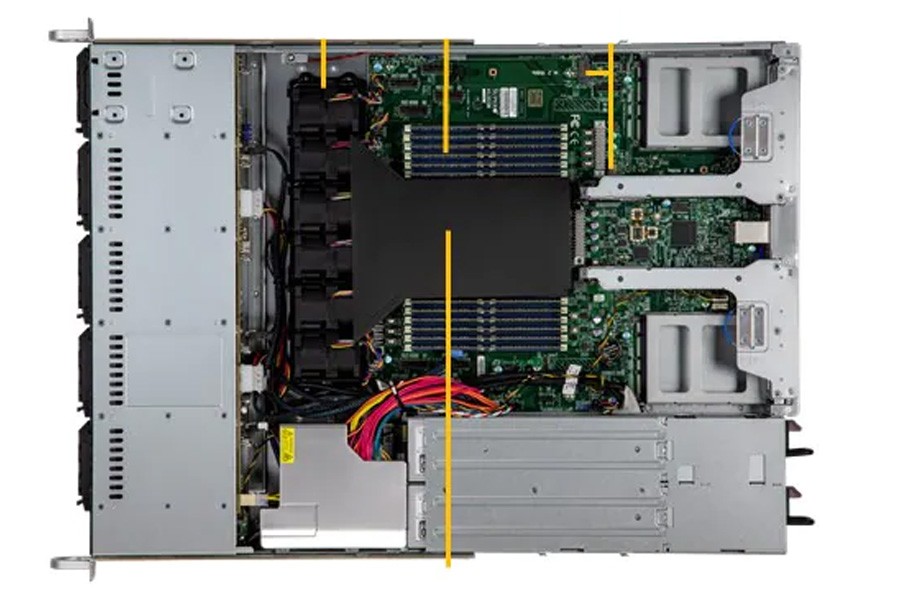

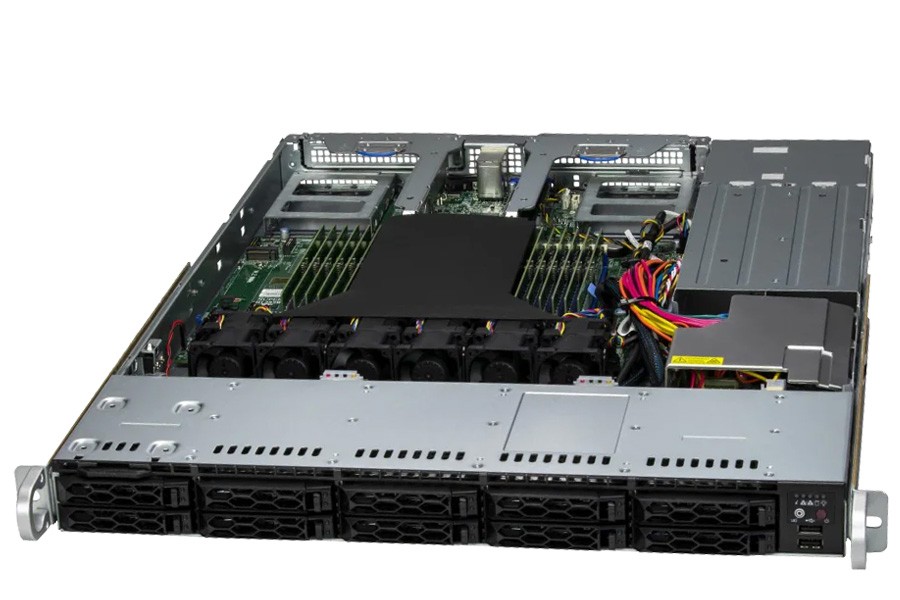

Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
23.5" (597mm)

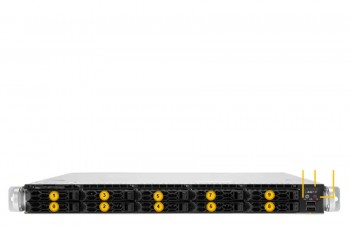

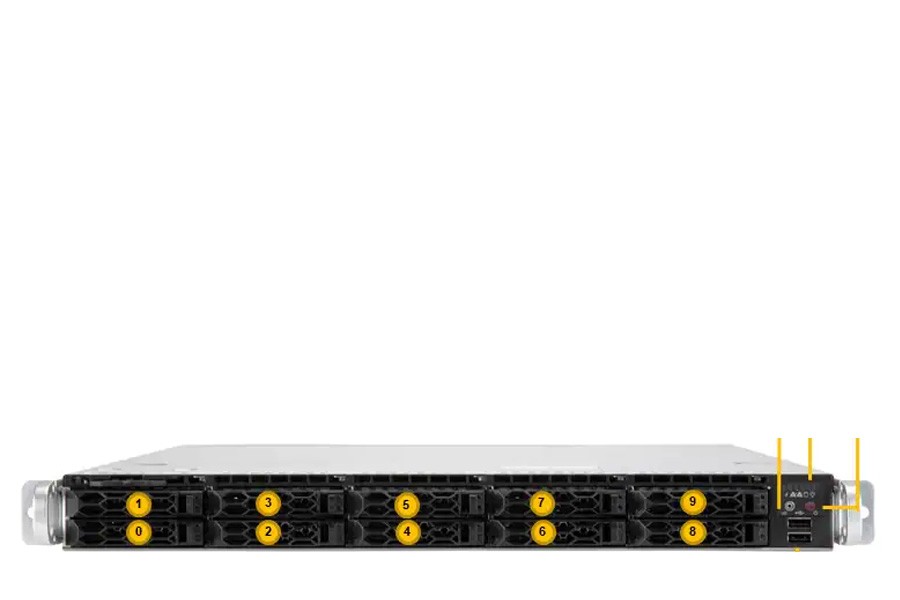

Front Panel
Buttons:
Power On/Off
Universal Information (UID)
LEDs:
Drive activity
Network activity
Power status
Universal Information (UID)
Bios
BIOS Type:
AMI 32MB SPI FLASH ROM
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Onboard Devices
Chipset:
System on Chip
Network Connectivity:
Via Slim-AIOM
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
10x 2.5" hot-swap NVMe/SATA/SAS drive bays (10x 2.5" SATA by default)
M.2:
2x NVMe (PCIe Gen 3x2, Boot drive only)
M-Key, 2280/22110
Expansion Slots
PCI-Express (PCI-E):
2x PCI-E 5.0 x16 FH, 10.5"L slot(s)
2x PCI-E 5.0 x16 AIOM slot(s)
Power Supply
1U 800W/ 860W Redundant Power Supply
Dimension(W x H x L):

54.5 x 40.25 x 322 mm
AC Input:
800W: 100-127Vac / 9A-7.5A / 50-60Hz
860W: 200-240Vac / 6A-4.5A / 50-60Hz
+12V:
Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vac-240Vac)
5V SB:
Max: 4A / Min: 0A
Output Type:
Backplanes (gold finger)
Certification:
Platinum Level

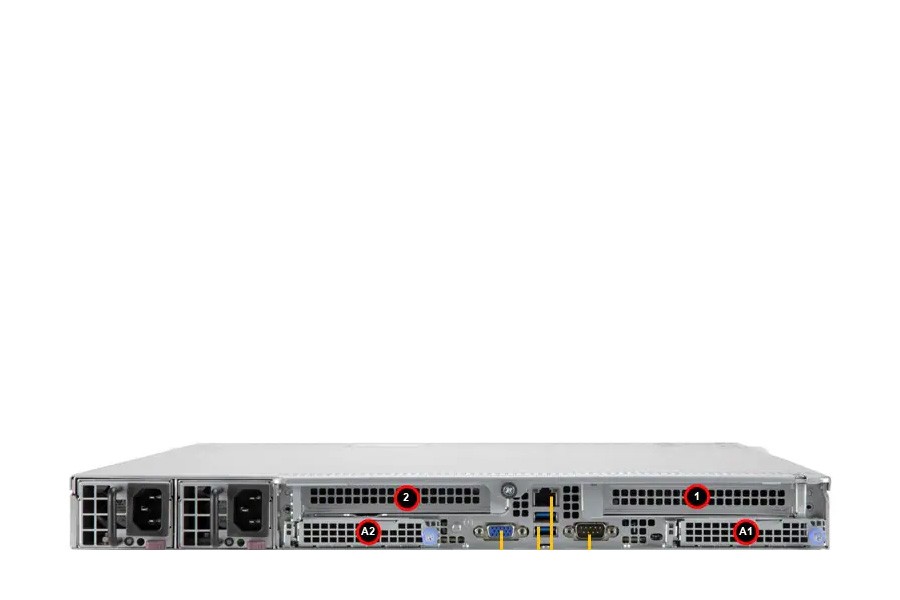

Input Output
LAN:
1x Dedicated IPMI LAN port
USB:
2x USB 2.0 port(s) (2 front)
2x USB 3.0 port(s) (2 rear)
Video:
1x VGA port(s)
Serial Port:
1x COM Port(s) (1 rear)
Cooling
Fans:
6x 4cm heavy duty fans with optimal fan speed control
Air Shroud:
1x Air Shroud(s)
Operating Environment
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Note:
Operating Temperature based on configurations
AS-1115CS-TNRAS-1115CS-TNRAS-1115CS-TNRAS-1115CS-TNR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
+ $2,906.00
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
+ $798.00
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
+ $1,210.00
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
+ $2,032.00
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
+ $2,150.00
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
+ $2,469.00
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
+ $1,834.00
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
+ $4,011.00
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
+ $4,540.00
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
+ $3,774.00
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
+ $6,145.00
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
+ $6,175.00
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
+ $6,418.00
AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)
+ $4,869.00
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
+ $7,458.00
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
+ $8,743.00
AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)
+ $7,952.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $68.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $560.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $124.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $198.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $690.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $250.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $420.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $494.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $858.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $1,664.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $2,678.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $416.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $586.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $1,054.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $1,990.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $400.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $306.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $386.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $450.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $776.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,456.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $2,694.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $436.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $622.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $1,036.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $380.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $710.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $1,556.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $120.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $170.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $242.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $436.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $884.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $684.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $1,052.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $1,810.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $3,014.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $5,950.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $11,966.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
- $145.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
- $118.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $122.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $48.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $30.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $448.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,038.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Added
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $100.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $136.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $187.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $221.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $260.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $234.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $271.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $317.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $395.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,423.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,735.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,904.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
