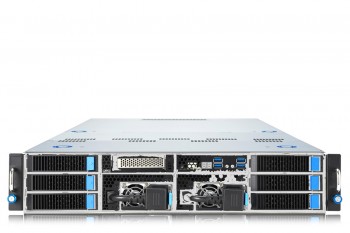

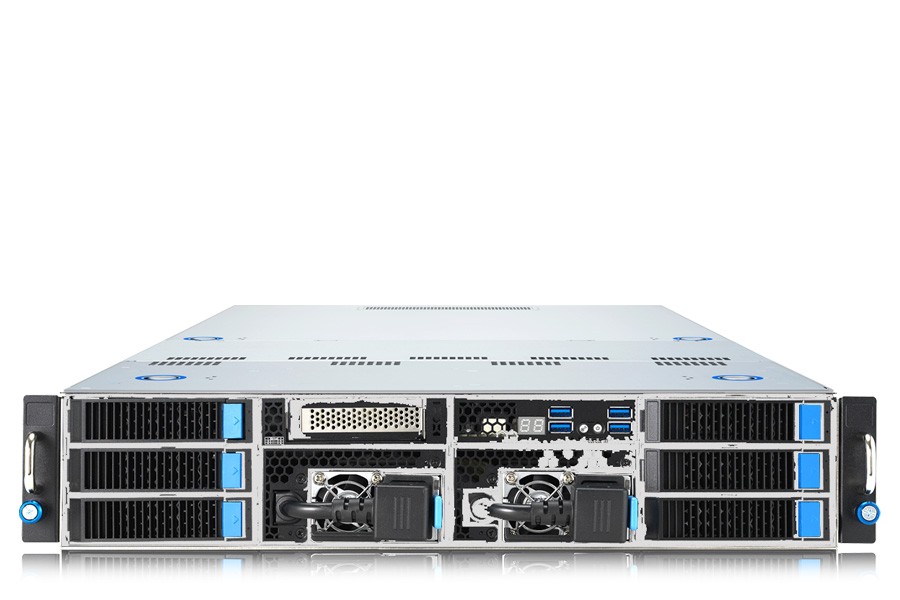

ASUS 2U (4+2)Bays Single AMD Processor Rackmount GPU Server
- Powerful performance
- AI and HPC workloads ready
- Power-efficient system design
- Comprehensive cooling solutions
- Scale-up storage and expansion design
- Flexible networking module design
- Enhanced IT-infrastructure management
Storage configuration notice:
External:
2x 2.5" Hot-swap HDD Bays
4x 3.5" Hot-swap HDD Bay
External:
2x 2.5" Hot-swap HDD Bays
4x 3.5" Hot-swap HDD Bay

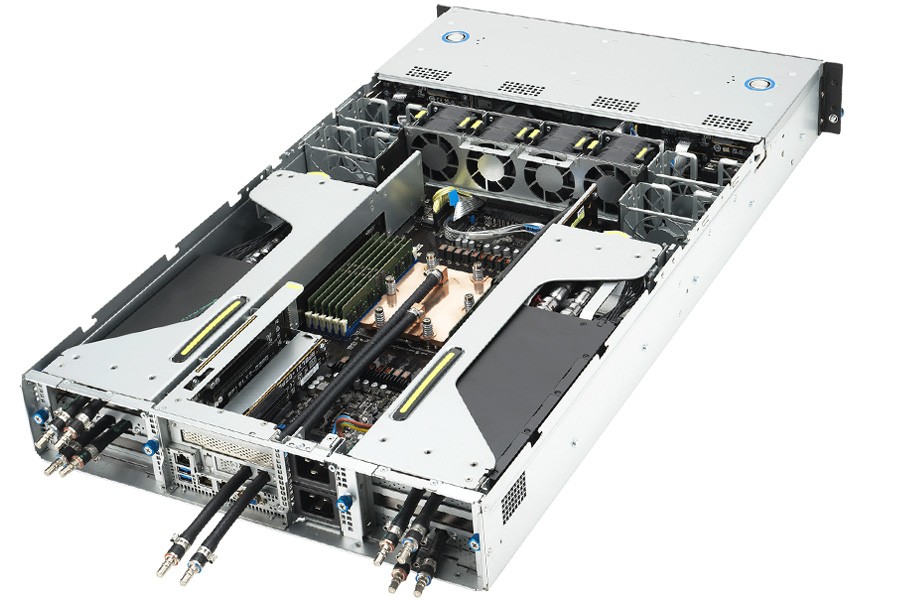

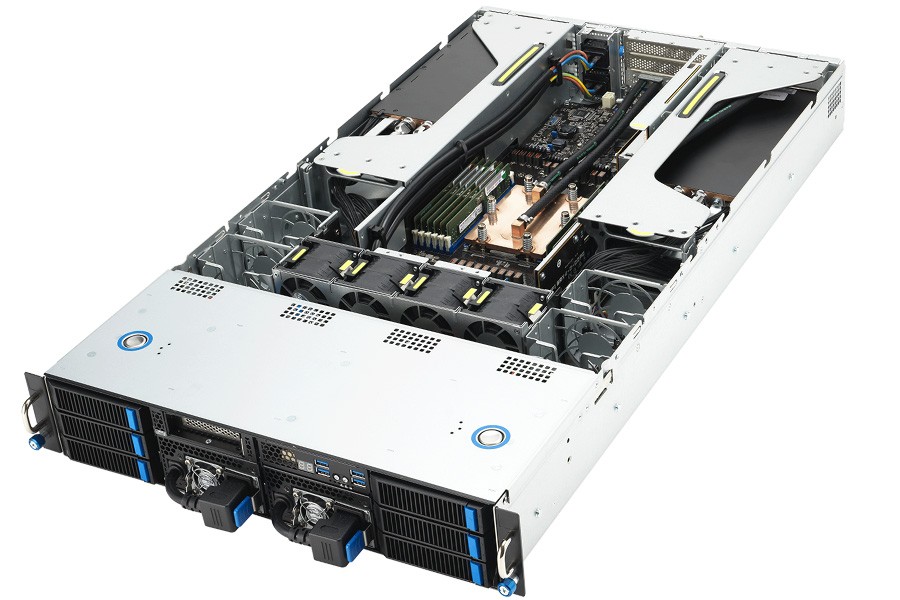

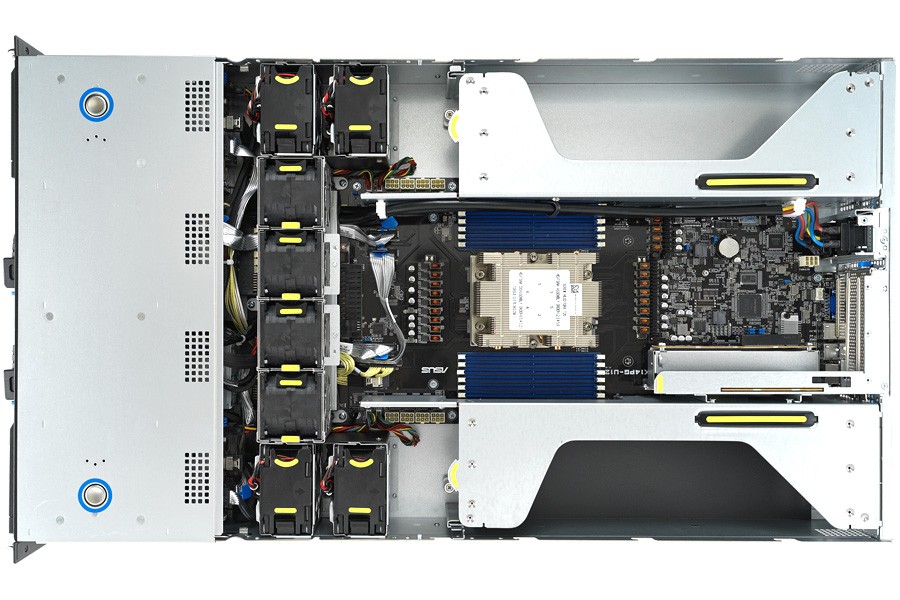

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | ESC4000A-E12-26WGP |
| Processor | 1x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 series (up to 400W) |
| Memory | Total Slots : 12 (12-channel)
Capacity : Maximum up to 3TB RDIMM Memory Type : DDR5 4800/4400 RDIMM/RDIMM 3DS Memory Size : 64GB, 32GB, 16GB RDIMM 256GB, 128GB 3DS RDIMM |
| Chassis | 2U Rackmount Chassis
|
| Dimensions | 800mm x 439.5mm x 88.9mm (2U)
31.50" x 17.30" x 3.50" |
| Onboard Devices | Storage
Storage Controller :
CPU Integrated Optional kits: ASUS PIKE II 3008 8-port SAS 12Gb/s HBA card ASUS PIKE II 3108 8-port SAS HW 12Gb/s RAID card Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i Networking 2x GbE LAN ports (Intel I350 Controller) 1x Management Port |
| HDD Drive Bays | 2x 2.5" & 4x 3.5" Hot-swap Storage Bays
RAID card is required to support SAS hard drives additional 2 x NVMe support required a RAID card. |
| Expansion Slots | Rear:
4 x PCIe x16 slots (Gen5 x16 link, FH, FL) for dual-slot GPU cards or 8 x PCIe x16 slots (Gen5 x8 link, FH,FL) for single-slot GPU cards 1 x PCIe x16 slots (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16/x8 link, FH, HL) or OCP socket option or M.2 riser module 1 x PCIe x8 slot (Gen5 x0/x8 link, LP, HL) Front: 1 x PCIe x8 slot (Gen5 x8 link, LP, HL) Only for SKU1
|
| Power Supply | 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply
|

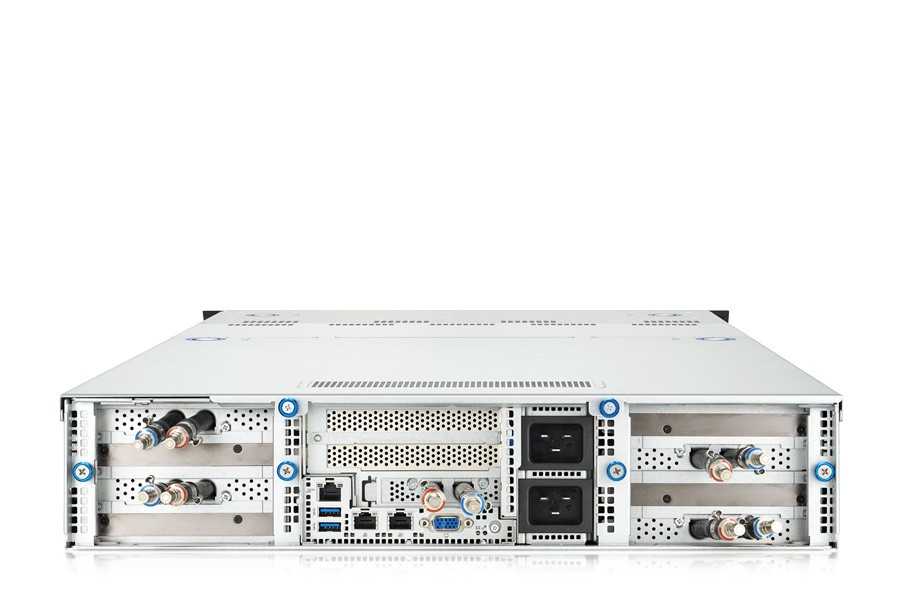

| Input Output | Front I/O Ports
1x Q-code/port-80 LED 4x USB 3.2 Gen1 ports Rear I/O Ports 2x USB 3.2 Gen1 ports 2x Gigabit LAN ports 1x MAnagement port 1x VGA port Switch/LED Front : 1x Power Button/LED 1x Location Button/LED 1x Message LED 1x Q-Code/Port 80 LED 2x LAN LED Rear : 1x Power Button/LED 1x Location LED 1x Message LED |
| Operating Environment | Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing) |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
+ $2,906.00
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
+ $798.00
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
+ $1,210.00
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
+ $2,032.00
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
+ $2,150.00
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
+ $2,469.00
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
+ $1,834.00
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
+ $4,011.00
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
+ $4,540.00
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
+ $3,774.00
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
+ $6,145.00
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
+ $6,175.00
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
+ $6,418.00
AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)
+ $4,869.00
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
+ $7,458.00
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
+ $8,743.00
AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)
+ $7,952.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $68.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $560.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $124.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $198.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $690.00
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
(Optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
+ $125.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $210.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $247.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $429.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $832.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,339.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $208.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $293.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $527.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $995.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $299.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $585.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $715.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,300.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,470.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $338.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $494.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $845.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,495.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,860.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $291.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $466.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $861.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,547.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,754.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $200.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $153.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $193.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $225.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $388.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $728.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,347.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $218.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $311.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $518.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $190.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $355.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $778.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
+ $60.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
+ $85.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
+ $121.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $218.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $442.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $342.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $526.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $905.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,507.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,975.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,983.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,226.00
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,421.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX A4000 GDDR6 Video Card 16GB
+ $1,203.00
NVIDIA RTX A5000 GDDR6 Video Card 24GB
+ $2,502.00
NVIDIA RTX A6000 GDDR6 Video Card 48GB
+ $4,940.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $8,710.00
NVIDIA A30 24GB HBM2 GPU Card
+ $4,950.00
NVIDIA A40 48GB GDDR6 GPU Card
+ $5,824.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
NVIDIA H100 80GB HBM2e GPU Card
+ $32,156.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4161
1
4017.0000
