AS-2025HS-TNR
Please Inquire Configured Summary

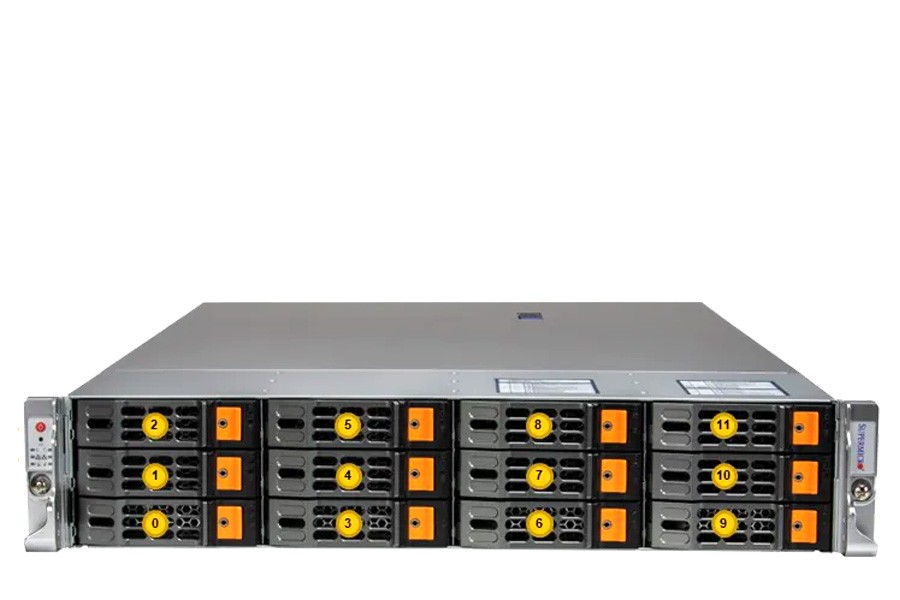

AS-2025HS-TNR
Supermicro 2U 12Bays Dual AMD Rackmount Server

  • 4th Generation AMD EPYC™ 9004 Series Processors
  • ASPEED AST2600
  • 24 x DIMM slots, DDR5 -4800 memory support up to 6 TB
  • 1 AIOM/OCP NIC 3.0 Slot
  • Configuration Options for up to
  • 4 PCIe 5.0 x16 Slots OR
  • 8 PCIe 5.0 x8 Slots or
  • 3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or
  • 2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or
  • 1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots
  • 12 Hot-swap 3.5” NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
  • 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
  • Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system (with minimum 1CPU, 2DIMMs and 1 storege device HDD/HDS/M.2, and 1NIC)

Storage configuration notice:
External:
12x 3.5" Hot-swap HDD Bays
M.2:
2x M.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-2025HS-TNR
Processor
CPU:
Dual Socket SP5
4th Generation AMD EPYC™ 9004 Series Processor
Support CPU TDP up to 360W
Cores:
Up to 192C/384T
Note:
Certain CPUs with high TDP may be supported only under specific conditions. Please contact our Technical Support for additional information about specialized system optimization
Memory
Memory:
Memory Capacity: 24 DIMM slots
Up to 6TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type: 4800MHz ECC DDR5 RDIMM Up to 512GB of memory
Note:
For optimal performance AMD recommends full memory population
Memory Voltage:
1.1 V
Error Detection:
Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (88.9mm)
Width:
17.2" (437mm)
Depth:
31.6" (803mm)
Front Panel
Buttons:
Power On/Off
UID button
LEDs:
HDD activity
LAN1 activity
Power status
System information
Bios
BIOS Type:
AMI 256MB SPI Flash
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Onboard Devices
Chipset:
System on Chip
Network Connectivity:
Via AIOM
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
12x 3.5" hot-swap NVMe/SATA/SAS drive bays
M.2:
2x NVMe (PCIe 3.0 x4, Boot drive only)
M-Key, 2280/22110
Expansion Slots
4x (Optional) PCIe 5.0 x16 or x8 FH, 10.5"L slot(s)
4x (Optional) PCIe 5.0 x8 FH, 10.5"L slot(s)
Power Supply
1600W 1U redundant power supply
Dimension (W x H x L):
73.5 x 40 x 265 mm
AC Input:
1000W: 100-127Vac / 12A-9A / 50-60Hz
1600W: 200-240Vac / 9A-7.5A / 50-60Hz
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level
Input Output
LAN:
1 Dedicated IPMI LAN port
USB:
2 USB 3.0 port(s) (2 rear)
Video:
1 VGA port(s)
Cooling
Fans:
4x 8cm heavy duty fans with optimal fan speed control
Air Shroud:
2 Air Shroud(s)
Operating Environment
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Note:
Operating Temperature based on configurations
AS-2025HS-TNRAS-2025HS-TNRAS-2025HS-TNRAS-2025HS-TNR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Workstation Edition 64-bit (No Media)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
