AS-2125HS-TNR
$7,744.00 Configured Summary
AS-2125HS-TNR

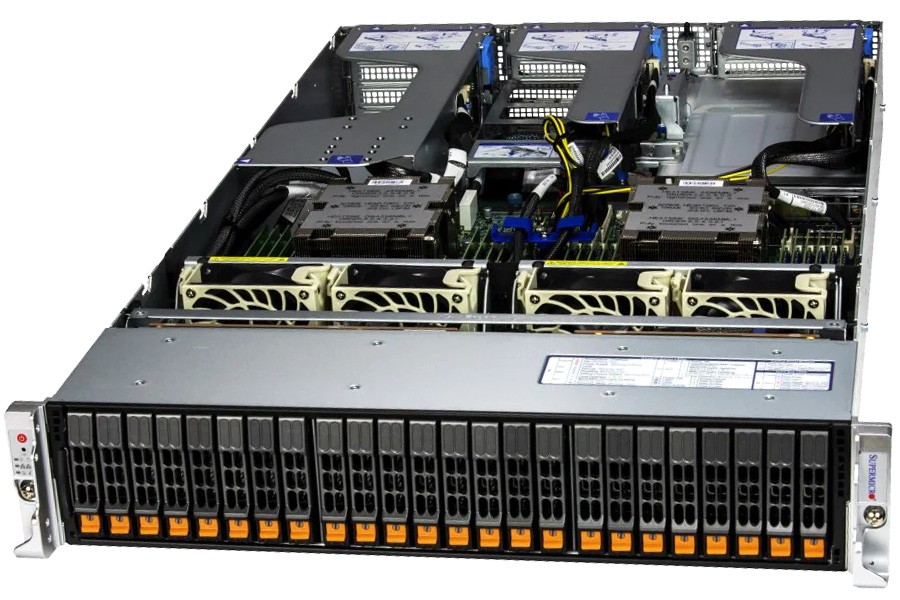

Supermicro 2U 24Bays Dual AMD Processor Rackmount Server

  • 4th Generation AMD EPYC™ 9004 Series Processors
  • ASPEED AST2600
  • 24 x DIMM slots, DDR5 -4800 memory support up to 6 TB
  • 1 AIOM/OCP NIC 3.0 Slot
  • For 24 SATA/SAS Configuration Options for up to
  • 4 PCIe 5.0 x16 Slots or
  • 8 PCIe 5.0 x8 Slots or
  • 3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or
  • 2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or
  • 1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots
  • For 24 NVME Configuration Options for up to
  • 1 PCIe 5.0 x16 Slots OR 2 PCIe 5.0 x8 Slots
  • 24 Hot-swap 2.5” NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
  • 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
  • Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system (with minimum 1CPU, 2DIMMs and 1 storege device HDD/HDS/M.2, and 1NIC)

Storage configuration notice:
External:

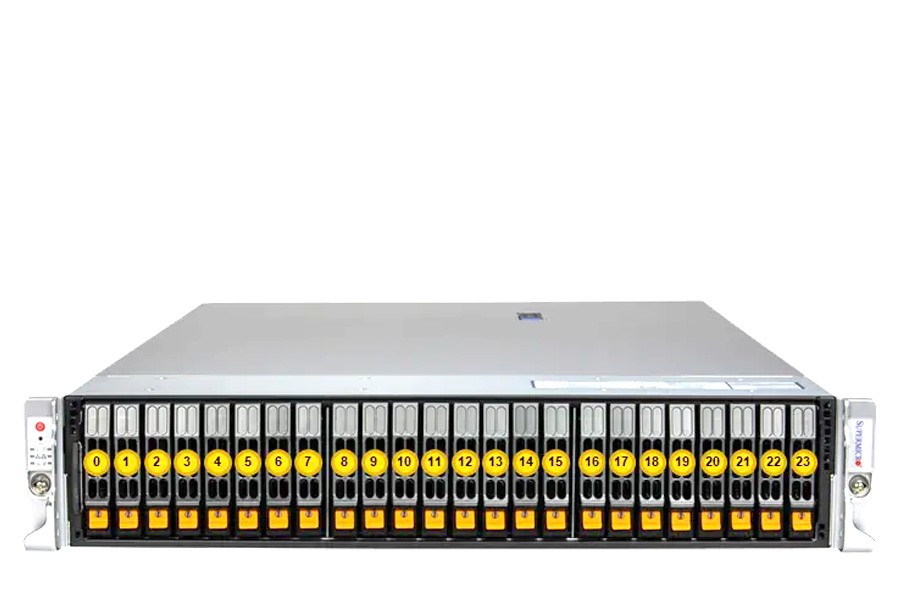

24x 2.5" Hot-swap HDD Bays
M.2:
2x M.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-2125HS-TNR
Processor
CPU:
Dual Socket SP5
4th Generation AMD EPYC™ 9004 Series Processor
Support CPU TDP up to 360W
Cores:
Up to 192C/384T
Note:
Certain CPUs with high TDP may be supported only under specific conditions. Please contact our Technical Support for additional information about specialized system optimization
Memory
Memory:
Memory Capacity: 24 DIMM slots
Up to 6TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type: 4800MHz ECC DDR5 RDIMM Up to 512GB of memory
Note:
For optimal performance AMD recommends full memory population
Memory Voltage:
1.1 V
Error Detection:
Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (88.9mm)
Width:
17.2" (437mm)
Depth:
29.9" (760mm)
Front Panel
Buttons:
Power On/Off
UID button
LEDs:
HDD activity
LAN1 activity
Power status
System information
Bios
BIOS Type:
AMI 256MB SPI Flash
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Onboard Devices
Chipset:
System on Chip
Network Connectivity:
Via AIOM
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
24x 2.5" hot-swap NVMe/SATA/SAS drive bays
M.2:
2x NVMe (PCIe 3.0 x4, Boot drive only)
M-Key, 2280/22110
Expansion Slots

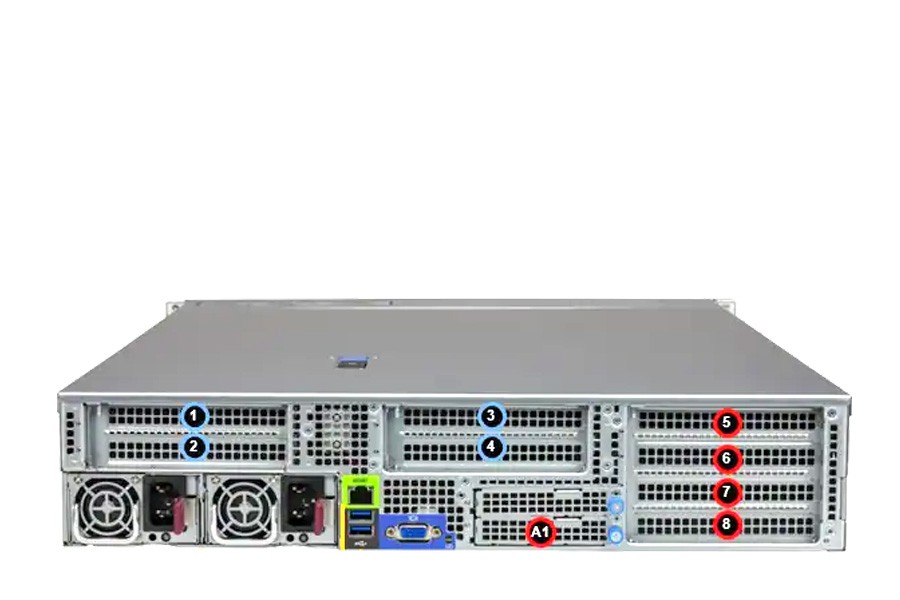

4 (Optional) PCIe 5.0 x16 or x8 FH, 10.5"L slot(s)
4 (Optional) PCIe 5.0 x8 FH, 10.5"L slot(s)
Power Supply
1600W 1U redundant power supply
Dimension (W x H x L):
73.5 x 40 x 265 mm
AC Input:
1000W: 100-127Vac / 12A-9A / 50-60Hz
1600W: 200-240Vac / 9A-7.5A / 50-60Hz
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level
Input Output
LAN:
1 Dedicated IPMI LAN port
USB:
2 USB 3.0 port(s) (2 rear)
Video:
1 VGA port(s)

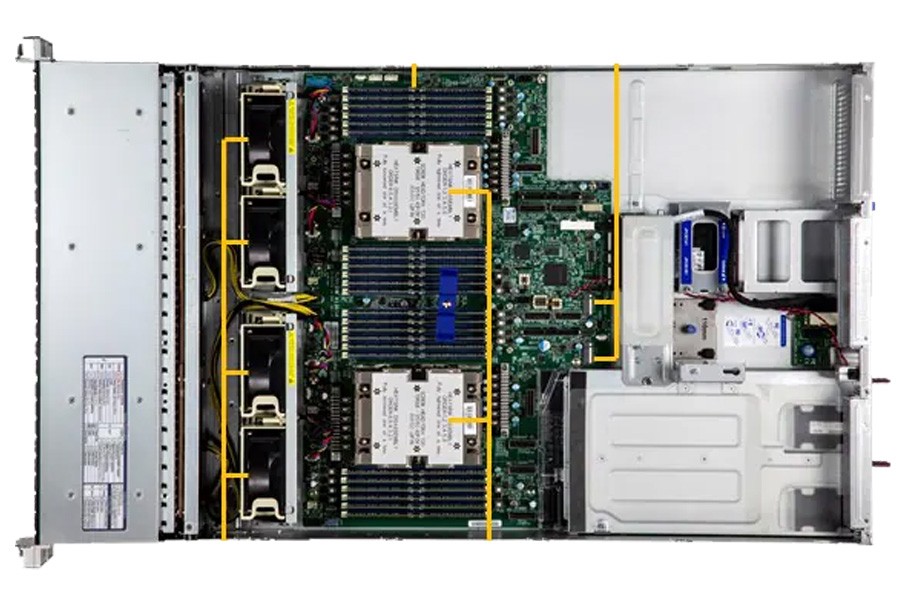

Cooling
Fans:
4x 8cm heavy duty fans with optimal fan speed control
Air Shroud:
2 Air Shroud(s)
Operating Environment
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Note:
Operating Temperature based on configurations
AS-2125HS-TNRAS-2125HS-TNRAS-2125HS-TNRAS-2125HS-TNR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
+ $5,812.00
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
+ $1,596.00
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
+ $2,420.00
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
+ $4,064.00
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
+ $4,300.00
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
+ $4,938.00
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
+ $8,022.00
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
+ $9,080.00
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
+ $12,290.00
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
+ $12,350.00
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
+ $12,836.00
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
+ $14,916.00
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
+ $17,486.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $136.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,120.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $248.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $396.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,380.00
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $85.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $122.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $304.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $707.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $1,214.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
+ $83.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
+ $168.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $402.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $870.00
Samsung SM883 2.5" SATA III SSD 480GB
+ $75.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
+ $28.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
+ $68.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
+ $100.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
+ $263.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $603.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,222.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $93.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $186.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $393.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
+ $65.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
+ $230.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $653.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $65.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $40.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $4.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
+ $93.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
+ $317.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
+ $217.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $401.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $780.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,382.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,850.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,858.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
RAID CONTROLLER CARD
*NO RAID Controller Card
Added
Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA
+ $533.00
Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller
+ $855.00
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Areca ARC-1886-8i 8 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,117.00
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,226.00
Areca ARC-1886-8X8i 8+8 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,299.00
Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller
+ $1,323.00
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,421.00
NETWORK CARD
*No Network Card
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4166
1
4227.0000
Servers
Storages
Workstations
Solutions
Components
Yang Ming International Corp
    • 595 Yorbita Road
    • La Puente,CA 91744
    •
    • Tel: (800) 526-8650
    • Tel: (626) 956-0100
    • Fax: (626) 956-0098
    •
    •
Copyright©  Yang Ming International Corp. All Rights Reserved.







Rackmount Servers & Storage
RackMountPro designs and builds top quality rack mount servers, storage, chassis and accessories for businesses of all sizes and industries. We work with some of the most advance and reputable technology companies in the industry such as Intel, AMD, Microsoft, NVidia, SuperMicro, HP, Seagate, IBM, Asus and many more. Our complete line of innovative products include rack mount server from 1U to 9U, enterprise servers, advance computing solutions for HPC, Data Center, Virtualization, Clustering, Cloud Computing and GPU. RackMountPro has been the premiere choice for government agencies, major corporations, education institutions and small businesses who want to gain the competitive edge in today's demanding IT environment.
Excellence in Customer Service
At RackMountPro, providing our customers with the best service is one of our top priorities. Our team of highly training engineers, support staff and consultants are always available to assist our customers with all their needs. Whether it's to help customers find the right rack mount solution for their needs, guide them through installation and usage, or to provide fast and easy warranty and repair requests, our team of professional and knowledgeable staff will always make sure our customers come first. Just check out our Testimonials page to see some of our customers' positive feedback about our customer service.
Rackmount Servers & Storage
RackMountPro.com, also known as Yang Ming International Corporation, is located in Southern California and was founded in 1994. We started as a small computer wholesaler but has grown in the past 20 years to become an industry leader in rack mount server and data storage solutions. Our corporate headquarter and manufacturing facility in the City of Industry not only uses cutting edge technology to produce some of the best rack mount server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at RackMountPro, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
