AS-2115GT-HNTR
Please Inquire Configured Summary

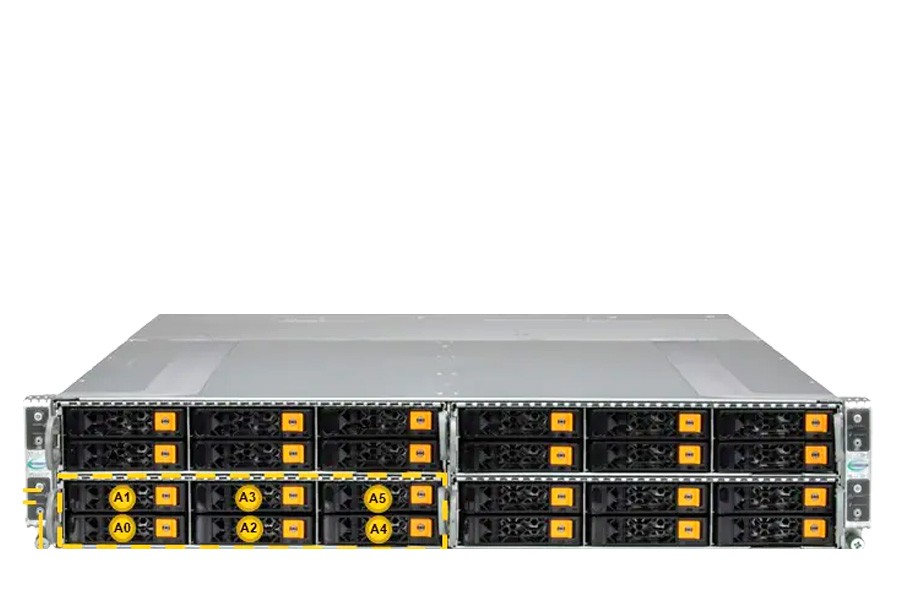

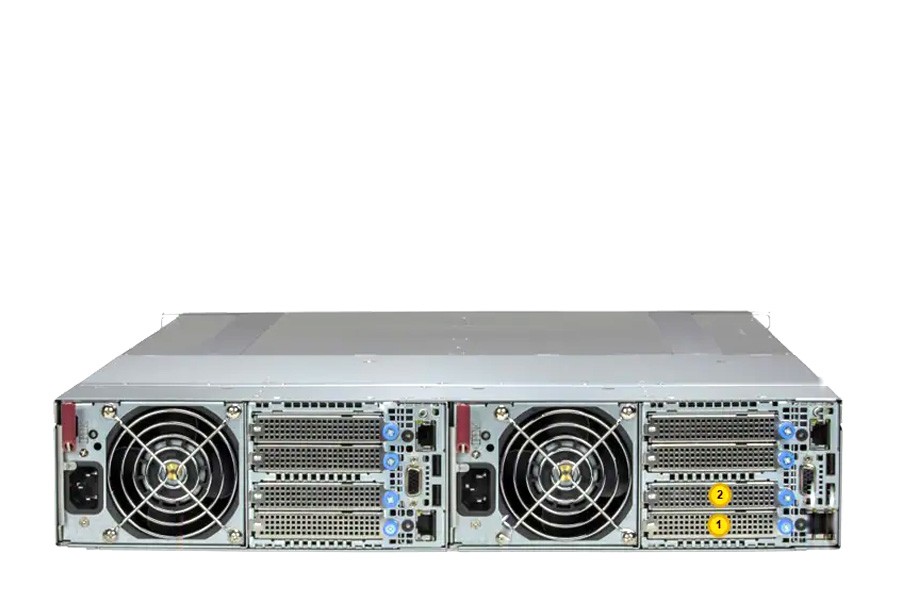

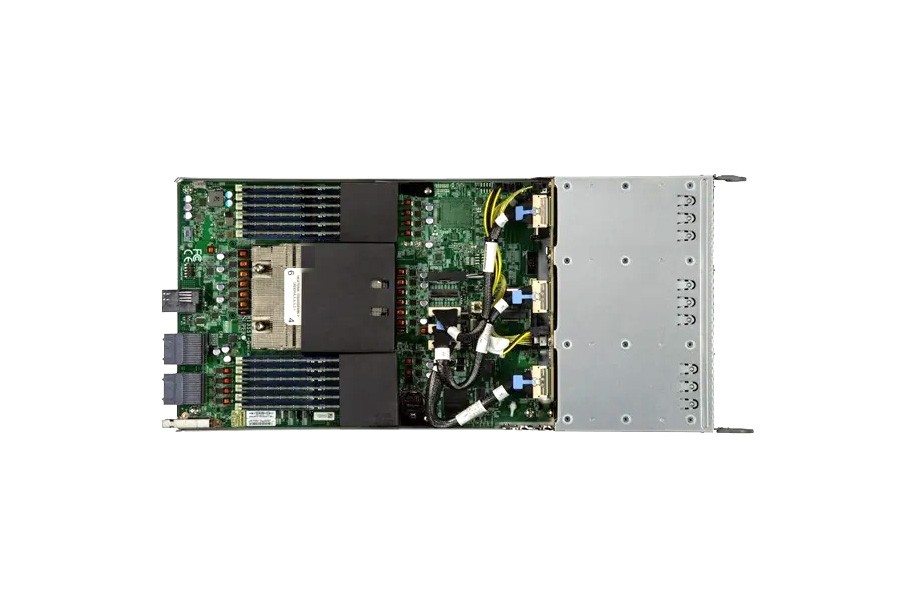

AS-2115GT-HNTR
Supermicro 2U 4Nodes 24Bays Singleual AMD Processor Rackmount Server

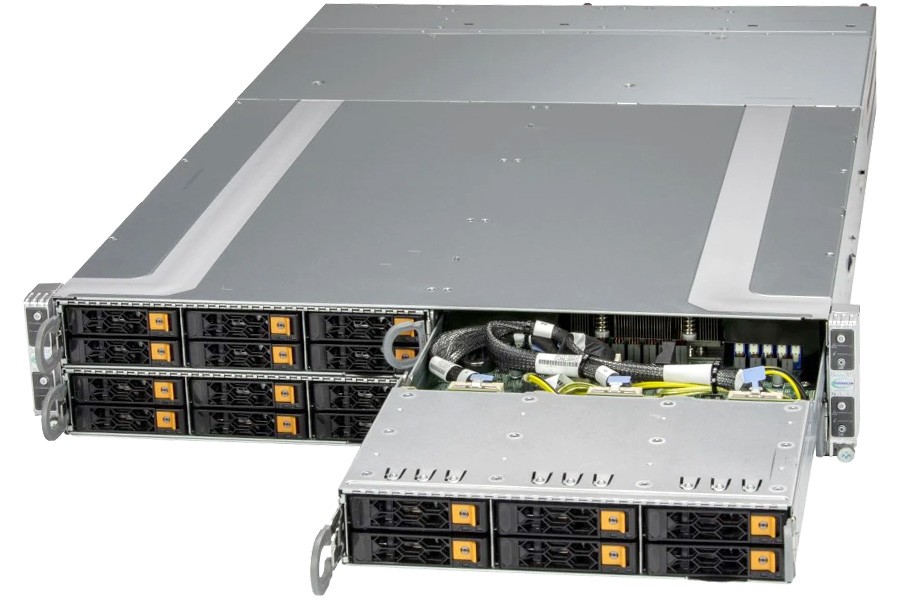

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Single-Socket, AMD EPYC™ 9004 Series Processors up to 290W TDP
  • 12 DIMM Slots , up to 3TB DDR5 memory
  • 2 AIOM / OCP 3.0 slots
  • up to 6 Hot-swap 2.5"NVMe/SATA drives
  • HPC, Cloud Gaming, MEC (Multi-Access Edge Computing), Multi-Purpose CDN, High-availability Cache Cluster, Telco Edge Cloud, EDA (Electric Design Automation), Mission Critical Web Applications

Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system (for optimal performance, 12 DIMMS are recommended per node). Minimum 1CPU, 1 DIMM and 1 storege device HDD/HDS/M.2, and 1 AIOM per node

Storage configuration notice:
(per node)
External:
6x 2.5" Hot-swap HDD Bays
M.2:
2x M.2
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-2115GT-HNTR
Processor
(per Node)
CPU:
Single Socket SP5
AMD EPYC™ 9004 Series Processor
Support CPU TDP up to 290W
Note:
Certain CPUs with high TDP may be supported only under specific conditions. Please contact our Technical Support for additional information about specialized system optimization
Memory
(per Node)
Memory:
Memory Capacity: 12 DIMM slots
Up to 3TB: 12x 256 GB DRAM
Memory Type: 4800MHz ECC DDR5 RDIMM
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.46" (88mm)
Width:
17.67" (449mm)
Depth:
28" (711.2mm)
Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
HDD activity LED
Network activity LEDs
Power status LED
Universal Information (UID) LED
Bios
BIOS Type:
AMI 32MB Flash ROM
Onboard Devices
(per Node)
Chipset:
AMD SP5
Network Connectivity:
Via IO Module
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
(per Node)
Hot-swap:
6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid)
M.2:
2 M.2 NVMe OR 2 M.2 SATA3
Power Supply
Redundant 2200w Titanium Level(96%)High-Efficiency Power Supplies with I2C & PMBus
Dimension (W x H x L):
106 x 84 x 245 mm
AC Input:
100-127Vdc (1200W for the Rest of the World)
200-220Vdc (1800W for the Rest of the World)
200-220Vdc (2090W for North America - UL & cUL)
220-230Vdc (1980W for the Rest of the World)
220-240Vdc (2200W for North America - UL & cUL)
230-240Vdc (2090W for the Rest of the World)
Certification:
Titanium Level
Input Output
(per Node)
LAN:
1 RJ45 Dedicated BMC LAN port
USB:
2 USB 3.0 port(s) (2 USB)
Video:
1 VGA port(s)
Cooling
Air Shroud:
1 per node Air Shroud(s)
Fans:
2x 17.6K RPM Heavy Duty 8cm Fan(s)
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity:
   8% to 80% (non-condensing)
Non-operating Relative Humidity:
   8% to 90% (non-condensing)
AS-2115GT-HNTRAS-2115GT-HNTRAS-2115GT-HNTRAS-2115GT-HNTR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
Memory-1st Node
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Added
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-2nd Node
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
Memory-2nd Node
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Added
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-3rd Node
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
Memory-3rd Node
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Added
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
CPU-4th Node
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
Memory-4th Node
Micron 16GB DDR5 4800MHz ECC RDIMM Memory
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory
Added
Micron 32GB DDR5 4800MHz ECC RDIMM Memory
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory
Micron 64GB DDR5 4800MHz ECC RDIMM Memory
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory
Enterprise-Class HDD/SSD
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Workstation Edition 64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
