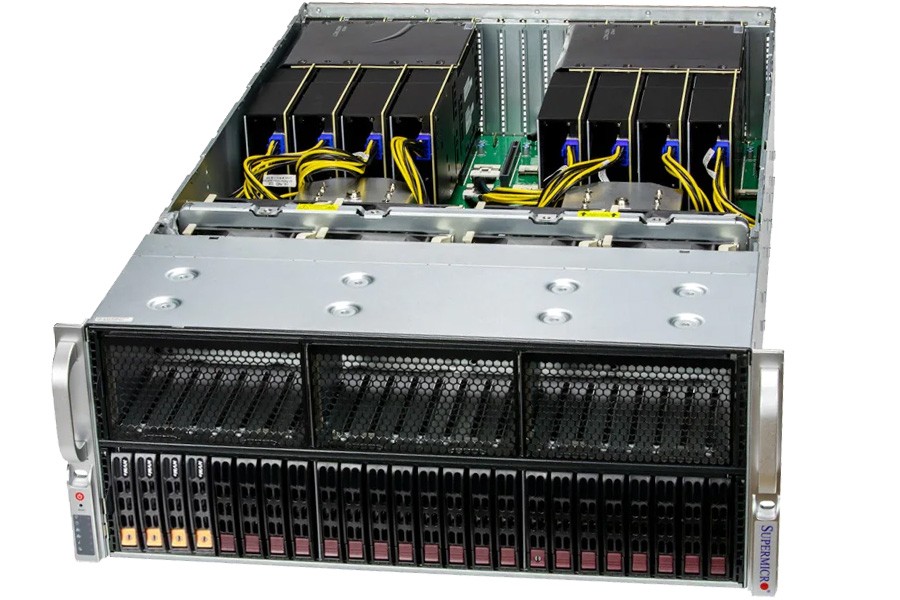

Supermicro 4U 24Bays Dual AMD Processor Rackmount GPU Server

Supermicro 4U 24Bays Dual AMD Processor Rackmount GPU Server

Flexible GPU support: active & passive GPUs
Up to 8 direct attached double width, full length GPUs
Dual-Socket, AMD EPYC™ 9004 Series Processors up to 360W TDP
24 DIMM Slots, up to 6TB DDR5 memory
1 M.2 Slot
up to 4x 2.5" Hot-swap NVMe drive bays
AIOM / OCP 3.0 Support
AI / Deep Learning, High Performance Computing

Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system (with minimum 2CPU, 2GPU, 4DIMMs and 1 storege device)

Storage configuration notice:
External:

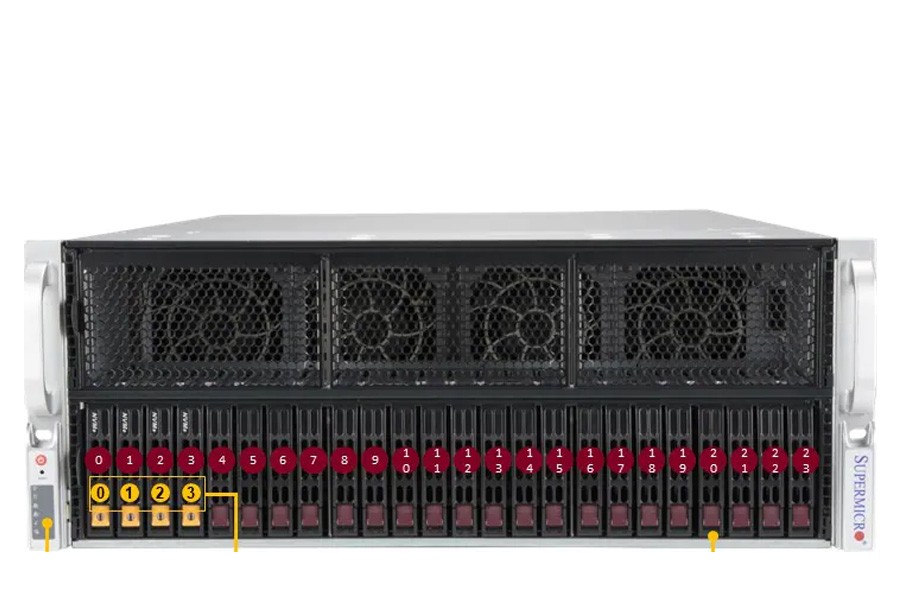

24x 2.5" Hot-swap HDD Bays
M.2:
1x M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	AS-4125GS-TNRT
Processor	CPU: Dual Socket SP5 AMD EPYC™ 9004 Series Processors Support CPU TDP up to 360W Cores: Up to 96C/192T
Memory	Memory: Memory Capacity: 24 DIMM slots Up to 6TB: 24x 256 GB DRAM Memory Type: 4800MHz ECC DDR5 RDIMM/LRDIMM Note: Full memory population recommended for optimal performance. Memory Voltage: 1.2 V Error Detection: ECC
Chassis	4U Rackmount Chassis
Dimensions	Height: 7" (178mm) Width: 17.2" (437mm) Depth: 29" (737mm)
Bios	BIOS Type: AMI 32MB SPI Flash EEPROM
Onboard Devices	SATA: SATA3 (6Gbps) Chipset: AMD SP5 Network Connectivity: 2x 10GbE BaseT IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	Hot-swap: 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (4x 2.5" NVMe dedicated) M.2: 1 M.2 NVMe OR 1 M.2 SATA3

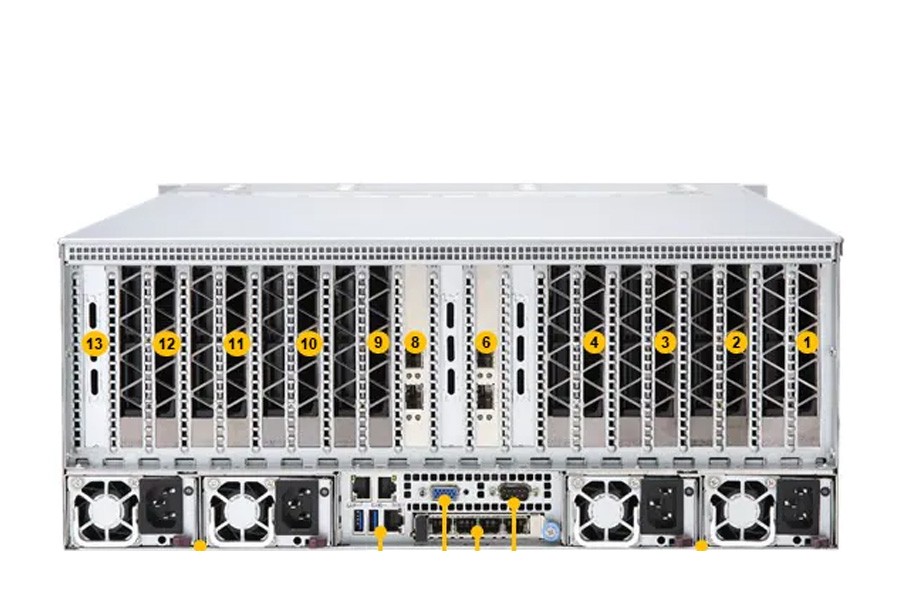

Expansion Slots	PCI-Express (PCIe): 9 PCIe 5.0 x16 FHFL slot(s)
Power Supply	2000W 1U redundant power supply W73.5 x L203 x H40mm Dimension (W x H x L): 73.5 x 40 x 203 mm AC Input: 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc +12V: Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) 12V SB: Max: 3.5A / Min: 0A Output Type: Backplanes (gold finger) Certification: Titanium Level
Input Output	Video: 1 VGA port(s)
Cooling	8 heavy duty fans with optimal fan speed control
Operating Environment	Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

MEMORY

Micron 16GB DDR5 4800MHz ECC RDIMM Memory

Micron 64GB DDR5 4800MHz ECC RDIMM Memory

Micron 32GB DDR5 4800MHz ECC RDIMM Memory

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory

Added

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory

Enterprise-Class HDD/SSD

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

NVMe M.2

*No NVMe M.2 Drives

Added

Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB

Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

(Optional) Enterprise-Class HDD/SSD

*No Hard Drive

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

RAID CONTROLLER CARD

*NO RAID Controller Card

Added

Broadcom 9500-8i SAS3/SATA/NVMe 8-Port HBA

Broadcom MegaRAID 9560-8i SAS3/SATA/NVMe 8-Port RAID Controller

LSI 9560-16I TRI MODE NVMe RAID CONTROLLER

Broadcom MegaRAID 9580-8i8e SAS3/SATA/NVMe 8+8-Port RAID Controller

NETWORK CARD

*No Network Card

Added

Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)

Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)

Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)

Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)

Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)

Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)

Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)

Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)

Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)

Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)

Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)

Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)

Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)

Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)

Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)

Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)

Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)

Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)

Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)

GPU/Coprocessor

*No GPU

Added

ASUS GeForce RTX 3070 TURBO V2 Lite Hash Rite(LHR) Video Card 8GB

PNY NVIDIA Quadro RTX A2000 GDDR6 Video Card 12GB

PNY NVIDIA Quadro RTX A4000 GDDR6 Video Card 16GB

PNY NVIDIA Quadro RTX A5000 GDDR6 Video Card 24GB

PNY NVIDIA Quadro RTX A6000 GDDR6 Video Card 48GB

PNY NVIDIA Quadro RTX 8000 GDDR6 Video Card 48GB

NVIDIA TESLA T4 Video Card 16GB

NVIDIA A100 PCIe Video Card 40GB

NVIDIA A100 PCIe Video Card 80GB

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Fedora Linux Workstation Edition 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)

Microsoft Windows Server 2019 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
