SYS-121H-TNR
$15,260.00 Configured Summary
SYS-121H-TNR

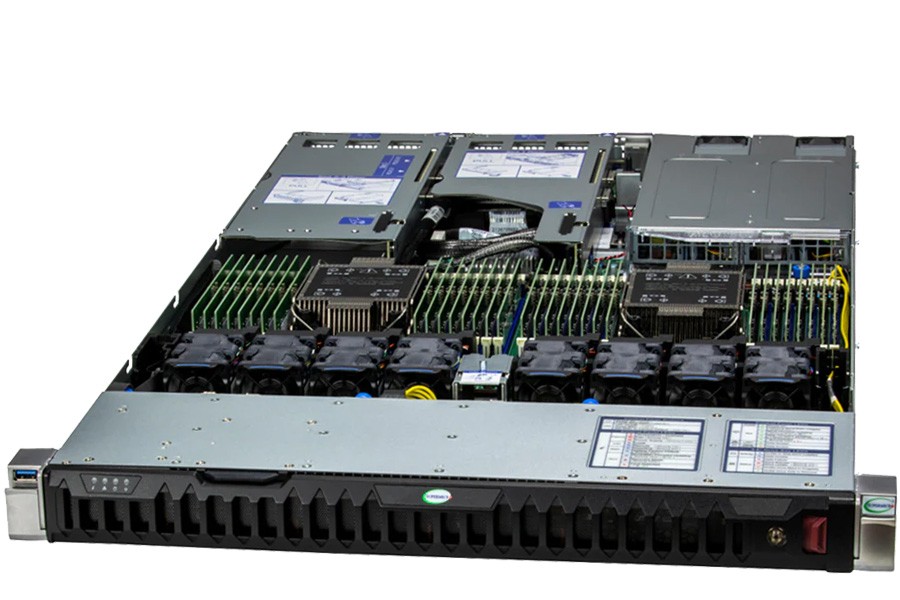

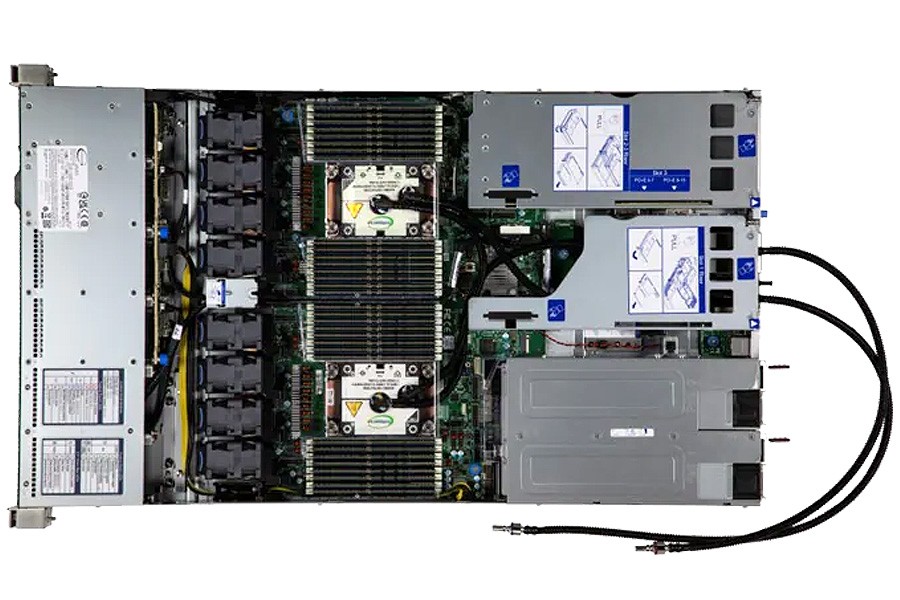

Supermicro 1U 8Bays Dual Processor Rackmount Server

  • Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
  • 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
  • Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
  • 8 heavy duty hot-swap fans with optimal fan speed control
  • Virtualization, Software-defined Storage, AI Inference and Machine, Learning, Cloud Computing, Enterprise Server


Storage configuration notice:
External:
8x 2.5" Hot-swap HDD Bays

2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC adapter and 1 Drive). NIC adapterrequirement includes either 1 AIOM networking card or 1 standard PCI-E NIC adapter.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-121H-TNR

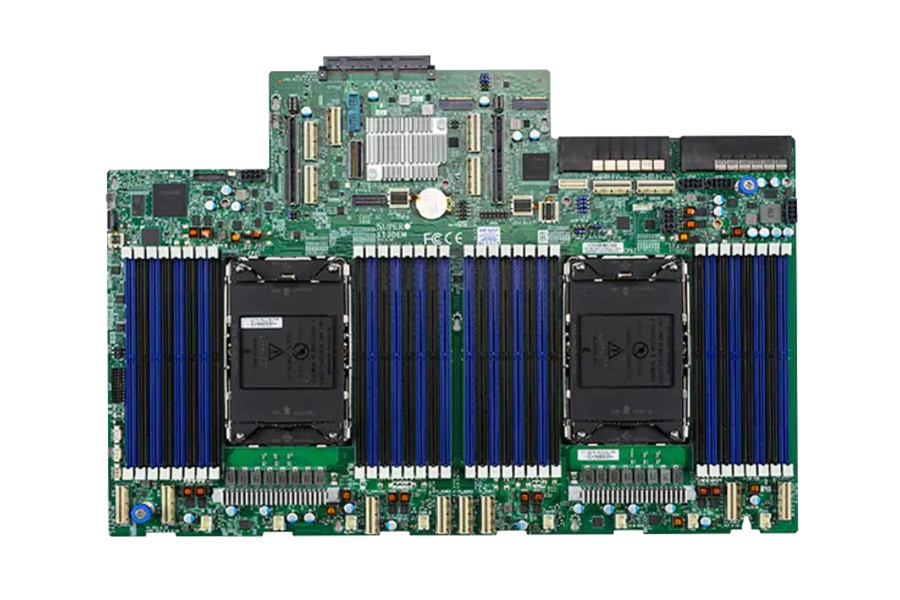

Processor
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​

Core Count:
Up to 64C/128T; Up to 320MB Cache per CPU

Note:
Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 350W TDP CPUs (Liquid Cooled)​
Air Cooled CPUs with TDP over 250W only supported under specific conditions.
Memory
Memory:
Slot Count: 32 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1 V
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
29.4" (747mm)

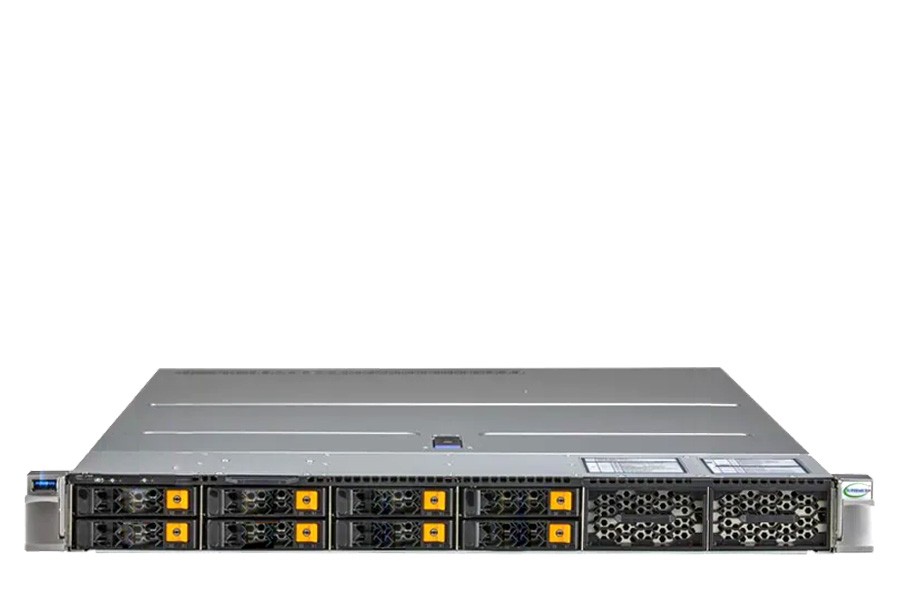

Front Panel
Buttons:
Power On/Off
UID button
LEDs:
HDD activity
LAN1 activity
Power
System information
Bios
BIOS Type:
AMI 256MB SPI Flash
Onboard Devices
SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe:
NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required)
Chipset:
Intel® C741
Network Connectivity:
2x 1GbE BaseT with Intel® i350-AM2 (optional)
4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional)
2x 10GbE BaseT with Intel® X550-AT2 (optional)
2x 10GbE SFP+ with Intel® X710-BM2 (optional)
4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
8x 2.5" hot-swap NVMe/SATA/SAS drive bays (Configurable option for 12x 2.5" hot-swap NVMe/SAS/SATA drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.)
M.2:
2 M.2 NVMe OR 2 M.2 SATA3
M-Key, 2280/2210
Expansion Slots
1 PCIe 5.0 x16 FH, 6.6"L slot(s)
2 PCIe 5.0 x16 FH, 10.5"L slot(s)
Power Supply
1U 800W/1200W Redundant Titanium CRPS w/PMBus power supply, W73.5xH40xL265mm
Dimension (W x H x L):
73.5 x 40 x 265 mm
AC Input:
800W: 100-127Vac / 9.8A-7A / 50-60Hz
1200W: 200-240Vac / 7.5A-6A / 50-60Hz
+12V:
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level

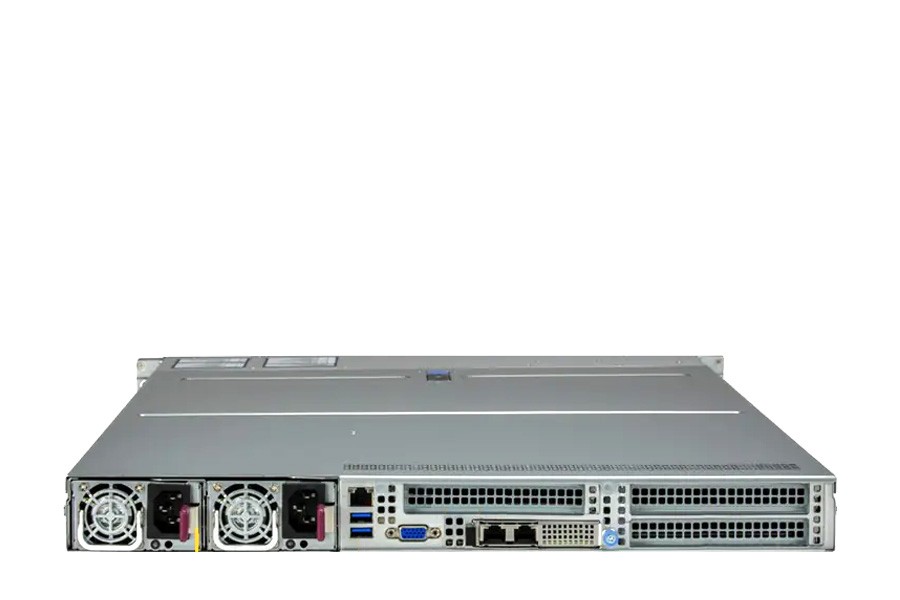

Input Output
LAN:
1 RJ45 Dedicated BMC LAN port
USB:
1 USB 3.0 port(s) (1 front)
2 USB 2.0 port(s) (2 rear)
Video:
1 VGA port(s)
Cooling
Fans:
8x 4cm heavy duty fans with optimal fan speed control
Air Shroud:
2 Air Shroud(s)
Liquid Cooling:
Direct to Chip (D2C) Cold Plate (optional)
Operating Environment
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Redfish API
IPMI 2.0
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations:
Power-on mode for AC power recovery
ACPI Power Management
SYS-121H-TNRSYS-121H-TNRSYS-121H-TNRSYS-121H-TNRSYS-121H-TNR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
+ $182.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
+ $1,560.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $2,094.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
+ $1,014.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $2,782.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $4,576.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6426Y (2.50 GHz 185W)
+ $1,974.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $6,656.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $6,708.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $7,800.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $10,816.00
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
- $370.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
+ $144.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
+ $534.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
+ $1,808.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
+ $1,638.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
+ $1,314.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
+ $2,652.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
+ $2,366.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
+ $5,538.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
+ $6,916.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
+ $6,422.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
+ $5,746.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
+ $8,230.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
+ $7,866.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $1,516.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $260.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $1,132.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $1,380.00
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $984.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $1,652.00
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $1,392.00
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $760.00
NVMe M.2
*No NVMe M.2 Drives
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
Intel D7-P5520 NVMe U.2 SSD 3.84TB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
- $365.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
- $280.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
- $243.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
- $61.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $342.00
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
+ $849.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
- $282.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
- $197.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
+ $37.00
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
+ $505.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
- $191.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $95.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $225.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $810.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $1,980.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
- $152.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $4.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $355.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,005.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,370.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
- $199.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
- $24.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $371.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,057.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,264.00
Samsung SM883 2.5" SATA III SSD 480GB
- $290.00
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
- $337.00
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
- $297.00
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
- $265.00
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
- $102.00
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
+ $238.00
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
+ $857.00
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
- $272.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
- $179.00
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
+ $28.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
- $300.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
- $135.00
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
+ $288.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
- $430.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
- $405.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
- $369.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
- $272.00
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
- $48.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
- $148.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
+ $36.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
+ $415.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
+ $1,017.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
+ $2,485.00
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
+ $5,493.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4302
1
3840.0000
