SYS-611C-TN4R
$4,068.00 Configured Summary
SYS-611C-TN4R
Supermicro 1U 4Bays Dual Processor Rackmount Server

  • Dual sockets E (LGA-4677) 5th and 4th Gen Intel®  Xeon® Scalable processors
  • 16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM
  • 2 PCIe 5.0 x16 FHHL;
  • 2 PCIe 5.0 x4 NVMe M.2
  • Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN

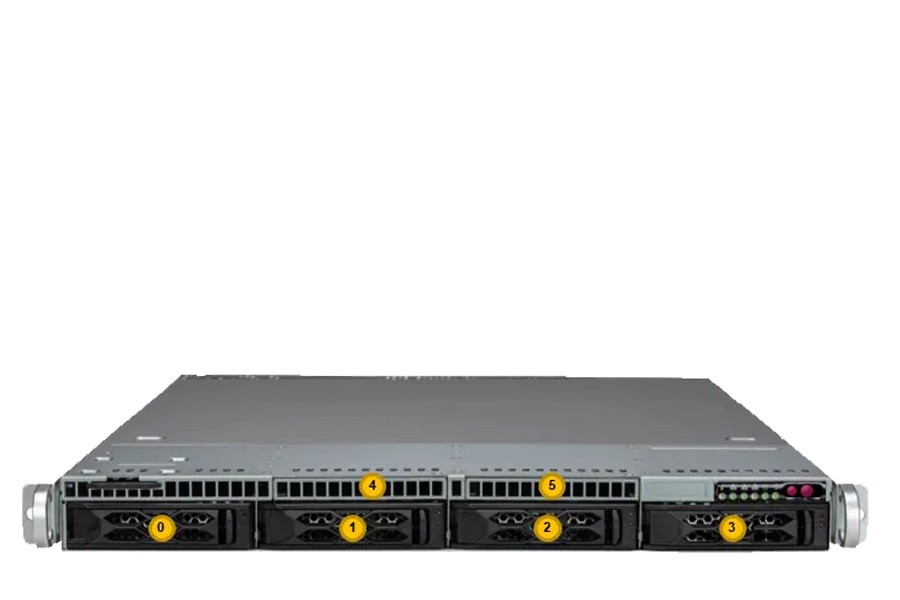

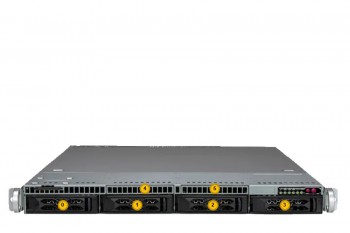

  • 4x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
  • 860W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  • 1 VGA, 1 COM, 2 USB 3.0 (rear)
  • Web Server, Firewall Application, Data Center Optimized, Value IaaS, Cloud Computing, Compact,  ServerDNS & Gateway Servers, Firewall Application, CDN, Edge Nodes

Storage configuration notice:
External:
4x 3.5" Hot-swap HDD Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC and 1 Drive).  NIC requirement can either be AIOM or PCIe card.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-611C-TN4R
Processor
CPU:
Dual Socket E (LGA-4677)
5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors

Core Count:
Up to 32C/64T; Up to 82.5MB Cache per CPU

Note:
Supports up to 270W TDP CPUs (Air Cooled)
Air Cooled CPUs with TDP over 250W only supported under specific conditions.
Memory
Memory:
Slot Count: 16 DIMM slots
Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1 V
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
25.6" (650mm)
Front Panel
Buttons:
Power On/Off
Reset button
Unit Identifier (UID)

LEDs:
Drive activity
Network activity
Power status
Universal Information
Bios
BIOS Type:
AMI 32MB SPI FLASH ROM
Onboard Devices
SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support

NVMe:
NVMe; RAID 0/1/5/10 support (*VROC is required)

Chipset:
Intel® C741

Network Connectivity:
with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options)

IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Note:
High TDP 200-400G NICs have support conditions due to thermal requirements.
HDD Drive Bays
Hot-swap:
4x 3.5" hot-swap NVMe/SATA/SAS drive bays (4x 3.5" NVMe hybrid) (Storage drives require additional cables from the optional parts list.)

M.2:
2x PCIe 5.0 x4
M-Key, 2280

Peripheral Bays:
2x 2.5" 7mm fixed drive bays (optional)
Expansion Slots
2 PCIe 5.0 x16 FHHL slot(s)
Power Supply
800W/860W 1U redundant power supply
Dimension (W x H x L):
54.5 x 40.25 x 322 mm


AC Input:
800W: 100-127Vac / 9A-7.5A / 50-60Hz
860W: 200-240Vac / 6A-4.5A / 50-60Hz


+12V:
Max: 66.6A / Min: 0A (100Vac-127Vac)
Max: 71.6A / Min: 0A (200Vac-240Vac)


5V SB:
Max: 4A / Min: 0A


Output Type:
Backplanes (gold finger)
Certification Platinum Level Certified

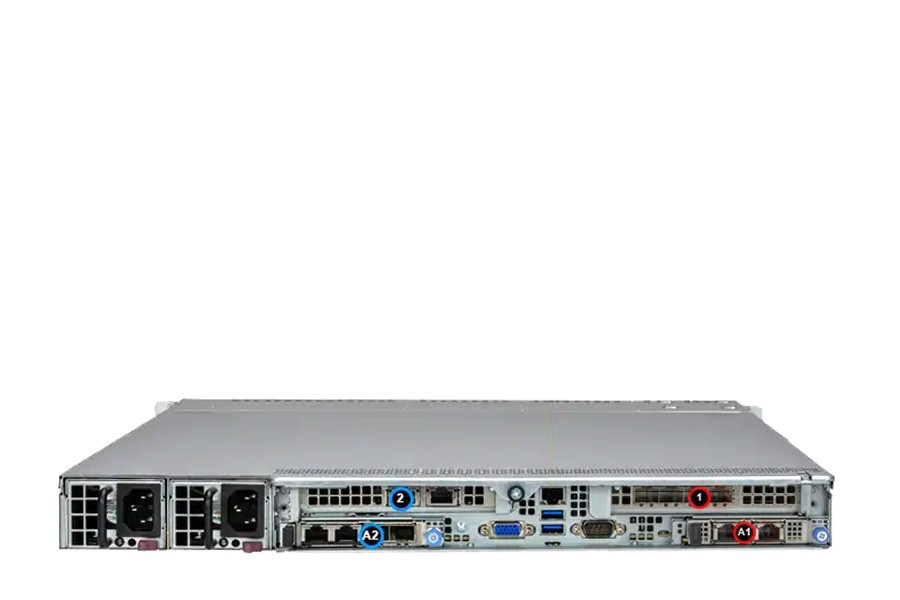

Input Output
LAN:
1 Dedicated IPMI LAN port

USB:
2 USB 3.0 port(s) (2 rear)

Video:
1 VGA port(s)

Serial Port:
1 COM Port(s) (1 rear)
Cooling
Fans:
6x 4cm heavy duty fans with optimal fan speed control
Air Shroud:
2 Air Shroud(s)
Operating Environment
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
SCC
Redfish API
IPMI 2.0
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations:
ACPI/APM Power Management
SYS-611C-TN4RSYS-611C-TN4RSYS-611C-TN4RSYS-611C-TN4RSYS-611C-TN4R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
+ $182.00
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Added
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
+ $1,560.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
+ $2,094.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
+ $1,014.00
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
+ $2,782.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
+ $4,576.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6426Y (2.50 GHz 185W)
+ $1,974.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
+ $6,656.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
+ $6,708.00
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
+ $7,800.00
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
+ $10,816.00
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
- $370.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
+ $144.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
+ $534.00
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
+ $1,808.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
+ $1,638.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
+ $1,314.00
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
+ $2,652.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
+ $2,366.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
+ $5,538.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
+ $6,916.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
+ $6,422.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
+ $5,746.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
+ $8,230.00
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
+ $7,866.00
MEMORY
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $136.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,120.00
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $248.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $2,332.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $396.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,380.00
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $348.00
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
- $140.00
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
+ $452.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $158.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 2TB
+ $230.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $466.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $861.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
(Optional) Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $85.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $156.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $170.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $456.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $586.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $1,171.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $2,341.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $209.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $365.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $716.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $1,366.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $2,731.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
+ $162.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $337.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $732.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $1,418.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $2,625.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $230.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $252.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $327.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $355.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $260.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $270.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $370.00
NETWORK CARD
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
- $145.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
- $118.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $122.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $48.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $30.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $448.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,038.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Added
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $100.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $136.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $187.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $221.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $260.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $234.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $271.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $317.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $395.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $369.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,423.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,735.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $1,904.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Fedora Linux Workstation Edition 64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
4311
1
1847.0000
